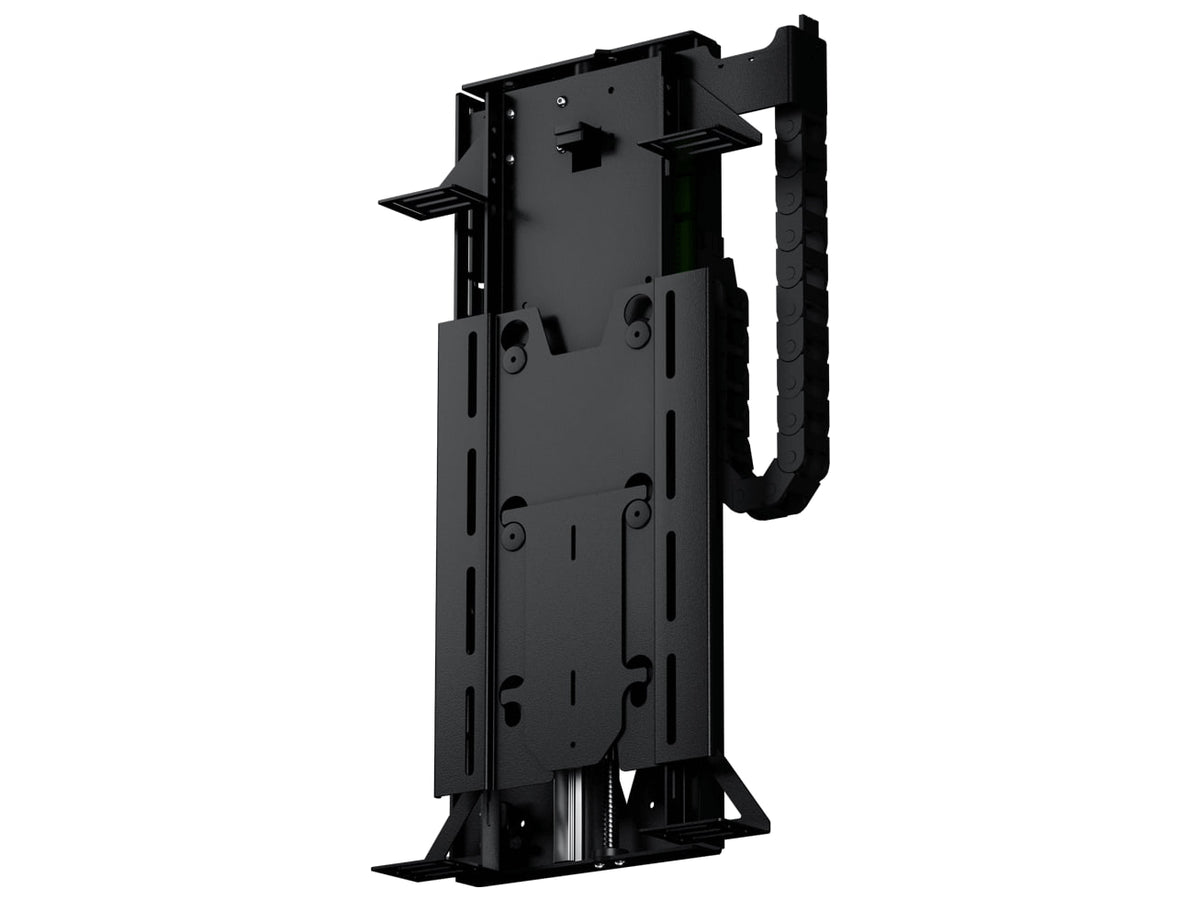

Motorised inverted TV lift that lowers the screen from the ceiling
The I-LSL is a TV lift of the inverted type: it keeps the screen hidden in a void above the ceiling and brings it down for viewing. It suits rooms that have no space for a permanent screen position. The product is also suitable for use in marine environments.
The lift comes in three sizes, which differ in maximum screen height. Movement is quiet and smooth, the cables are handled entirely by the mechanism and many mounting options are provided. The motor runs on 24 V DC and can be fed directly from a DC supply. The product is intended for indoor use.
Key features
- Maximum screen height: 410 mm (I-LSL1), 524 mm (I-LSL2) or 599 mm (I-LSL3)
- Maximum lifting capacity: 25 kg
- 24 V DC motor that can be fed directly from a DC supply
- Motorised movement, declared noise level 58 dB
- Complete cable management
- Control box measuring 150 x 210 x 50 mm
- Black RAL 9005 painted finish; custom finishes can be requested
Control and integration
The lift is compatible with the main home automation control standards, Crestron, AMX and Lutron among them, so it integrates into a smart home. It accepts IR, RS232 and contact closure commands; RF control can be added as an option.
Installation
The mechanism is installed in the ceiling void, from which the screen comes down for viewing. The size is chosen according to screen height: up to 410 mm for I-LSL1, up to 524 mm for I-LSL2 and up to 599 mm for I-LSL3. For bigger screens Future Automation offers inverted lifts of a larger class.
