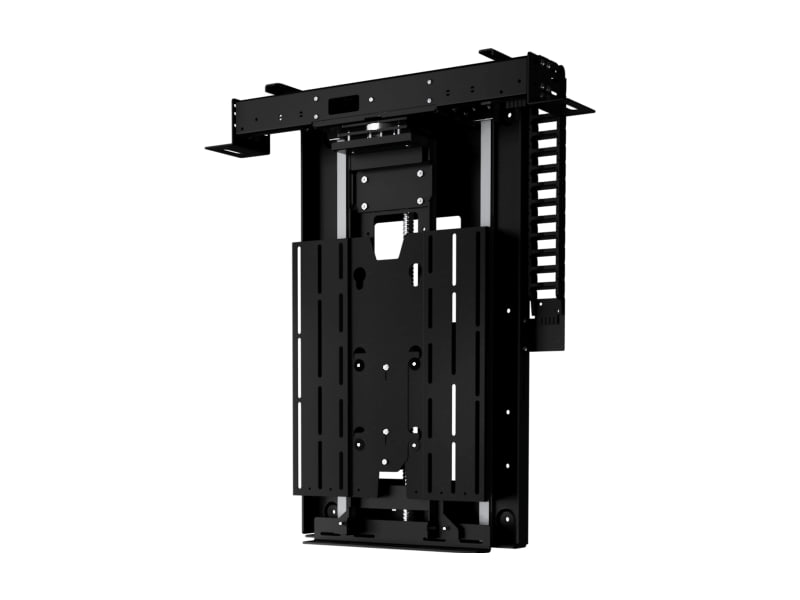

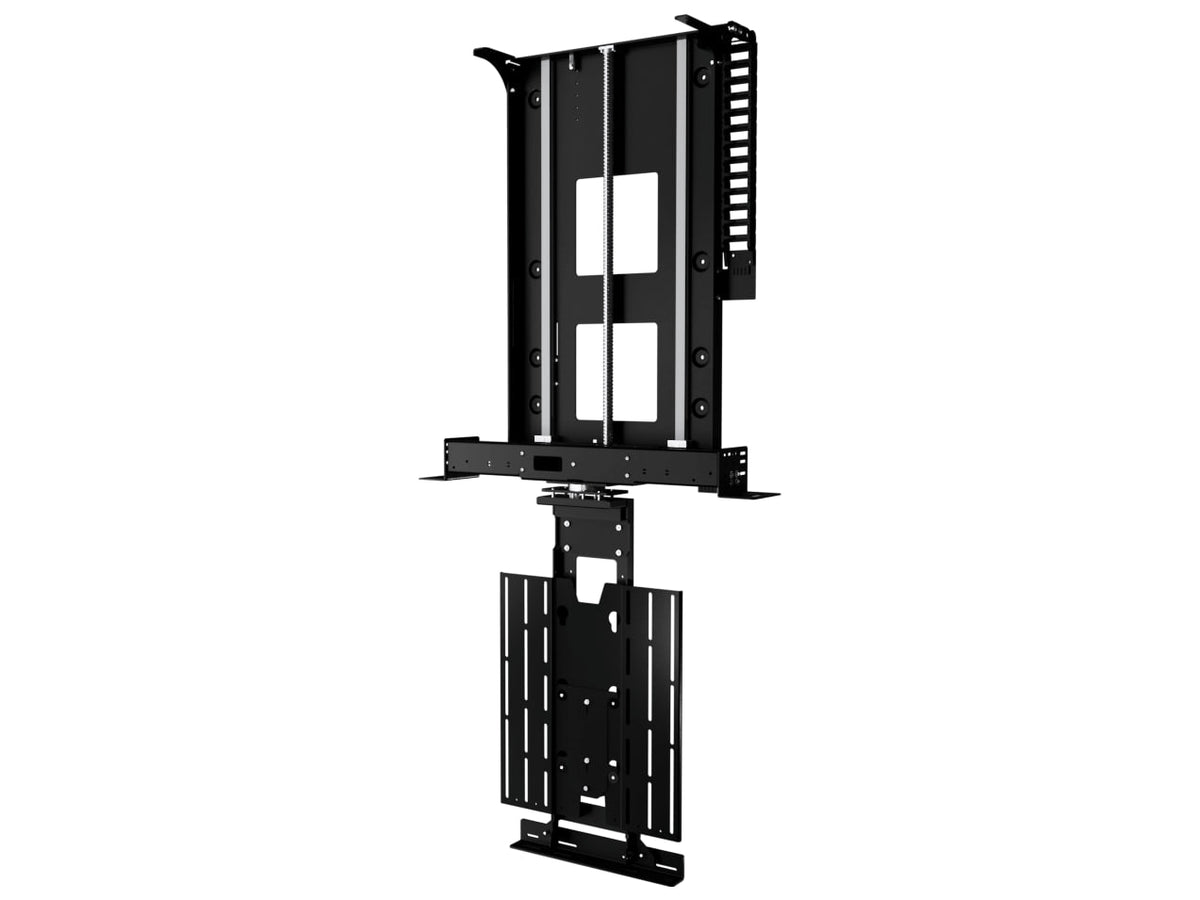

Motorised inverted TV lift for medium-sized screens
The I-LSM is a TV lift of the inverted type: it keeps the screen hidden in a void above the ceiling and brings it down for viewing. It suits rooms that have no space for a permanent screen position. The product is also suitable for use in marine environments.
Movement is quiet and smooth, the cables are handled entirely by the mechanism and many mounting options are provided. The motor runs on 24 V DC and can be fed directly from a DC supply. The lift is delivered as standard with the fixings for a box enclosure. The product is intended for indoor use.
Key features
- Maximum lifting capacity: 50 kg
- Sizes: I-LSM4 (TVs of roughly 42" to 50"), I-LSM5 (roughly 50" to 55"), I-LSM6 (roughly 55" to 60"), I-LSM7 (screens up to 915 mm high) and I-LSM8 (screens up to 75")
- 24 V DC motor that can be fed directly from a DC supply
- Motorised movement, declared noise level 52 dB
- Complete cable management
- Control box measuring 150 x 210 x 50 mm
- Black RAL 9005 painted finish; custom finishes can be requested
Control and integration
The lift is compatible with the main home automation control standards, Crestron, AMX and Lutron among them, so it integrates into a smart home. It accepts IR, RS232 and contact closure commands; RF control can be added as an option.
Installation
The mechanism is installed in the ceiling void, from which the screen comes down for viewing. The size has to be chosen according to the screen being fitted. For bigger screens Future Automation offers a heavy-duty inverted lift.
