Motorised TV lift for mid-sized screens, hidden inside the cabinet

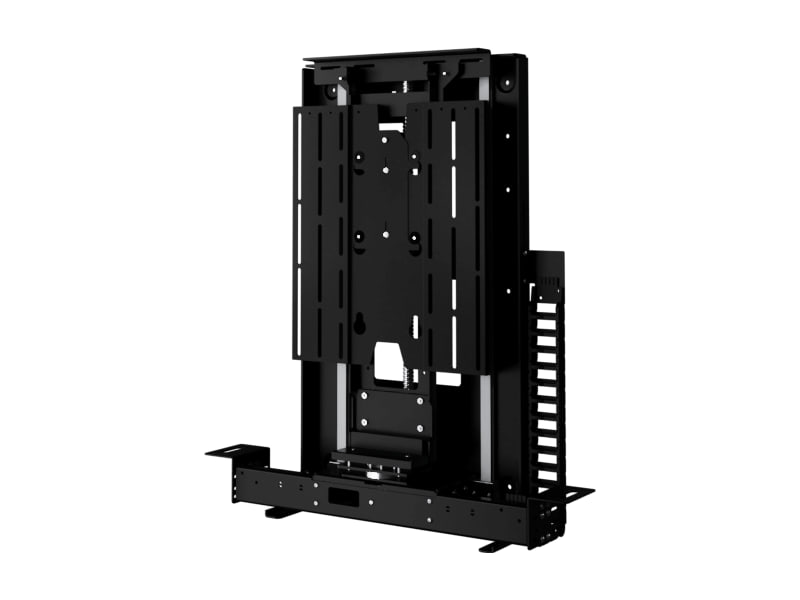

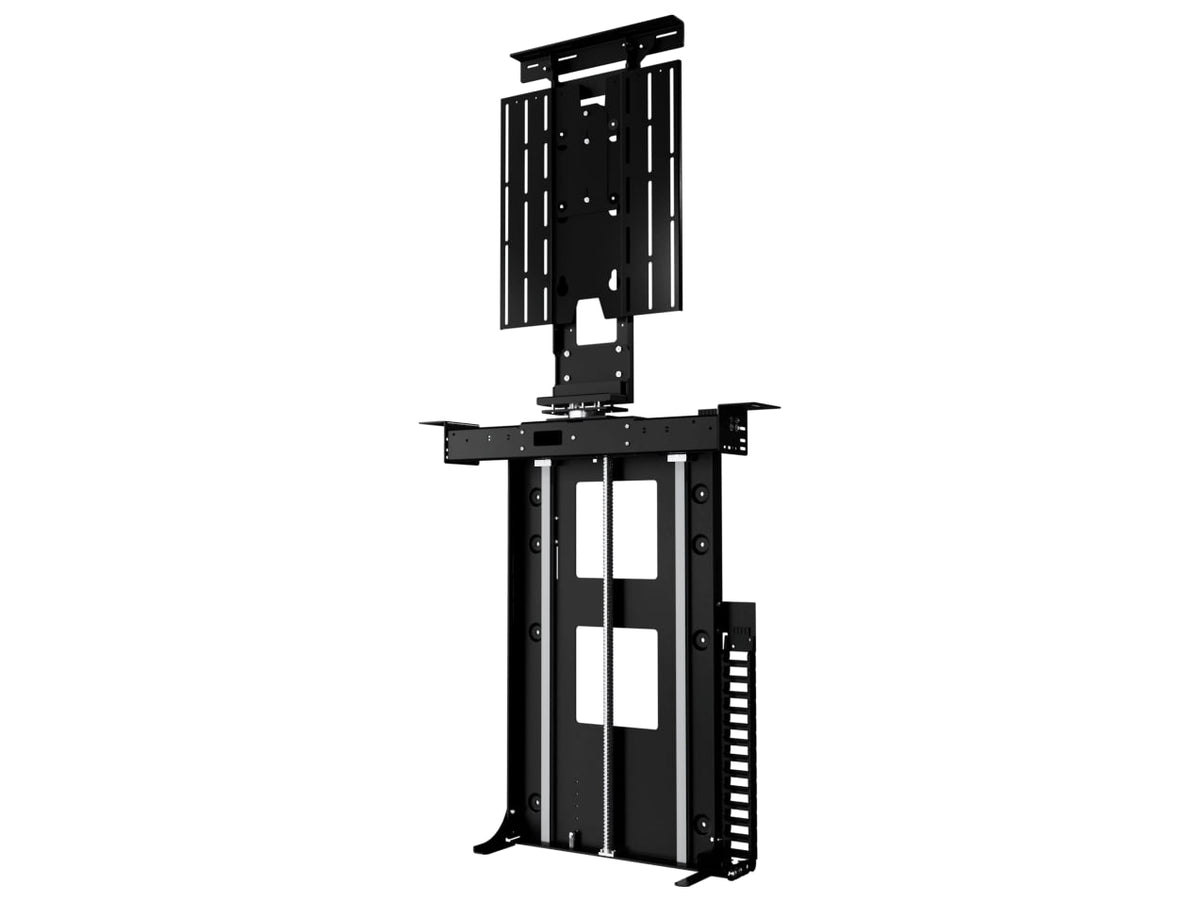

The Future Automation LSM (Lift System Medium) keeps a screen out of sight inside a cabinet and brings it up with a smooth movement whenever it is wanted. It comes in four sizes and carries 50 kg at most.
It is aimed at residential, marine and commercial projects, pairing quiet running and a healthy lifting capacity with simple integration into made-to-measure furniture. Its capacity makes it a sound choice for the living room or media room, where bigger screens tend to be installed. Fixings for a box enclosure as well as for a push flap are part of the standard supply, so either lid solution can be chosen.
Key features
- Four sizes, for screens no taller than 670 mm, 730 mm, 800 mm or 910 mm
- Maximum load: 50 kg, reduced to 30 kg in marine installations
- Stated noise level: 52 dB
- Direct compatibility with the universal USM speaker mount, for fitting a soundbar or a speaker
- Sturdy lifting beam rated for marine use
- Black painted finish, RAL 9005
- 12 V power output; runs on a 240 V or 110 V supply
Available sizes
The LSM4 takes screens with a height of 670 mm at most (about 42"-50") and needs 820 mm of internal cabinet height; the LSM5 reaches a 730 mm screen height (about 50"-55") with 880 mm inside the cabinet; the LSM6 reaches 800 mm (about 55"-60") with 950 mm inside the cabinet; the LSM7 is for screens no taller than 910 mm.
Control and integration
Out of the box the mechanism accepts IR, RS232 and contact closure commands, while RF control is optional. It can be installed as a standalone unit or tied into AV control and home automation systems. The control box measures 150 x 210 x 50 mm.
Environments
The LSM is an indoor mechanism and is rated for marine use: it can be fitted inside boats and yachts without extra hardware, with a maximum load of 30 kg.
