Articulated TV wall mount in anodised aluminium with marine lock

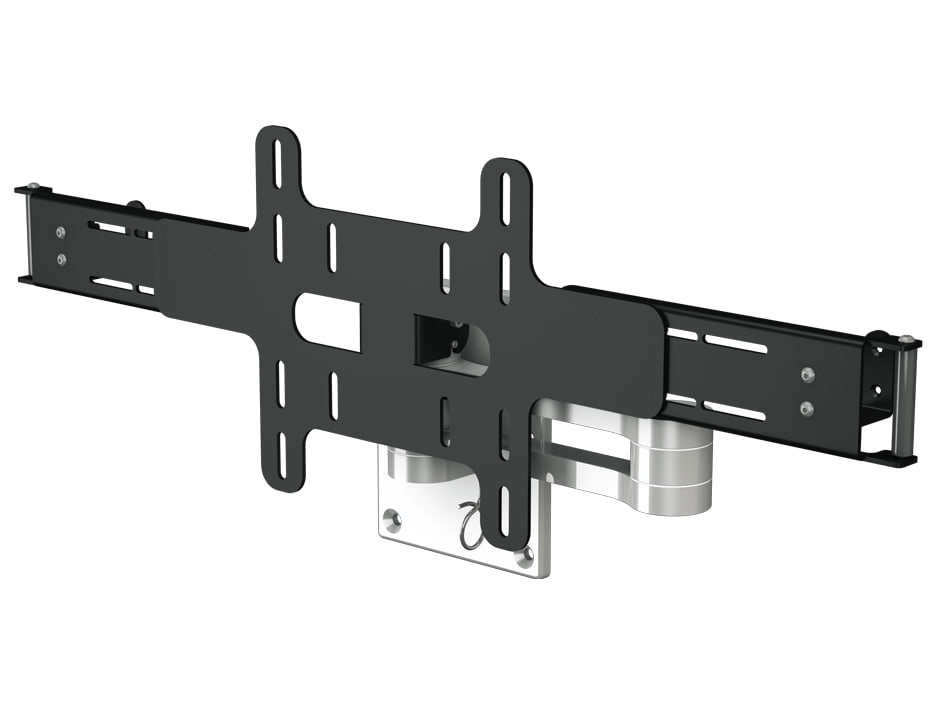

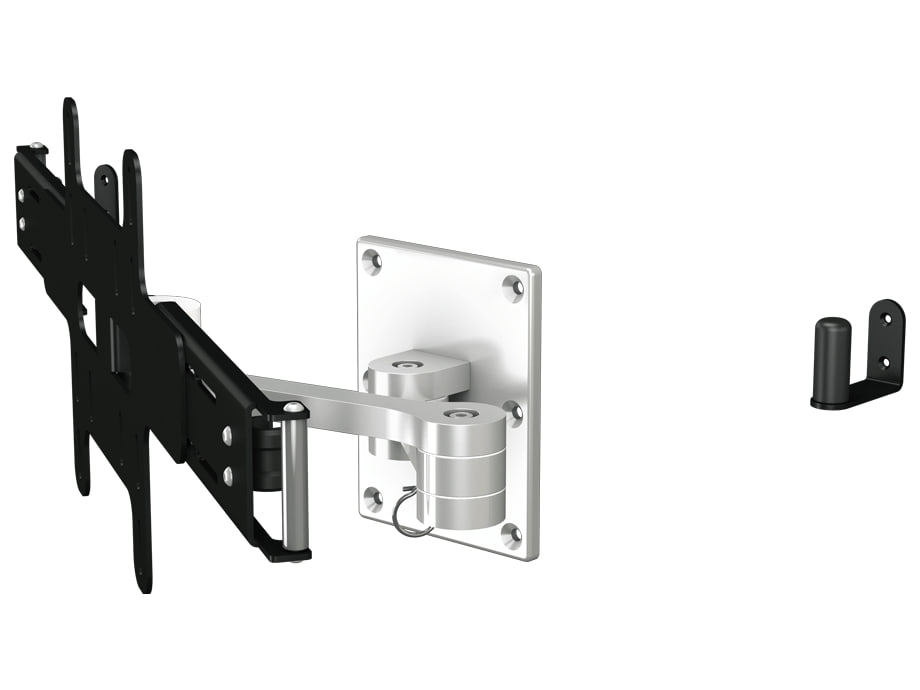

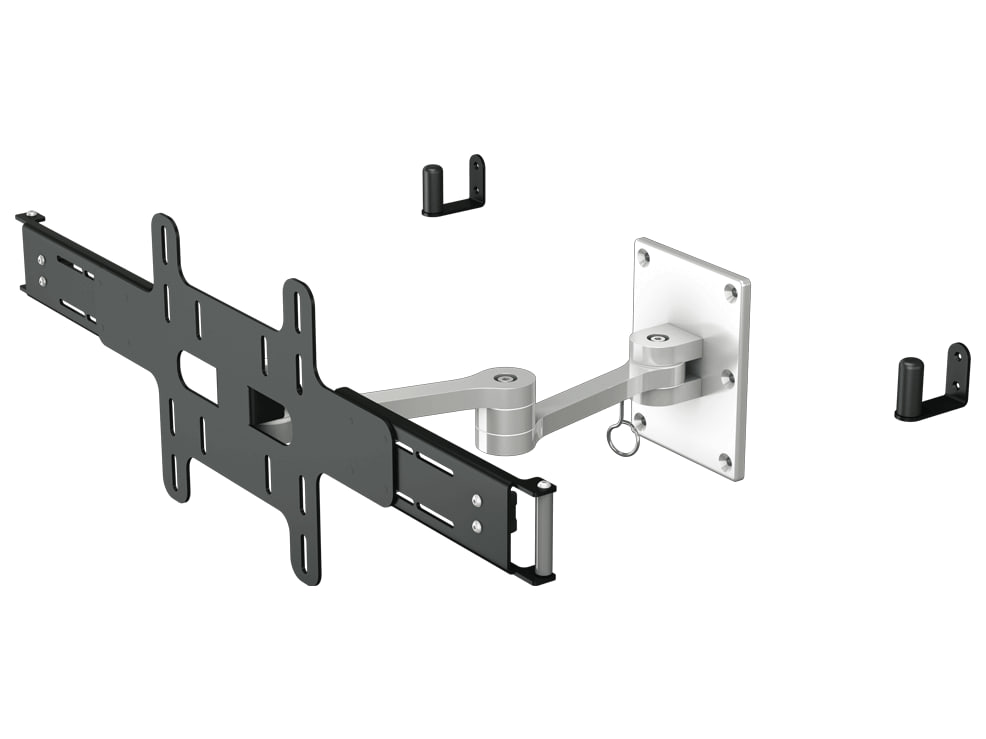

M-FSA2 is the Future Automation double-arm wall bracket intended for boats: it swivels the screen to both sides, tilts it and locks it in position when it must not move.
Movement is manual. The two arms let the screen come right away from the wall and turn either way, so it can be watched from several angles. The bracket is made of anodised aluminium.
Key features
- Marine lock system that holds both screen and bracket still
- Swivel of as much as 180° to each side, depending on how wide the screen is
- 10 kg maximum load
- 486 mm maximum reach from the wall
- 74 mm minimum depth from the wall
- VESA 100 and 200 fixings
- Anodised aluminium finish
Marine lock
The marine lock system fixes the screen and the bracket in position so that they cannot move: this is what makes M-FSA2 appropriate for use on board.
Environments
M-FSA2 is suitable for marine use, indoors only: it is not meant for installation in the open air. The largest screen that can be fitted depends on the weight of the television and on the rotation angle required.
