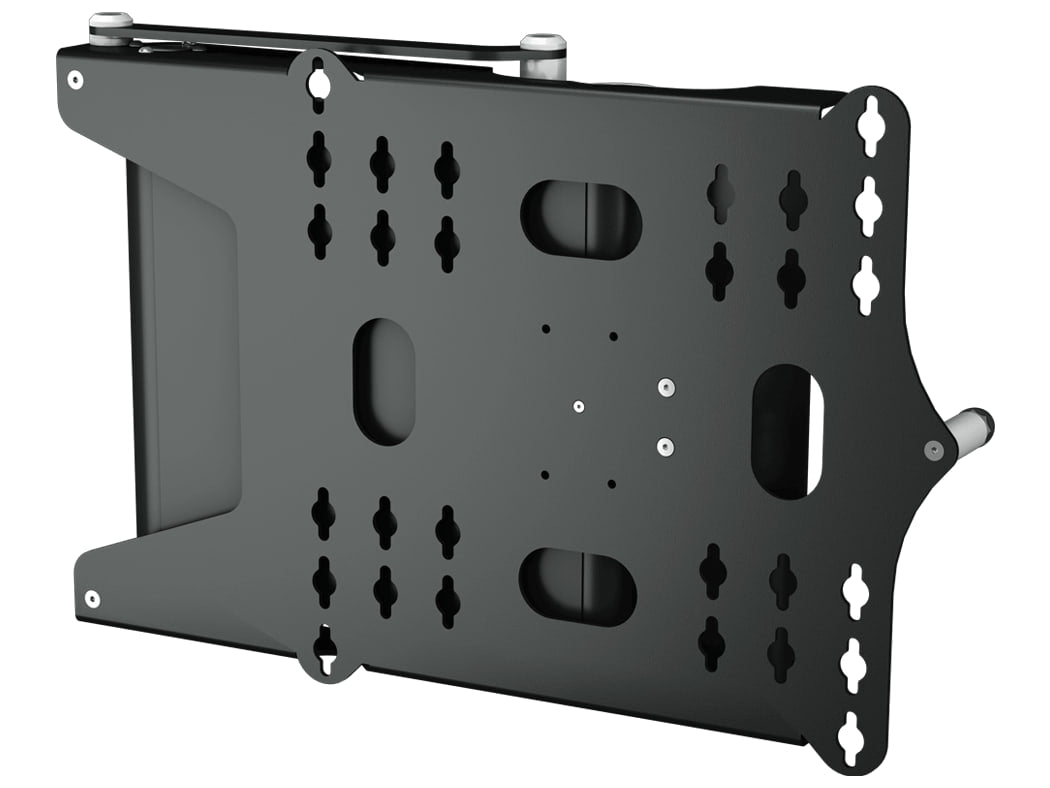

Motorised swing-arm TV bracket for boats, with a built-in marine lock
M-PSE90 is an electric TV bracket dedicated to marine use, which turns larger flat-screen televisions as far as 90° to one side only.
A built-in marine lock secures the bracket against the wall whenever it is away from a viewing position. The movement is smooth, the cables are managed by the mechanism and the mounting plate is tidy; several mounting options allow each screen to be fixed as neatly as it can be.
Key features
- Motorised rotation of as much as 90° to one side, clockwise or counter-clockwise depending on the version
- Built-in marine lock
- 60 kg maximum load
- 80 mm minimum depth from the wall
- Quiet, smooth movement at variable speed, with a noise level of 52 dB
- Electronics on board and complete cable management
- Satin black RAL 9005 finish, with custom finishes on request
Control and integration
M-PSE90 is operated by IR, by contact closure or by RS232; RF control can be had as an option. The power supply required is 110 V - 240 V AC.
Size and load
The bracket carries as much as 60 kg. For the complete 90° turn the screen can be no wider than 1100 mm. The body of the bracket measures 444 x 687 mm, with a depth of 80 mm, and weighs 22 kg.
Environments
M-PSE90 is suitable for marine use, indoors only. It is not meant for installation in the open air.
