Heavy duty TV lift with swivel, marine suitable

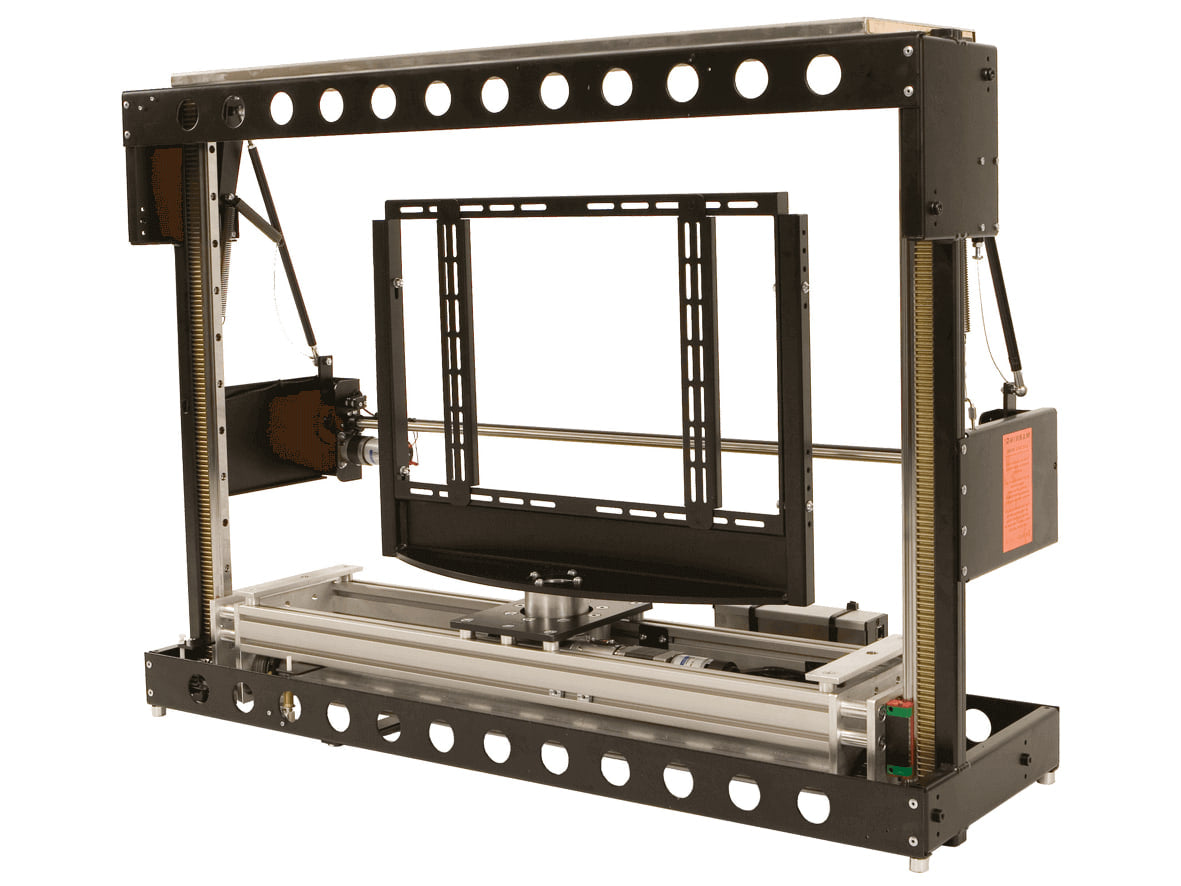

MLS is a motorised Future Automation TV lift with full rotation in both directions, made to measure for screens from 32" to 75".
Lifting relies on a rack and pinion drive and on guides that keep the movement smooth and sturdy. The flap is the drop & roll flap also found on the Future Automation Plasma Lift range. Thanks to its heavy duty swivel unit, MLS is suited to marine installations indoors, to large screens above 65" and to cases where a deep speaker or a videoconference camera is fitted together with the screen.
Key features
- Built to the exact screen size, 32" to 75"
- Rotation reaching 180° per side
- Rack lifting with positive drive
- Precise, smooth-running guide system
- Drop & roll flap
- Complete cable management
- Bespoke frames for speakers and screens of greater depth
Technical data
The screen may weigh up to 50 kg and be up to 140 mm deep. Movement is motorised and the declared noise level is 65 dB.
Control and integration
MLS can be operated through contact closure, IR or RS232 commands, and RF control is available as an option.
Environments
MLS is for indoor use and is marine suitable: Future Automation indicates it for marine applications indoors.
