Motorised in-wall hinge mechanism for projectors

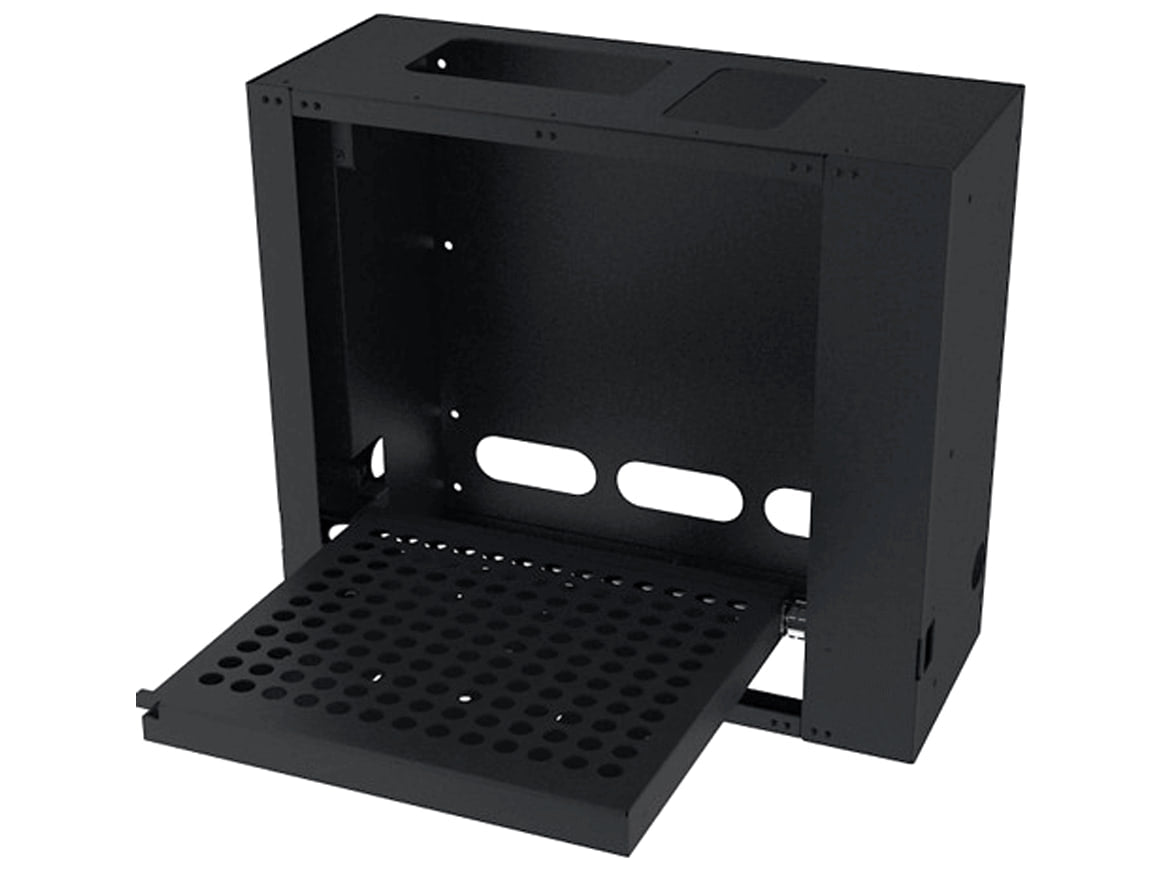

The PH2 is the Future Automation Projector Hinge mechanism: it is installed inside a wall and swings the projector on a hinge to bring it into its projection position. It answers home cinema installations where ceiling mounting cannot be done or where ceiling height is a problem.
The mechanism takes up little depth and is offered in one standard size, which suits the great majority of home cinema projectors. Movement is quiet and smooth, and both look and finish are discreet. The projector is fixed to a universal mounting grid and the cables are handled by the mechanism. The product is intended for indoor use.
Key features
- Installed inside the wall
- Maximum opening angle of the hinge: 90°
- Maximum projector weight: 15 kg
- Universal mounting grid with complete cable management
- On-board electronics, with an external control box on a 3 m loom
- Declared noise level: 59 dB
- Black RAL 9005 painted finish; custom finishes can be requested
Control and integration
The mechanism accepts IR, RS232 and contact closure commands; RF control can be added as an option. The control box is external and is linked to the mechanism by a loom 3 m long.
Installation
The Projector Hinge is designed to be straightforward to fit in the wall. The universal grid takes different projectors and cable management is complete; the hinge reaches a maximum angle of 90°.
