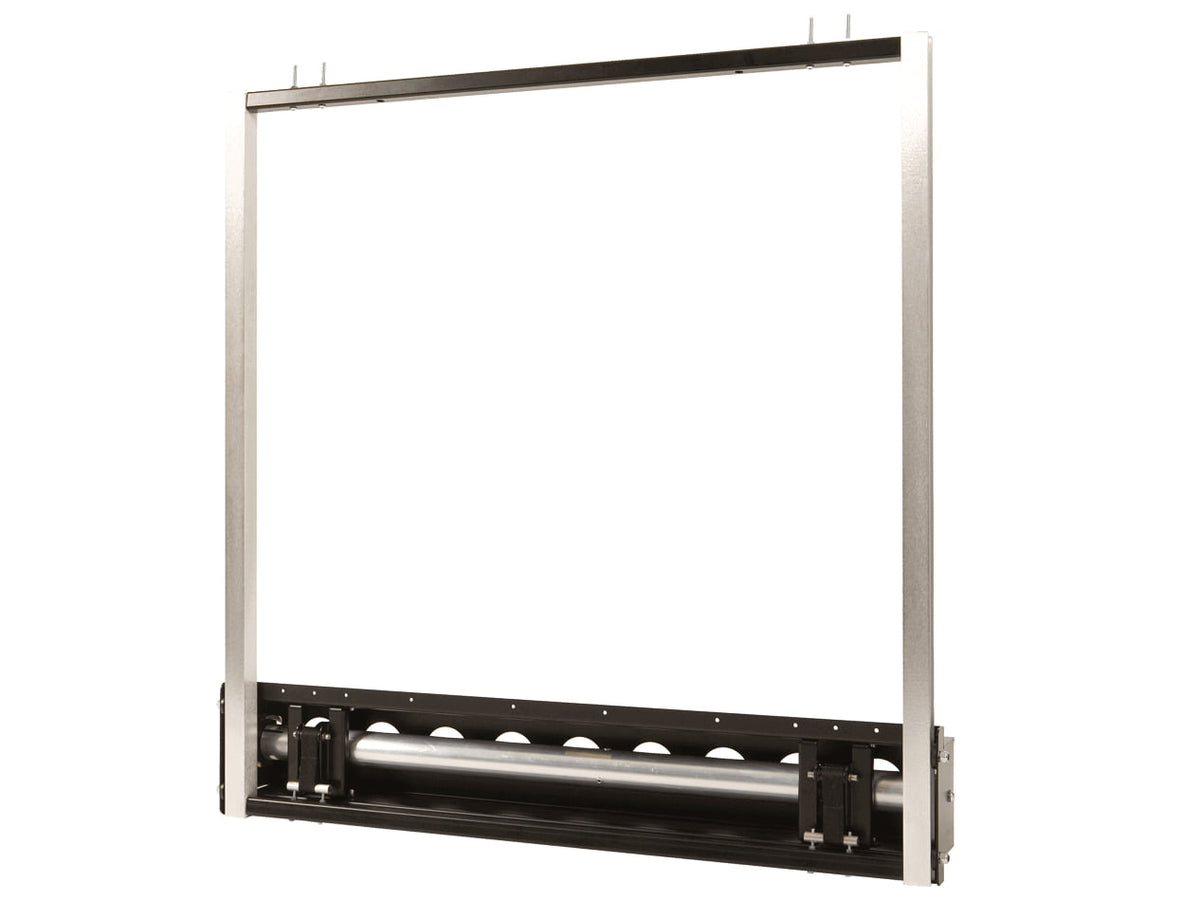

Heavy-duty motorised mechanism that hides a screen behind a picture or mirror
The PIC-H is the Picture Lift mechanism in its heavy-duty version: it lets a flat screen be hidden inside a recess, with a heavy artwork or a mirror in front of it. The single panel, whether picture or mirror, travels up or down and uncovers the screen.
The mechanism is enclosed in a complete sheet-metal cassette, which keeps installation in the wall simple; there it takes up 80 mm of depth. The choice of travels makes it possible to hide screens from 32" to 65". Movement is smooth and quiet, and the mechanism can be paired with a motorised bracket. The product is intended for indoor use.
Key features
- Maximum panel travel: 710 mm (PIC-H1), 860 mm (PIC-H2) or 1010 mm (PIC-H3)
- Maximum panel weight: 35 kg
- Depth inside the wall: 80 mm
- For screens from 32" to 65"
- Motorised movement, declared noise level 59 dB
- Complete cassette in sheet metal
- Black RAL 9005 painted finish; custom finishes can be requested
Available sizes
The standard travels match models PIC-H1, PIC-H2 and PIC-H3. Future Automation also builds made-to-measure versions, with travel and panel weight defined by the project.
Control and integration
The mechanism accepts IR, RS232 and contact closure commands; RF control can be added as an option.
Installation
The panel can be installed so that it travels upwards or downwards, according to the layout of the wall. Behind the panel the installer can fit a fixed bracket, which keeps the installation very slim, or a motorised mount, which brings the screen forward and turns it; a motorised mount has to be specified at the time of ordering, so that compatibility with the PIC-H is guaranteed.
