Motorised TV lift with hinge for corner cabinets

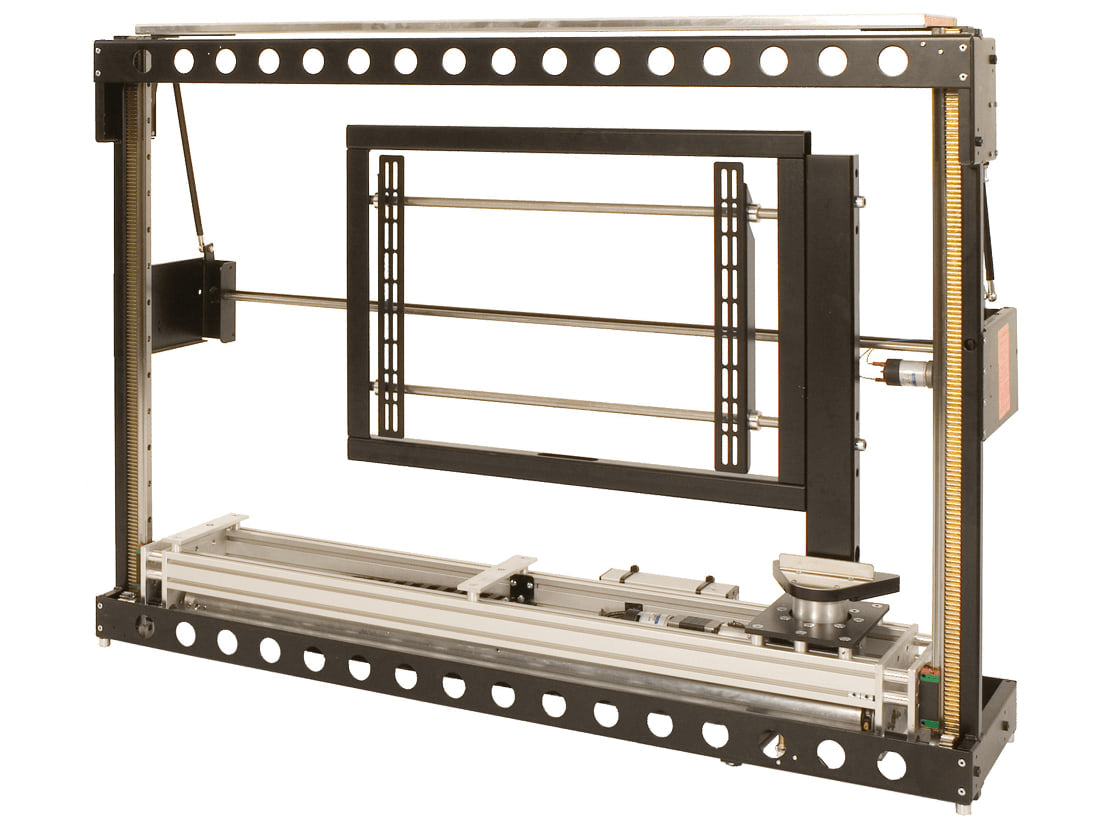

PLH is a Future Automation mechanism that raises the screen out of a cabinet and swings it on a hinge into the room; it is made to measure for screens from 32" to 65".
It is intended for cabinets placed in a room corner: once raised, the screen turns by as much as 90° in one direction only and reaches the wanted viewing position. When not needed, the television goes back into the cabinet. The flap is motorised and works on the drop & roll flap principle.
Key features
- Built to the exact size of the chosen screen
- Rotation reaching 90°, one way
- Motorised drop & roll flap
- Complete cable management
- Screen weight up to 25 kg, screen depth up to 70 mm
- Declared noise level 59 dB
- Hand-built construction
Control and integration
PLH can be operated through contact closure, IR or RS232 commands, and RF control is available as an option. Movement is motorised and the mechanism runs on a 240 V or 110 V supply.
Environments
PLH is for indoor use. The rotation, added to the lifting, serves to bring the screen discreetly into the best viewing position whenever the cabinet has to sit in a corner. Future Automation presents the combination of lift and hinge as a concept of its own.
