PLI made-to-measure inverted ceiling TV lift fitted with a drop & roll flap

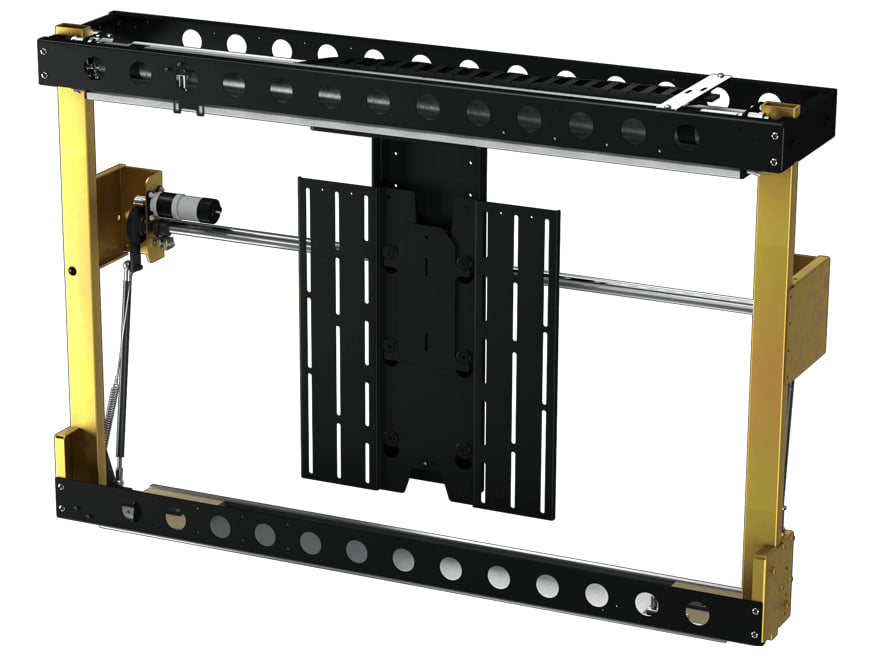

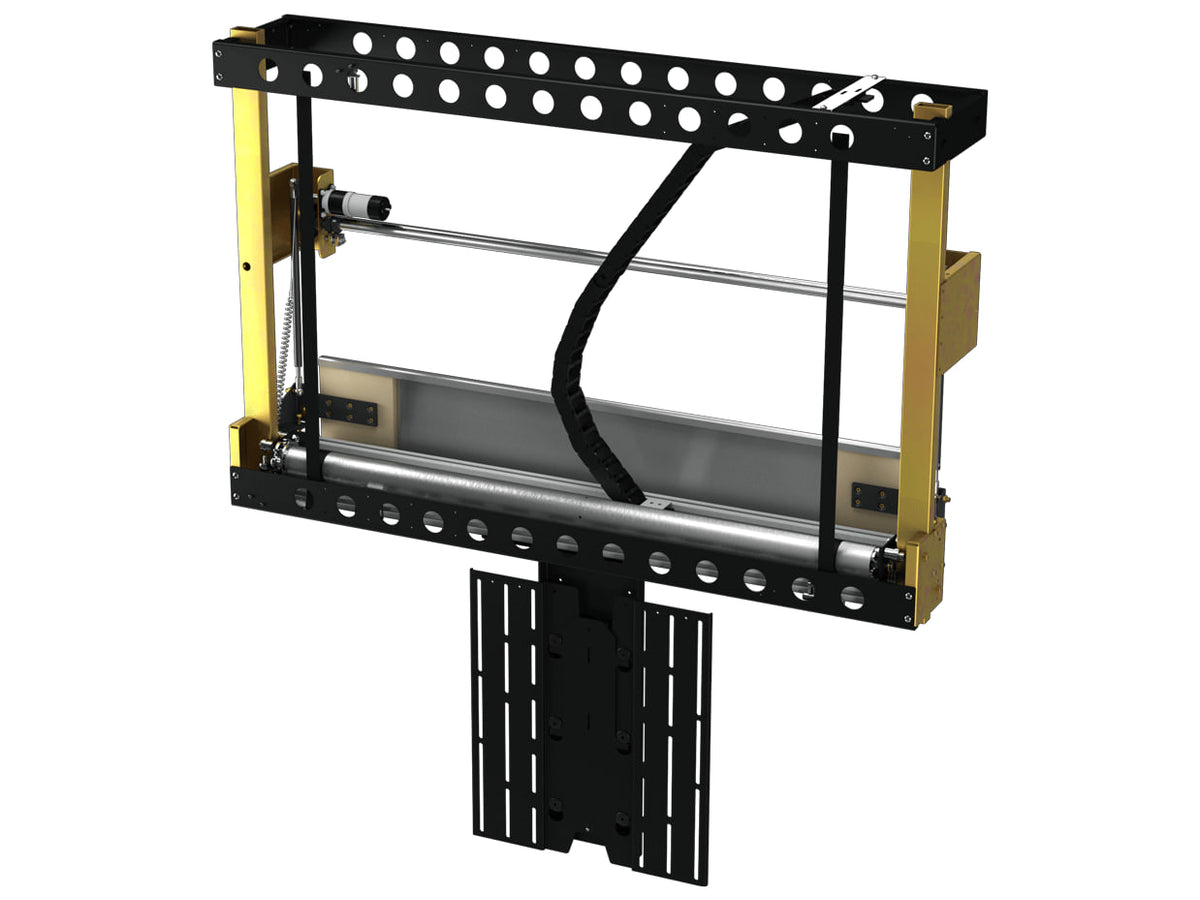

PLI is a motorised inverted TV lift by Future Automation: it keeps the screen hidden in the ceiling cavity and lowers it when it is time to watch. Every unit is built to measure, around the exact dimensions of the television it is meant for.
The mechanism is installed in the cavity above the ceiling and works together with the drop & roll flap, the integrated flap that Future Automation presents as the distinguishing element of the PLI and to which it credits the look of the ceiling installation. Cables are managed in full by the mechanism, and the unit is built by hand.
Key features
- Motorised inverted TV lift for a ceiling cavity
- Mechanism with integrated drop & roll flap
- Made to measure around the exact dimensions of the screen
- Complete cable management
- Maximum screen depth: 155 mm
- Maximum supported weight: 50 kg
- Built by hand
Control and integration
The PLI is controlled through IR, RS232 and contact closure; RF control can be had as an option. For the power supply, either 240 V or 110 V is provided for.
Installation
Future Automation rates the PLI for indoor use. Because the lift is sized around the individual television, the dimensions and weight of the shipment are variable and depend on the chosen screen; the fixed limits are 155 mm for the depth of the television and 50 kg for its weight. For design and fitting, the manufacturer supplies a technical sheet and an instruction manual specific to the PLI.
