PLIS inverted TV lift with swivel and drop & roll flap, sized for screens from 32" up to 60"
PLIS is the Future Automation inverted ceiling TV lift that adds a swivel to the vertical descent: the screen, between 32" and 60", stays hidden in the ceiling cavity, comes down for viewing and can be turned in both directions.

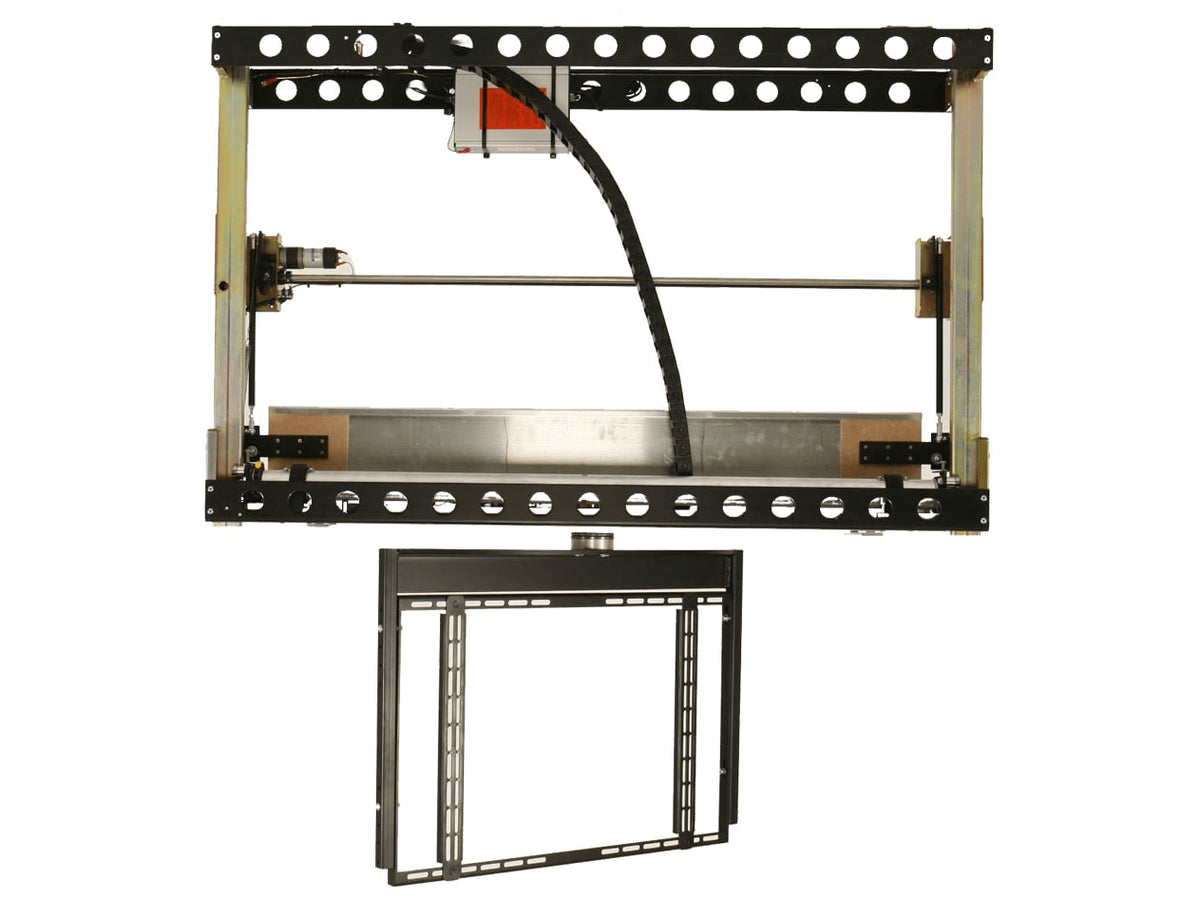

The motorised mechanism is installed in the cavity above the ceiling and works with the integrated drop & roll flap. On top of the vertical travel there is a full two-way swivel, which lets the television be watched from several positions while keeping the installation as discreet as possible. Every PLIS is built by hand and to measure.
Key features
- Motorised inverted TV lift with swivel, for a ceiling cavity
- Maximum swivel of 180° on each side
- Mechanism with integrated drop & roll flap
- Made to measure around the exact dimensions of the screen
- Complete cable management
- Maximum screen depth: 130 mm
- Maximum supported weight: 50 kg
Control and integration
The PLIS accepts IR, RS232 and contact closure commands, and can be requested with RF control. The power supply provided for is 240 V or 110 V.
Installation
Future Automation rates the PLIS for indoor use. The lift is sized around the television to be installed, so the dimensions and weight of the shipment are variable; the fixed limits for the screen are 130 mm of depth and 50 kg of weight. For design work, the manufacturer makes the PLIS technical sheet available.
