Manual articulated TV wall bracket with scissor arm
PS is the Future Automation wall bracket that lets a screen be pulled out from the wall and turned by hand in both directions; it works as a viewing bracket and as a maintenance bracket alike.

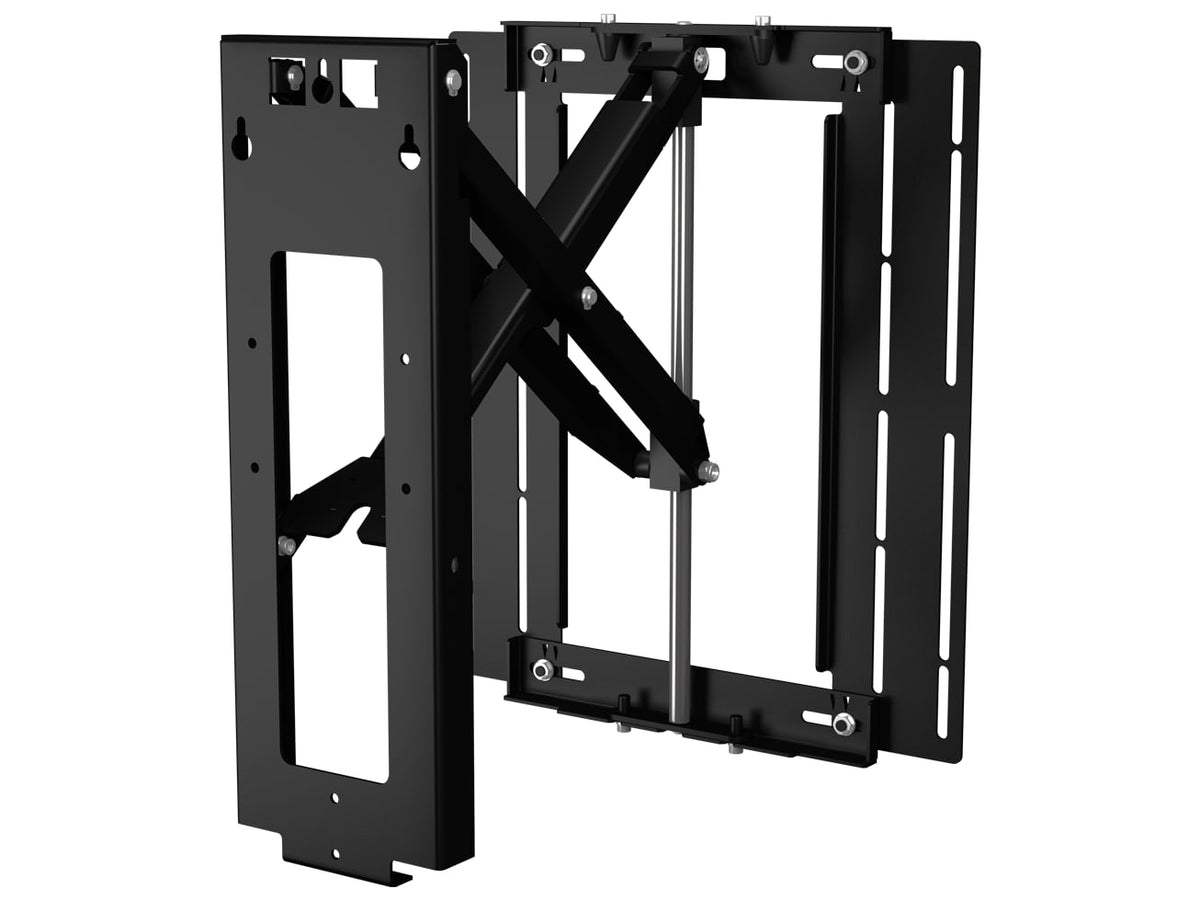

The scissor arm keeps the movement parallel while the screen is drawn away from the wall, and lets it be handled with one hand even when the screen is heavy. The screen mount hooks on and off, so a single person can do the fitting. The range was developed for the custom installation market and is for indoor use.
Key features
- Manual movement with swivel both ways: up to 50°, or up to 45° on PS80, depending on how wide the screen is
- Load of 60 kg for PS32, PS40, PS55 and PS65; 120 kg for PS80
- Minimum depth off the wall of 55 mm, or 84 mm for PS80
- Built-in anchors for cable ties, with ties included, on models up to PS65
- Fixes to a single stud; the separately sold PS-SRK kit allows fixing across two studs (models up to PS65)
- Satin black RAL 9005 finish, with custom finishes possible
- PS80 built in solid steel
Available sizes

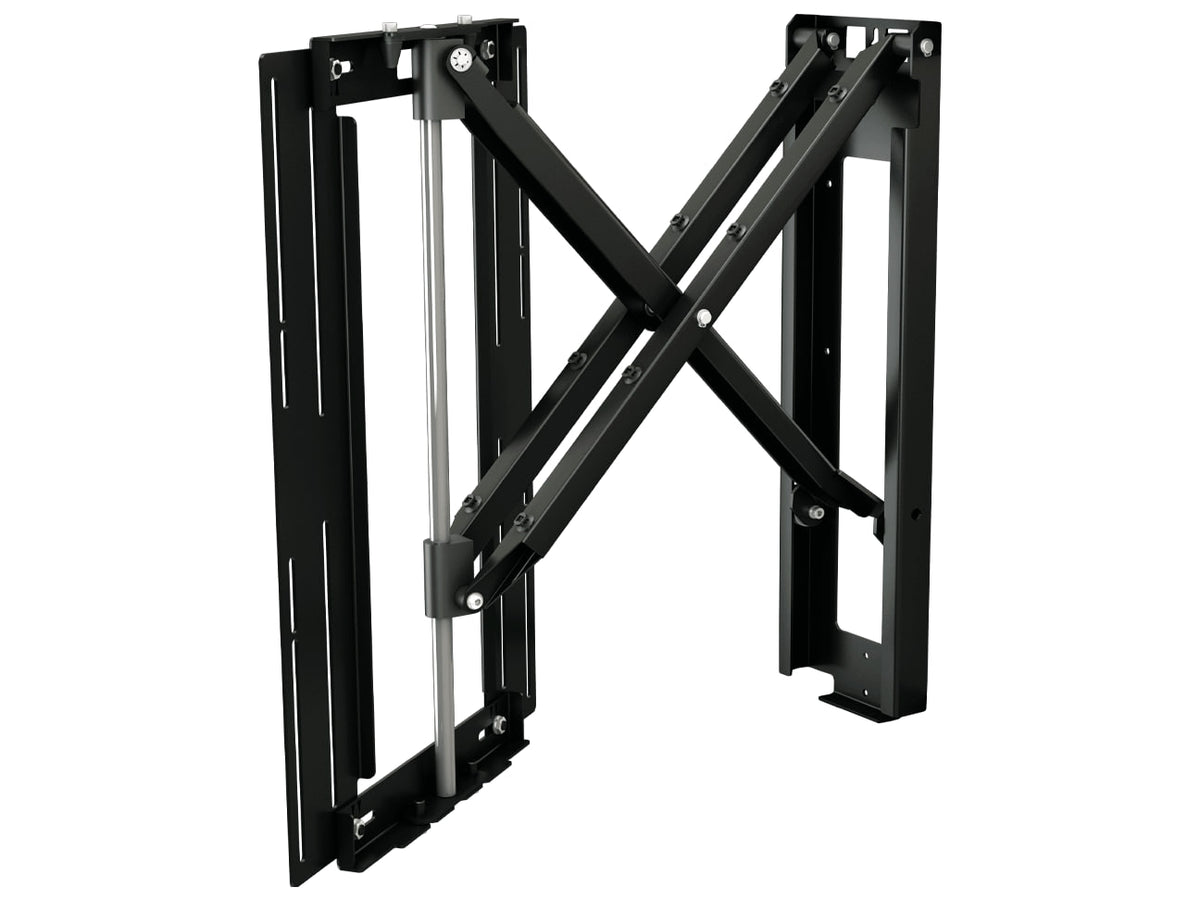

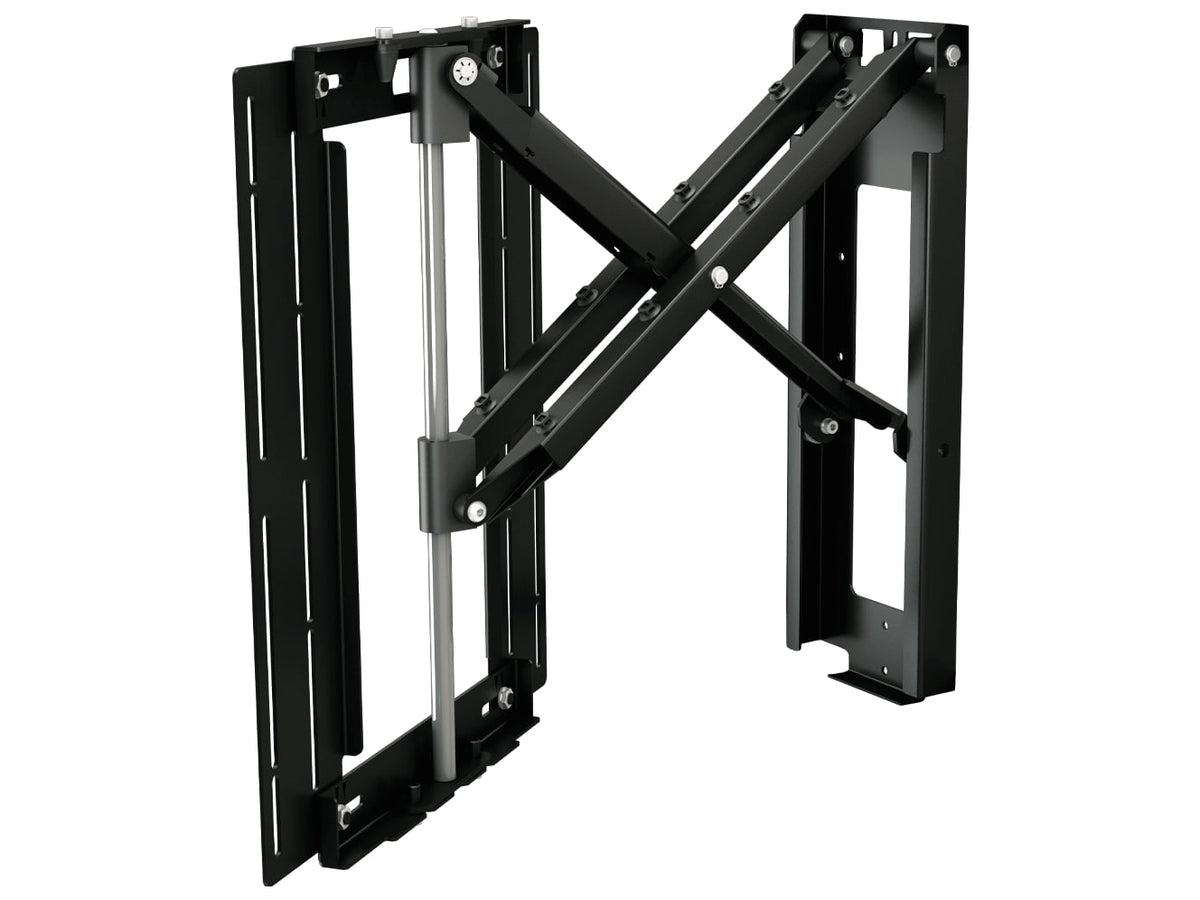

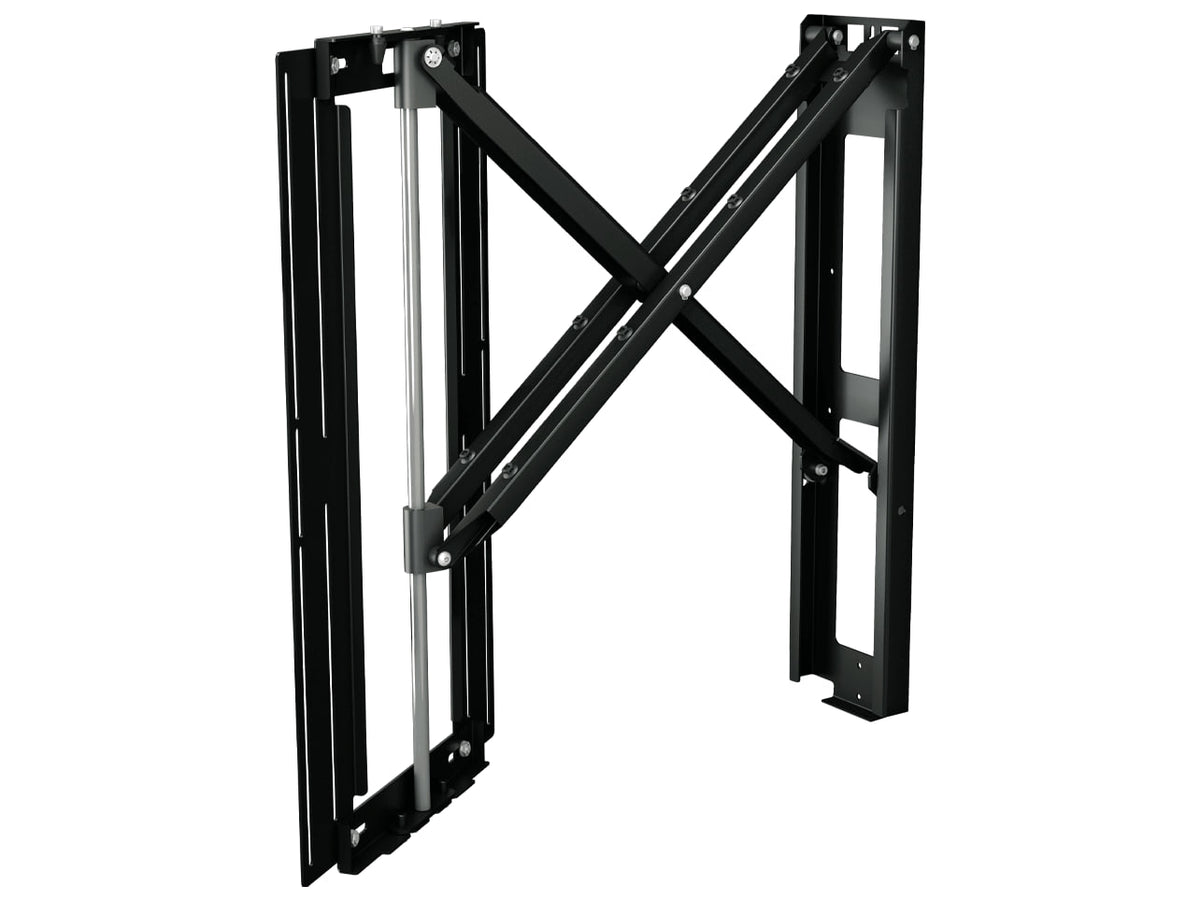

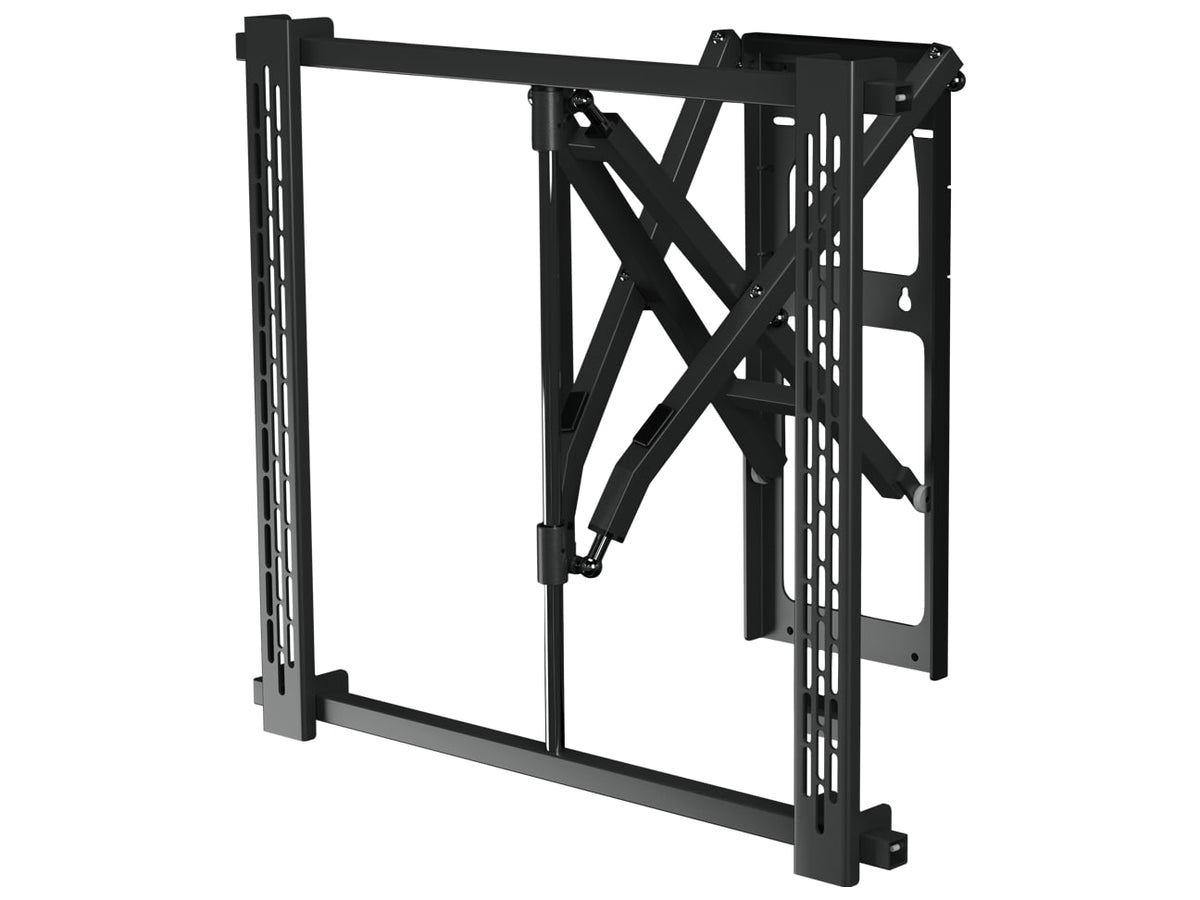

PS40 is for 40" to 75" screens and extends up to 400 mm off the wall; PS55 is for 55" to 75" screens, with 500 mm of extension; PS65 is for 65" to 75" screens, with 595 mm; PS80 is for 80" to 110" screens, with 569 mm. PS32 extends up to 300 mm. On every model the largest screen size depends on the weight and on the rotation angle wanted.
Installation
The bracket goes straight onto the wall or is recessed, which brings the screen nearer to the wall: the WB box is for single stud walls, the UB box for twin stud walls. On PS40, PS55 and PS65 a sound bar can be fitted over or under the screen using the universal speaker mount USM, sold separately.
