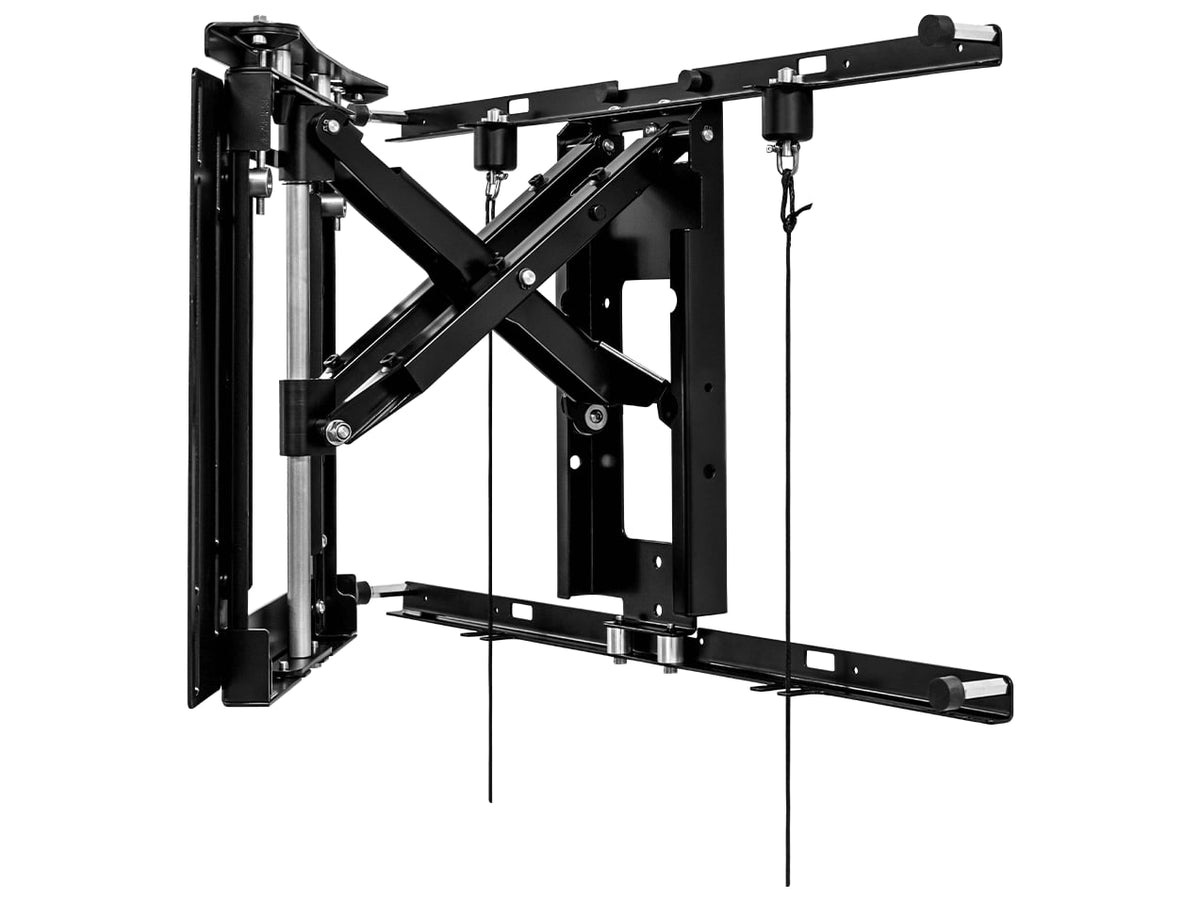

Manual articulated TV wall bracket for outdoor and marine settings
The PS-MO is a manual service bracket that lets AV integrators get quickly to the back of a display for servicing and maintenance, with the screen left on the wall, in projects out of doors or on board. Five sizes are offered, covering screens from 32" to 110".
Pulling the cords frees the spring-loaded catches along the top edge: the bracket comes forward and swivels without restraint, and a technician can get to the inputs, the outputs and any AV equipment fixed at the rear. After servicing, the lock keeps the television pressed firmly to the wall. The scissor arm makes the motion smooth and safe.
Key features
- PS32-MO: 32" to 43" screens, reaches 300 mm, swivels as much as 50°, carries 60 kg
- PS40-MO: 40" to 75" screens, reaches 400 mm, swivels as much as 45°, carries 60 kg
- PS55-MO: 55" to 75" screens, reaches 500 mm, swivels as much as 50°, carries 60 kg
- PS65-MO: 65" to 75" screens, reaches 595 mm, swivels as much as 50°, carries 60 kg
- PS80-MO: 65" to 110" screens, reaches 569 mm, swivels as much as 40°, carries 120 kg
- Minimum depth off the wall 56 mm; 91 mm for the PS80-MO
- Finished in satin black RAL 9005; other finishes can be requested
Installation
Adjustable buffers steady the corners of the screen, and the cable routing bosses supplied carry the release cords out to the screen's outer edges. Before the bracket is pushed home again, the cords need to be fixed to the lower rear edge of the screen. The swivel works in both directions; how large a screen can be depends on its weight and on the angle wanted.
Environments
The PS-MO is for indoor and outdoor use and is suitable for marine environments.
