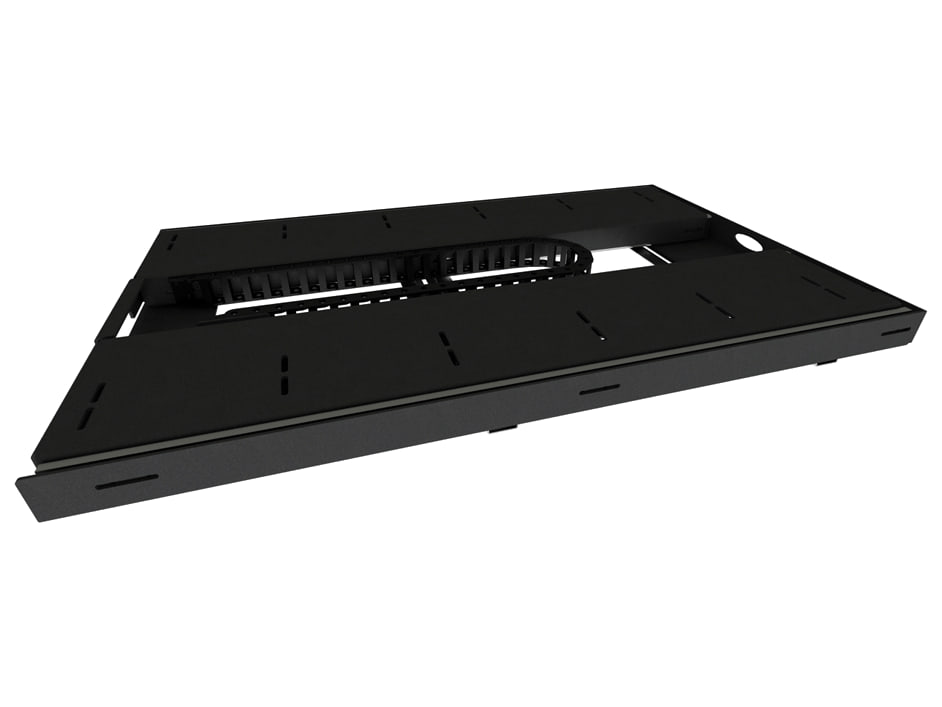

Manual slide-out tray for large projectors
The PST (Projector Slide Tray) is a manually operated sliding bracket that lets a large projector be pulled out of the recess where it is housed whenever it needs servicing. The product is also suitable for use in marine environments.

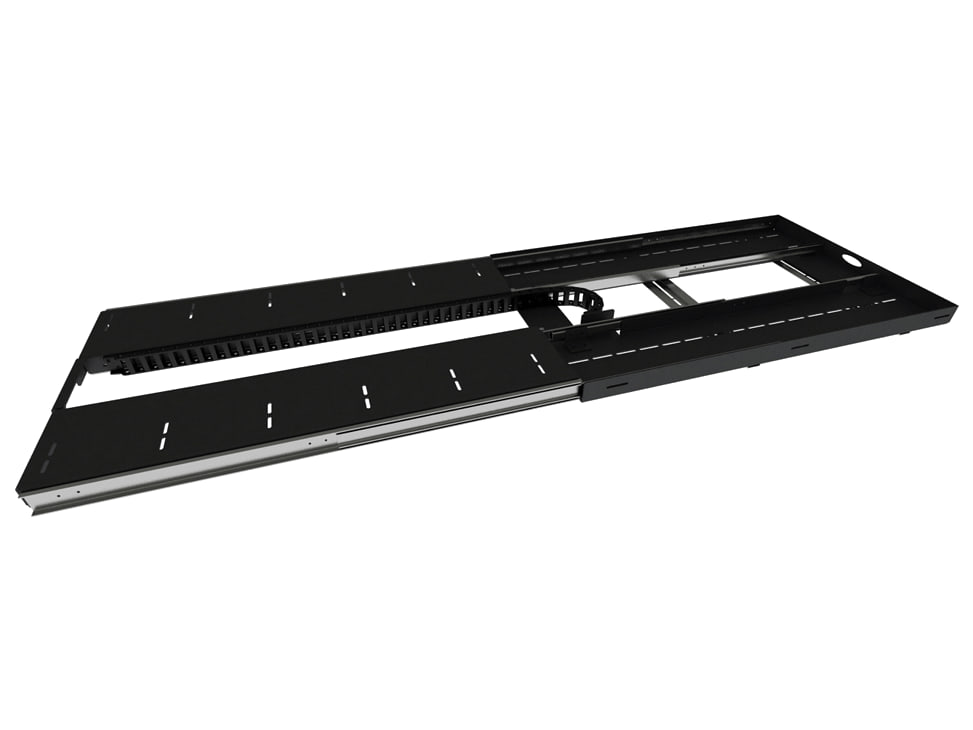

The projector stays mounted on the tray and, when work is needed, it is drawn out of the recess with a smooth sliding movement; a latch holds it in position. The projector cables can be run through the bracket, which keeps the result tidy. Look and finish are discreet, and many mounting options are provided. The product is intended for indoor use.
Key features
- Manual sliding movement
- Maximum projector weight: 100 kg
- Mounting patterns supported: up to 1000 mm in length and up to 645 mm in width
- Latch that locks the tray in position
- Cable routing through the bracket
- Black RAL 9005 painted finish; custom finishes can be requested
Installation
The tray is installed in the recess that houses the projector and accepts mounting patterns up to 1000 x 645 mm. The broad choice of mounting options helps to adapt it to different projectors, while routing the cables inside the bracket keeps them out of view.
Servicing the projector
The purpose of the PST is to make a heavy projector, up to 100 kg, accessible when maintenance is due: it slides out of the recess for servicing, and the latch retains it in position.
