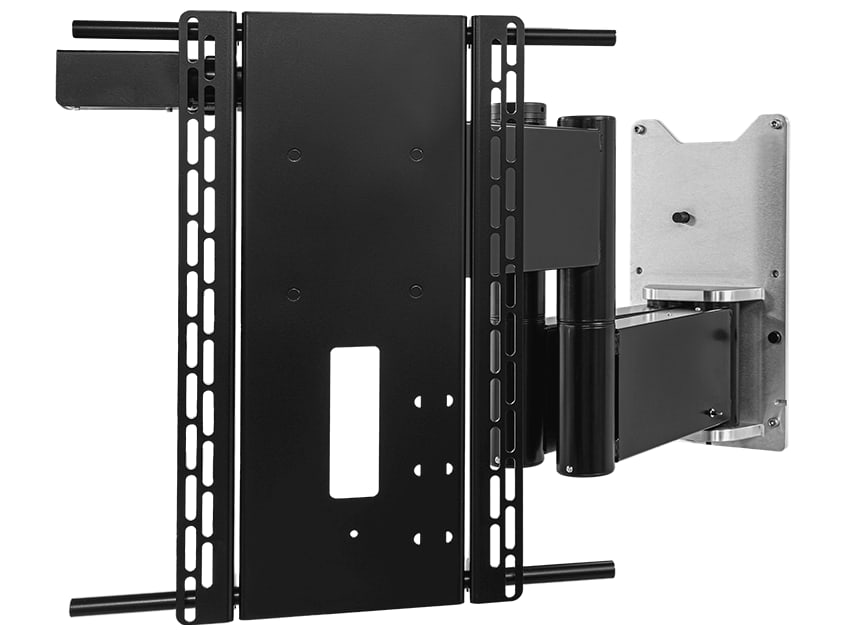

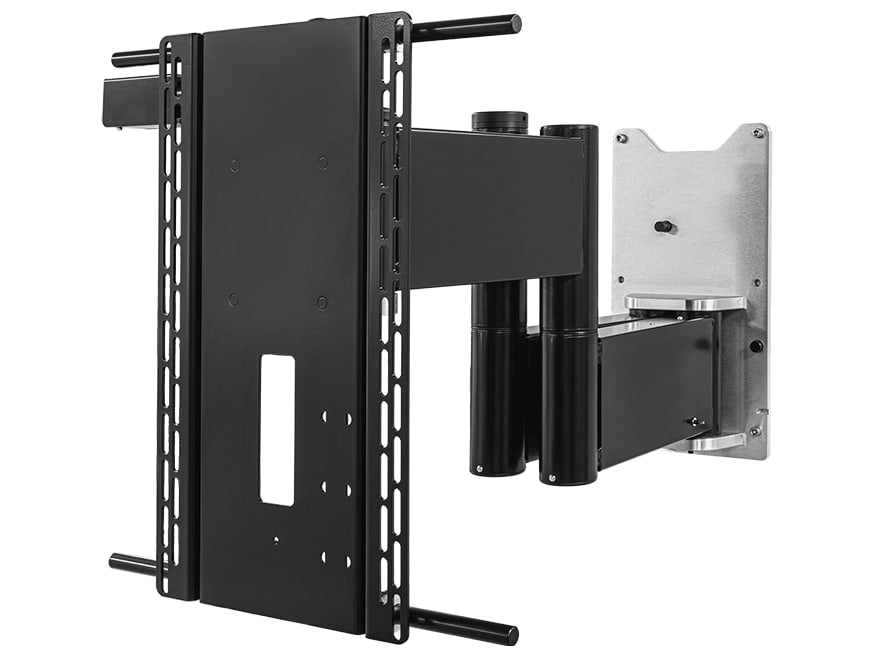

Quad Arm motorised TV bracket for boats, with a motorised marine lock
QA2-M is a motorised wall bracket that brings the screen forward and turns it as far as 75° to each side, depending on how wide the screen is, so it can be watched from any point of the space.
A motorised marine lock secures the bracket against the wall whenever it is away from a viewing position. The overall rotation of 150° and the long reach serve as many as three preset positions; the cables run inside the bracket and the movement can follow a path parallel to the wall (parallel track).
Key features
- Rotation of as much as 75° per side, 150° in total
- Motorised marine lock
- As many as 3 preset viewing positions
- Quiet, smooth movement with the parallel track function
- Hidden cable management and electronics on board
- QA2-M: 45 kg maximum load, 750 mm maximum reach from the wall, 130 mm depth from the wall

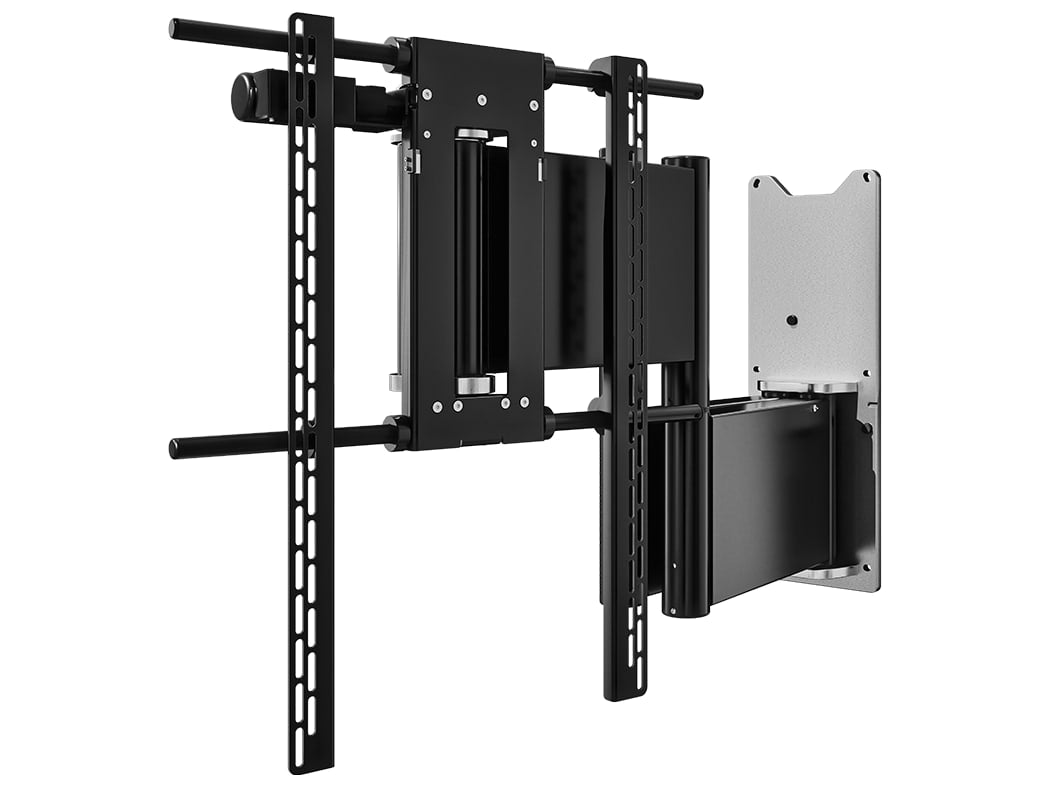

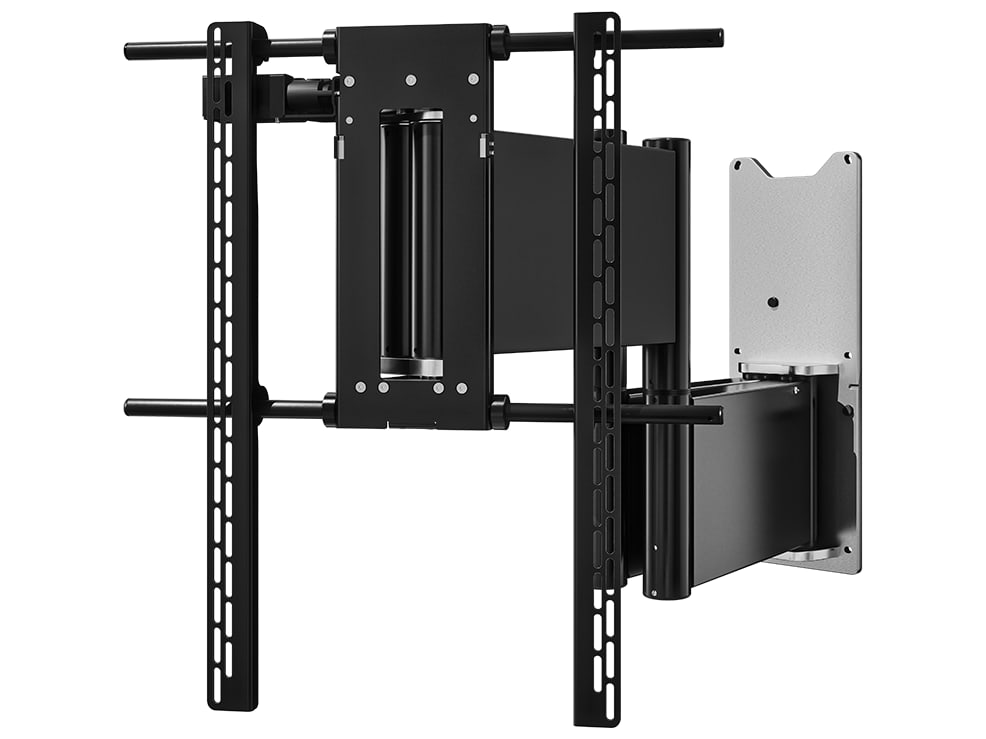

- QA2-60-M: heavy-duty version, 60 kg maximum load, 919 mm maximum reach from the wall, 130 mm depth from the wall
Control and integration
The bracket is operated by IR, by contact closure or by RS232, and RF control can be had as an option: installers can therefore integrate it into new projects as well as into existing systems.
Installation
The Quad Arm range is delivered ready for installation: no assembly is needed and very little set-up time is spent on site. Each bracket is built by hand in the Future Automation facilities in the USA and Great Britain. The finish is black RAL 9005 and brushed aluminium, with custom finishes on request.
Environments
QA2-M and QA2-60-M are suitable for marine use and are intended for indoor installation.
