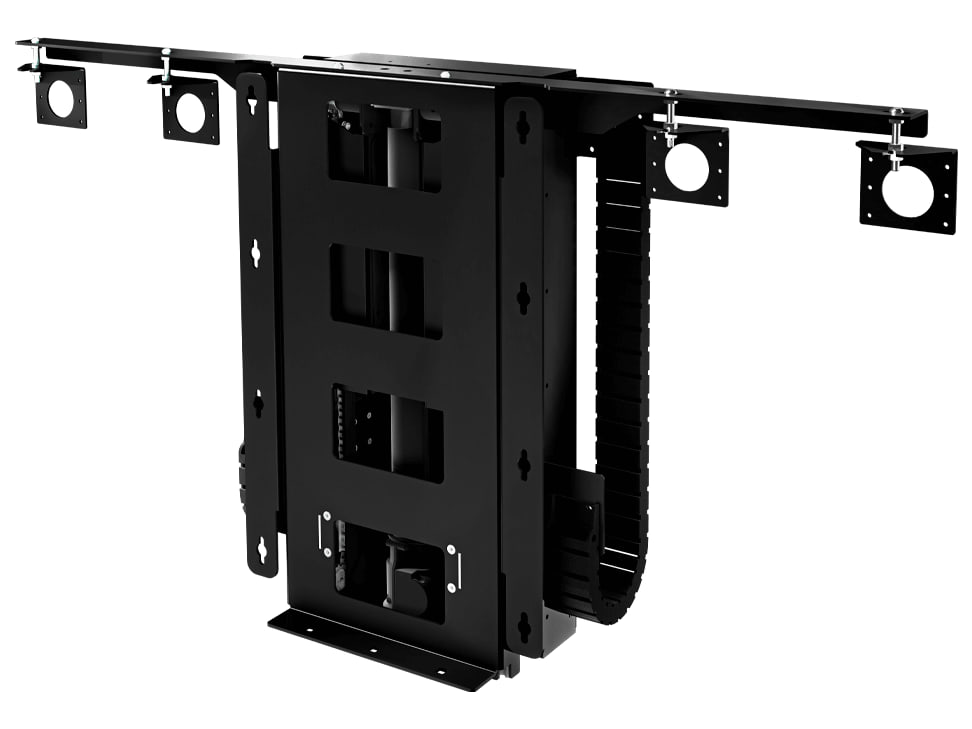

Ultra-compact motorised telescopic TV lift for outdoor and marine use
The Future Automation TSLM-MO is the outdoor and marine version of the telescopic TV lift: it lets large-format screens, from 55" to 77", be hidden in a cabinet just 55 mm taller than the screen. It comes in two sizes, chosen by the height of the television.
It is a good choice where the back of the lift stays visible: the cabinet maker can plan a matching surround around the screen as part of the furniture. The motor is nearly silent and the height it takes up is kept to a minimum.
Key features
- Just 55 mm of height needed above the television
- Maximum load, screen and surround together: 75 kg
- Minimum screen width: 1280 mm, with a version for narrower screens on request
- VESA fixing patterns at 200, 300 and 400 mm both in width and in height; others on request
- Nearly silent motor
- Complete cable management
- Runs on a 240 V or 110 V supply
Available sizes
The TSLM-MO-2 is for televisions between 695 mm and 875 mm tall; the TSLM-MO-3 is for televisions between 850 mm and 1175 mm tall. Which of the two to pick therefore depends on the height of the screen being installed.
Control and integration
The mechanism is operated by RS232, IR or contact closure.
Environments
The TSLM-MO is a mechanism for indoor and outdoor use and is rated for marine environments.
