Stainless steel fixed TV bracket for outdoor and marine use

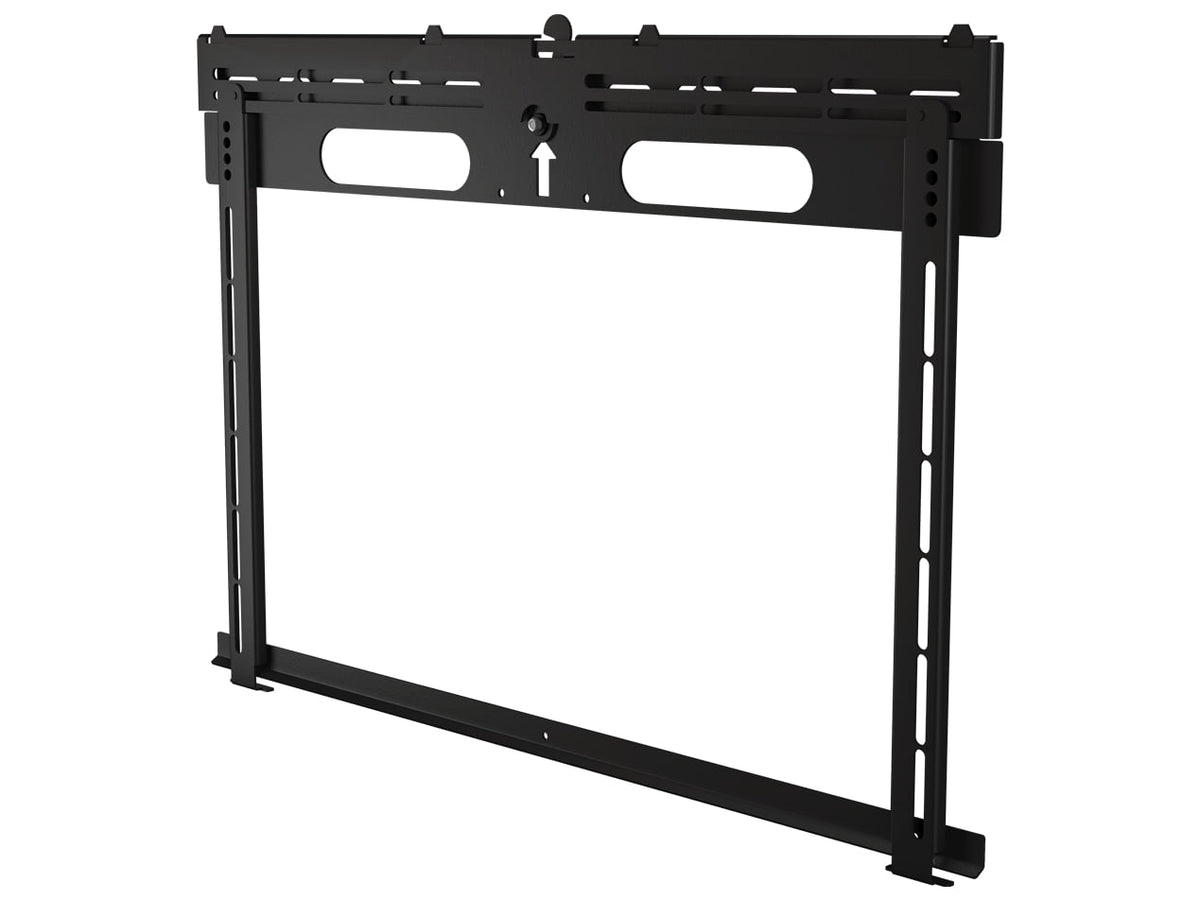

V74-MO is a slim, discreet fixed wall bracket for flat-mounting outdoor displays between 40" and 75".
Its ultra-slim profile brings the screen almost flush with the wall, and the stainless steel build protects the bracket against corrosion when it is installed in the open air. With the marine locking bar that is included, the screen and the bracket can be locked to the wall, which makes the installation more secure and safer.
Key features
- Ultra-slim profile for a nearly flush mount
- Built in stainless steel
- Follows the VESA standard, with patterns as large as 700 x 400
- 50 kg maximum load
- Marine and security locking system supplied
- Satin black RAL 9005 finish, with custom finishes on request
- Suitable for indoor and outdoor use
Size and load
The bracket measures 730 x 514 mm and weighs 2.9 kg. Its fixings cover spacings from 100 to 700 mm across and from 100 to 400 mm in height, in 100 mm steps. V74-MO carries as much as 50 kg and is recommended for 40" to 75" screens; the largest screen it can take is limited by weight.
Environments
V74-MO is suitable for marine use, both indoors and outdoors. It is easy to fit, and the locking bar is part of the supply.
