Fyne Audio F57SP-6

Fyne Audio F57SP-6: 2.5-way centre channel speaker built around a 150 mm IsoFlare driver

The Fyne Audio F57SP-6 is a small centre channel speaker designed to sit alongside the smaller models of the F500SP and F700 ranges. It reproduces film dialogue and multichannel music. It is sold singly.

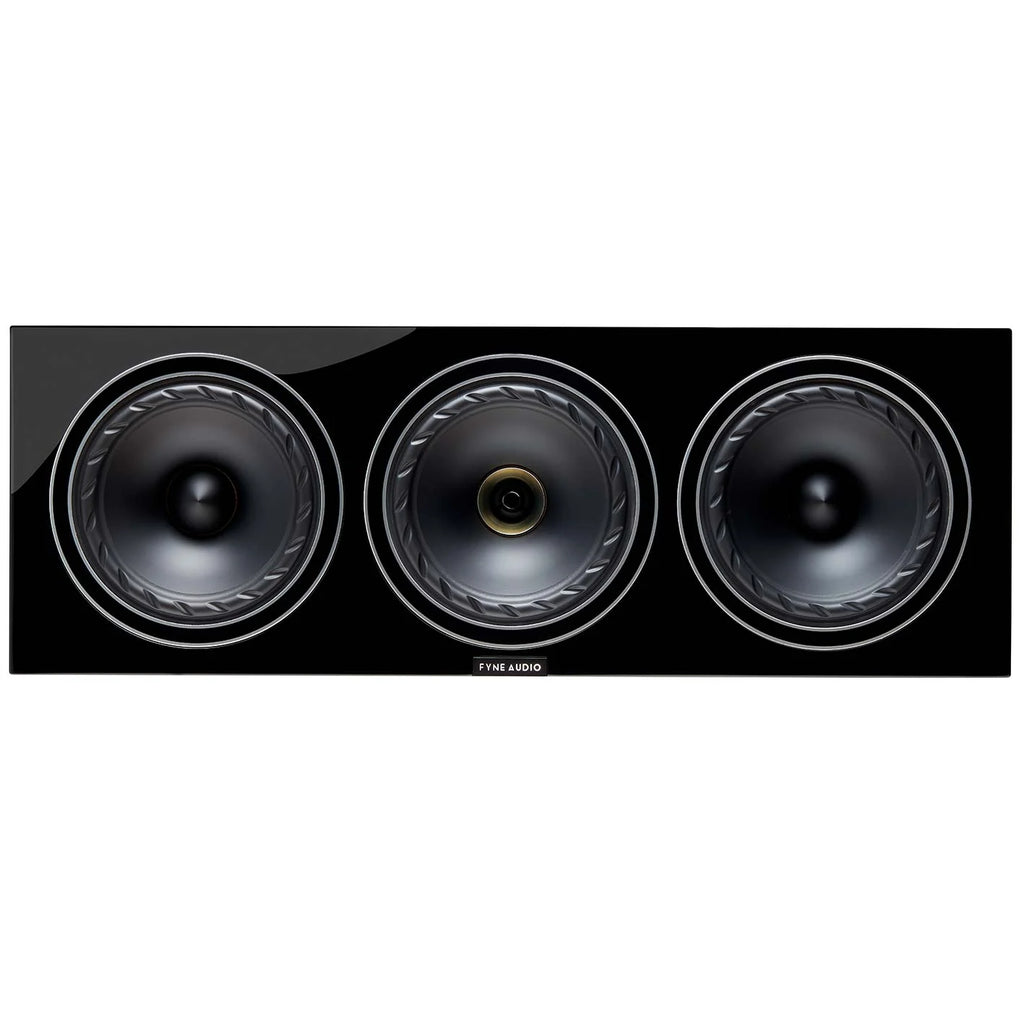

The speaker uses a 150 mm IsoFlare point source unit made up of a multi-fibre cone, a FyneFlute surround, a 25 mm compression tweeter with magnesium dome, and a magnet in neodymium. Beside it sit a 150 mm bass driver and a passive radiator (ABR) of equal size, both fitted with multi-fibre cones and FyneFlute surrounds. The damping of the ABR can be adjusted between two settings: one for free-space placement and one for placement close to a boundary. The enclosure is pressed high-density MDF with internal bracing.

Key features

• 2.5-way system whose ABR has adjustable damping
• 150 mm IsoFlare driver with a 25 mm magnesium compression tweeter
• 150 mm bass driver plus a 150 mm ABR
• Frequency response 47 Hz - 34 kHz (-6 dB, typical in-room figure)
• Sensitivity 91 dB (2.83 V at 1 m), nominal impedance 8 ohm
• Suggested amplifier output from 30 to 180 W RMS

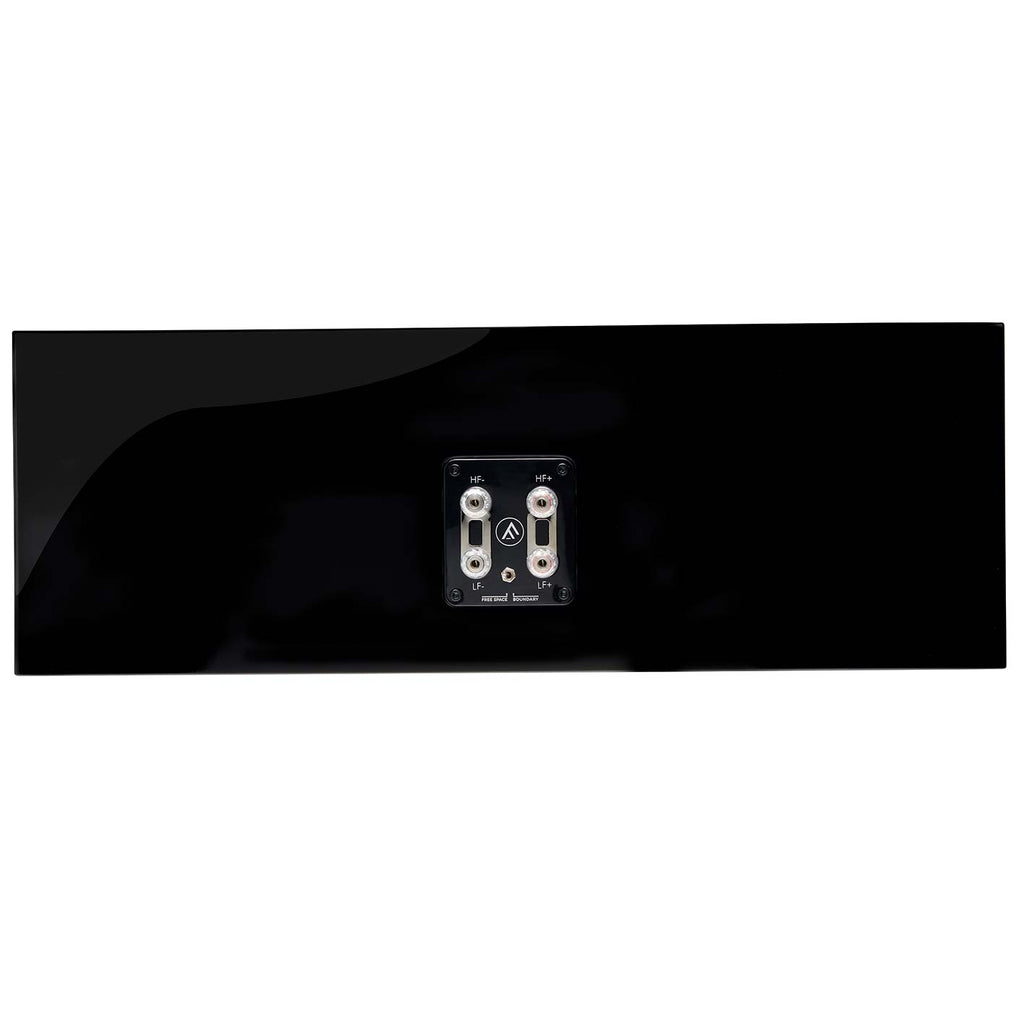

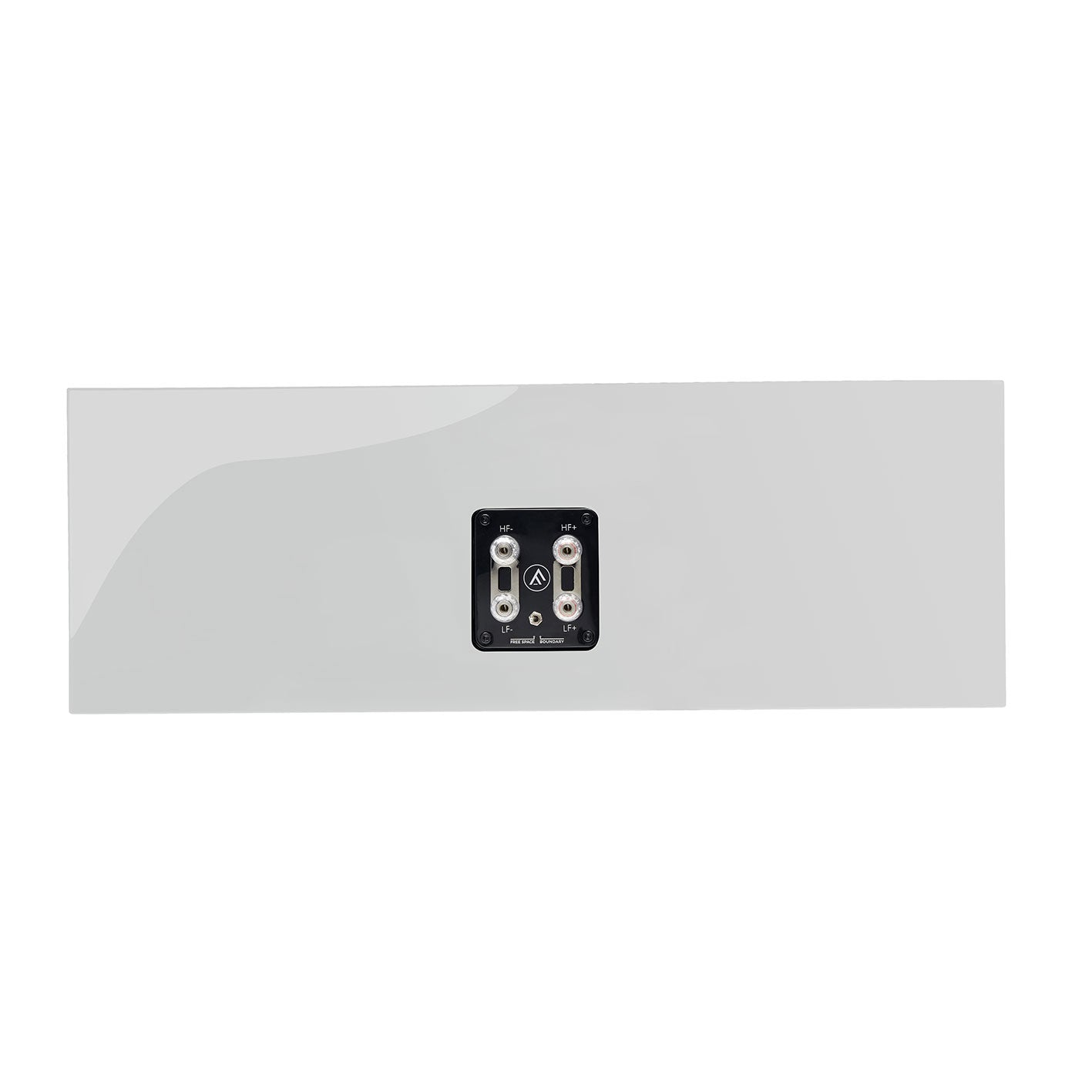

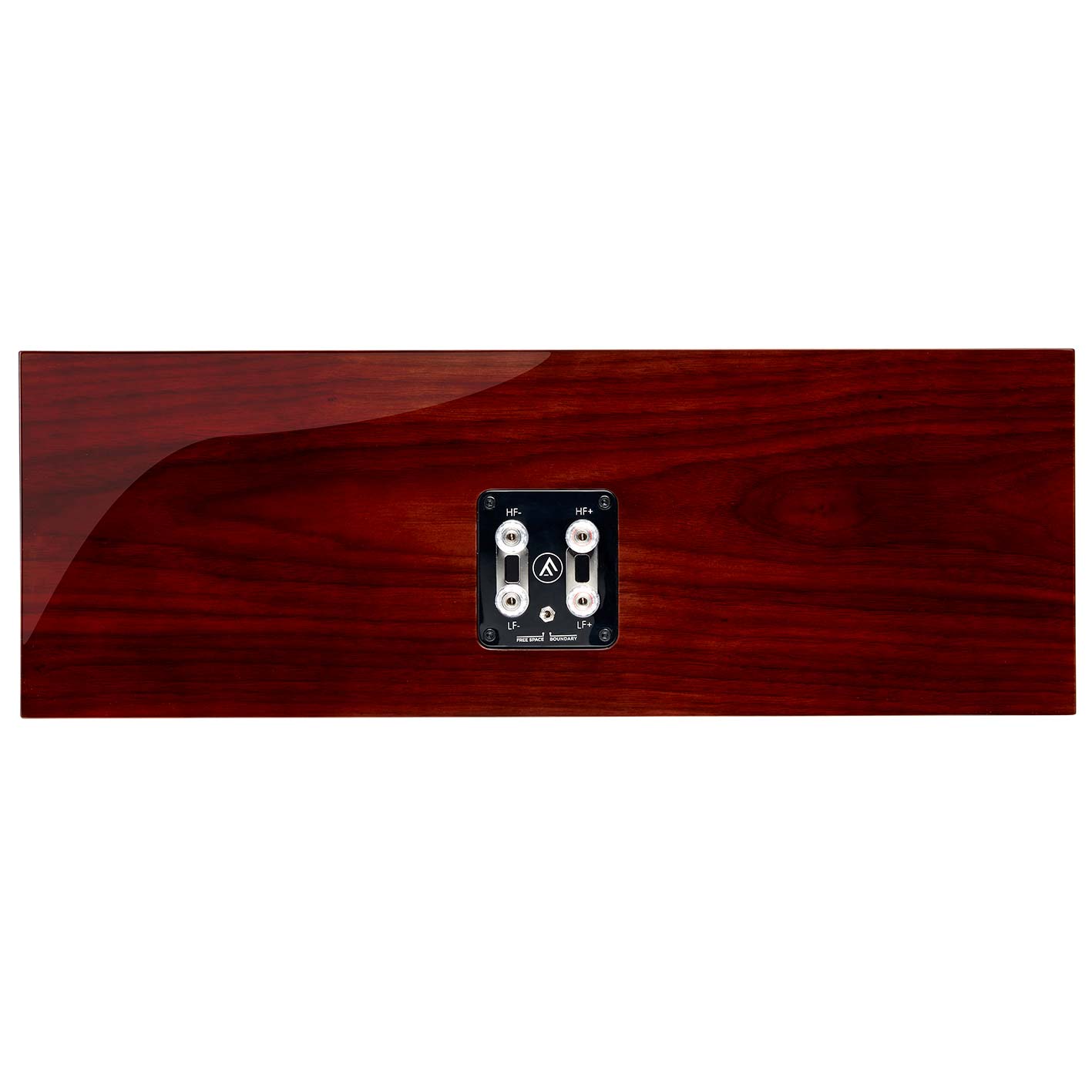

• Low-loss passive crossover, ready for bi-wiring

Technical data

The crossover points are 250 Hz and 1.7 kHz, using a second-order low-pass section and a first-order high-pass section. Power handling is 80 W RMS continuous and 360 W peak. The speaker measures 210 x 600 x 250 mm (height x width x depth) and has a net weight of 15.2 kg.

Finishes

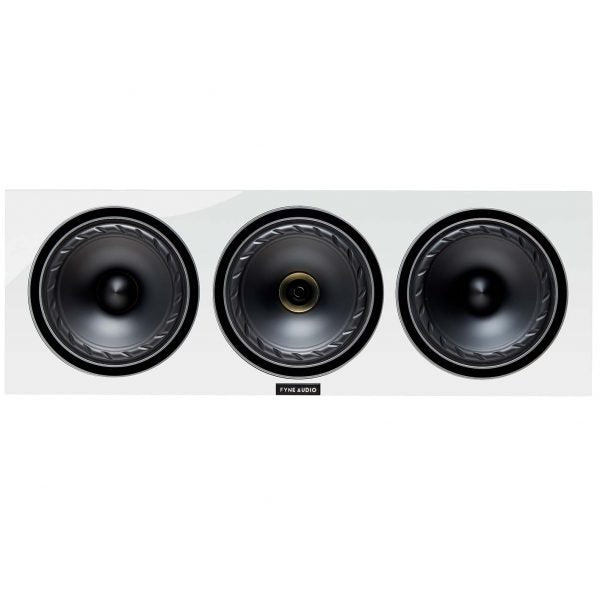

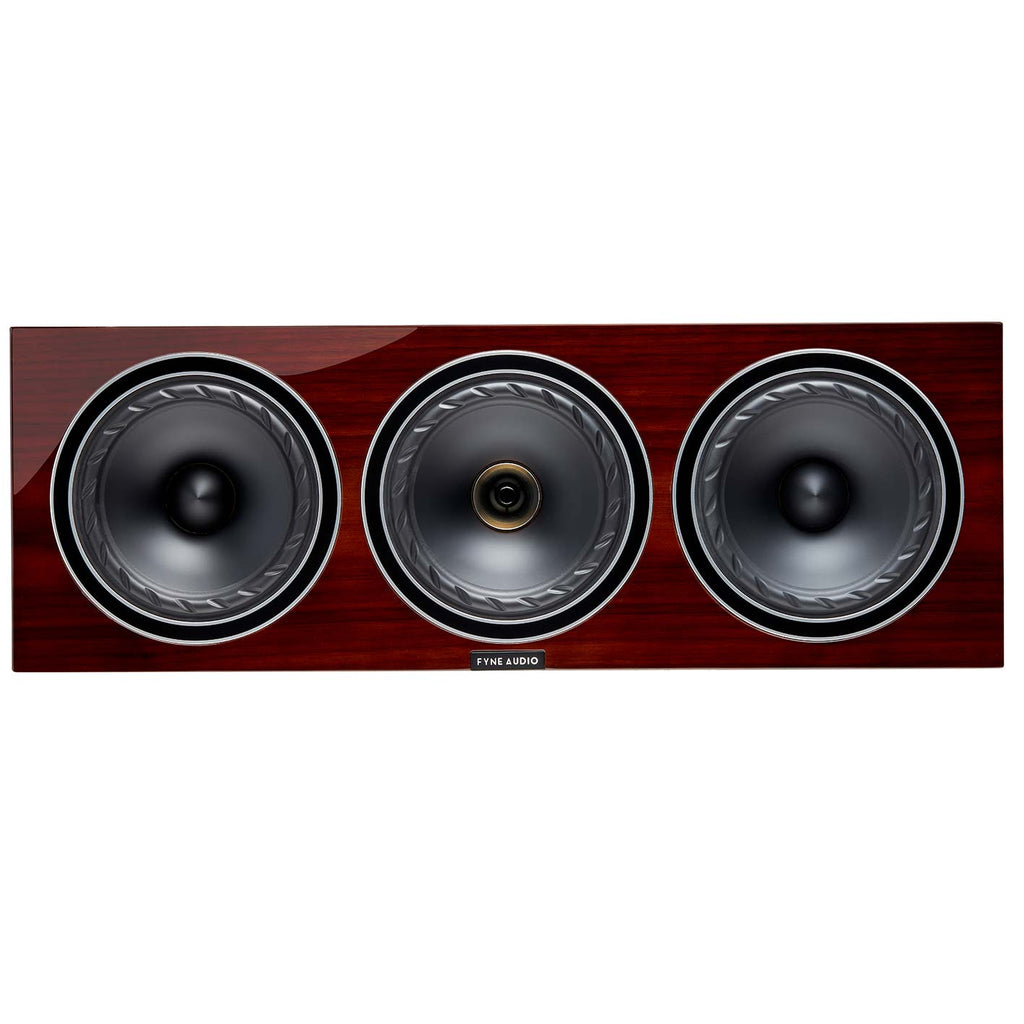

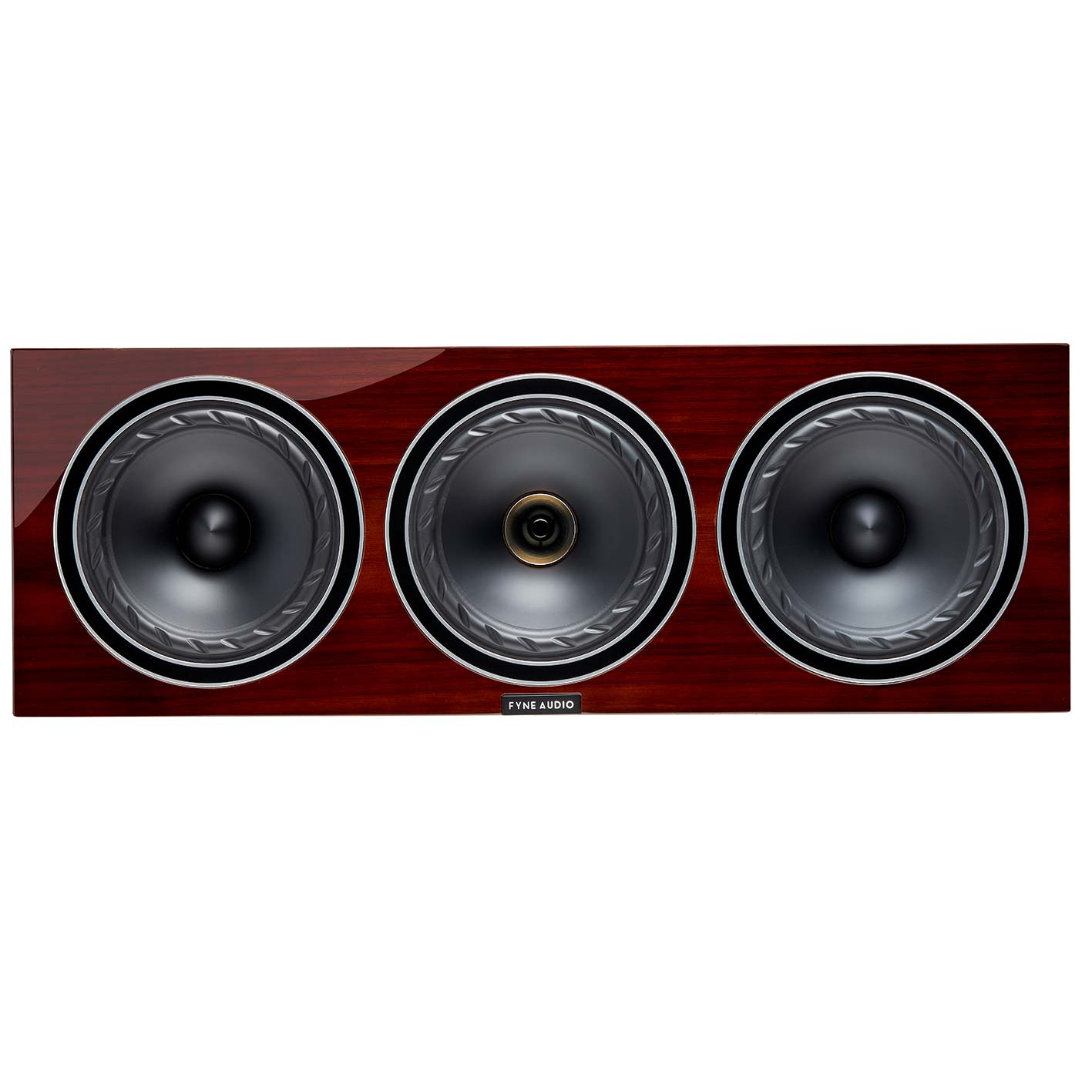

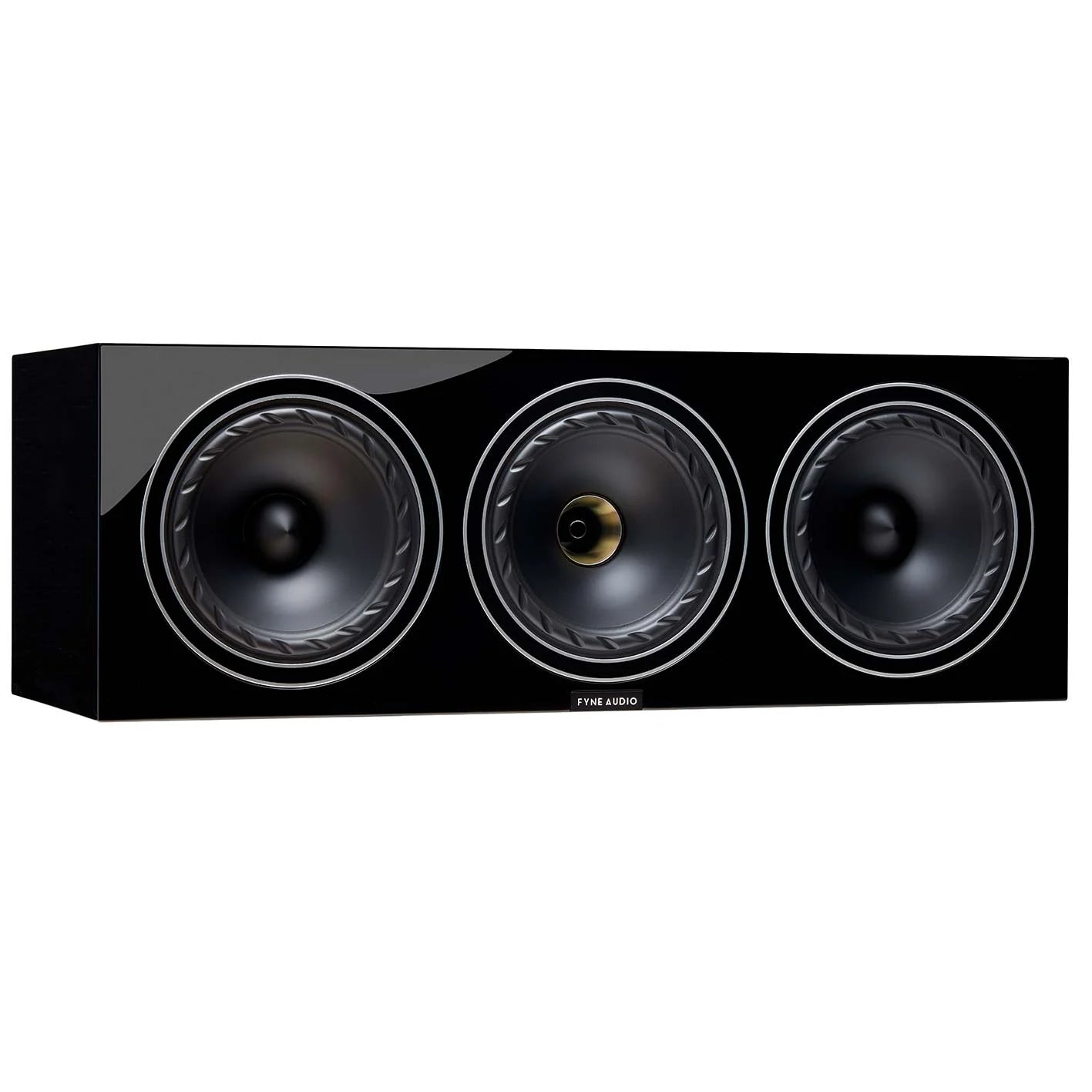

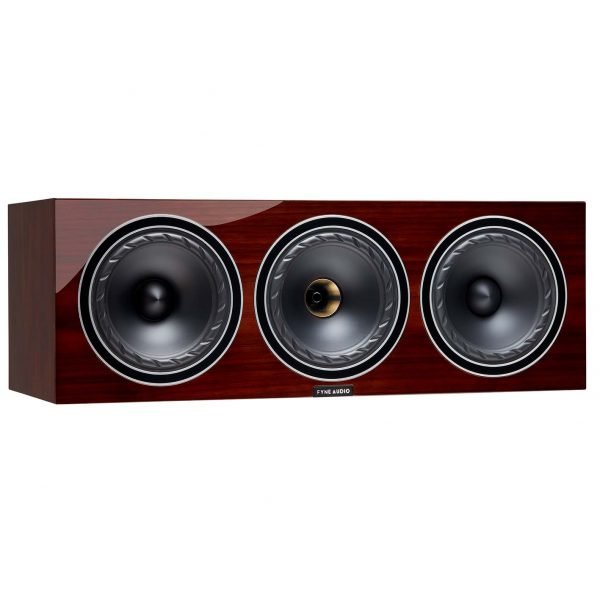

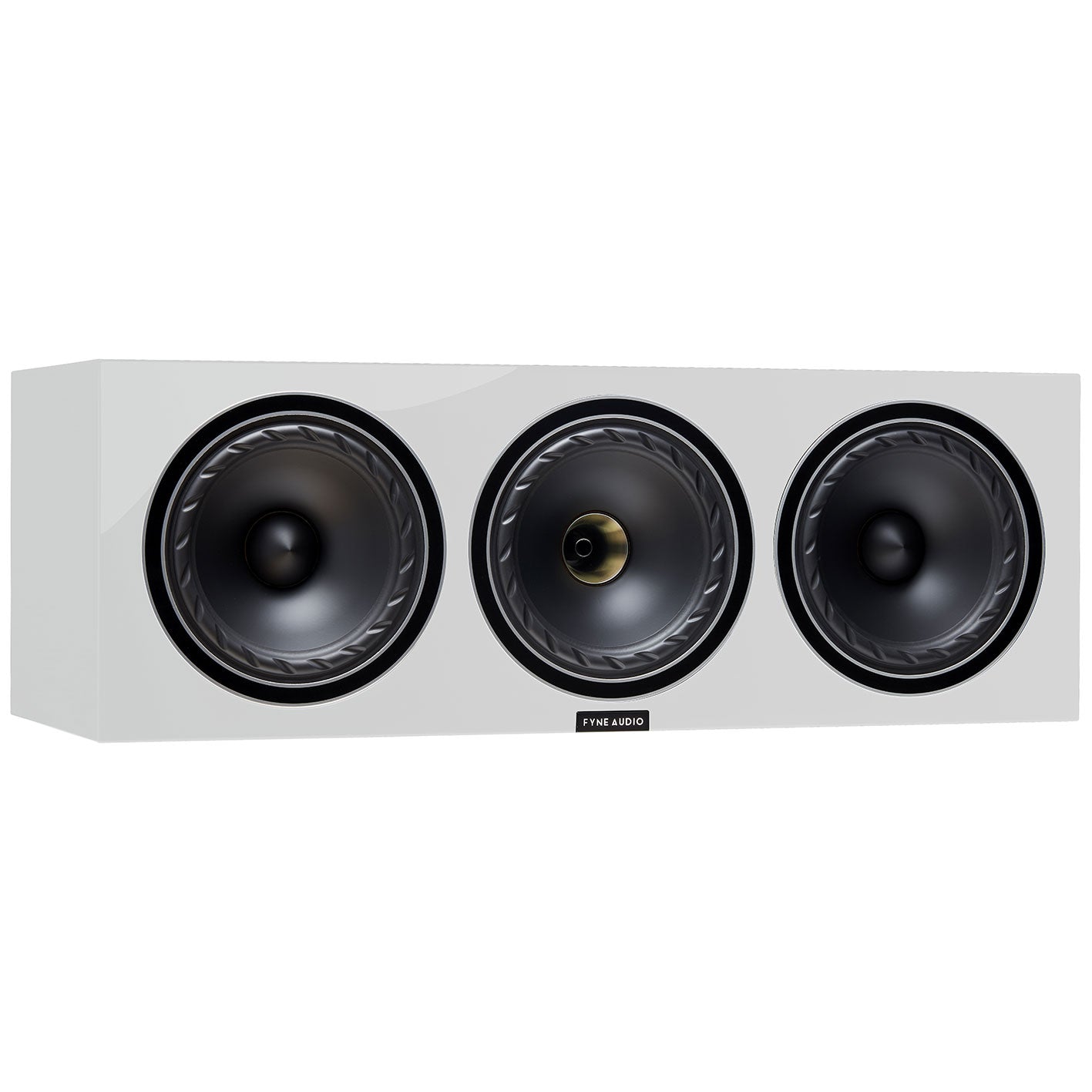

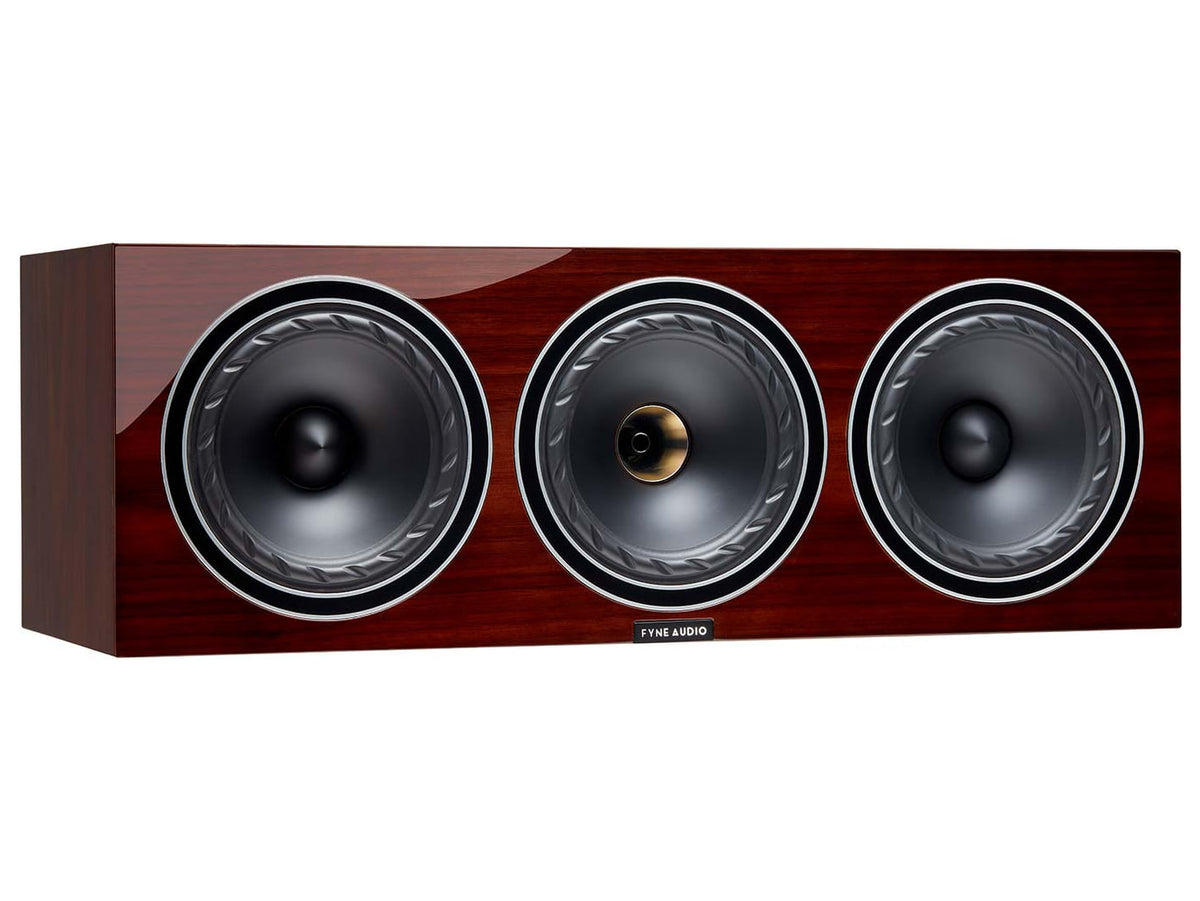

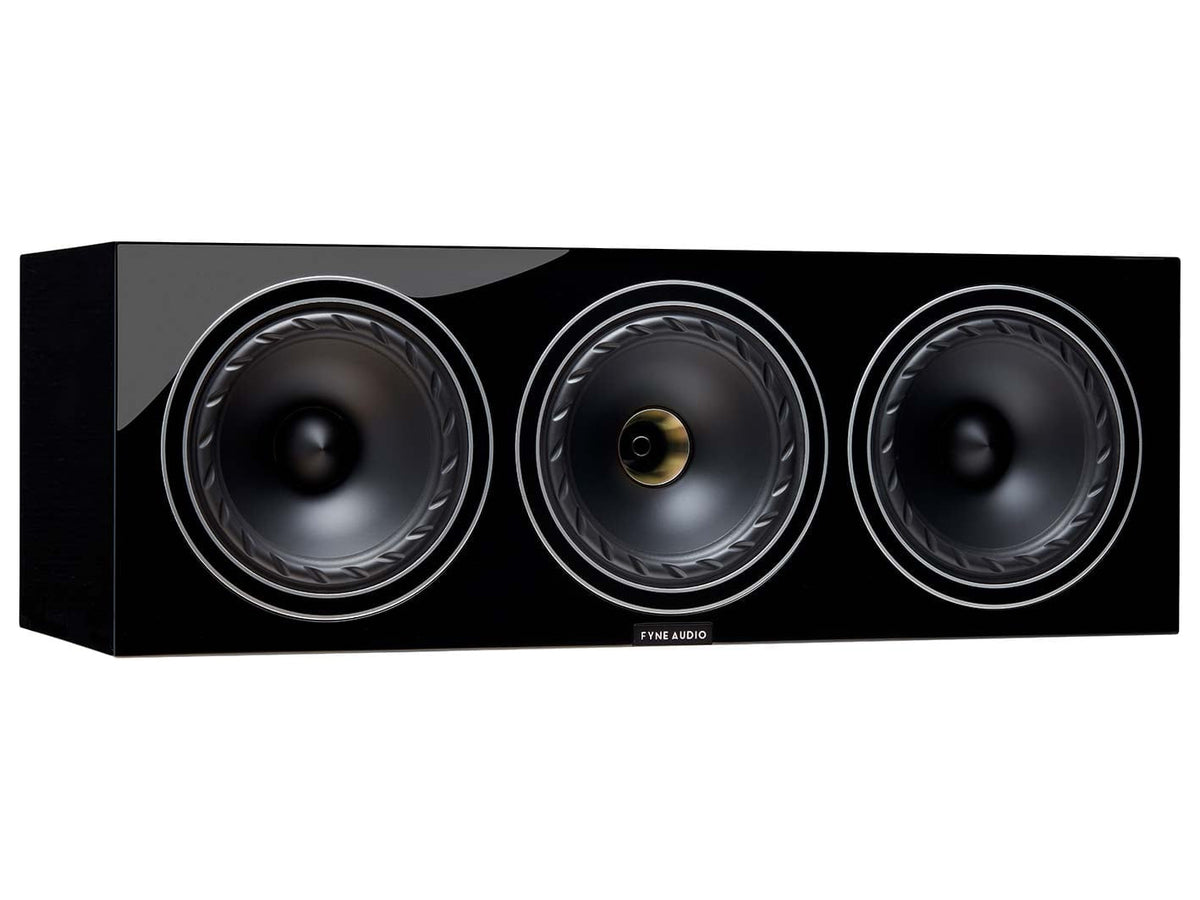

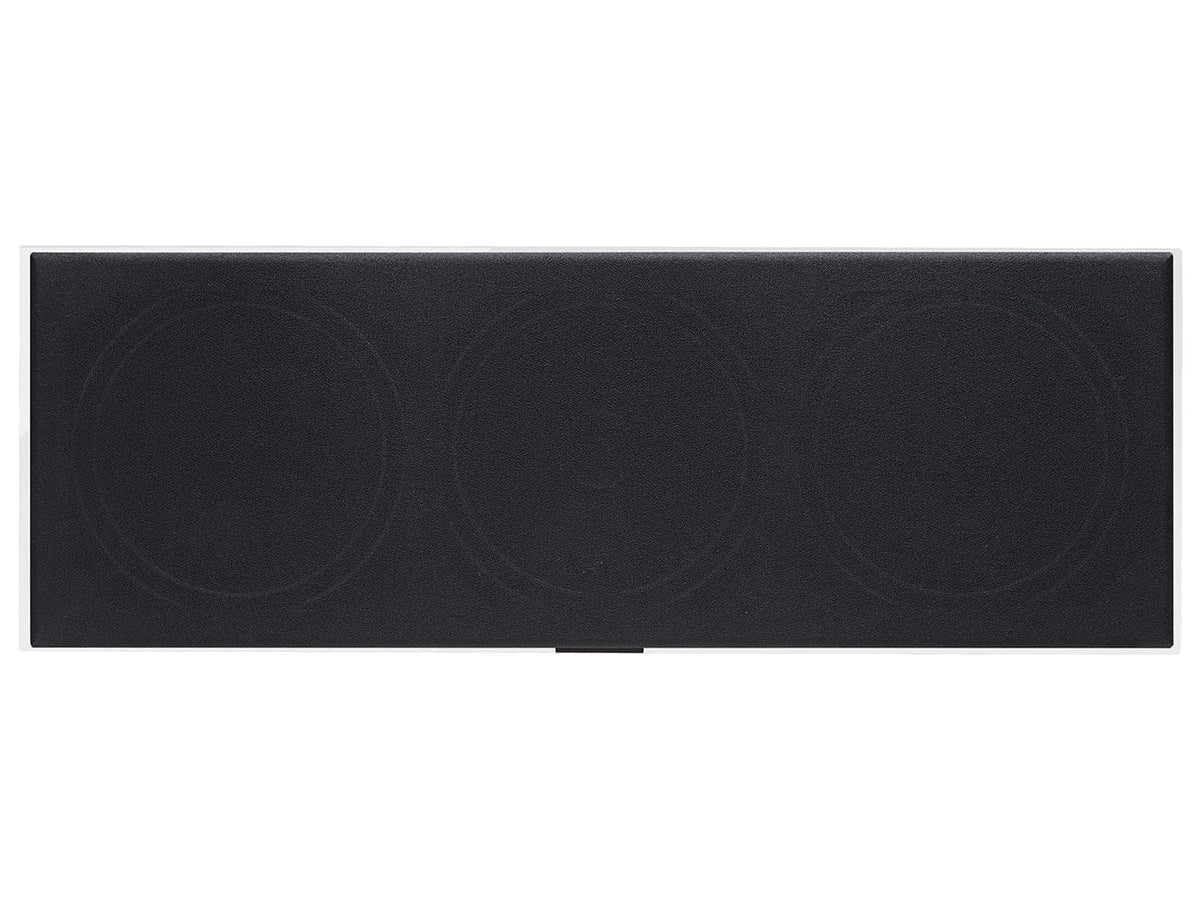

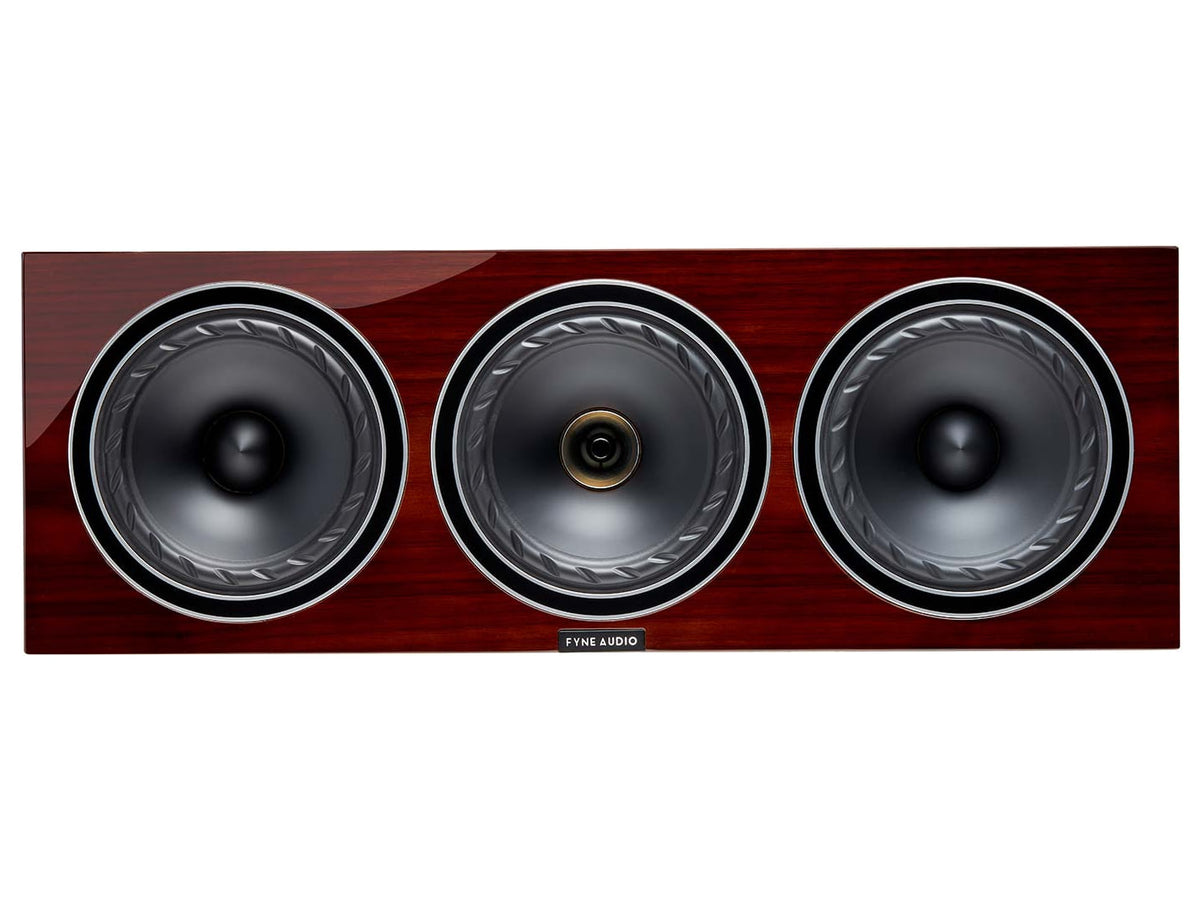

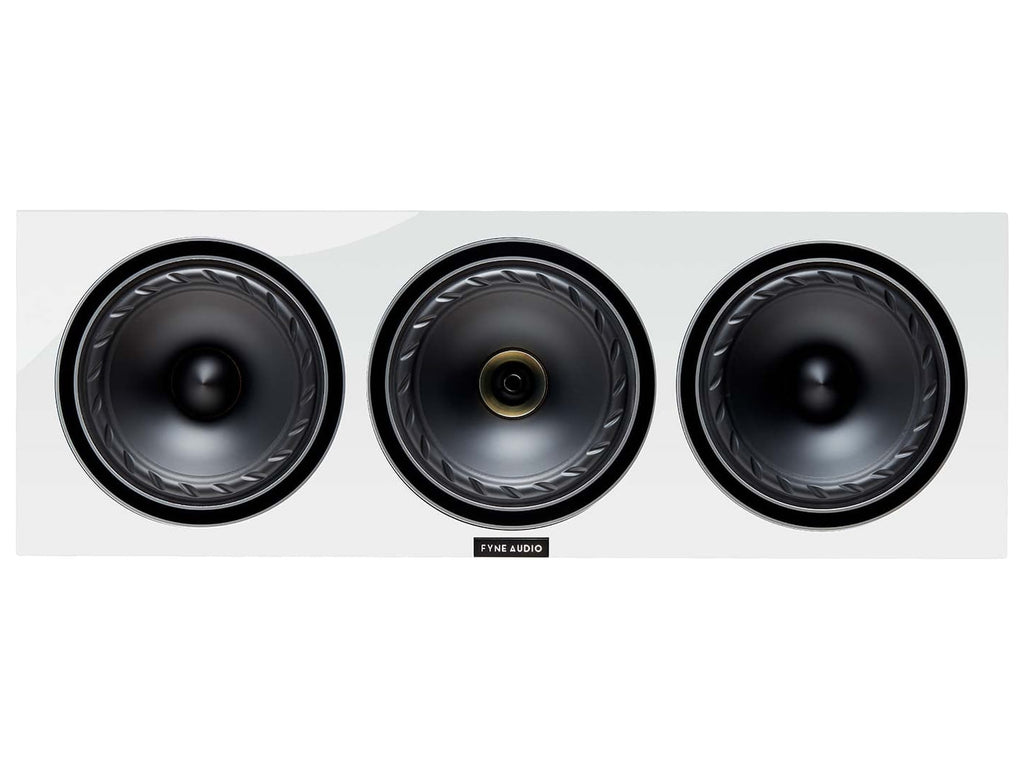

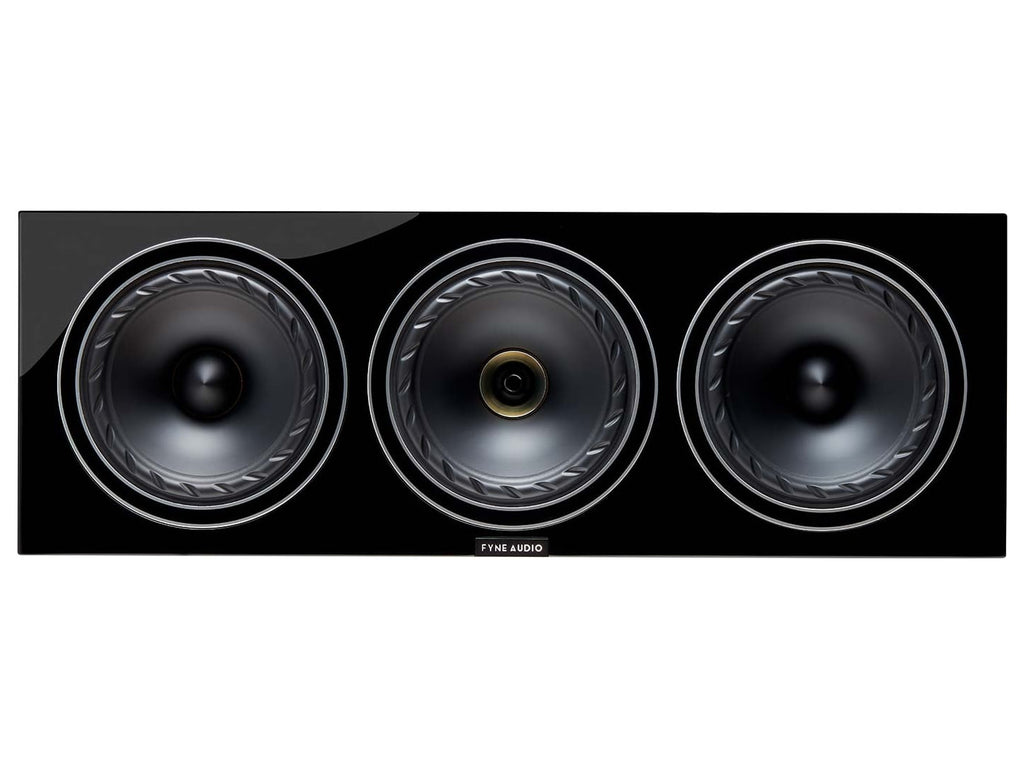

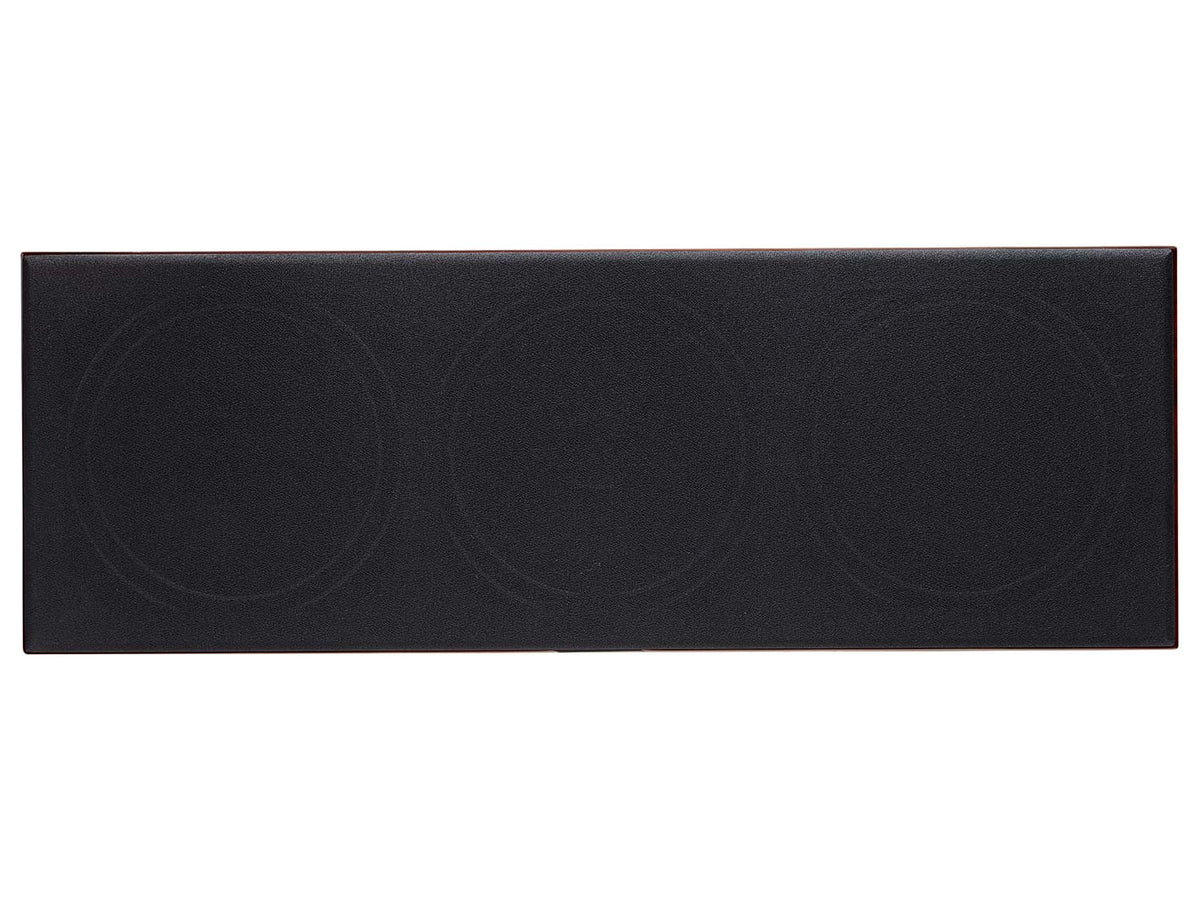

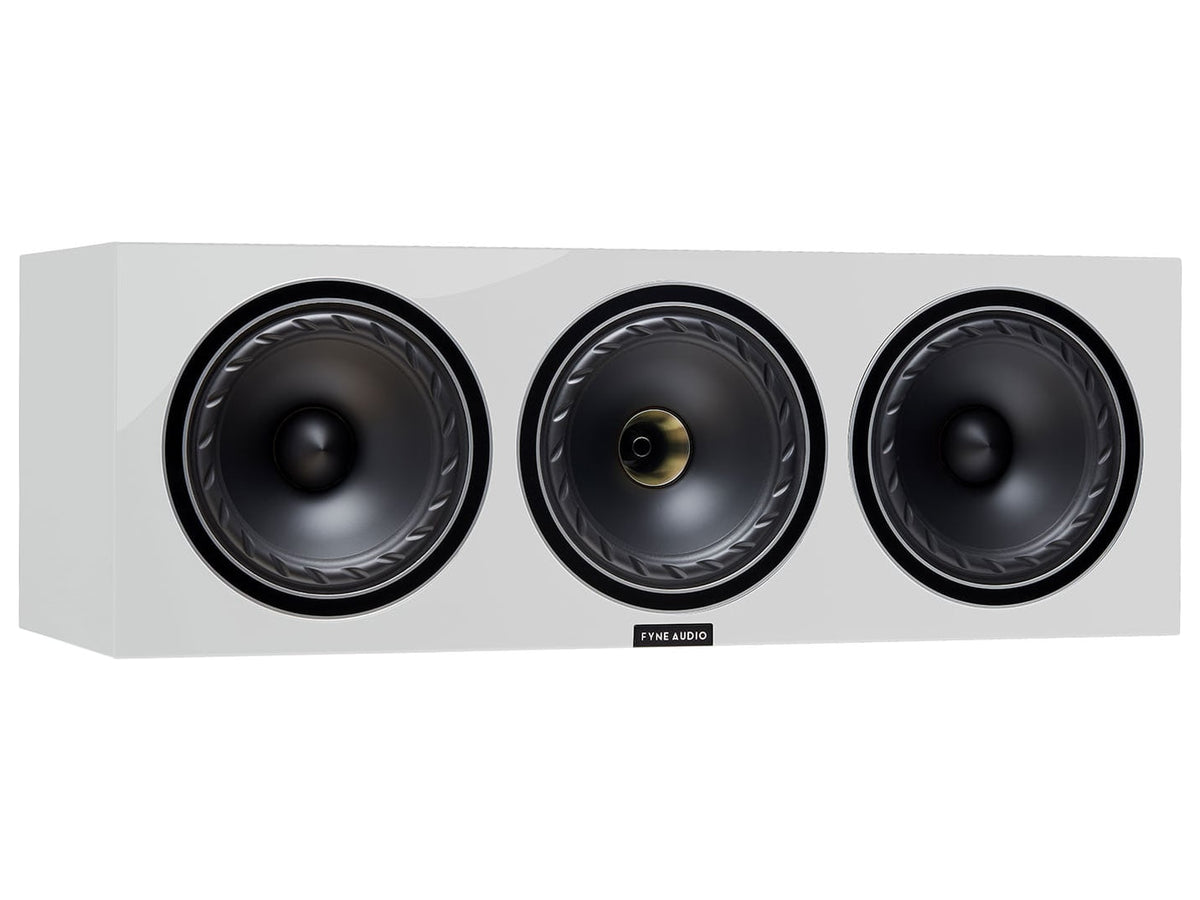

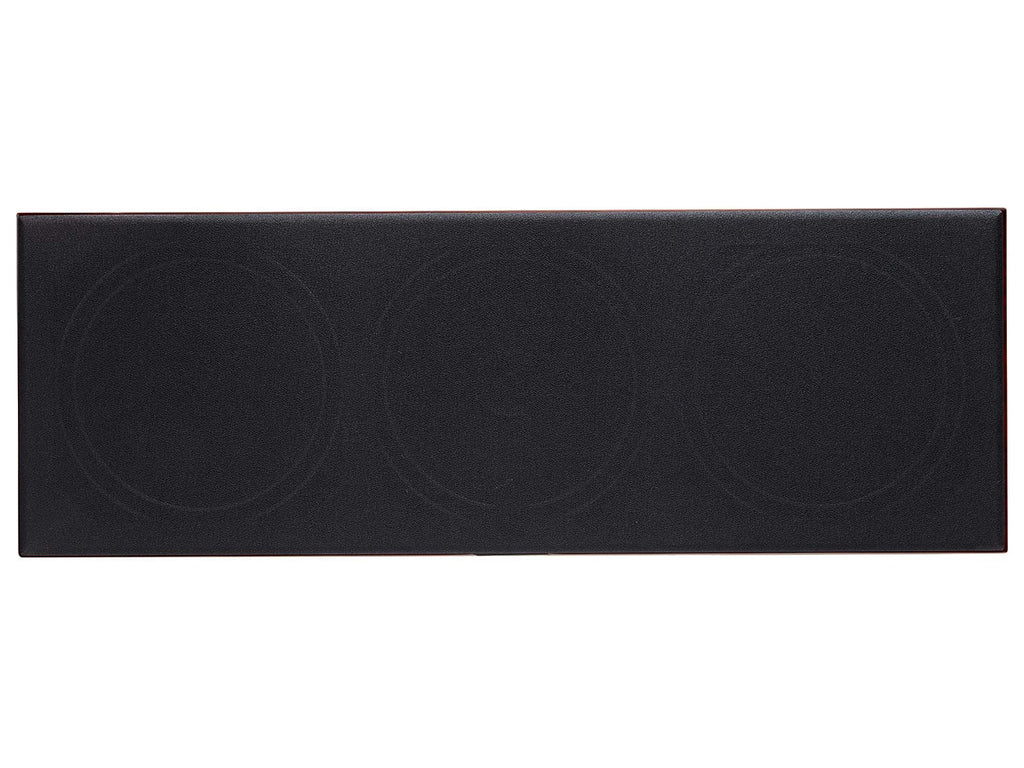

The speaker is on sale in three finishes: Black Piano Gloss, White Piano Gloss and Walnut Piano Gloss.
