Fyne Audio F57SP-8

Fyne Audio F57SP-8: 2.5-way centre channel speaker built around a 200 mm IsoFlare driver

The Fyne Audio F57SP-8 is a centre channel speaker intended for the biggest home theatre and multichannel music set-ups. Fyne Audio names the F502SP floorstanders and the bigger models of the F700 Series as its natural partners. It is sold singly.

The speaker uses a 200 mm IsoFlare point source unit made up of a multi-fibre cone, a FyneFlute surround, a 25 mm compression tweeter with magnesium dome, and a magnet in neodymium. Beside it sit a 200 mm bass driver and a passive radiator (ABR) of equal size, both fitted with multi-fibre cones and FyneFlute surrounds. The damping of the ABR can be adjusted between two settings: one for free-space placement and one for placement close to a boundary. The enclosure is pressed high-density MDF with internal bracing.

Key features

• 2.5-way system whose ABR has adjustable damping
• 200 mm IsoFlare driver with a 25 mm magnesium compression tweeter
• 200 mm bass driver plus a 200 mm ABR
• Frequency response 42 Hz - 34 kHz (-6 dB, typical in-room figure)
• Sensitivity 92 dB (2.83 V at 1 m), nominal impedance 8 ohm
• Suggested amplifier output from 30 to 200 W RMS
• Low-loss passive crossover, ready for bi-wiring

Technical data

The crossover points are 250 Hz and 1.7 kHz, using a second-order low-pass section and a first-order high-pass section. Power handling is 100 W RMS continuous and 400 W peak. The speaker measures 270 x 760 x 340 mm (height x width x depth) and has a net weight of 19.8 kg.

Finishes

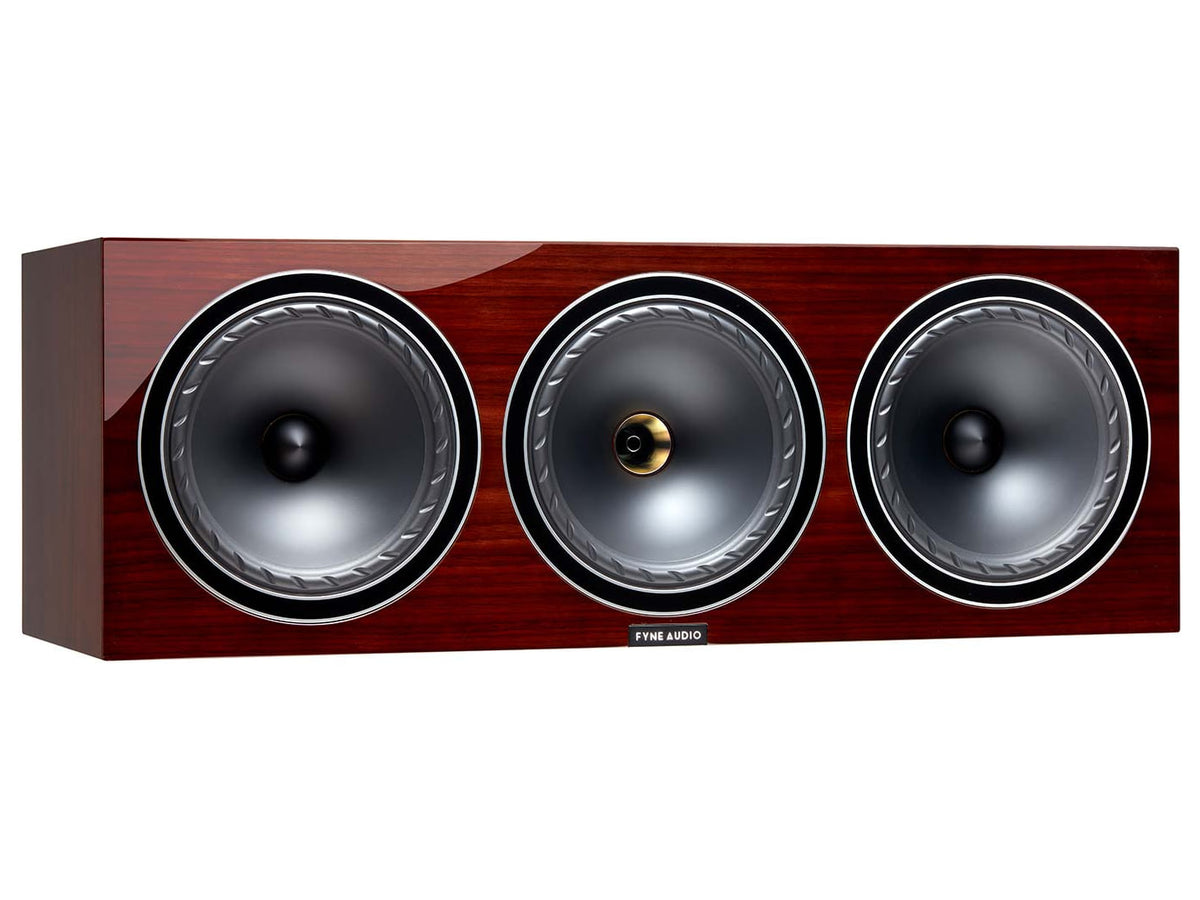

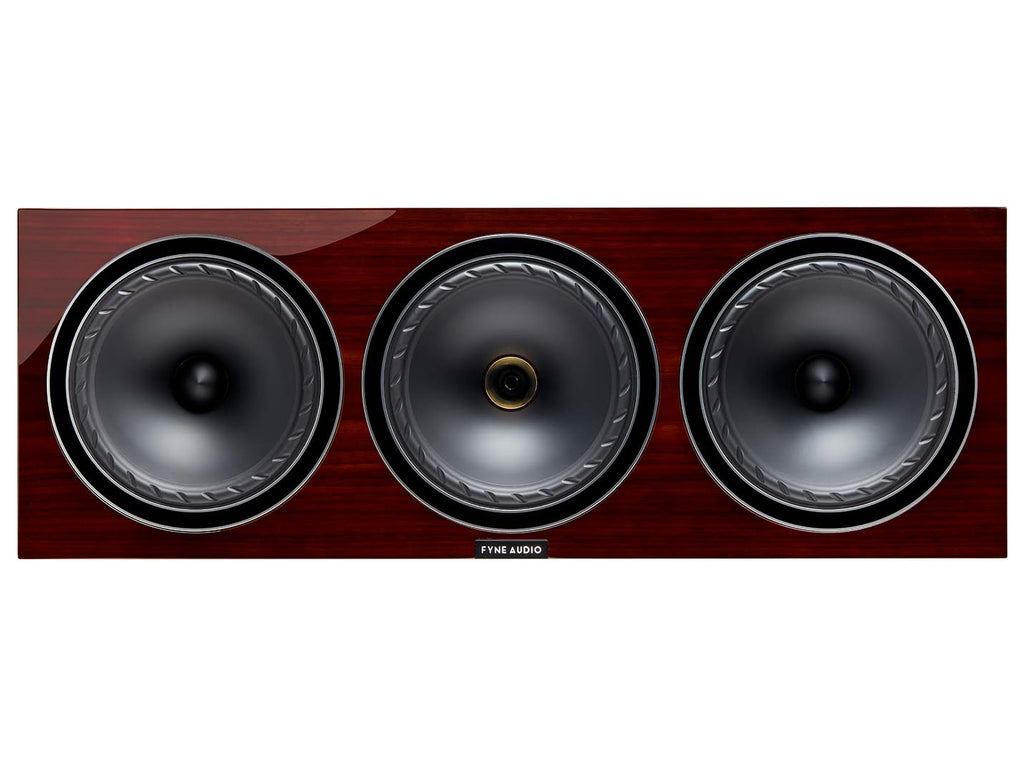

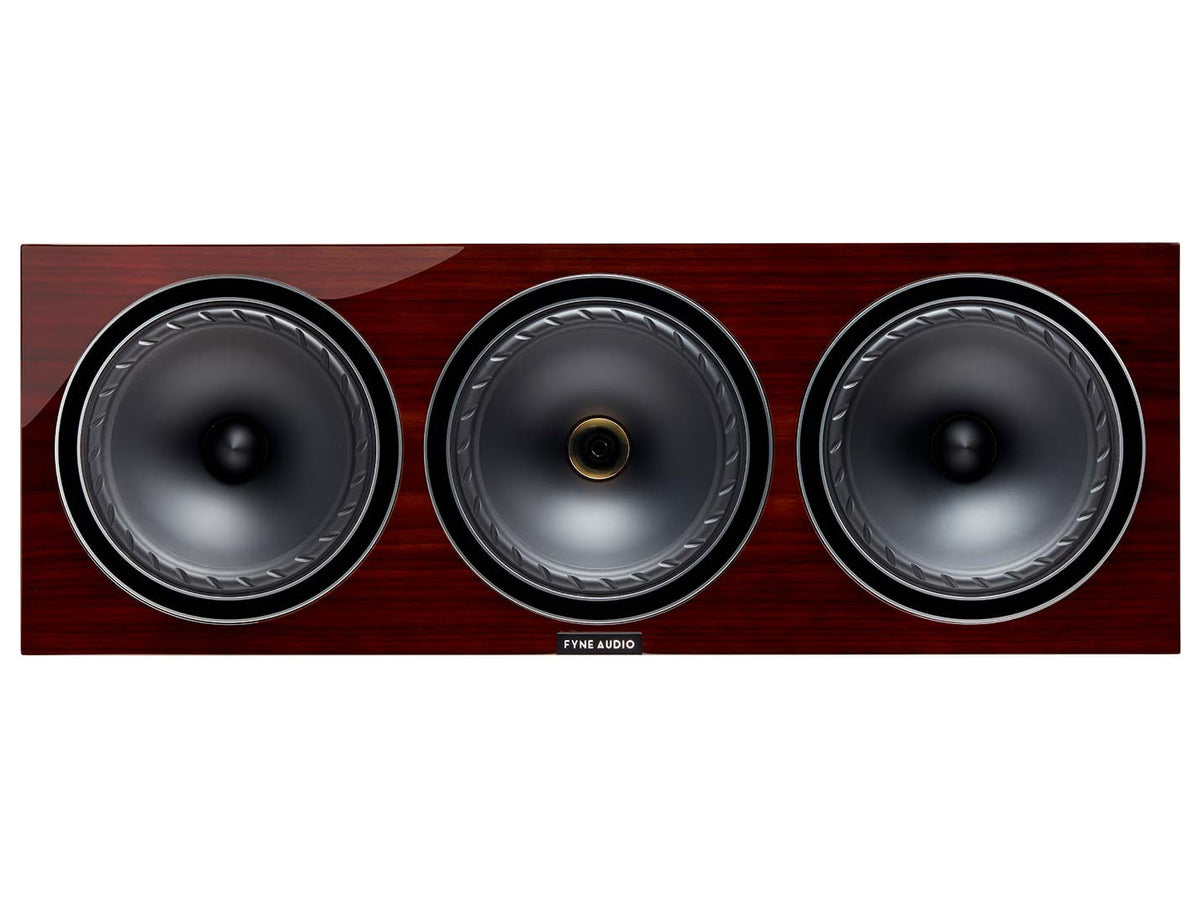

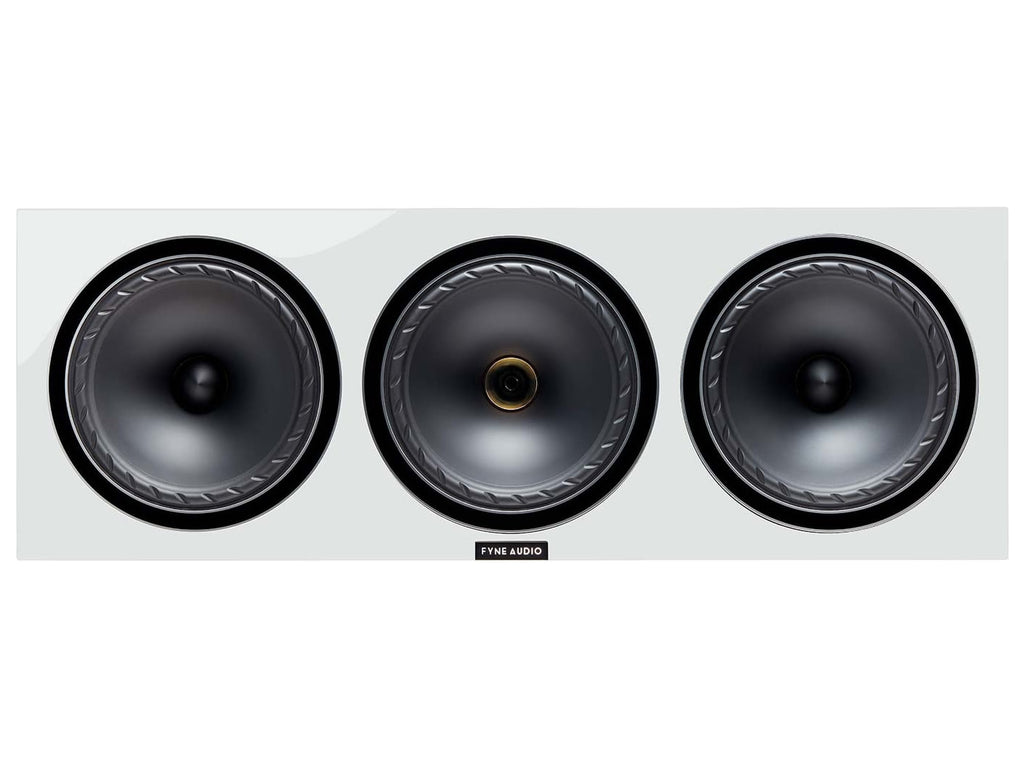

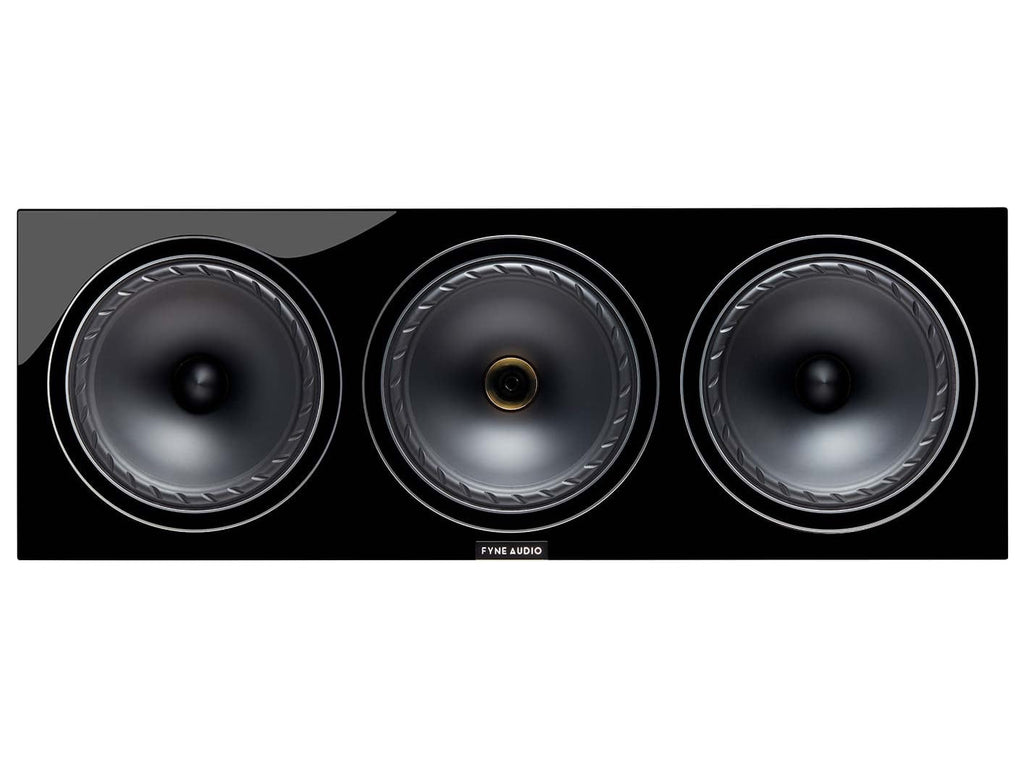

The speaker is on sale in three finishes: Black Piano Gloss, White Piano Gloss and Walnut Piano Gloss.
