Fyne Audio F701: 2-way standmount speakers built around a 200 mm IsoFlare driver
The F701 is the standmount model of the F700 range and is made in the UK. It borrows engineering first developed for the F1 Series and fits it into a compact cabinet meant to sit on a support; Fyne Audio names the FS8 stand as its partner. Sold as a pair.
The drive unit is a single 200 mm IsoFlare point source design, pairing a multi-fibre cone for bass and midrange with a compression tweeter whose magnesium dome measures 25 mm. The reflex port fires towards the floor and incorporates the BassTrax low-frequency diffuser with its Tractrix profile. Cabinets are made by hand and finished in gloss piano lacquer.
Key features
- 2-way system; the port fires downwards onto a BassTrax Tractrix diffuser
- 200 mm IsoFlare point source unit: multi-fibre cone for bass and midrange, FyneFlute surround
- Compression tweeter using a 25 mm magnesium dome and a neodymium magnet
- Low-loss passive crossover, bi-wirable and Cryo-Lite treated
- Frequency response 35 Hz - 34 kHz (-6 dB, typical in-room figure)
- Sensitivity 91 dB (2.83 V at 1 m), nominal impedance 8 ohm
Technical data
Suggested amplifier power runs from 30 to 180 W RMS; the speaker takes 90 W RMS continuously and 360 W on peaks. The crossover point sits at 1.7 kHz, using a second-order low-pass filter and a first-order high-pass filter. Each cabinet measures 465 x 278 x 389 mm (height x width x depth) and weighs 13.6 kg: both figures refer to a single speaker.
Finishes

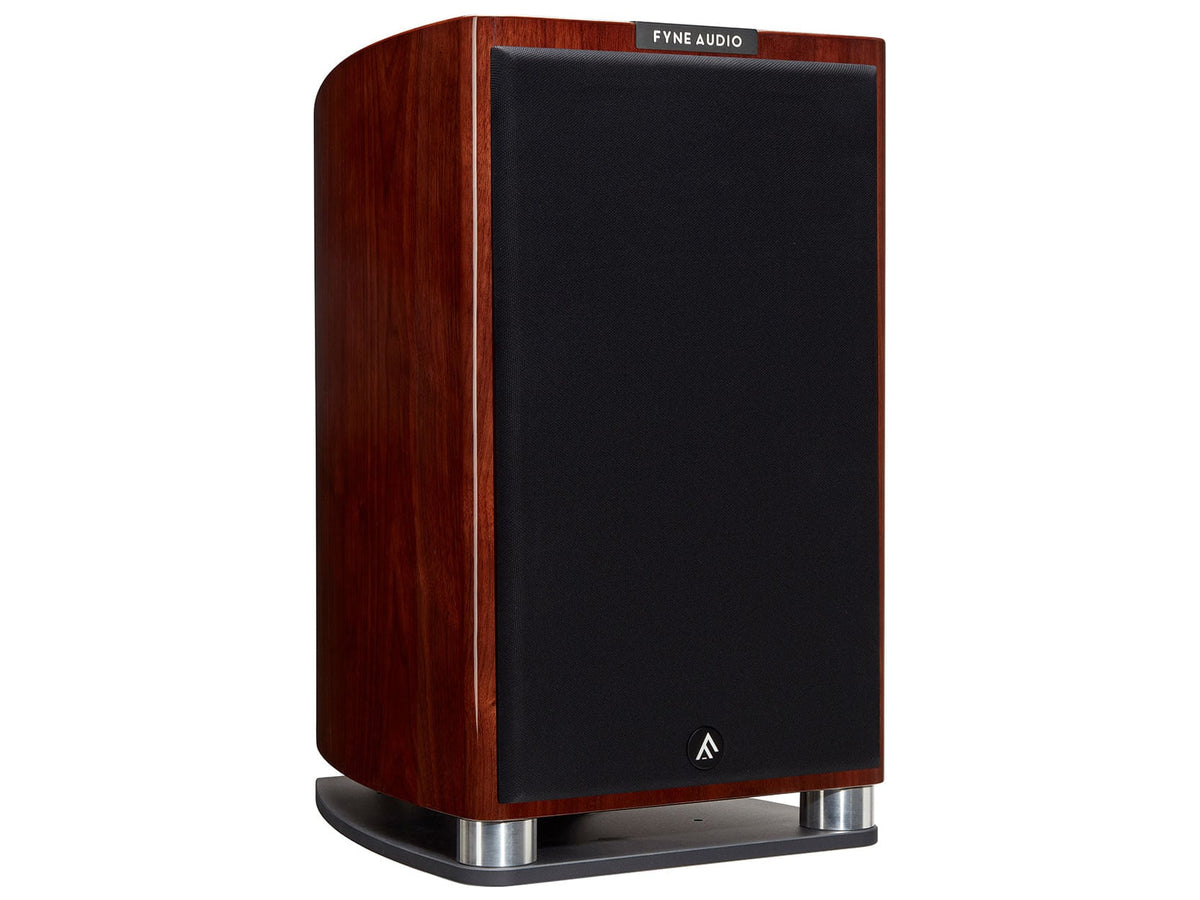

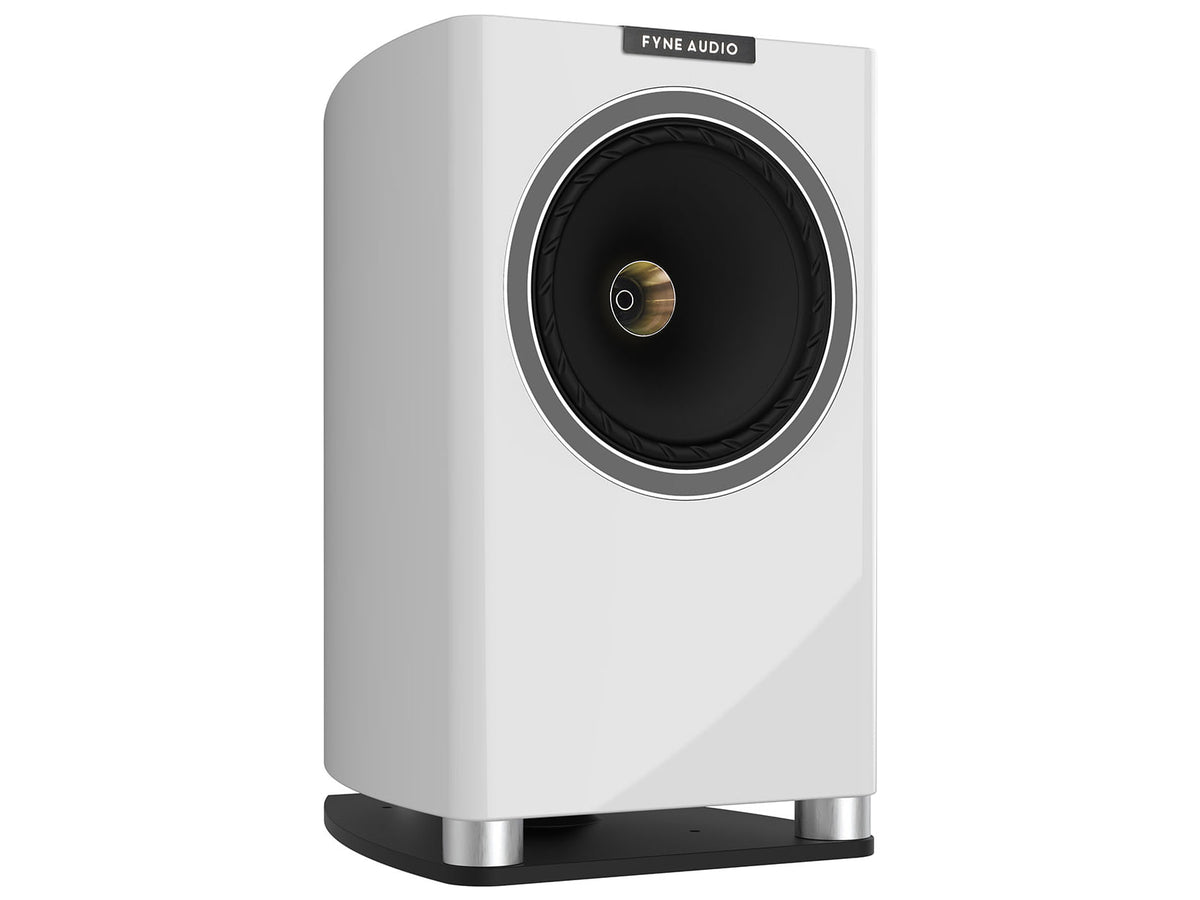

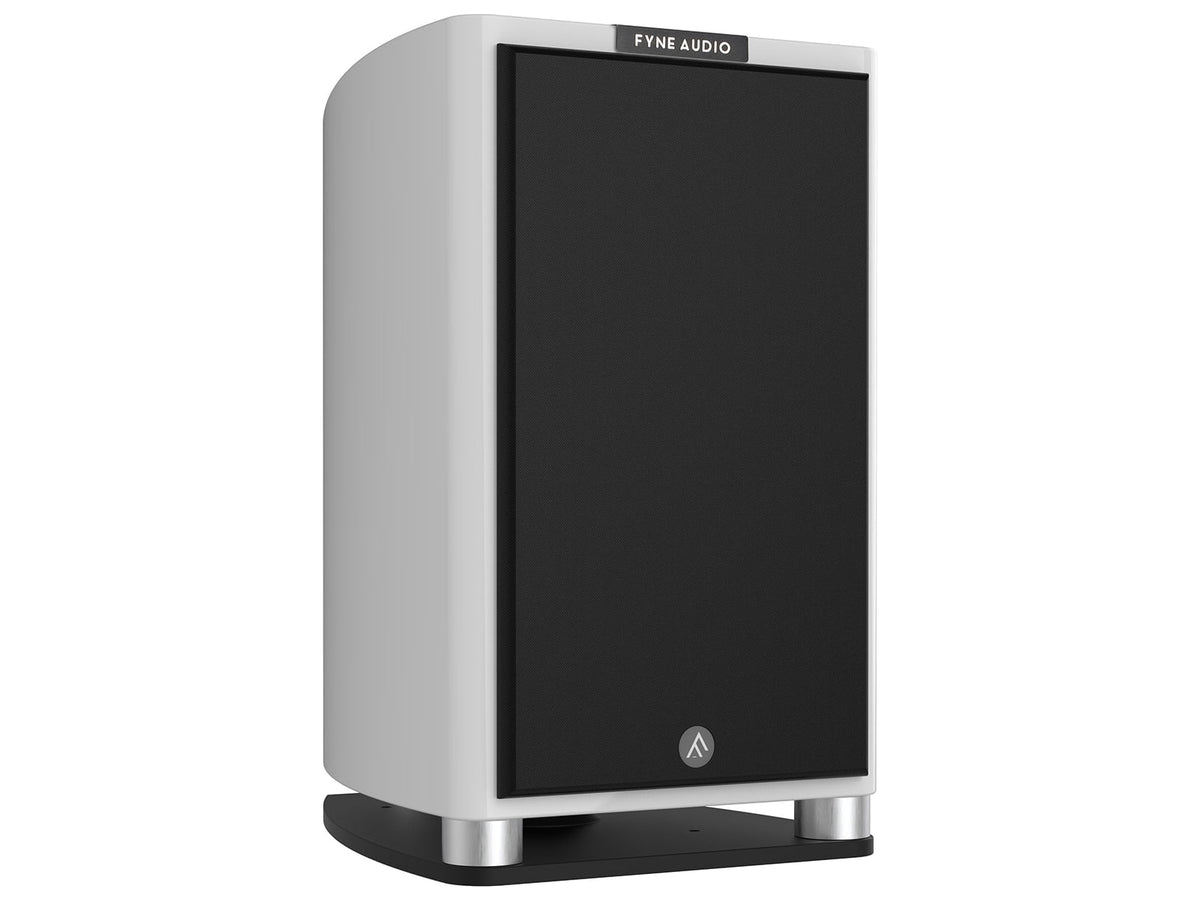

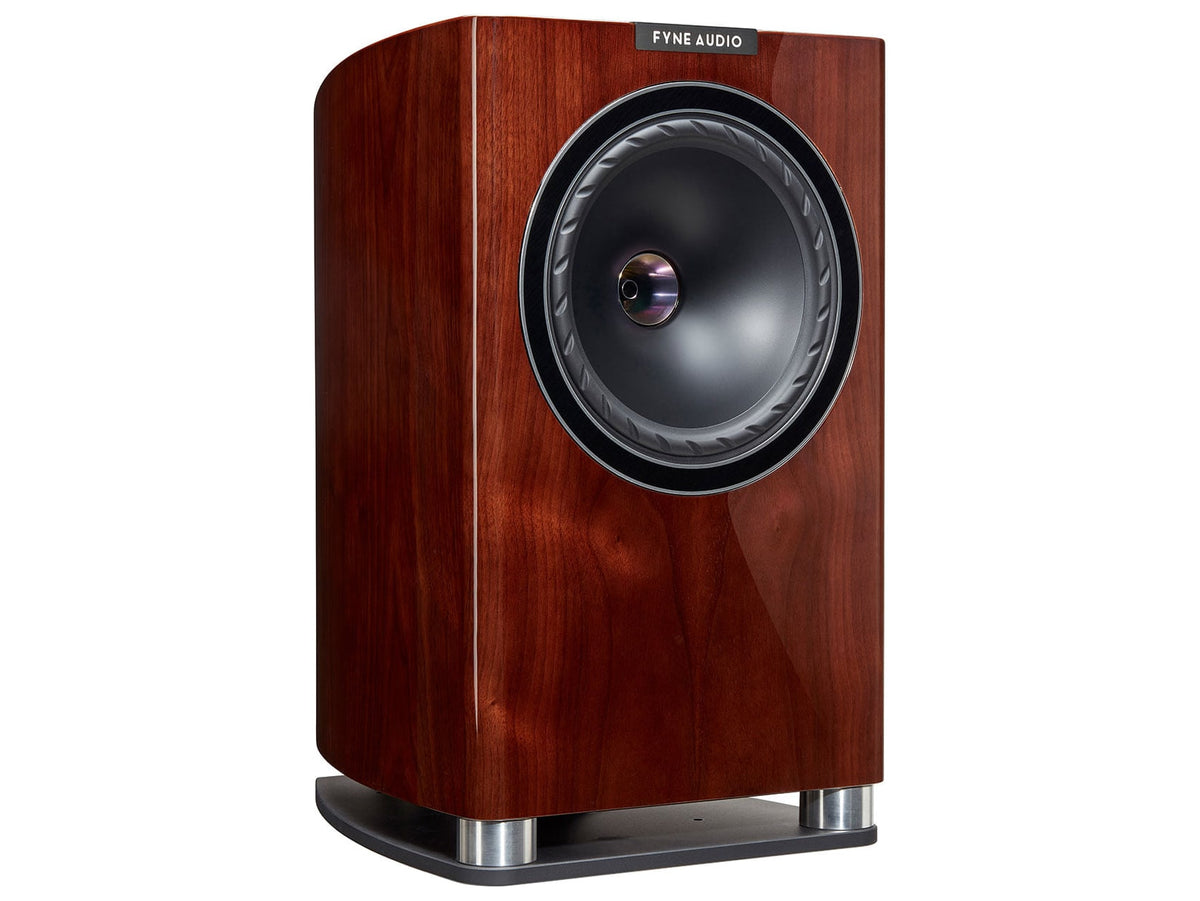

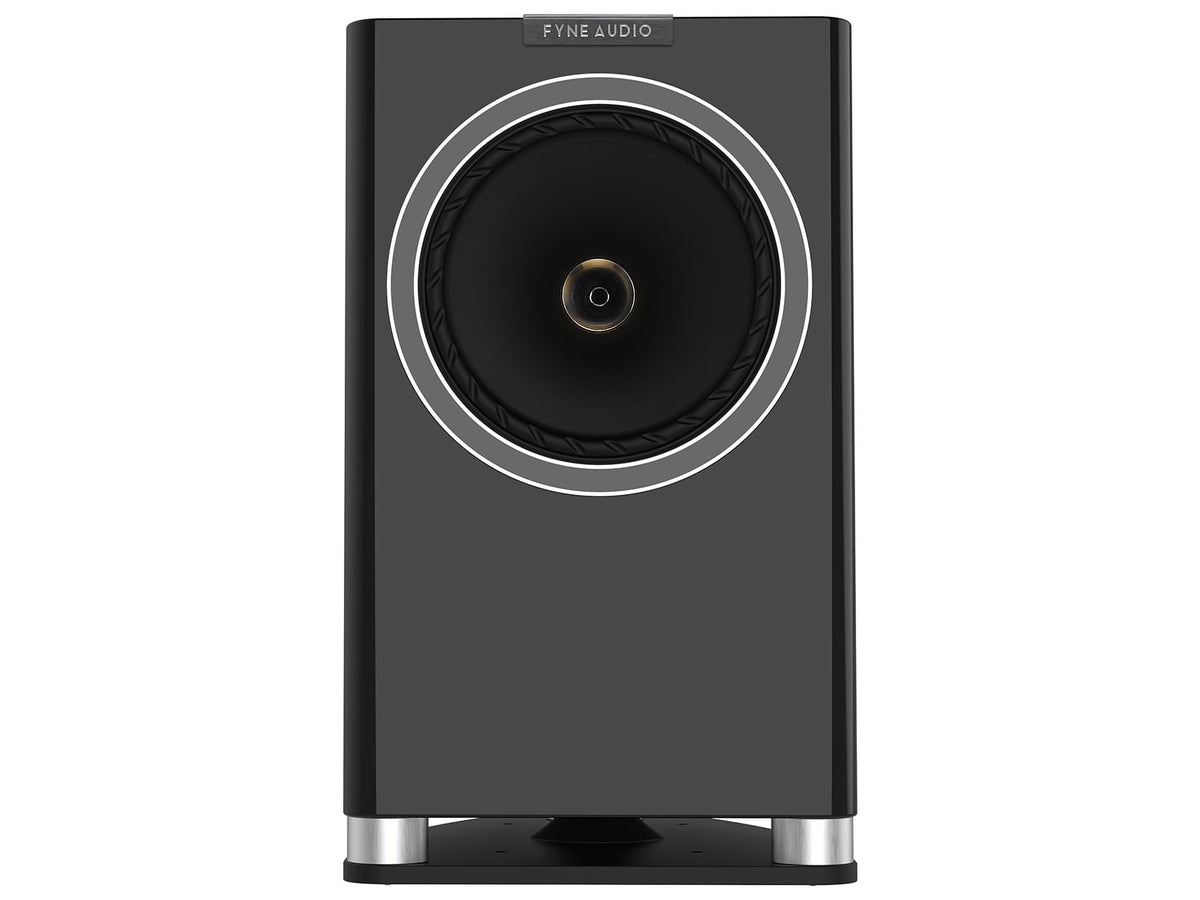

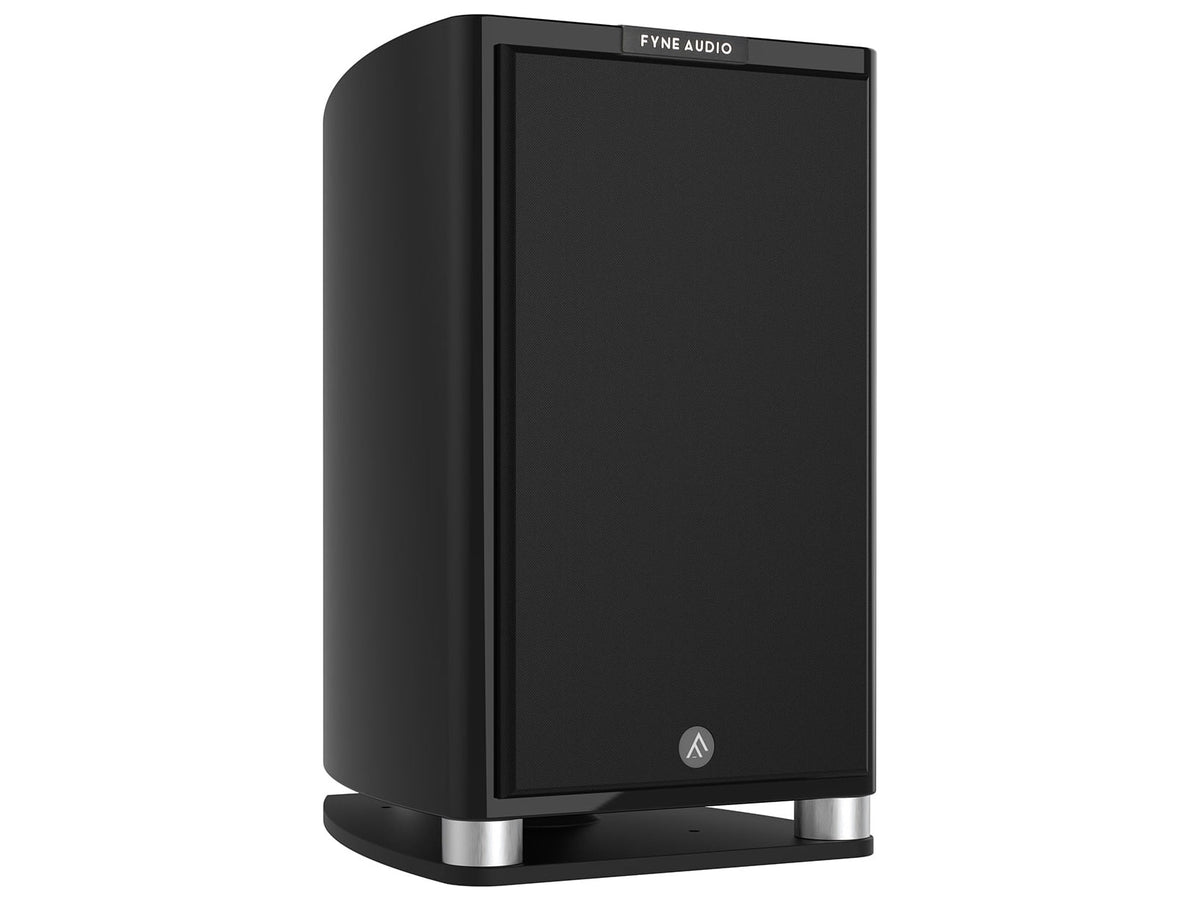

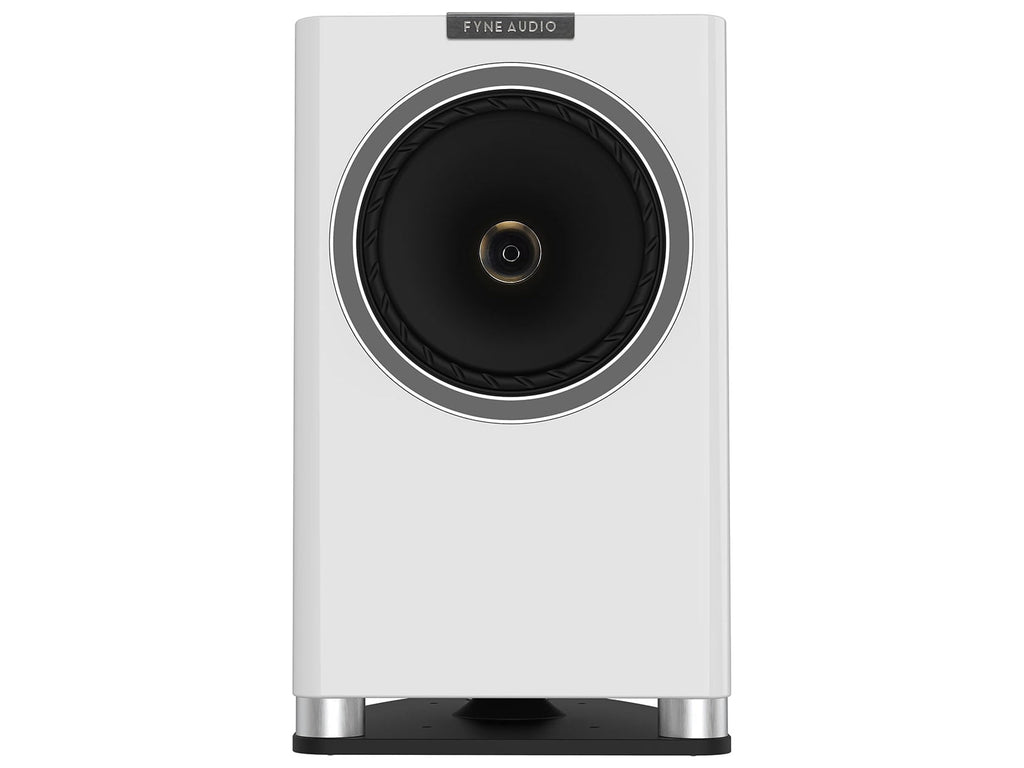

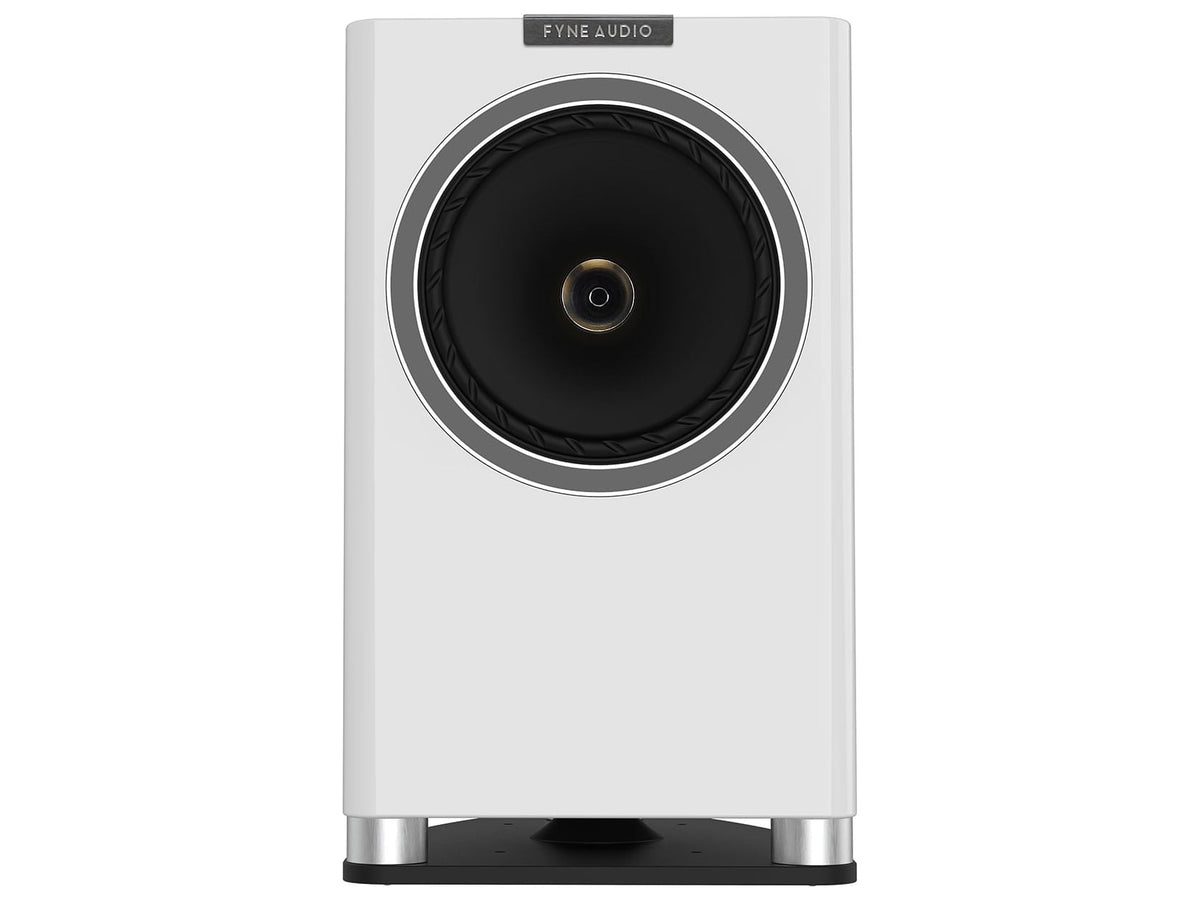

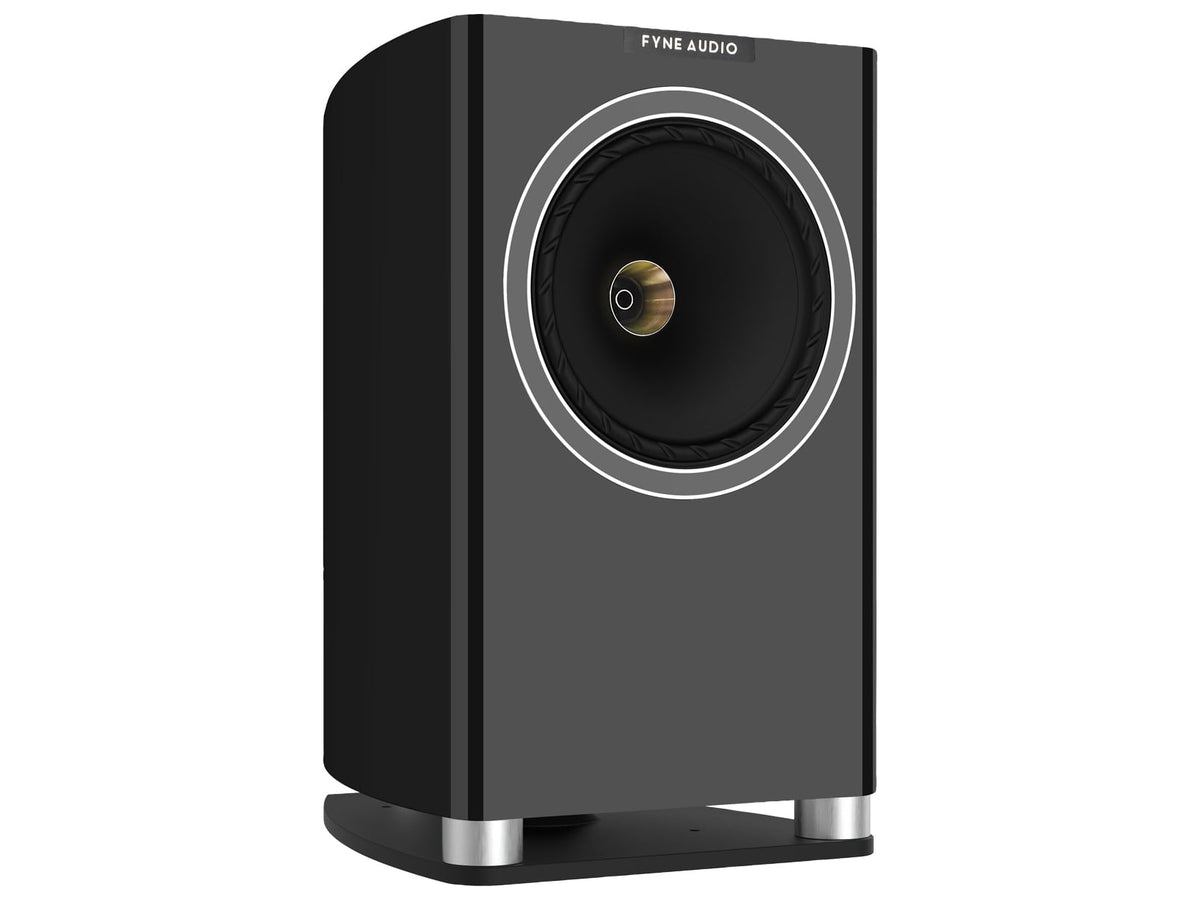

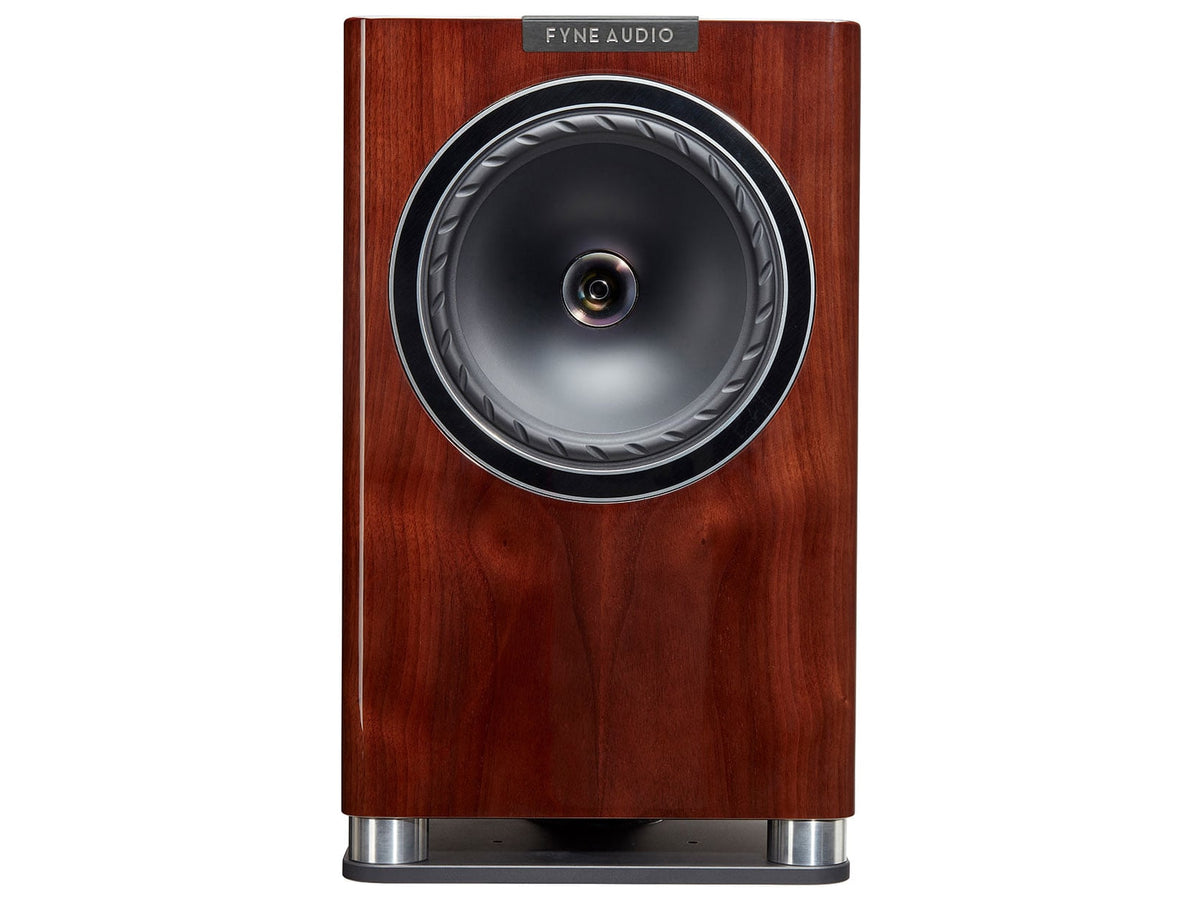

The F701 comes in three lacquered finishes: Walnut Piano Gloss, plus Black Piano Gloss and White Piano Gloss.
