2.5-way floorstanding loudspeaker with a 200 mm IsoFlare driver
F702SP is a 2.5-way floorstanding loudspeaker from the F700SP range, built by hand in the United Kingdom. Fyne Audio suggests it for medium and large rooms. Sold as a pair.
Its 200 mm IsoFlare driver derives from the one used in the F1-8 model and adopts a revised high-frequency waveguide for a smoother response; a second 200 mm unit for bass and midrange works beside it. The cabinet is that of the F702 model, tuned with a twin cavity and equipped with the BassTrax low-frequency diffuser. The crossover has been redesigned and optimised through computer modelling and long listening sessions: it uses high-quality Claritycap capacitors, Neotech PC-OCC wiring and WBT Nextgen 0703 terminals with gold plating, and undergoes a proprietary cryogenic treatment. The loudspeaker rests on a heavy aluminium platform with M12 threaded cones as supports.
Key features
- 2.5-way system with a port firing towards the floor, BassTrax Tractrix diffuser and twin-cavity loading
- 200 mm IsoFlare point source unit: multi-fibre cone on a FyneFlute surround and a compression tweeter with a 25 mm magnesium dome, ferrite magnet
- Second 200 mm unit with a multi-fibre cone and FyneFlute surround
- Frequency response of 28 Hz - 34 kHz (-6 dB, typical in room)
- Sensitivity of 92 dB (2.83 V at 1 m), nominal impedance of 8 ohm
- Suggested amplifier output from 30 to 200 watt RMS; 100 watt RMS continuous, 400 watt peak
- Low-loss passive crossover, ready for bi-wiring, at 250 Hz and 1.8 kHz
Technical data
The crossover uses a second-order low-pass and a first-order high-pass. The cabinet is made of pressed birch plywood of high density, braced internally; it measures 1126 x 439 x 443 mm (height x width x depth) and weighs 37.5 kg: size and weight apply to one loudspeaker. For anyone adding a super tweeter, the data sheet gives its distance from the cabinet's front edge: 63 mm for S-Trax, 39 mm for SuperTrax.
Finishes

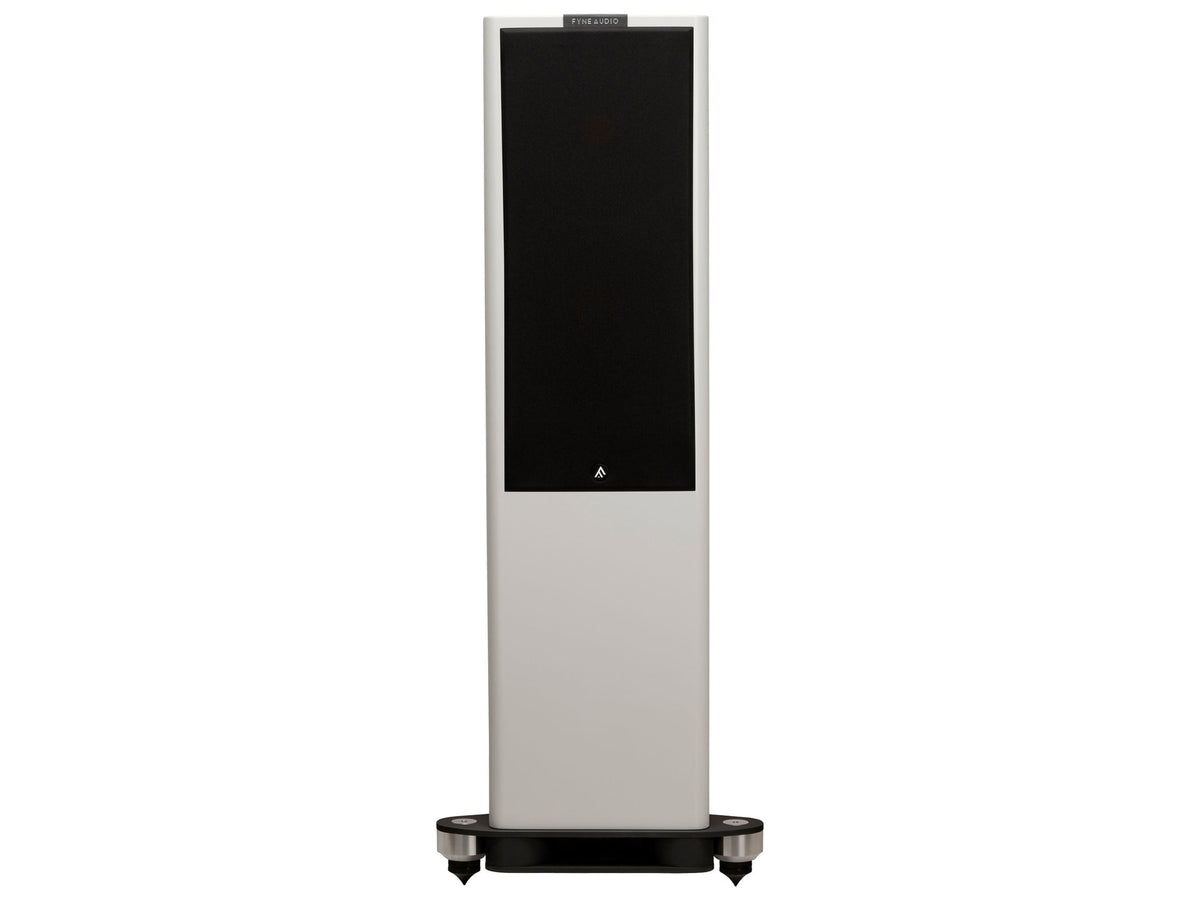

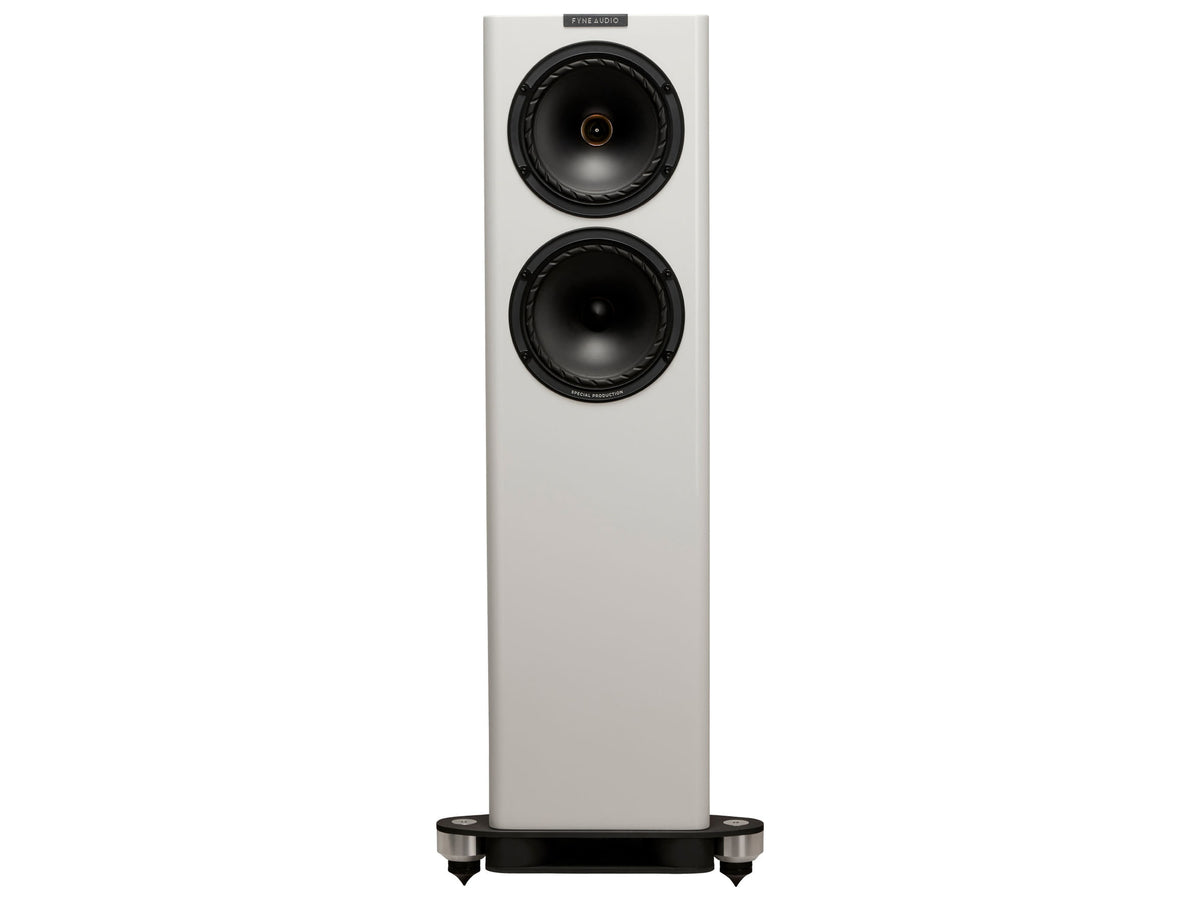

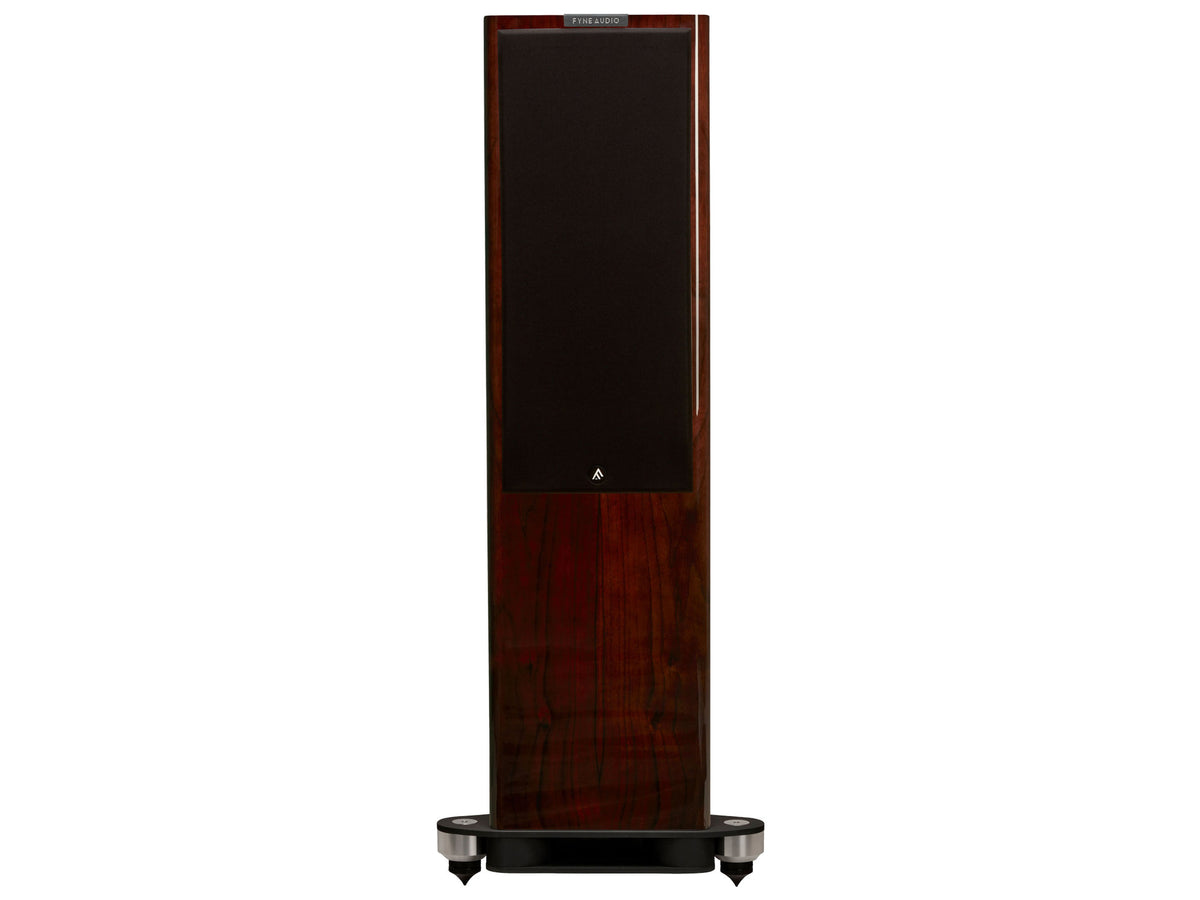

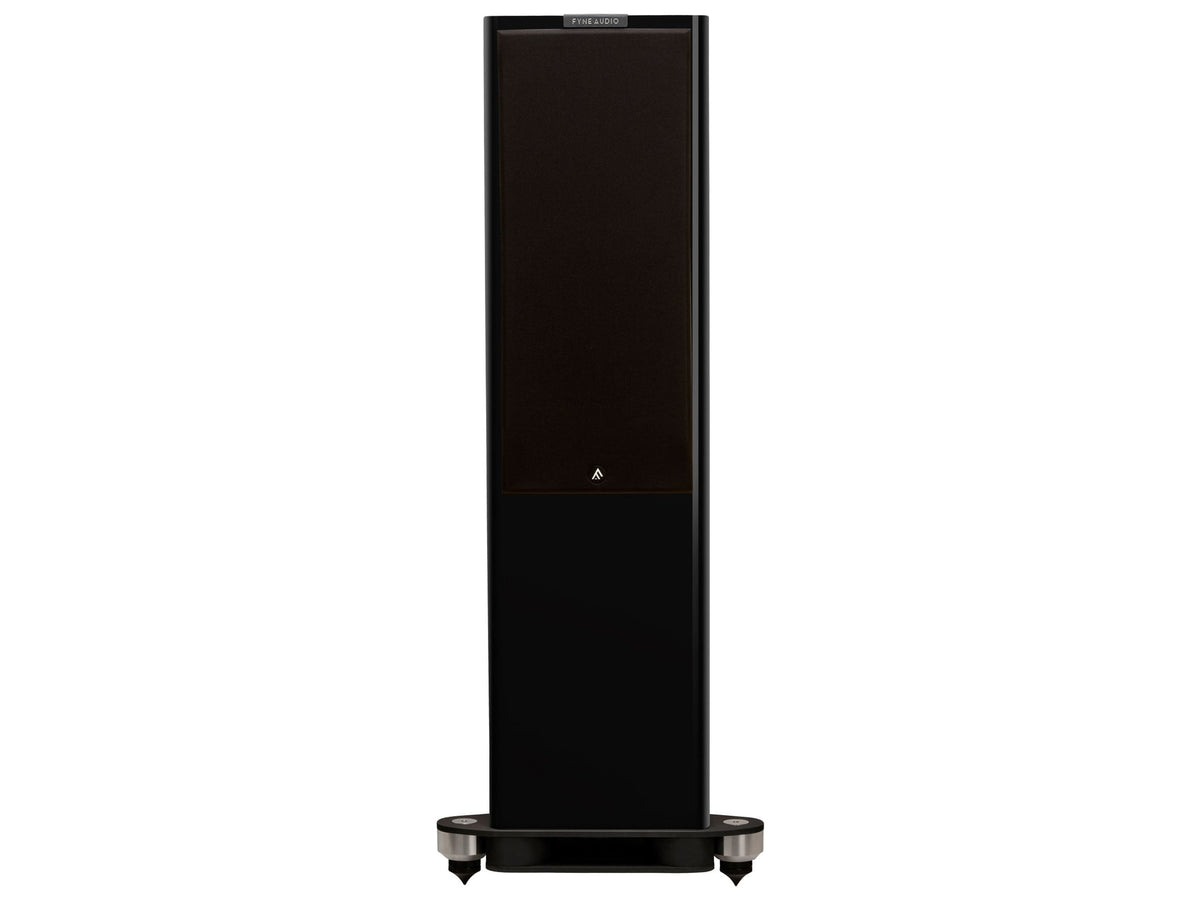

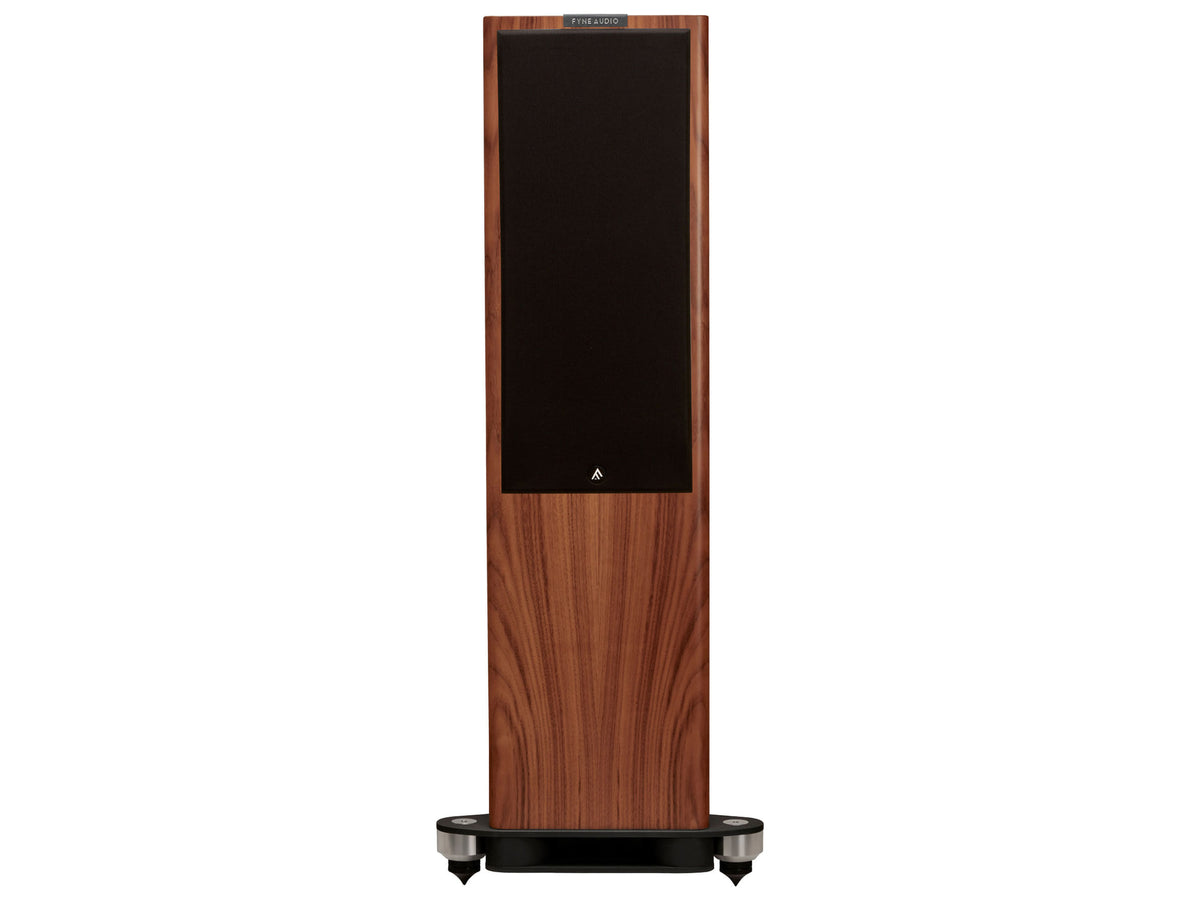

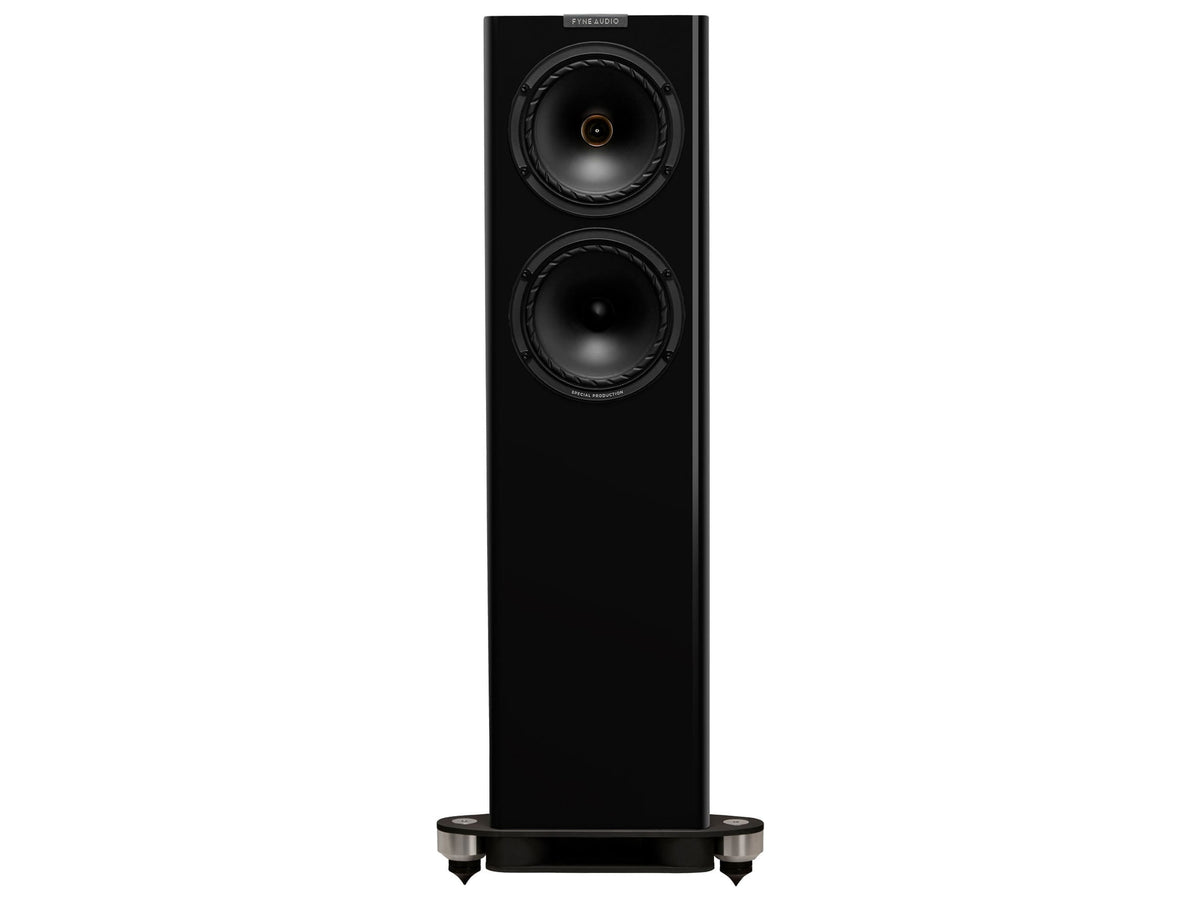

F702SP is offered in four finishes: Walnut Piano Gloss, Natural Walnut, Black Piano Gloss and White Piano Gloss.
