Fyne Audio F703SP

2.5-way floorstanding loudspeaker with a 250 mm IsoFlare driver

F703SP is a 2.5-way floorstanding loudspeaker from the F700SP range: it evolves the F703 model and takes technical solutions from the F1 Series. It is built in Scotland. Sold as a pair.

Its 250 mm IsoFlare point source unit is close to the one in the F1-10 model: it has a large neodymium magnet for the high frequencies and a 75 mm dome in titanium, giving lower distortion and a more even frequency response. A 250 mm woofer works beside it. The crossover has been redrawn and optimised through computer models and listening sessions: it uses Neotech PC-OCC wiring together with high-quality Claritycap capacitors, and receives a cryogenic treatment carried out in Fyne Audio's facilities. The terminals are WBT Nextgen 0703 types with gold plating. The loudspeaker is mounted on a heavy platform in machined aluminium, with M12 threaded cones as supports, for stability and precise bass.

Key features

• 2.5-way system with a port firing towards the floor, BassTrax Tractrix diffuser and twin-cavity loading
• 250 mm IsoFlare point source unit: multi-fibre cone on a FyneFlute surround and a compression tweeter with a 75 mm titanium dome, neodymium magnet
• 250 mm woofer with a multi-fibre cone and FyneFlute surround
• Frequency response of 24 Hz - 26 kHz (-6 dB, typical in room)
• Sensitivity of 94 dB (2.83 V at 1 m), nominal impedance of 8 ohm
• Suggested amplifier output from 30 to 250 watt RMS; 125 watt RMS continuous, 500 watt peak
• Low-loss passive crossover, ready for bi-wiring, at 250 Hz and 850 Hz

Technical data

The crossover uses a second-order low-pass and a first-order high-pass. The cabinet is made of pressed birch plywood of high density, braced internally; it measures 1195 x 505 x 468 mm (height x width x depth) and weighs 56 kg: size and weight apply to one loudspeaker. For anyone adding a super tweeter, the data sheet gives its distance from the cabinet's front edge: 94 mm for S-Trax, 70 mm for SuperTrax.

Finishes

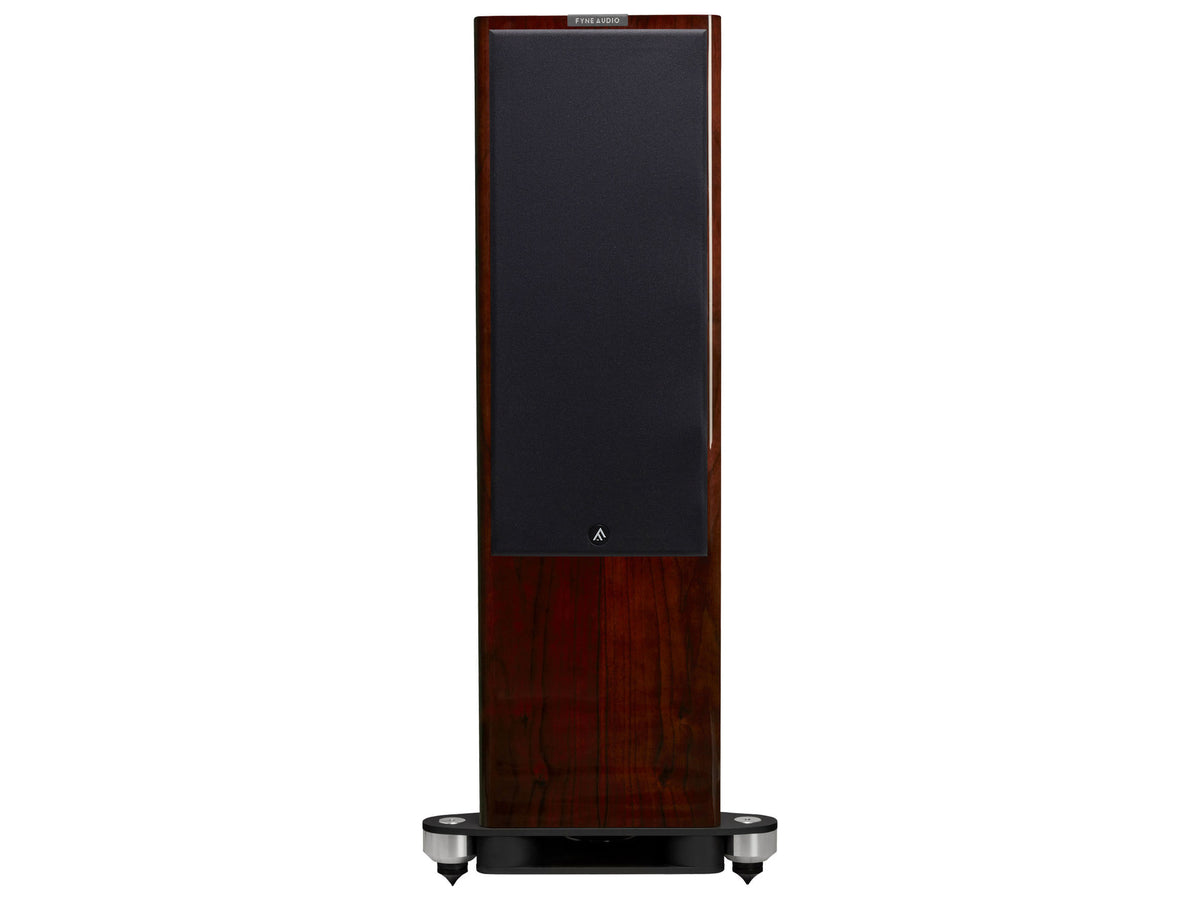

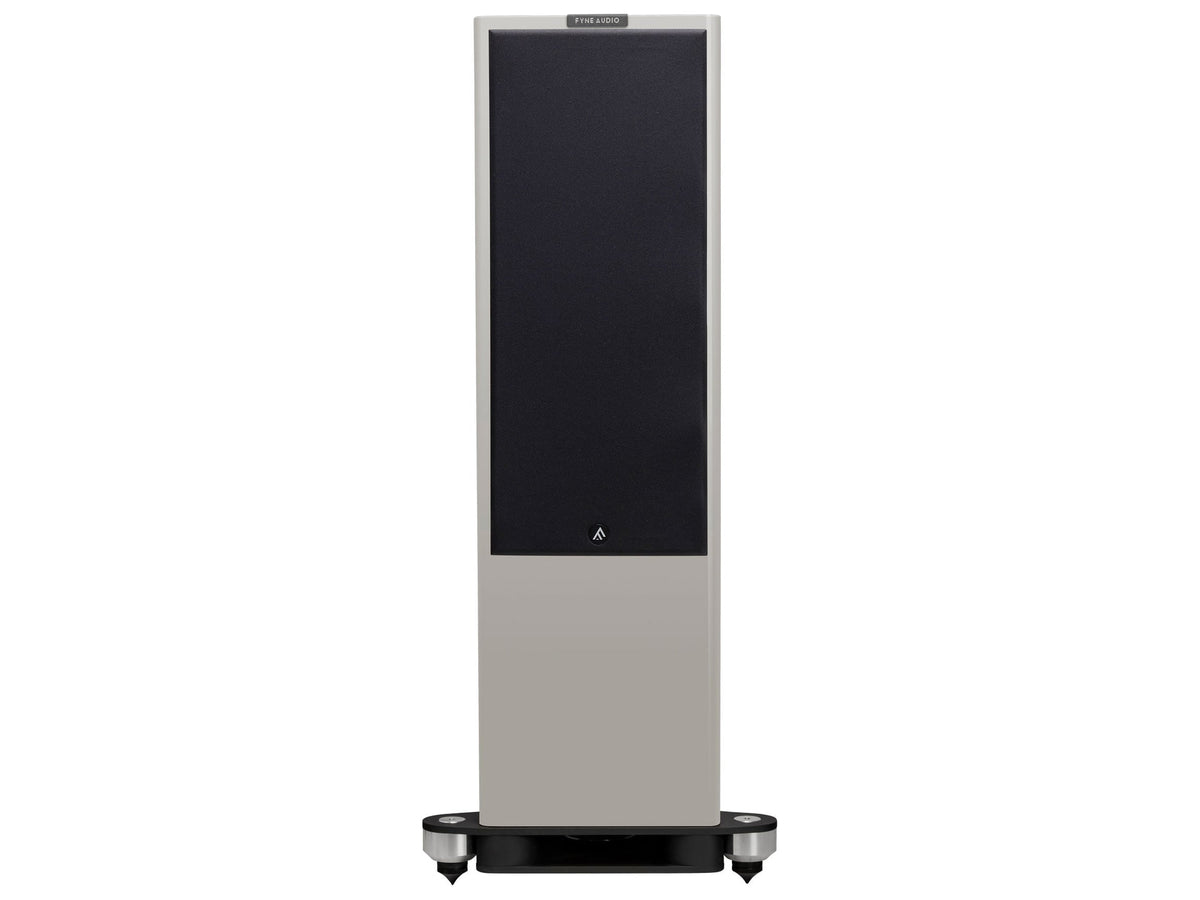

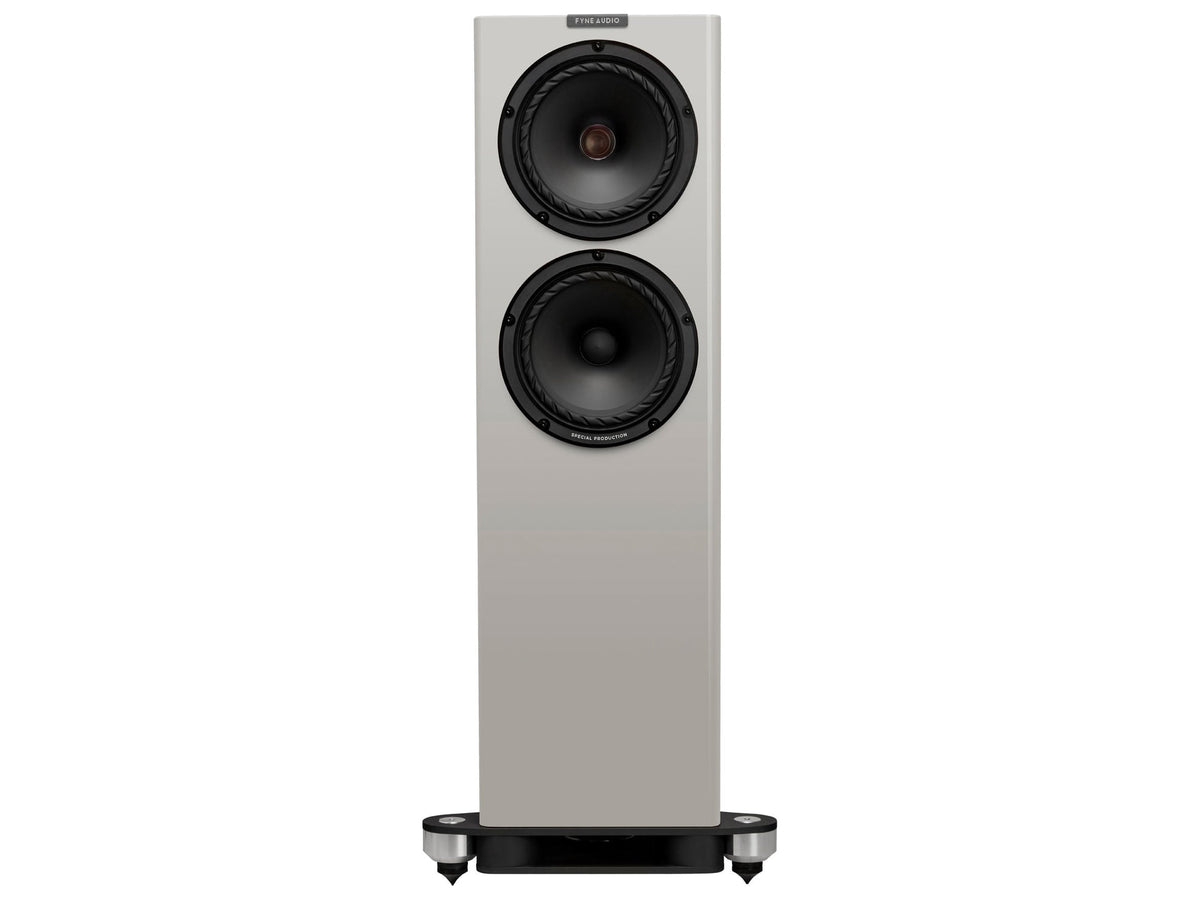

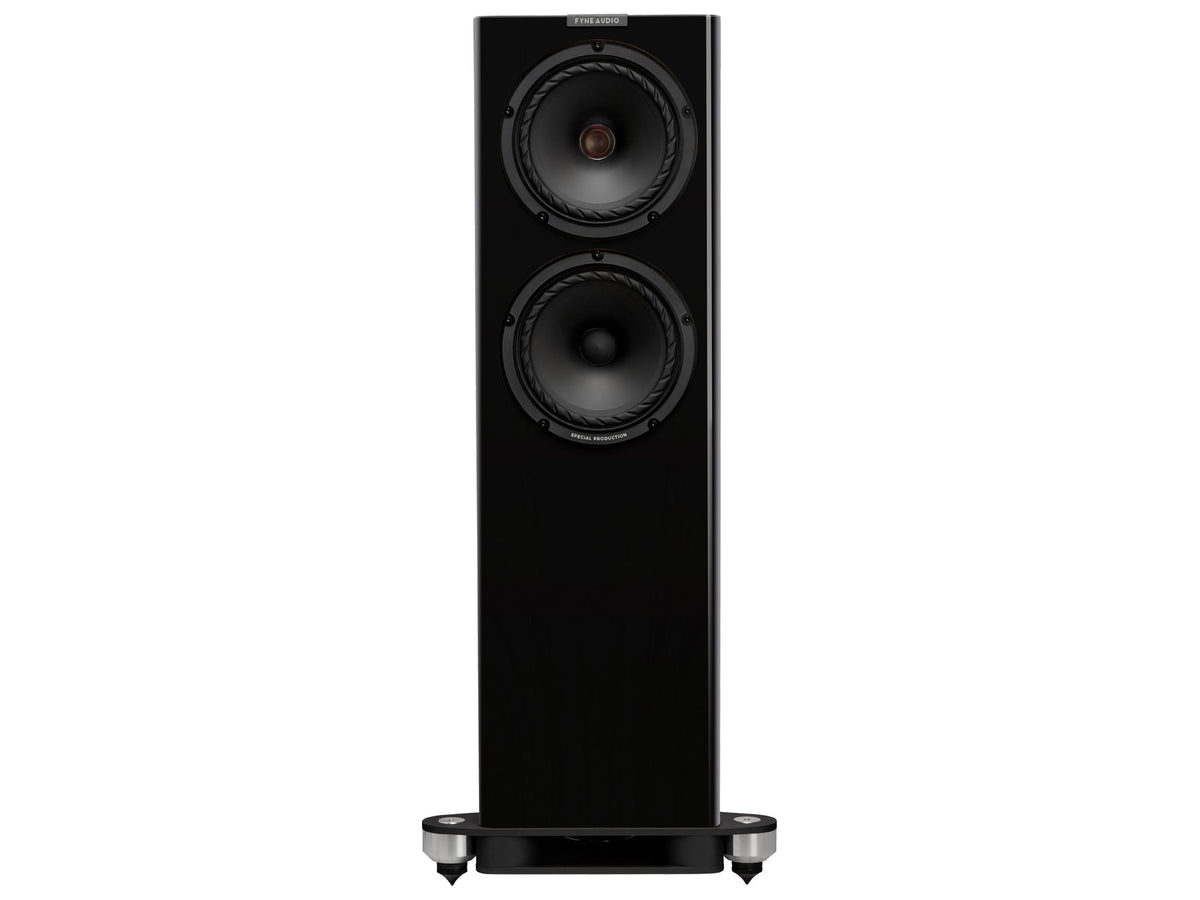

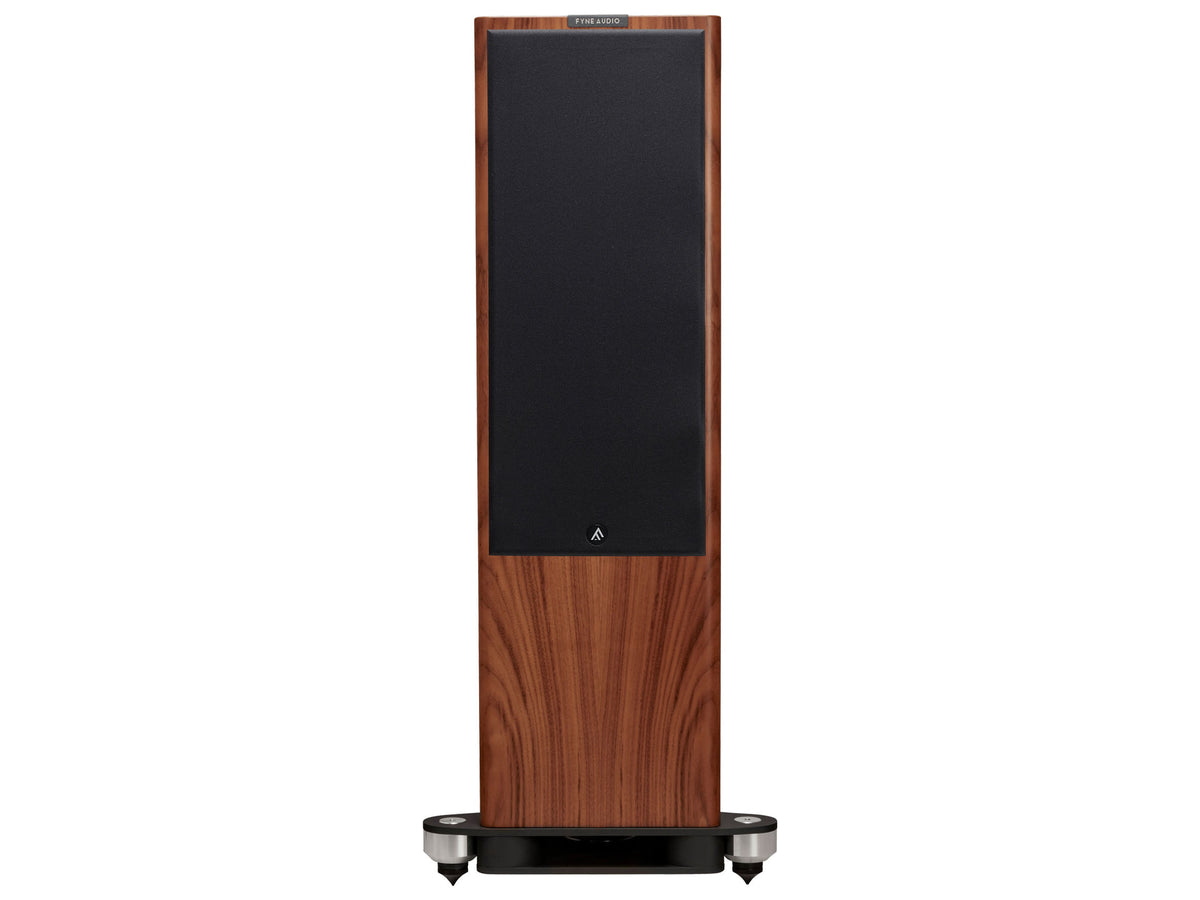

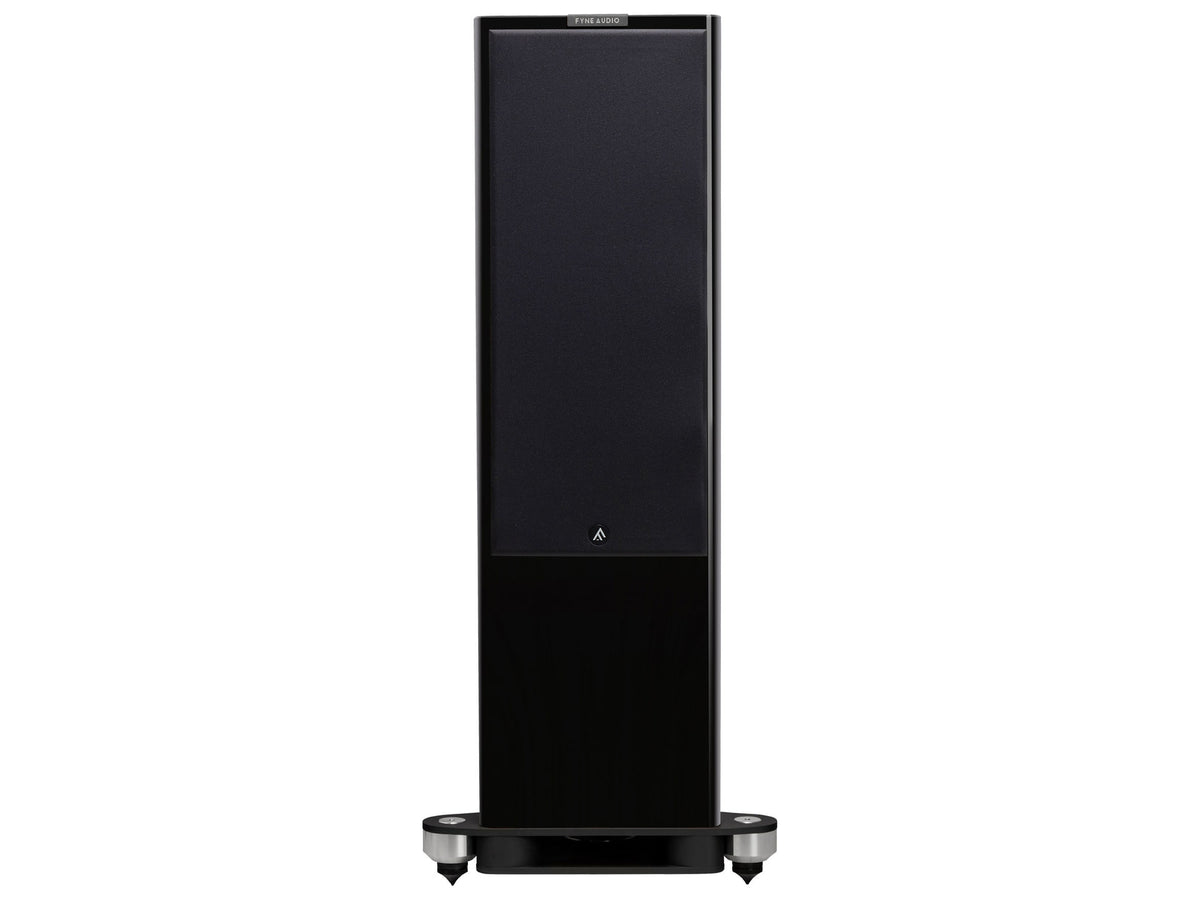

F703SP is offered in four finishes: Walnut Piano Gloss, Natural Walnut, Black Piano Gloss and White Piano Gloss.
