2-way floorstanding loudspeaker built around a 380 mm IsoFlare driver

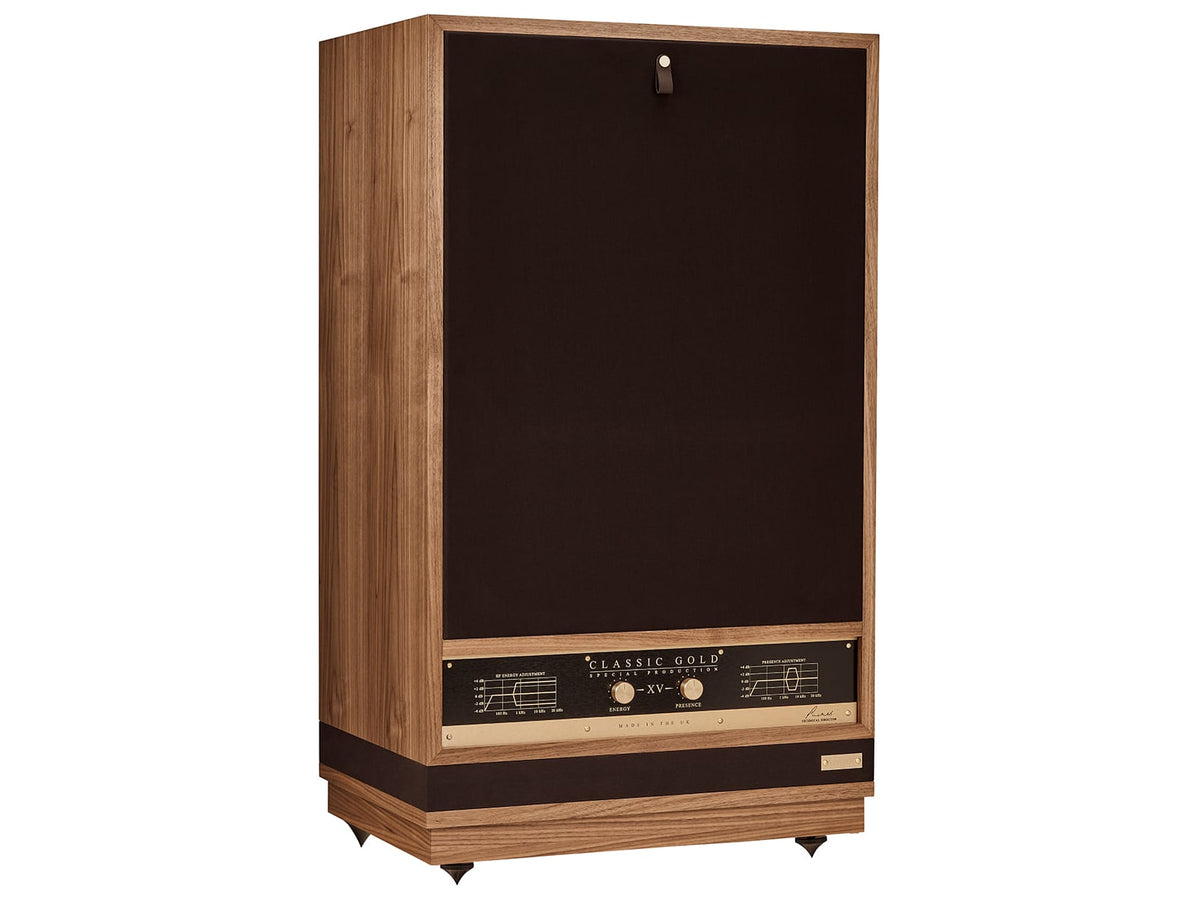

Vintage Classic Gold XV SP is a 2-way floorstanding loudspeaker that Fyne Audio describes as the flagship of the Vintage Classic Gold SP range. It is aimed at listeners who want deep bass together with a wide soundstage. Sold as a pair.

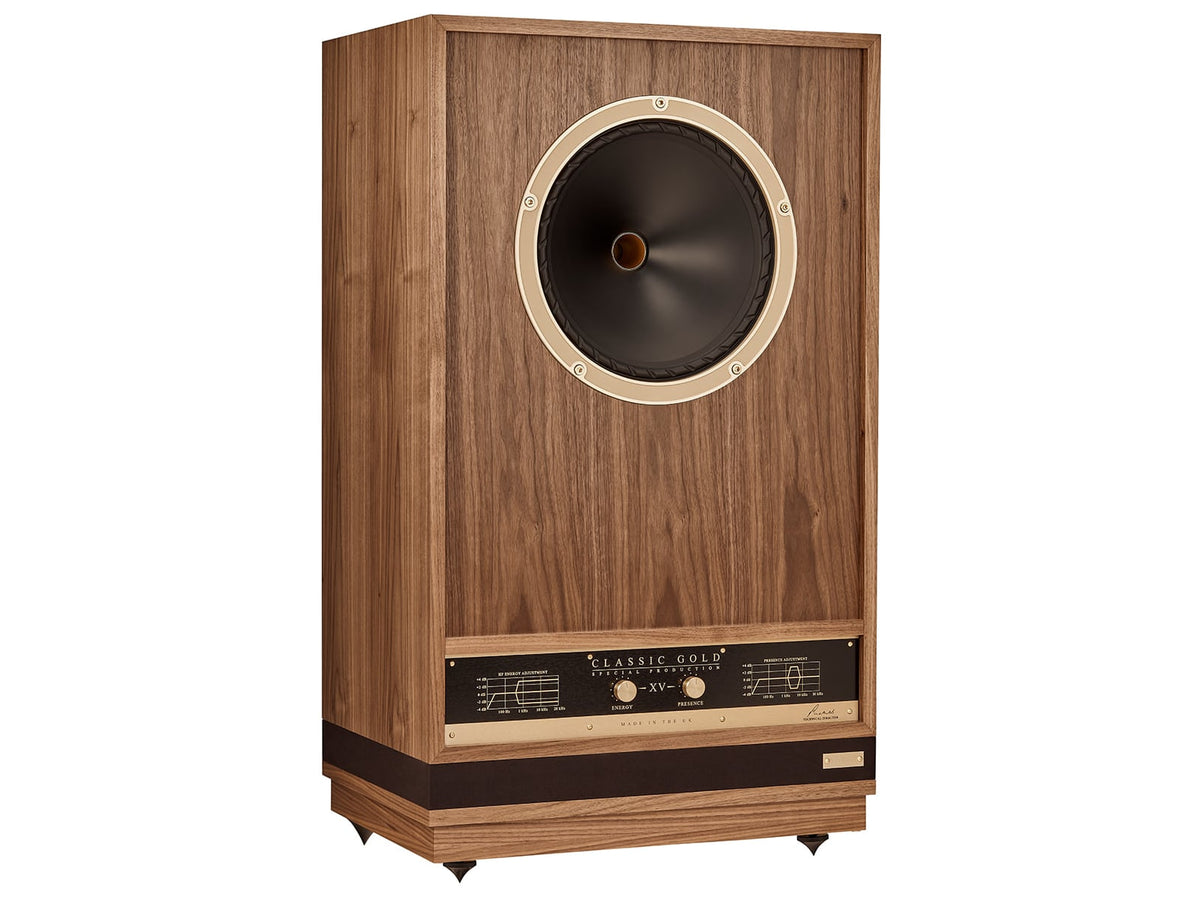

The whole audio band is handled by one 380 mm IsoFlare point source unit: its bass and midrange cone uses multi-fibre material and a FyneFlute surround, while a compression tweeter with a 75 mm titanium dome sits at the centre, powered by a neodymium magnet. The large cabinet is built from birch plywood of high density and braced inside to keep resonances under control. The reflex port fires downwards, with twin-cavity loading and the BassTrax Tractrix diffuser. The trim carries gold accents and the signature of Dr. Paul Mills.
Key features
- 2-way system with a port firing towards the floor, twin cavity and BassTrax Tractrix diffuser
- 380 mm IsoFlare point source unit with a 75 mm titanium compression tweeter
- Frequency response of 23 Hz - 26 kHz (-6 dB, typical in room)
- Sensitivity of 97 dB (2.83 V at 1 m), nominal impedance of 8 ohm
- Suggested amplifier output from 20 to 400 watt RMS, continuous handling of 200 watt RMS

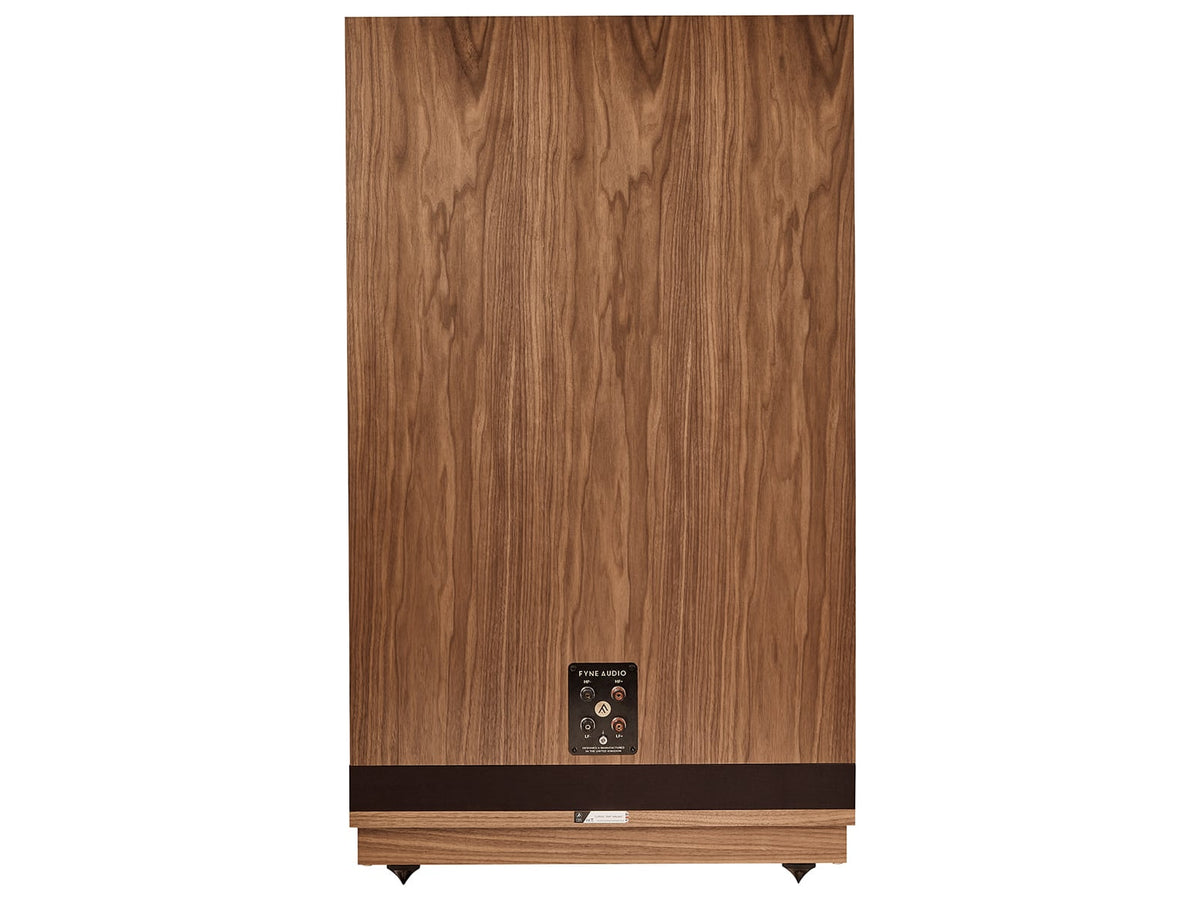

- Low-loss passive crossover ready for bi-wiring, with Deep Cryogenic Treatment
- ±3 dB adjustments for high-frequency energy and for presence
Technical data
The crossover point is 750 Hz, using second-order filters on both the low-pass and the high-pass side. The two adjustments act between 750 Hz and 26 kHz (high frequencies) and between 2.5 and 5 kHz (presence). The cabinet measures 1052 x 650 x 537 mm (height x width x depth) and weighs 71 kg: size and weight refer to one loudspeaker.
Installation
The Fyne Audio data sheet also states where a super tweeter should sit relative to the cabinet: 142 mm back from its front edge for S-Trax and 118 mm for SuperTrax.
