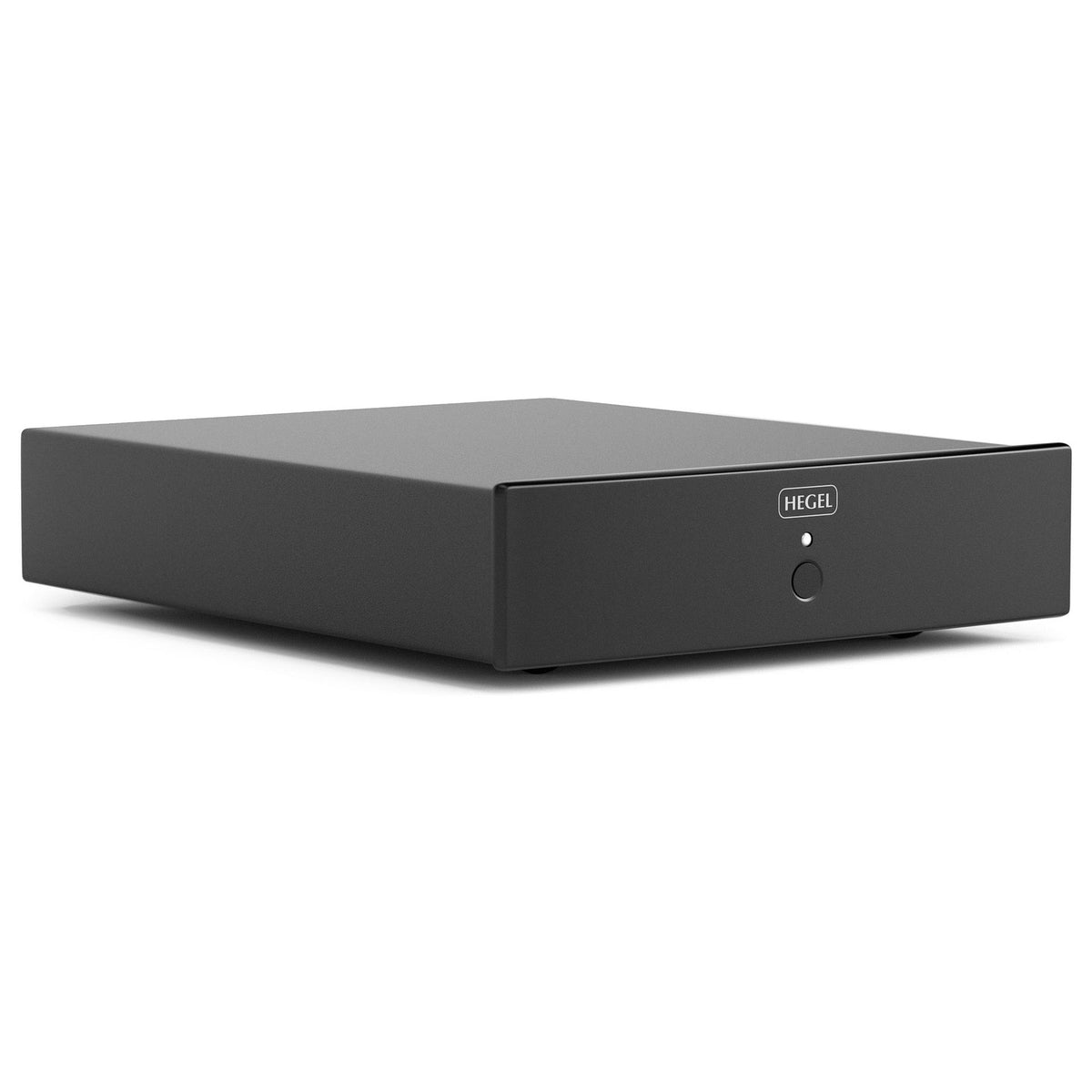

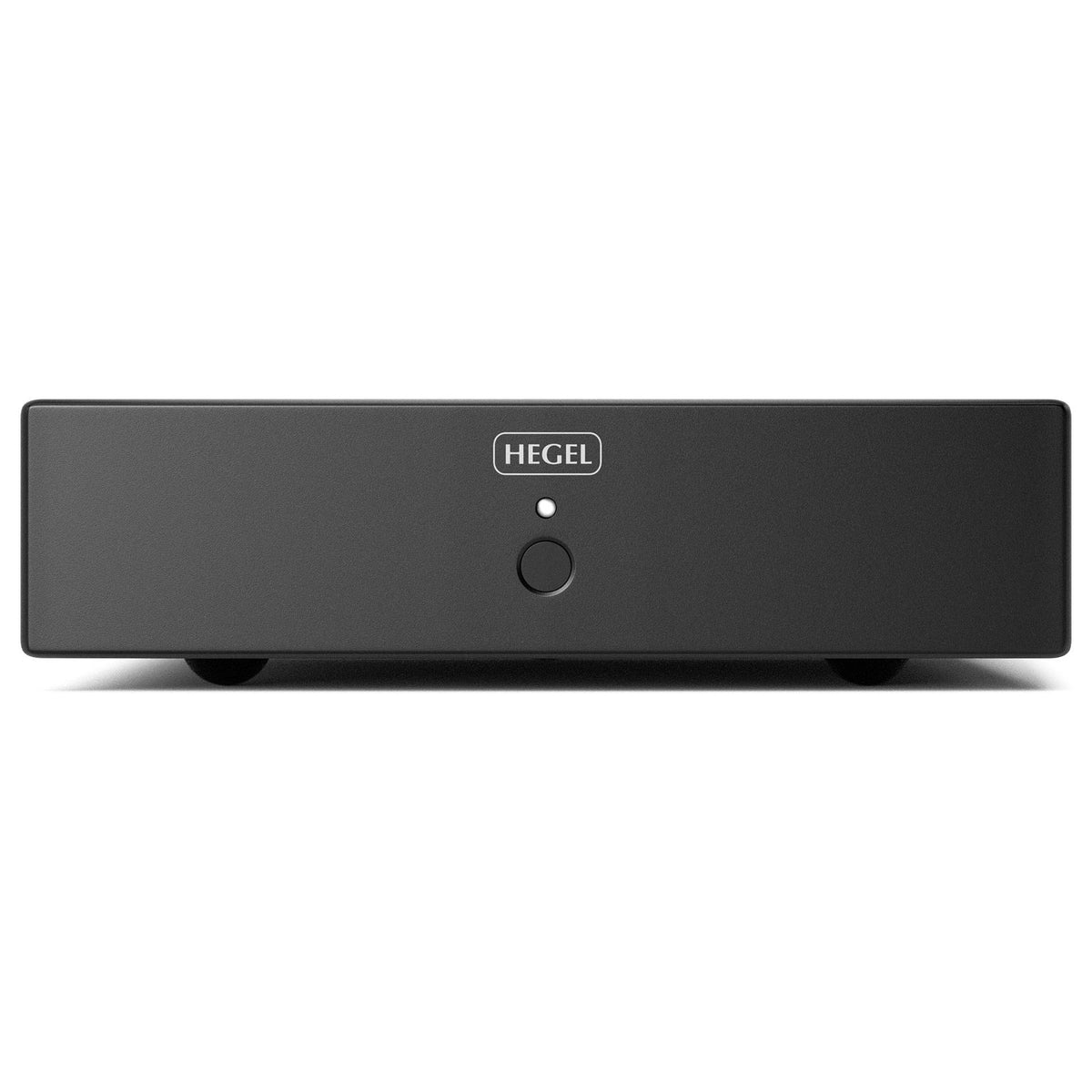

Hegel V10: phono preamplifier for MM and MC cartridges with XLR and RCA outputs
Hegel V10 is a discrete-transistor phono preamplifier for MM (moving magnet) and MC (moving coil) cartridges. The chassis is split into two compartments, which separate the power supplies from the amplification circuits. The input stage uses discrete JFET transistors with extremely low noise on both inputs; the MC one employs four of them wired in parallel. The linear analogue power supply has an E-core transformer housed in an enclosure of its own.
As delivered it is configured as a ready-to-use MM preamplifier, but it can be adapted to the cartridge: with MC types the load impedance is freely adjusted or fixed at 47 kOhm, with MM types the load capacitance can be varied, and in both cases the gain can go up by 5, by 10 or by 12 dB. The equipment is completed by the subsonic filter, the grounding screw and adjustable automatic standby.
Technical features

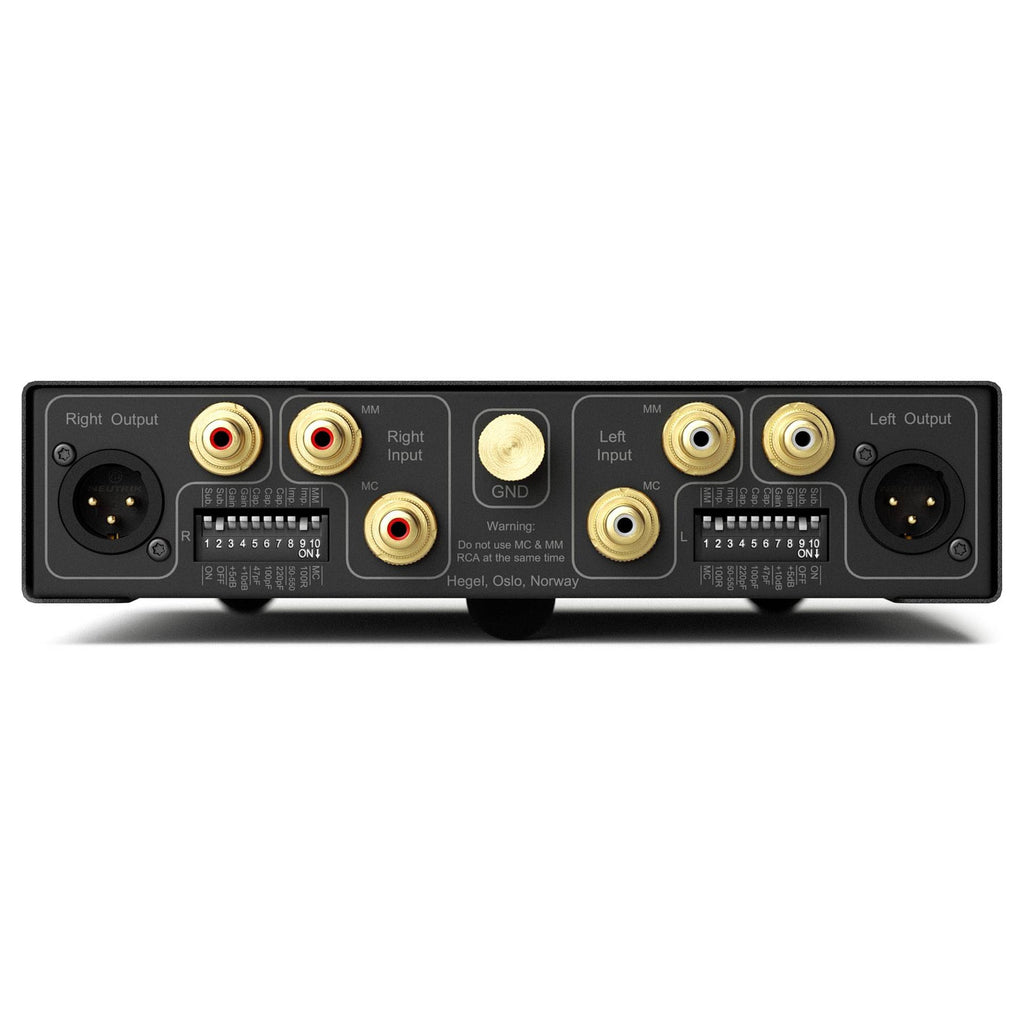

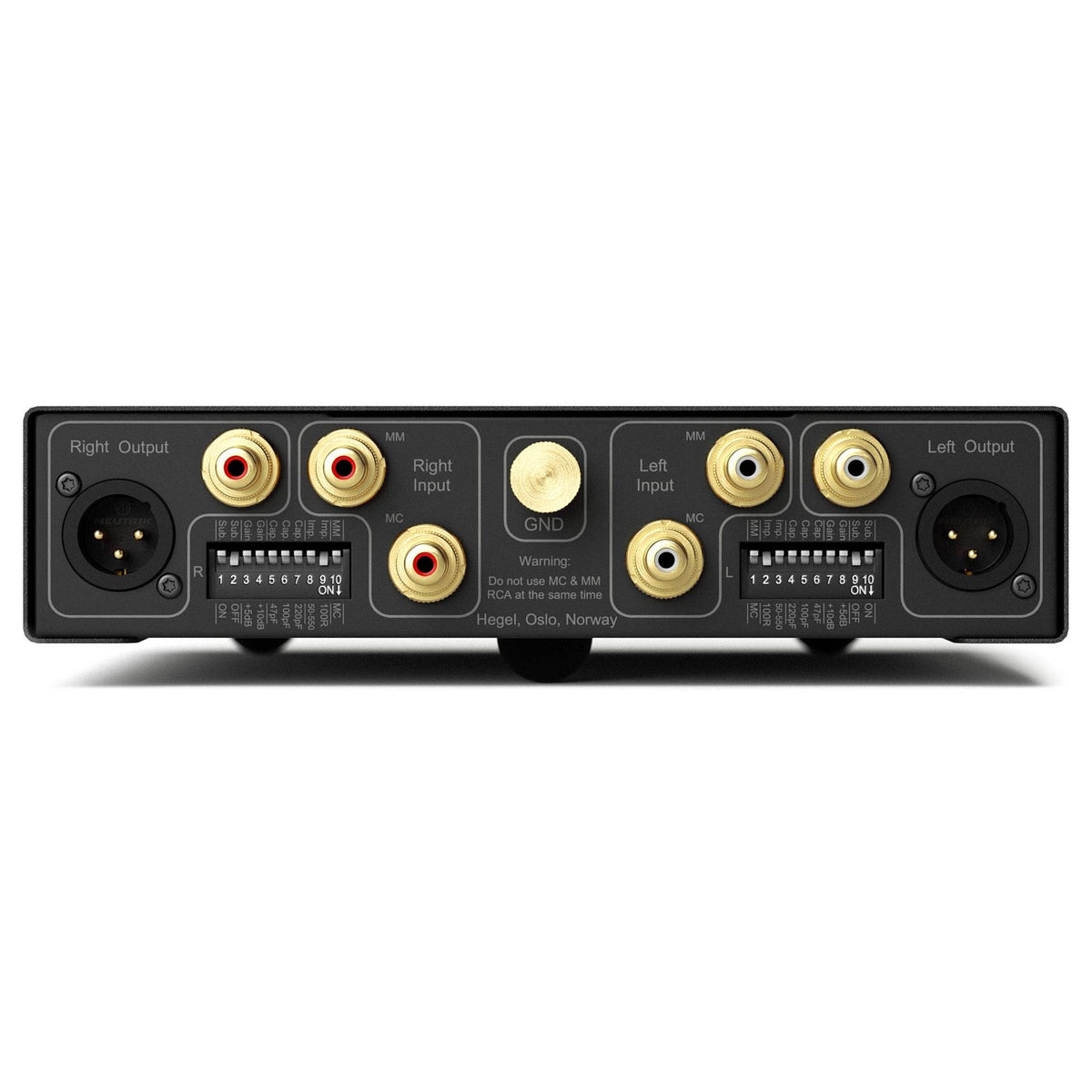

- Inputs: one unbalanced RCA for MM and one unbalanced RCA for MC
- Outputs: one balanced XLR and one unbalanced RCA, at fixed level; output impedance 200 Ohm
- MM gain: 34, 39, 44 or 46 dB on the RCA output; 40, 45, 50 or 52 dB on the XLR output
- MC gain: 54, 59, 64 or 66 dB on the RCA output; 60, 65, 70 or 72 dB on the XLR output
- MC load impedance: from 33 to 550 Ohm, or 47 kOhm
- Subsonic filter: switchable, -3 dB at 20 Hz
- RIAA accuracy: +/- 0.2 dB from 20 Hz to 20 kHz
- Harmonic distortion at 1 kHz: under 0.005% (MM) and 0.009% (MC)
- Size and weight: height 6 cm with feet, width 21 cm, depth 28 cm; 2.2 kg
