Seven-outlet mains filter with three 16 A high-current outputs and an EVO3 Premier cable supplied.

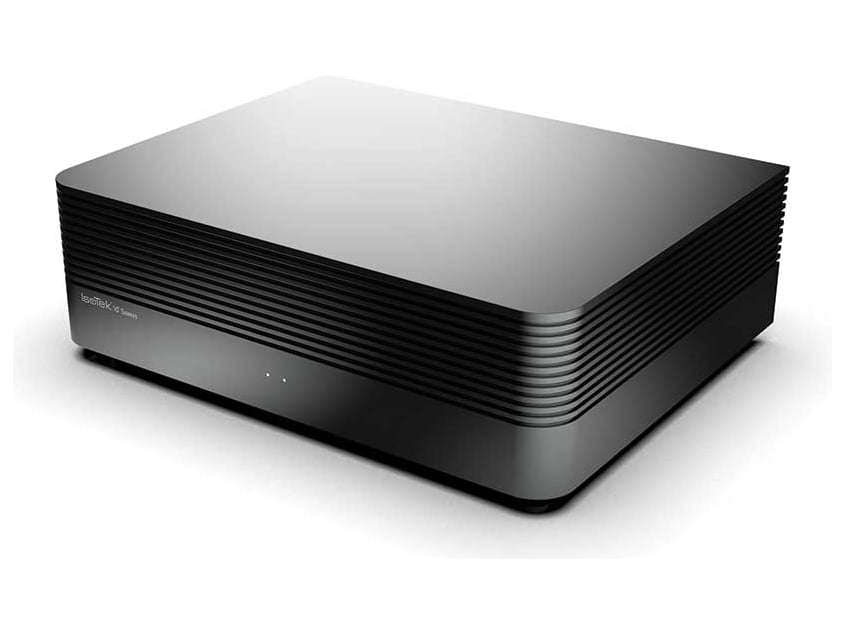

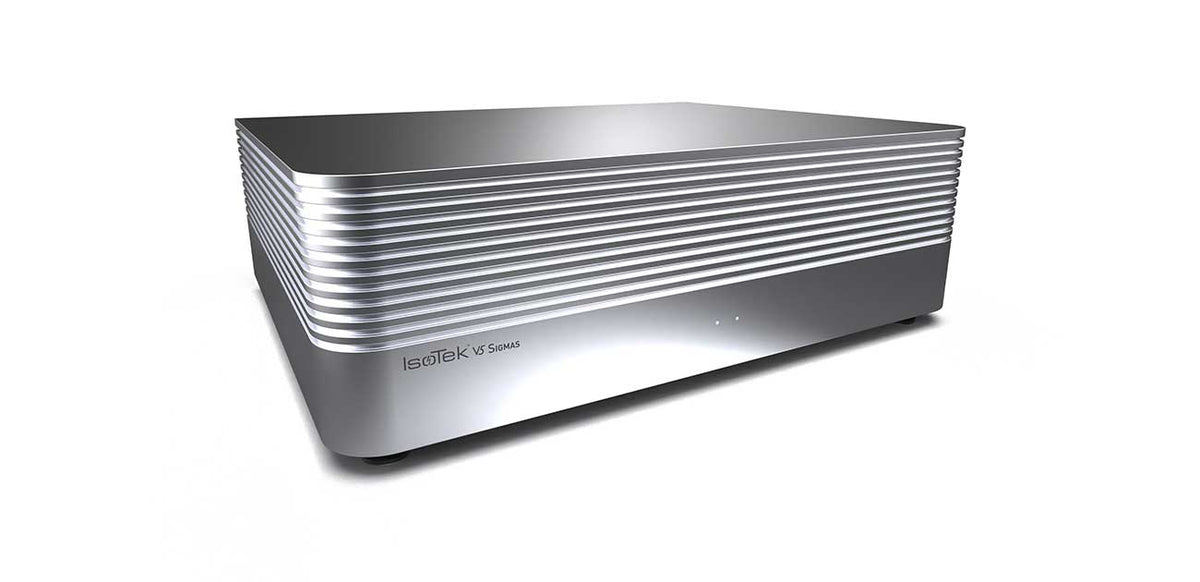

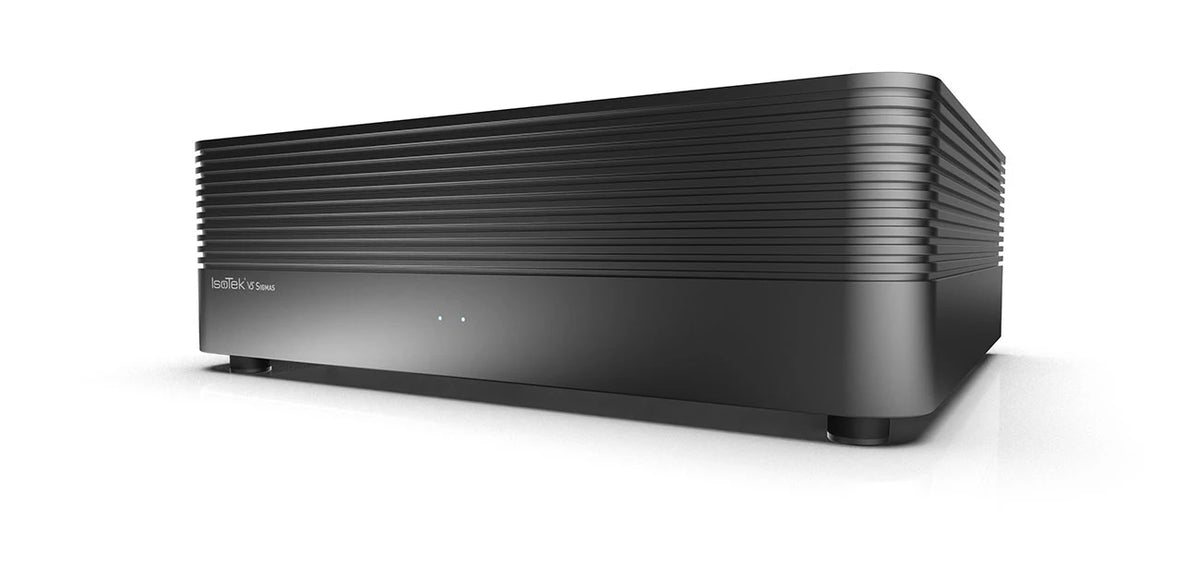

V5 Sigmas: the design
V5 Sigmas is a clear step on from EVO3 Sigmas: there are now seven outlets, and the three high-current ones borrow a lightened form of the Direct-Coupled circuit found in the V5 Titan, to feed low-impedance current to power amps, subwoofers and active speakers.
The other four outlets, rated 10 A, are for sources. Each of the seven has its own filter network, and the unit also protects against surges and spikes up to 121,500 A.
Specifications
- 7 independent outlets: 4 at 10 A for sources, 3 high-current at 16 A
- RFI reduction: 80 dB
- Instantaneous protection: 121,500 A
- System Link outlet to add further IsoTek units while keeping the star earth
- Star-earthed network
- Internal wiring in solid-core silver-plated OCC copper with FEP air dielectric
- Mains inlet: 16 A IEC C20
- Maximum power: 3,680 W (16 A at 230 V)
- Mains voltage: 100-240 V, 50-60 Hz
- Supplied cable: EVO3 Premier 1.5 m
- Size: 450 x 150 x 350 mm (W x H x D)
- Weight: 15 kg
- Finishes: black, silver
