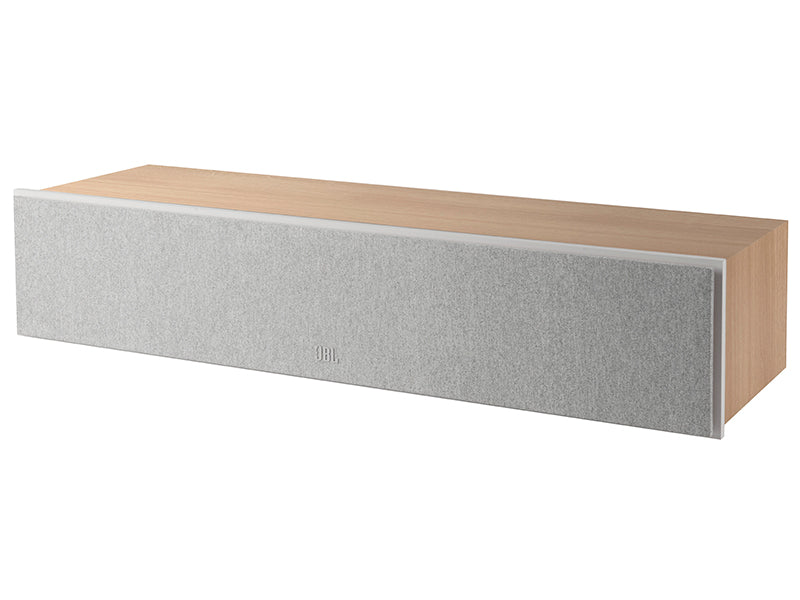

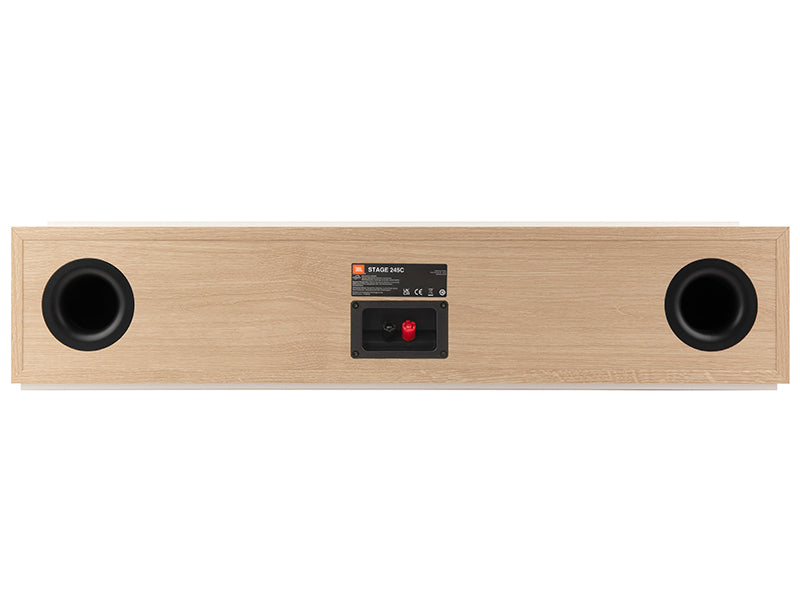

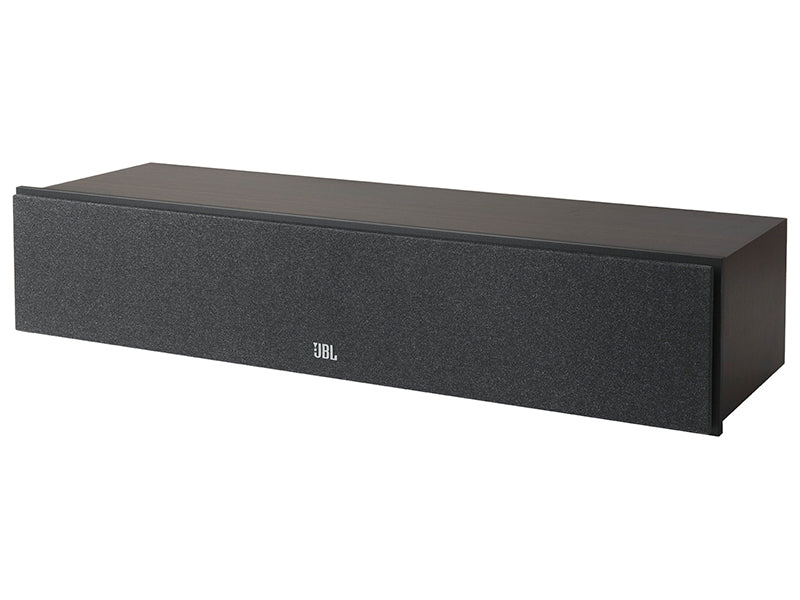

The JBL 245C is a 2.5-way center channel with rear bass reflex system, designed to deliver high-quality audio performance in home theater systems.
Thanks to the Next Generation HDI (High Definition Imaging) system with waveguide, this speaker guarantees precise and detailed sound reproduction.

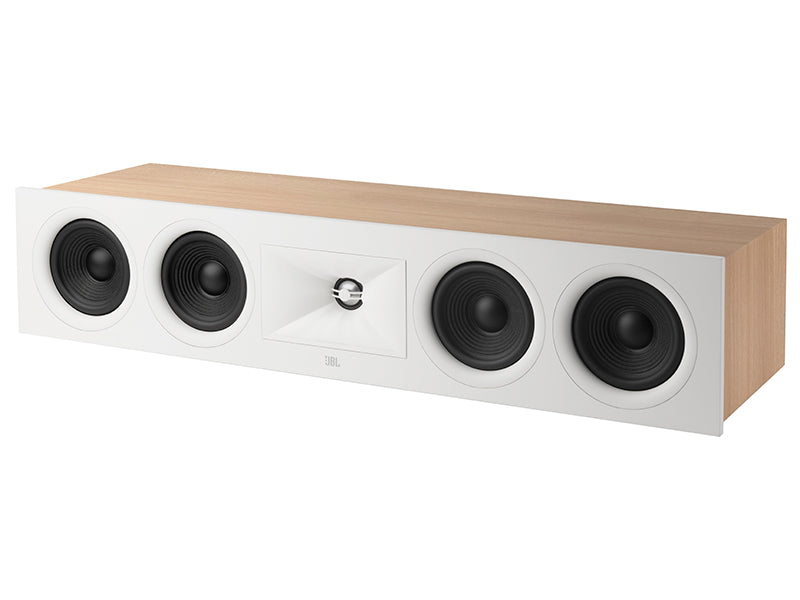

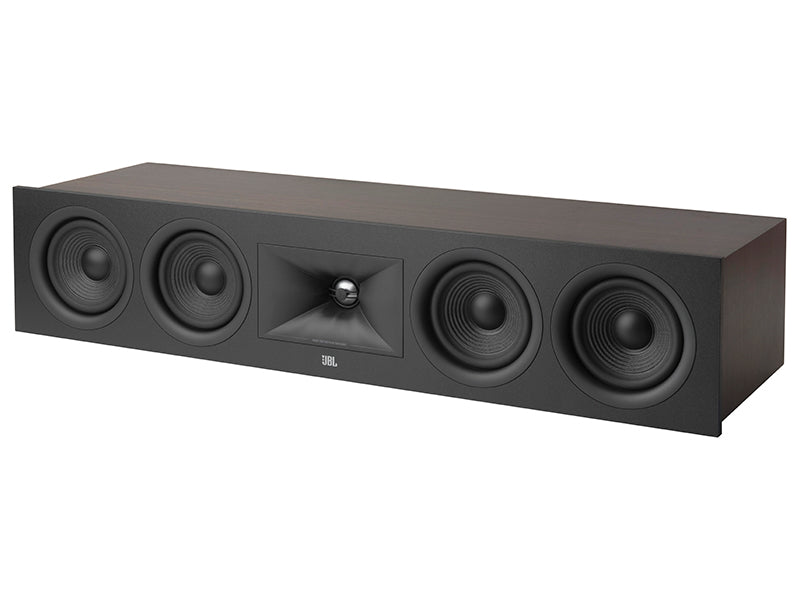

Driver Configuration
The 245C features 4 x 11.4cm Polycellulose cone woofers, ensuring solid and dynamic low frequency reproduction.
The 2.5cm anodized aluminum compression tweeter ensures crystal-clear high-frequency reproduction, ensuring clarity and definition.
Power and Performance
The JBL 245C can handle power ranging from 20 to 150W , offering excellent flexibility for different amplifier configurations.
Its sensitivity of 91 dB (2.83V@1m) and impedance of 6 Ohm make it compatible with various systems, ensuring precise sound even at high volumes.
Design and Dimensions
The compact design of the JBL 245C, measuring 74 cm wide, 15.6 cm high and 21.7 cm deep , allows it to be easily positioned in a variety of settings. Its weight of 12 kg testifies to the solidity of its construction, giving the speaker sturdiness and stability.
Technical Specifications
| Type
|
2.5-way center channel |
| System
|
Rear bass reflex |
| Woofer
|
4 x 11.4 cm in Polycellulose |
| Tweeter
|
2.5cm compression fit anodized aluminum |
| Power
|
20 - 150 W |
| Frequency response
|
55 Hz - 25 kHz |
| Impedance
|
6 Ohm |
| Sensitivity
|
91 dB (2.83V@1m) |
| Dimensions (WxHxD)
|
74 x 15.6 x 21.7 cm |
| Weight
|
12 kg |
