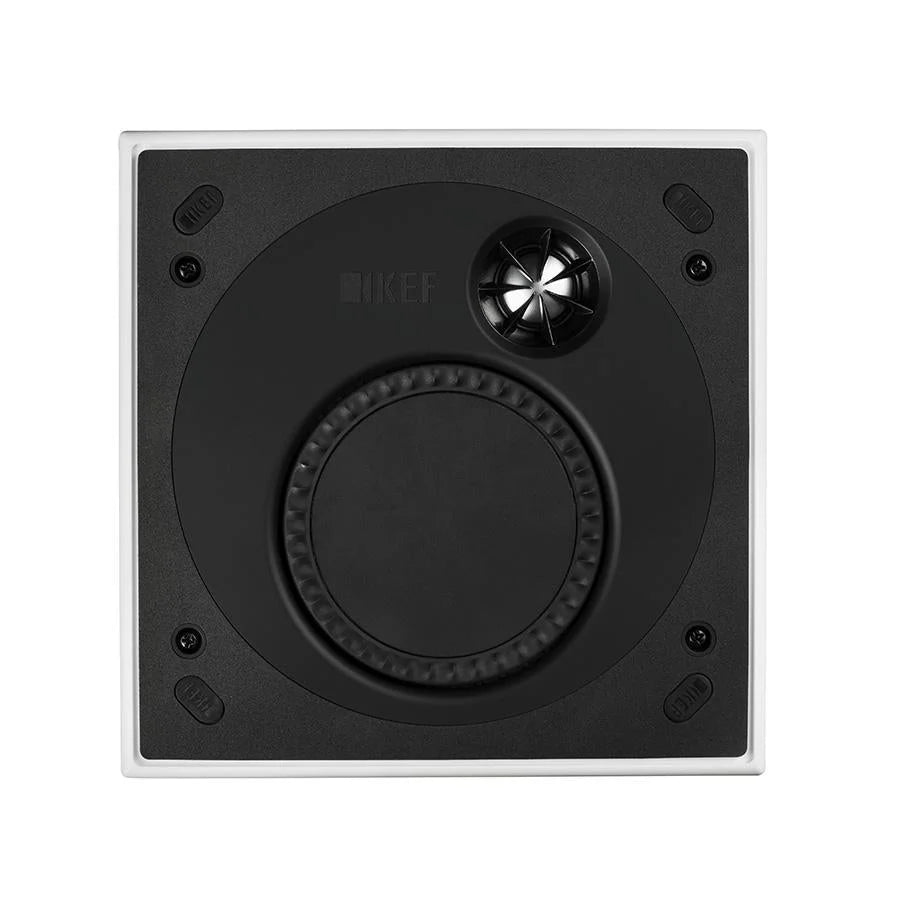

Ultra-thin architectural speaker for walls and ceilings
The KEF Ci160TS is an architectural flush-mount speaker designed to deliver KEF sound quality in installations where the available space is reduced to a minimum. Part of the Ci-T series, it uses a 115 mm mid/bass driver derived from the T Series and a 25 mm tweeter, ensuring precise, clean and well-balanced reproduction. Its square format makes it ideal for modern interiors, integrated audio systems and custom projects in which the speaker has to fit discreetly into the architecture.
Just 36 mm of depth for complex installations
With a mounting depth of less than 36 mm, the KEF Ci160TS can be installed in very thin walls or ceilings, opening up new possibilities in settings where traditional speakers will not fit. It is a solution particularly suited to prestigious apartments, advanced residential installations, multiroom systems and rooms where the look has to remain clean and tidy. The ultra-thin structure allows elegant integration without sacrificing sound performance.
Discreet KEF sound for music and custom systems
The KEF Ci160TS is designed to offer reliable performance in flush-mount audio systems while keeping an extremely small footprint. Its nominal impedance of 8 Ohm, sensitivity of 87 dB and recommended power of 10 to 100 W make it compatible with numerous amplifiers and audio distribution systems. Thanks to its frequency response up to 24 kHz, it ensures detail, clarity and naturalness in music listening, in home sound distribution and in KEF integrated systems.
Technical specifications
| Feature |
Details |
| Type |
Architectural flush-mount speaker |
| Model |
KEF Ci160TS |
| Series |
Ci-T Series |
| Format |
Square |
| Nominal impedance |
8 Ohm |
| Sensitivity |
87 dB (2.83 V / 1 m) |
| Crossover frequency |
1.7 kHz |
| Frequency response |
110 Hz – 24 kHz (±6 dB), open-backed |
| LF driver |
115 mm / 4.5" dual layer |
| HF driver |
25 mm / 1" |
| Recommended amplifier power |
10 – 100 W |
| External dimensions |
222.8 × 222.8 mm |
| External depth |
41 mm |
| Cut-out |
194 × 194 mm |
| Mounting depth from surface |
Less than 36 mm |
| Minimum ceiling thickness |
9 mm |
| Maximum ceiling thickness |
26 mm |
| Optional rough-in frame |
RIF160S |
| Optional back box |
RNC160S |
| Net weight |
1.05 kg |
| Sales unit |
Single piece |
