A two-way sealed outdoor speaker with a 165 mm woofer and a 25 mm titanium tweeter: the mid-sized model of the range, for terraces and gardens of ordinary size. Sold as a pair, in several finishes.
ML-65AW: how it is built
With its 165 mm woofer the ML-65AW sits in the middle of the AW family and is the one that covers most domestic open-air installations. Stated response runs from 80 to 20,000 Hz within ±2 dB and sensitivity is 91 dB, so a modest amplifier, from 20 W upwards, is enough to bring sound to a patio; the suggested ceiling is 140 W per channel. Woofer and tweeter hand over at 2,300 Hz.

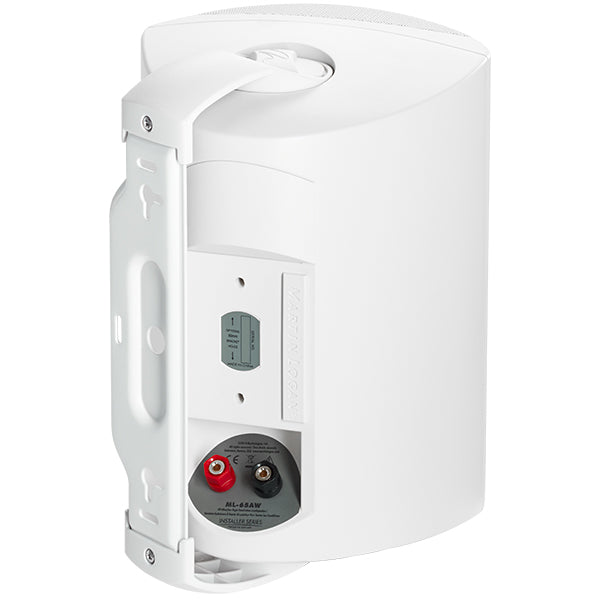

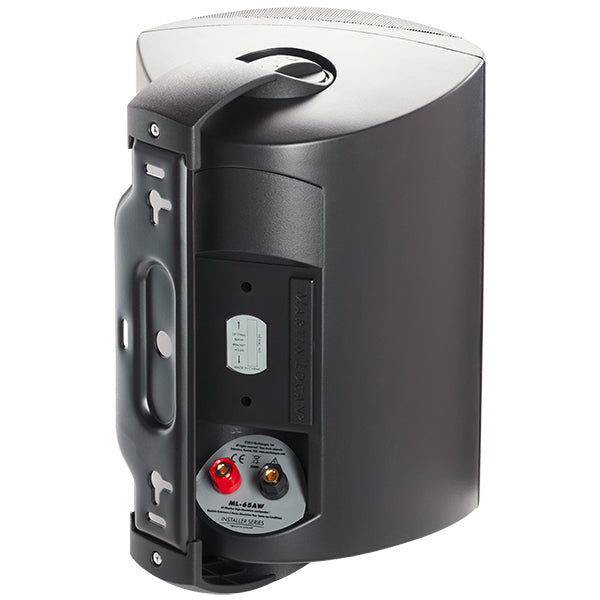

Construction follows the pattern of the range: a sealed cabinet stiffened with mineral filler, a polypropylene cone loaded in the same way, a titanium dome, an aluminium grille that withstands water and UV light, and brass fixings. At the back are gold-plated terminals that take heavy-gauge cable. The U-bracket in stainless steel and polymer lets the speaker, which weighs 4 kg, be turned towards the listener.
Specifications
- Supplied: sold as a pair
- Type: two-way outdoor speaker, sealed cabinet
- Frequency range: 80-20,000 Hz ±2 dB
- Sensitivity: 91 dB
- Nominal impedance: 8 ohms, suits amplifiers rated for 4, 6 or 8 ohms
- Suggested amplifier: 20-140 W per channel
- Crossover point: 2,300 Hz
- Tweeter: 25 mm titanium dome
- Woofer: 165 mm, mineral-loaded polypropylene cone
- Aiming: pivots on the U-bracket
- Connections: gold-plated five-way terminals, cable up to 5 AWG
- Dimensions: 280 x 190 x 202 mm
- Weight: 4 kg
- Finishes: black, white
