Motion XT C100 is the larger centre speaker in MartinLogan's Motion series: a 2.5-way with a Folded Motion XT tweeter and two 16.5 cm cones in Nomex-reinforced Kevlar, for surround systems built on Motion or Motion XT speakers.
Motion XT C100: how it is made
Motion XT C100 is the centre MartinLogan points to for any surround system built with Motion or Motion XT speakers. It is a substantial cabinet, 61 cm wide, 20.3 cm high and 36.8 cm deep at 15.4 kg, and its stated response starts at 42 Hz and reaches 25 kHz within 3 dB. Sensitivity is 93 dB, impedance 5 ohms and the suggested amplifier rating runs from 20 to 300 W.
The tweeter is the 32 x 61 mm Folded Motion XT in Gen2 Obsidian form, with 79.8 cm² of diaphragm and an enlarged motor. The waveguide that houses it does two jobs in a centre speaker: it keeps dialogue intelligible and makes it sound the same from each chair, with output of 90 degrees horizontally and 45 vertically. The two Nomex-reinforced Kevlar mid-woofers, on die-cast aluminium chassis, are fed by a 2.5-way crossover with points at 1,300 and 2,500 Hz, worked out to avoid lobing.
Like the smaller centre in the series, this one has a reversible cabinet: one way up it sits level, the other way it takes on a slight tilt, handy when the speaker lives on a low shelf or a TV unit and needs to aim at the listener's ears. Loading is reflex with the port at the back, and twin terminals accept bi-wiring and bi-amping. Its tonal character is matched to the Motion XT CI custom-install range.
Specifications
- Type: 2.5-way centre speaker, bass reflex with the port at the back
- Frequency range: 42 Hz to 25 kHz, ±3 dB
- Tweeter coverage: 90° horizontally, 45° vertically
- Suggested amplification: 20 to 300 W
- Efficiency: 93 dB sensitivity
- Nominal load: 5 ohms
- Crossover points: 1,300 Hz and 2,500 Hz
- Tweeter: Folded Motion XT, Gen2 Obsidian type, 32 x 61 mm, 79.8 cm² of diaphragm
- Mid-woofers: two 16.5 cm Nomex-reinforced Kevlar cones on die-cast aluminium chassis
- Cabinet: reversible, level or slightly tilted

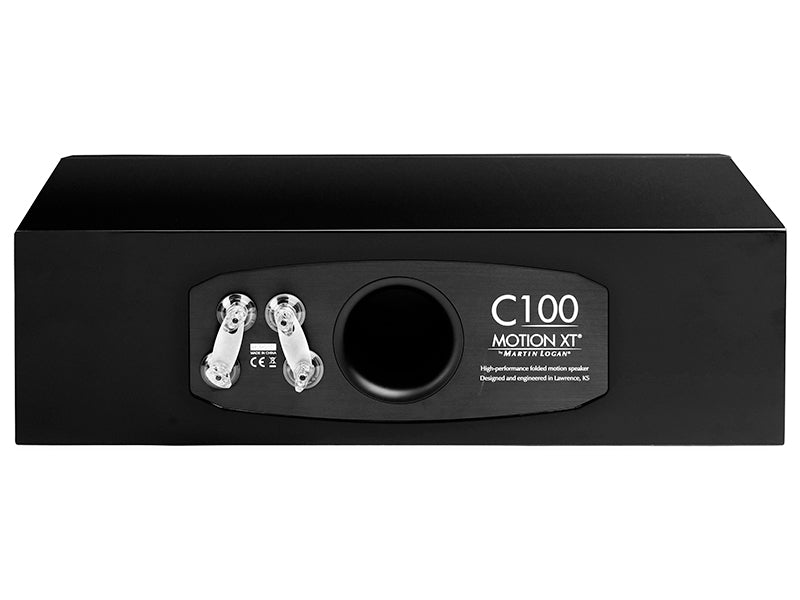

- Terminals: two sets of posts for bi-wiring or bi-amping
- Size (H x W x D): 20.3 x 61 x 36.8 cm
- Weight: 15.4 kg
- Supplied: sold singly

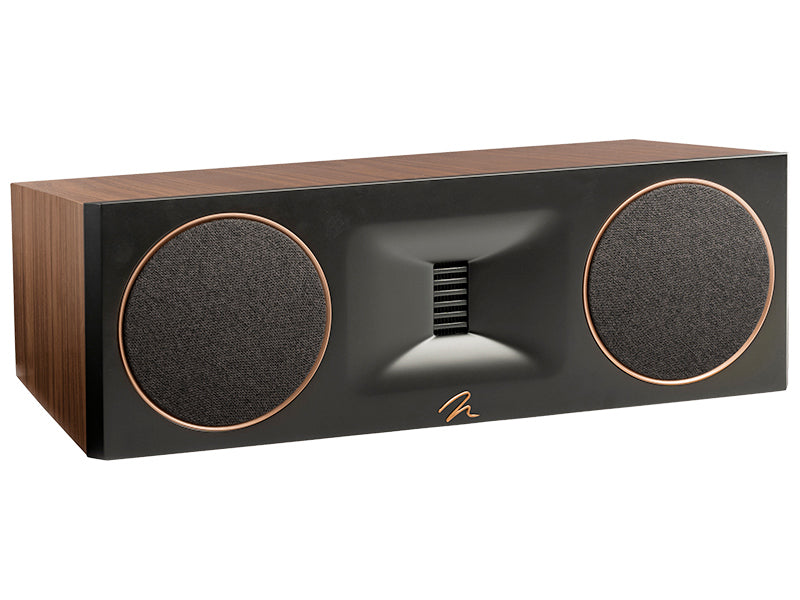

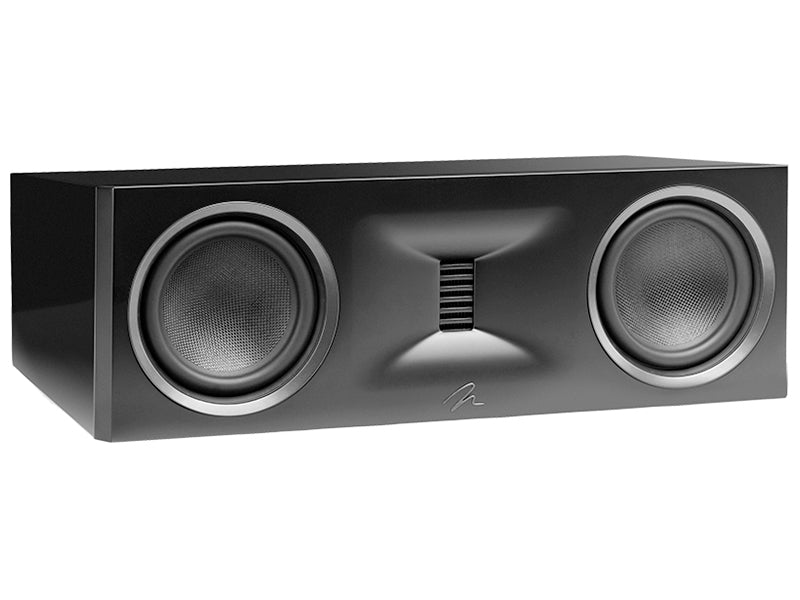

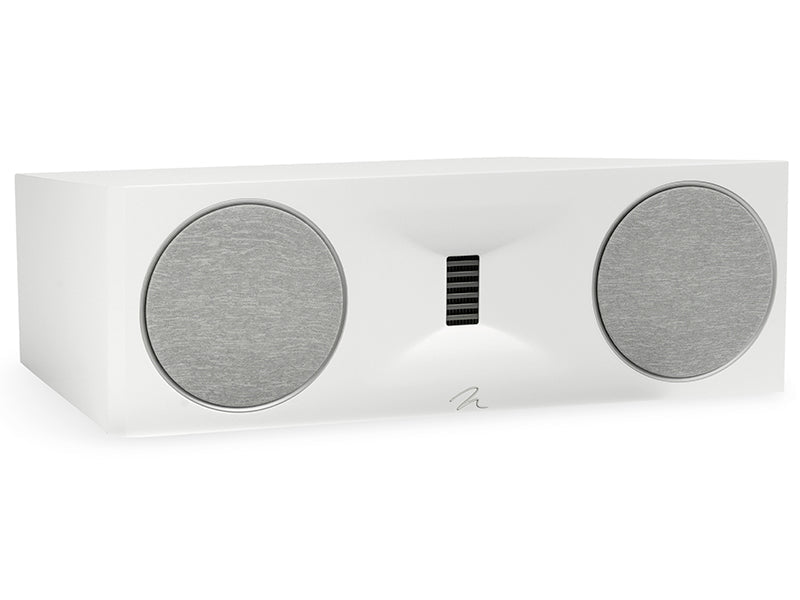

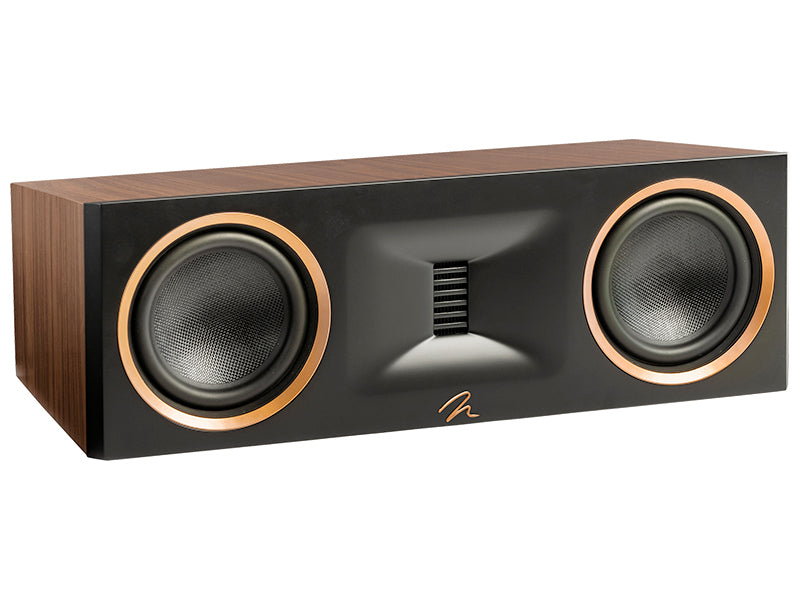

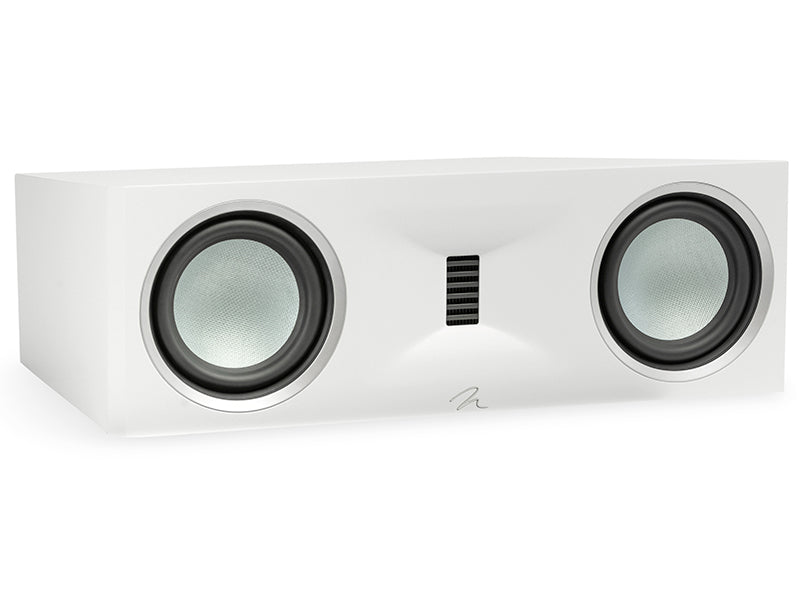

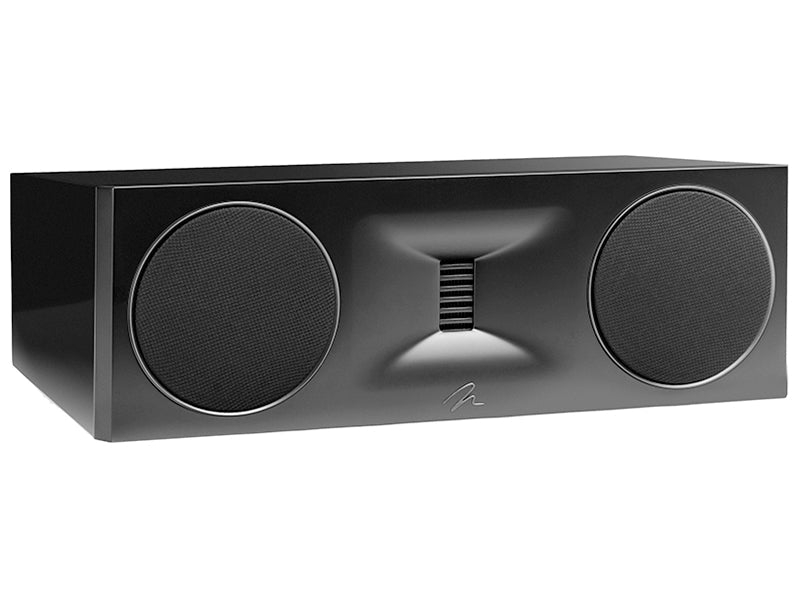

- Finishes: gloss black, satin white, walnut
