A three-way in-wall LCR loudspeaker, sold as a pair: two woofers and a dedicated 165 mm Kevlar midrange plus a rotating Folded Motion XT tweeter, for a high-level home cinema with no towers in the room.
MOTION XTW6-LCR: drivers and crossover

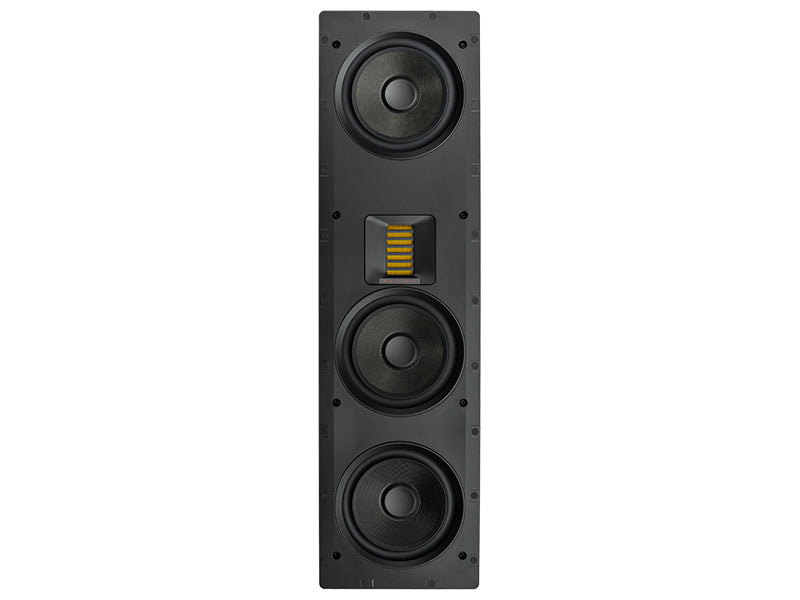

The MOTION XTW6-LCR is the largest LCR design in the Motion XT CI range and a three-way: alongside its two 165 mm woofers it adds a midrange of the same diameter, closed off in a sealed chamber of its own, which the maker says resolves more detail and clarity and raises output capability. The stated aim is to approach what a floorstanding loudspeaker does without taking up its floor space. Response runs from 44 Hz to 25 kHz within ±3 dB and sensitivity is 93 dB.

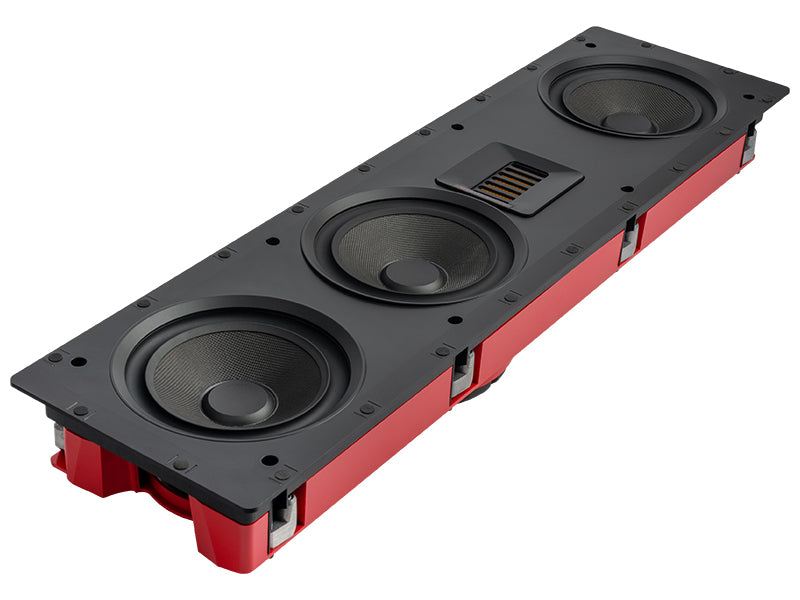

All three cones are black woven Kevlar with a Nomex layer on the rear, carried on cast aluminium baskets; the woofers run open-backed and make use of the wall cavity. The Folded Motion XT pleated-film tweeter radiates over 80 degrees by 30 and sits in a housing that rotates, so the panel, 711 mm long and 195 mm wide, can also go in horizontally where needed, for example as a centre channel.

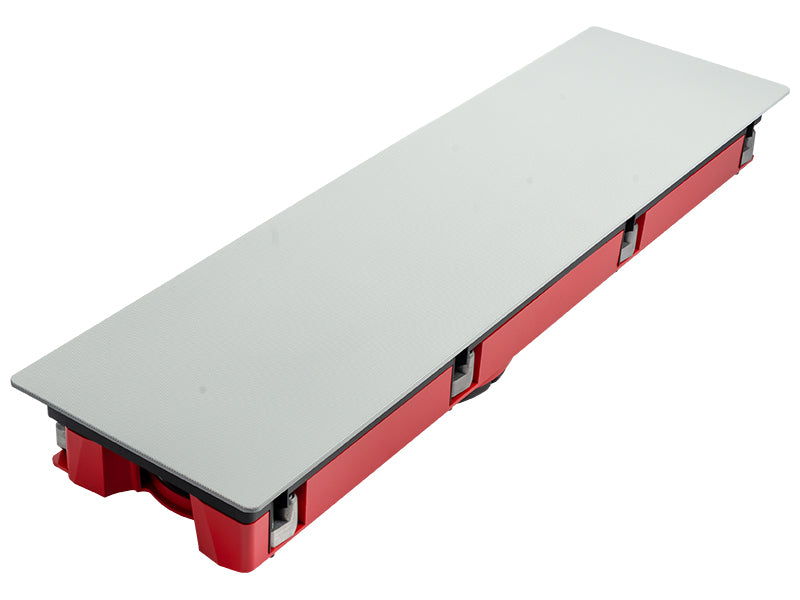

The Vojtko crossover splits the band at 260 and 2,470 Hz with air-core inductors and polyester film capacitors, and shields the tweeter from thermal and current overload. The load is 4 ohms and the suggested amplifier rating is 50 to 300 W. Fitting calls for a 169 x 685 mm opening and 90 mm of depth; the magnetic micro-perforated grille, which can be painted, stands about 3 mm proud. Each speaker weighs 8.6 kg and pre-installation brackets are offered separately.
Specifications
- Type: in-wall LCR loudspeaker, 3-way
- Frequency range: 44 Hz - 25 kHz (±3 dB)
- Sensitivity: 93 dB (2.83 V at 1 m)
- Impedance: 4 ohms, also suits 8-ohm amplifiers
- Suggested amplifier: 50 to 300 W
- Peak power handling: 150 W
- Crossover points: 260 Hz and 2,470 Hz
- Tweeter: rotating Folded Motion XT, 32 x 61 mm aperture, 114 x 70 mm diaphragm, 80° x 30° dispersion
- Midrange: 165 mm, Nomex-backed Kevlar cone, sealed rear chamber
- Woofers: two 165 mm, Nomex-backed Kevlar cones, open-backed
- Terminals: spring-loaded push type
- Grille: micro-perforated, magnetic, can be painted
- Overall size: 711 x 195 x 93 mm
- Cut-out: 169 x 685 mm
- Mounting depth: 90 mm, standing 3 mm proud of the wall
- Weight: 8.6 kg per speaker
- Supplied: sold as a pair
