PLA88CS

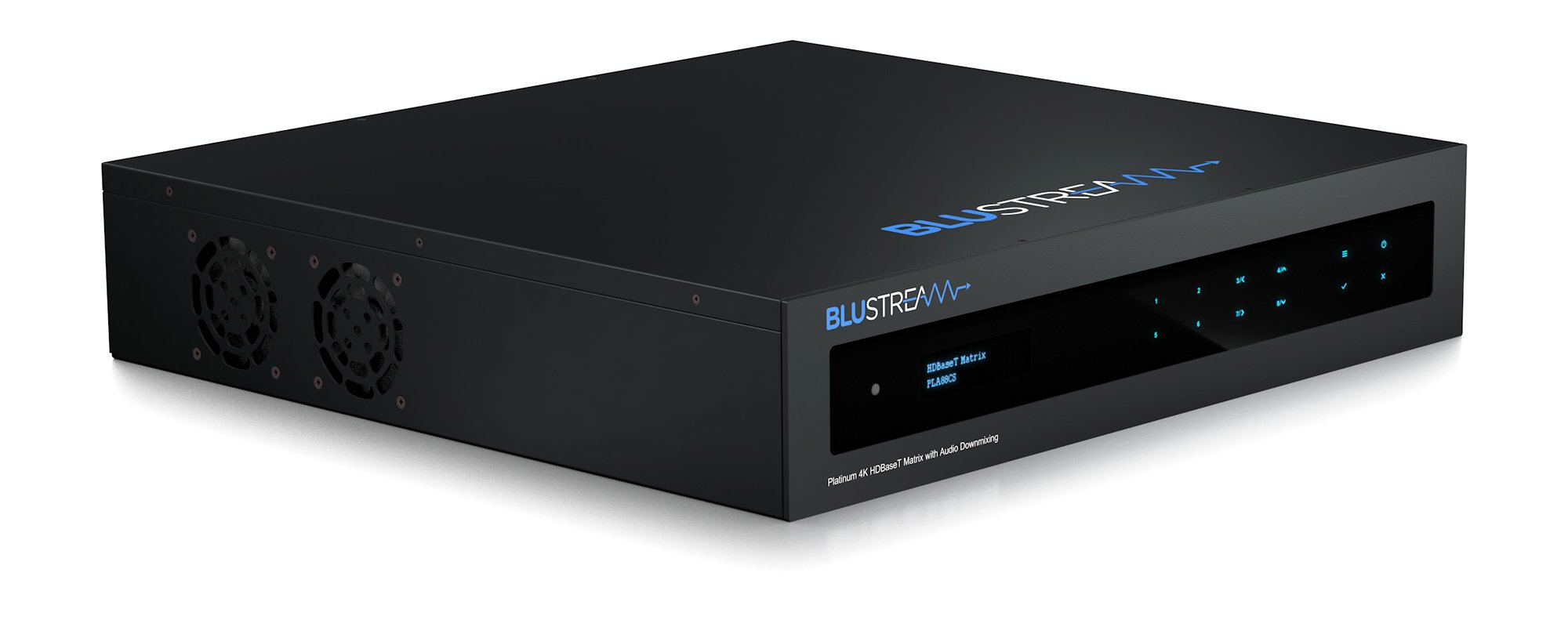

8x8 4K HDMI 2.0 HDBaseT™ CSC AV Matrix with Audio Downmixing

Description

Our Platinum 8x8 HDBaseT™ CSC Matrix delivers a range of industry leading features.

The PLA88CS is a 4K HDMI 2.0 8x8 Matrix, distributing HDMI, ARC, LAN, Bi-directional IR / RS-232 and PoC up to lengths of 150m (1080p) over a single CAT cable.

Advanced optional features include dual HDMI and HDBaseT™ outputs featuring CSC for support of 4K resolutions including 4K 60Hz 4:4:4 color space, and HDR, with independent down-scaling of 4K video to allow those displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including independent Dolby Audio (Atmos) & DTS Audio down mixing on HDMI and audio outputs allowing a mixture of different audio output formats for use with different audio capable displays and AV amplifiers.

The PLA88CS also includes independent audio routing, Audio Return Channel (ARC), Optical (S/PDIF) audio delay for lip sync correction, bi-directional IR and RS-232 pass-through, and a web-GUI for control and configuration.

Box Contents

1 x PLA88CS
1x Rack Mounting Kit
1 x Remote Controller
9 x IR Emitters
9 x IR Receivers
9 x IR Control Cable - 3.5mm to 3.5mm
2 x Serial Cable - DB9 to 3-pin Phoenix Connector
9 x 3-Pin Phoenix Connector
1 x Quick Reference Guide
IEC Power Cable(s)

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

• Advanced Color Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR

• 4x Simultaneous HDBaseT™ and HDMI outputs to allow connection to dual displays per zone

• Extends HDMI up to distance of 150m at 1080p, and 4K UHD video up to 100m (up to 4K 60Hz 4:4:4) using LRM (Long Range Mode)

• Features 8x HDMI inputs which can be independently routed to 4x HDBaseT™, and 4x HDBaseT™ / HDMI outputs

• 2x HDBaseT™ CSC inputs for connectivity to remote video sources not located locally to the Matrix

• Independent video scaling on all HDBaseT™ outputs

• Independent Dolby Audio & DTS Audio down mixing on HDMI and audio outputs

• Up to 24x16 Audio Matrix independently controllable from video:-

  • 2x analogue L/R and 2x Optical (S/PDIF) audio inputs which can be routed to audio outputs, or embedded onto HDBaseT™/ HDMI outputs

  • HDMI audio breakout to Optical (S/PDIF) digital, or analogue L/R audio outputs with variable pre-amp line level control

  • Supports ARC (Audio Return Channel) via HDMI or Optical (S/PDIF) digital inputs from compatible RX150CS Receivers

  • Supports full Dolby Audio and DTS Audio down mixing from HDMI inputs to 2ch audio

• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K

• Bi-directional IR & RS-232 from all input and output locations (with compatible Transmitters & Receivers)

• Integrated Ethernet (100Mbps) switch (LAN Serving) when used with Blustream RX150CS Receivers

• Web interface module for control and configuration of the Matrix

• Control of Matrix via front panel , IR, RS-232, and TCP/IP

• Supports 24V PoC (Power over Cable) to power compatible RX150CS or RX70CS Receivers

• 3rd party drivers available for major control brands

• HDCP 2.2 compliant with advanced EDID management

• 2U Design for 19” rack mount integration - mounting kit included

• Recommended receiver: RX150CS (where 18Gbps CSC, Long Range Mode, LAN, Audio Return, and 24V PoC support is required)

• Optional receiver: RX70CS (where 18Gbps CSC, Audio Return, and 24V PoC support only is required) - max distance 70m at 1080p, 40m at 4K 60Hz 4:4:4

Specifications

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female, 2 x HDBaseT™ RJ45 connectors

• Video Output Connectors: 4 x HDMI Type A, 19-pin, female, 8 x HDBaseT™ RJ45 connectors

• Audio Input Connectors: 2 x Analog audio L/R (3.5mm stereo Jack), 2 x Optical (S/PDIF)

• Audio Output Connectors: 8 x Analog audio L/R (3.5mm stereo Jack), 8 x Optical (S/PDIF)

• RS-232 Serial Port: 9 x 3-pin Phoenix connector

• TCP/IP Control: 1 x RJ45, female

• Ethernet/Network: 1 x RJ45, female

• IR Input Ports: 10 x 3.5mm stereo jacks

• IR Output Ports: 9 x 3.5mm mono jack

• Rack Mountable: 2U rack height, rack ears included

• Casing Dimensions (W x H x D): 440mm x 87mm x 361mm (without feet)

• Shipping Weight: 8.8kg

• Operating Temperature: 32°F to 104°F (0°C to +40°C)

• Storage Temperatures: -4°F to 140°F (-20°C to +60°C)

• Power Supply: Internal 100-240V AC

Color Space Conversion (CSC) Technology in HDBaseT™
