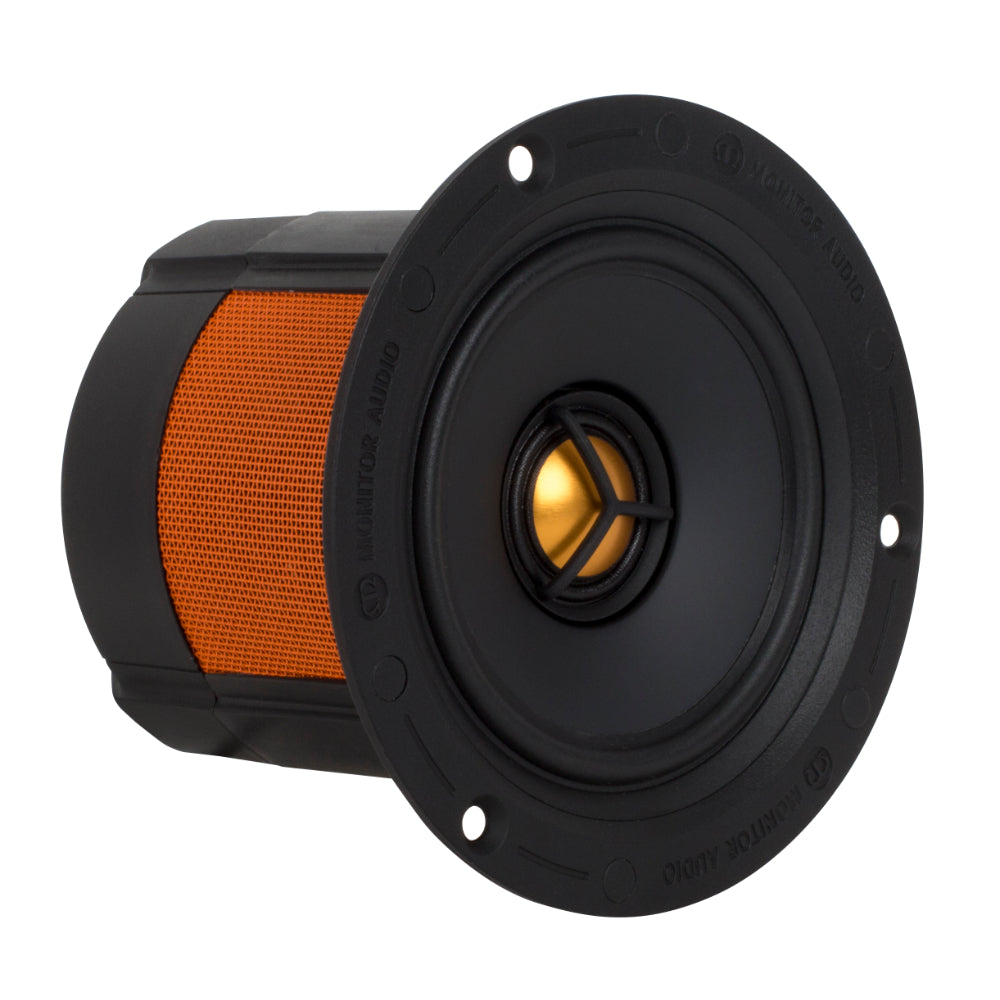

Monitor Audio CF230: compact in-ceiling speaker
The CF230 is the most visually discreet speaker system in the Monitor Audio catalogue, conceived for installers, integrators and architects. It uses a coincident drive unit developed for this model: a 3-inch C-CAM cone for bass and midrange and a 19 mm C-CAM Gold Dome tweeter mounted on the same axis, in one assembly. The enclosed rear, with its fine mesh, keeps out dust and building residue.
It mounts flush, using the CFB3-R (round) or CFB3-SQ (square) pre-construction brackets, or as a trimless retrofit with the CFB3-KIT, which fixes behind plasterboard with three screws. It can go in a ceiling or in a standard stud wall, alone or in multiples, in mono or in stereo; the white grille can be painted. With a high-pass filter at 120 Hz it handles higher power.
Technical features
- Drive units: 3-inch bass-midrange with C-CAM cone and coincident 19 mm C-CAM Gold Dome tweeter, with two-way crossover
- Frequency range at -6 dB: 100 Hz to 25 kHz
- Sensitivity of 82.5 dB (1 W at 1 m); nominal impedance of 8 Ohm
- Maximum sound pressure level, per unit: 98 dBA full range, 103.3 dBA with the filter
- Power: 30 W RMS full range (IEC268-5), 100 W of music programme with a high-pass at 120 Hz
- Suggested amplifier: from 10 to 30 W full range, from 10 to 100 W with the high-pass
- Cut-out: 120 mm flush, 90 mm retrofit; mounting depth 81.5 mm
- Outer diameter with grille: 112 mm; weight 0.44 kg
Available versions
Sold as a single unit.
