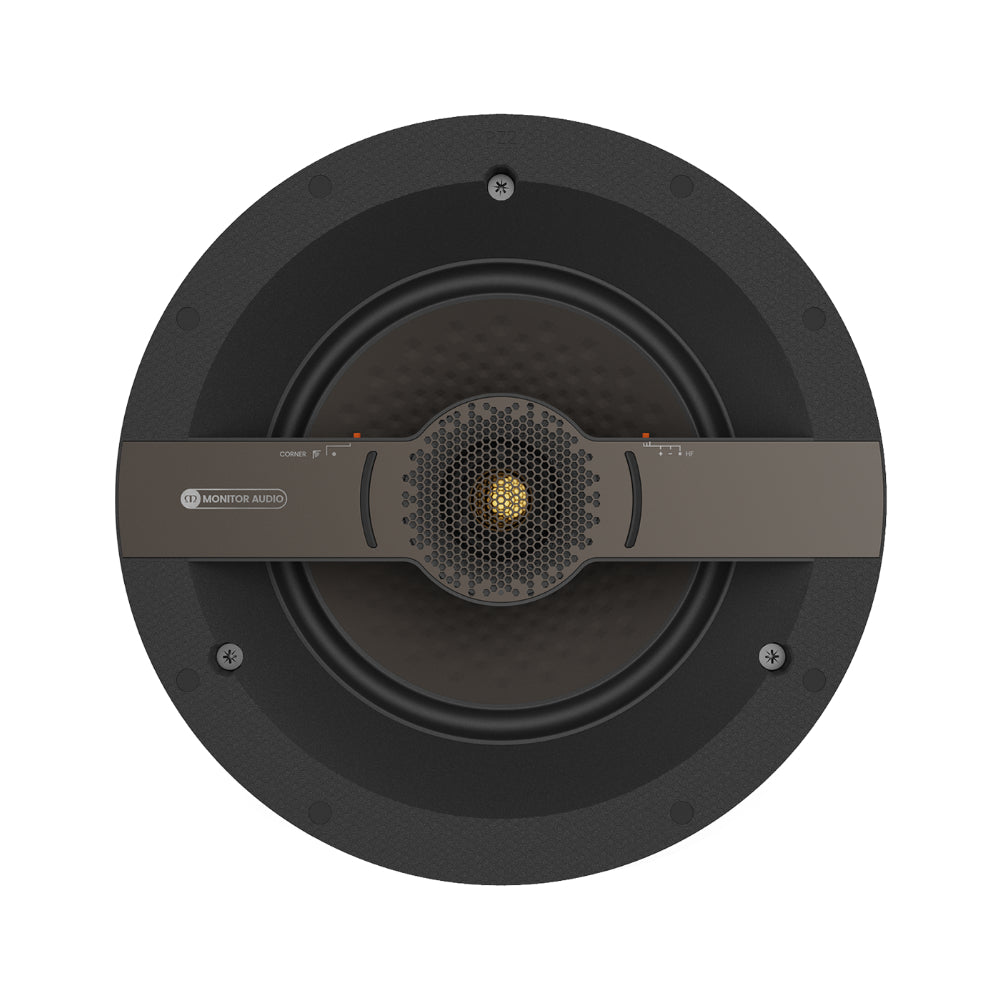

Monitor Audio Creator C2M: two-way in-ceiling speaker
The Creator C2M is the medium-size model in the Tier 2 level of the Monitor Audio Creator Series, aimed at installations where sound quality is a primary demand. The layout is two-way: a 7-inch RST II mid-bass unit and a 1-inch C-CAM tweeter fitted with a UD Waveguide II, gathered in one chassis that mounts in the ceiling.
Fitting calls for a hole 212 mm in diameter. The Quik-Link connector shortens the time needed to attach the cable, and the Tri-Grip II fixing keeps the speaker in position simply and securely. The equipment also includes a Corner switch (on or off) and a three-position HF selector for the high frequencies (-, 0, +). The grille supplied as standard is white; black grilles, round or square, are listed as an accessory.
Technical features
- Configuration: two-way, one channel
- Drive units: RST II mid-bass, 7-inch (178 mm), and C-CAM tweeter, 1-inch (25 mm), crossing over at 2.25 kHz
- Frequency response (installed, -6 dB): 35 Hz to 35 kHz
- Impedance: 8 Ohm nominal, 6.6 Ohm minimum at 150 Hz
- Sensitivity: 86 dB (2.83 Vrms at 1 m, installed); peak sound pressure level up to 114 dB
- Power: 75 W continuous handling; suggested amplifier from 40 to 150 W
- Cut-out: 212 mm diameter; mounting depth 99 mm
- Outer size with grille: 242 x 242 mm, 103 mm deep; weight 2 kg
Available versions
Sold as a single unit. The white CM-Round round grille is included.
