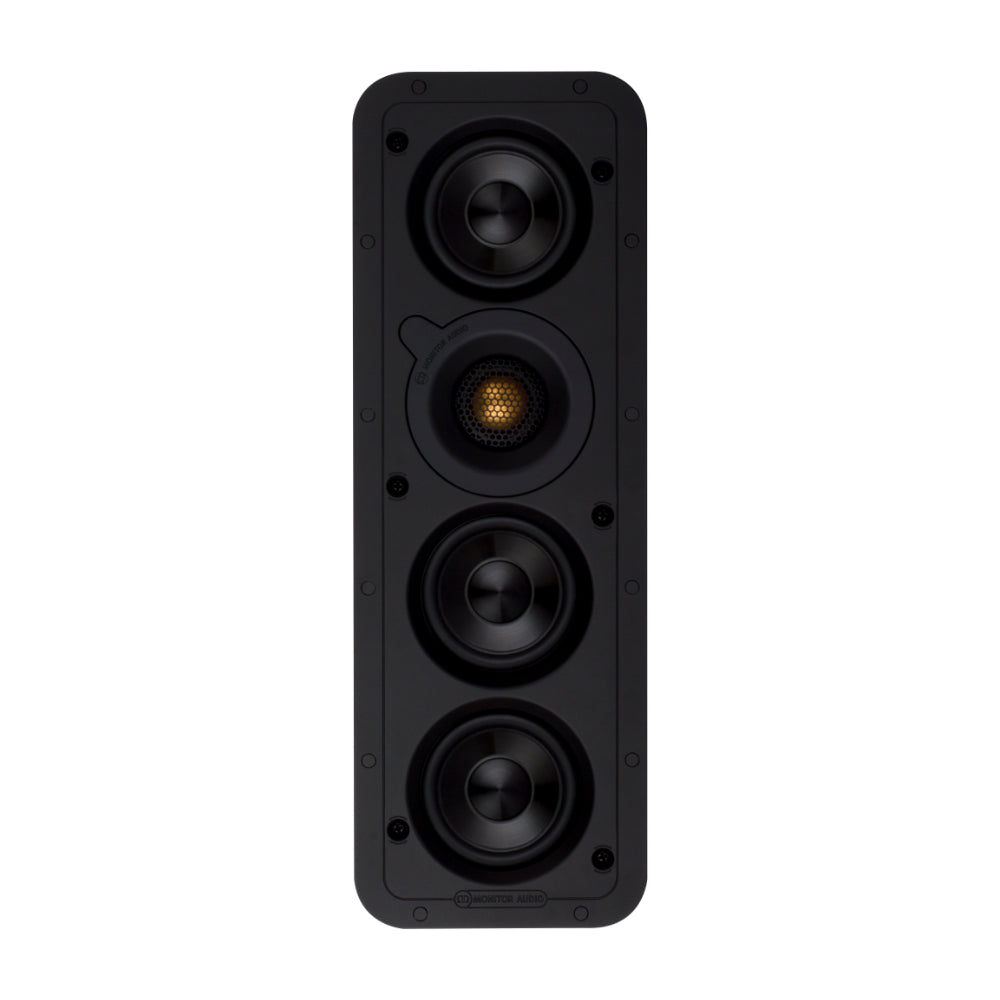

Monitor Audio Creator WSS130: super-slim in-wall speaker
The WSS130 is the entry model of the Super Slim line, Monitor Audio's low-profile in-wall speakers, and it suits home cinema and multi-room audio. Three bass-mid units with 3-inch MMP II cones work together with a 25 mm C-CAM Gold Dome tweeter: the three-cone layout keeps the front narrow and limits the mounting depth to only 50 mm. MMP technology also allows a simple crossover filter.
The speaker can be mounted vertically or horizontally and is fixed with the six-point Tri-Grip system. The gold-plated sprung terminals take bare wire, the steel grille can be painted and the frame is made of mineral-loaded ABS. The three models of the line have the same footprint and use the same WB3 pre-construction bracket: on site, a higher model can therefore be chosen before the works are finished.
Technical features
- Drivers: three 3-inch MMP II cones for bass and midrange, one 25 mm C-CAM Gold Dome tweeter
- Frequency response: 75 Hz to 30 kHz (-6 dB)
- Sensitivity 87 dB; nominal impedance 8 Ohm
- Power handling: 60 W over the full range, or 100 W with a 100 Hz cut (12 dB per octave)
- Recommended amplifier: 10 to 100 W
- Overall size: 385 x 140.5 mm; depth with grille 54.25 mm
- Cut-out: 346 x 101 mm; mounting depth 50 mm
- Weight: 1.4 kg
Available versions
Sold as a single unit.
