16 amps for large power amplifiers, extensive installations and several high-current components

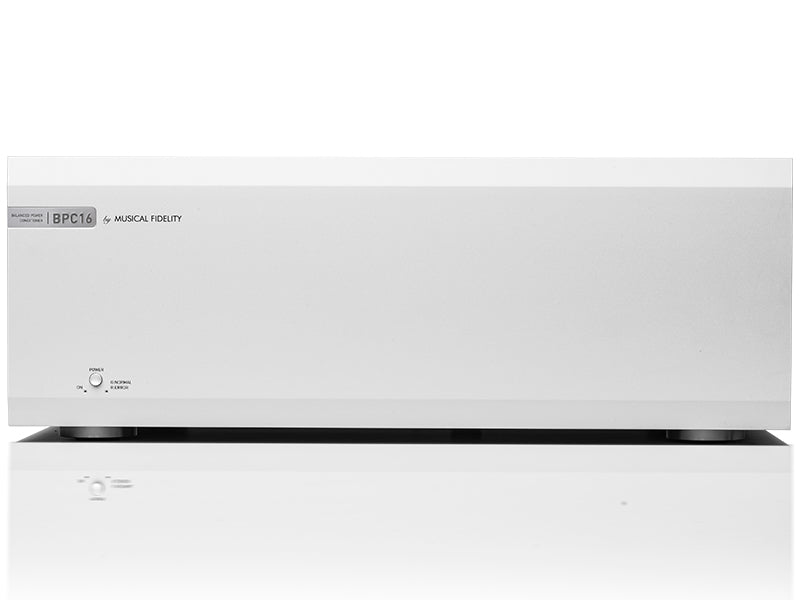

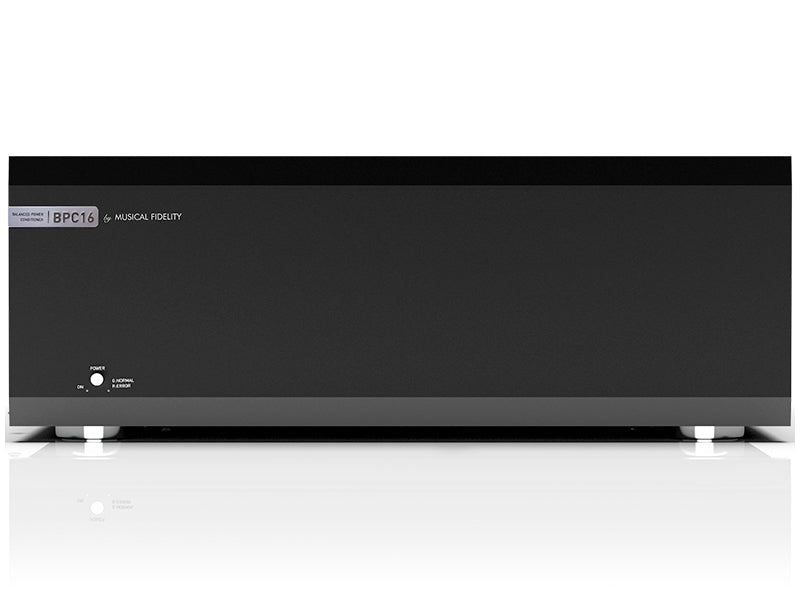

BPC16 is a 16 A balanced mains conditioner with 8 outlets across 3 isolated zones.

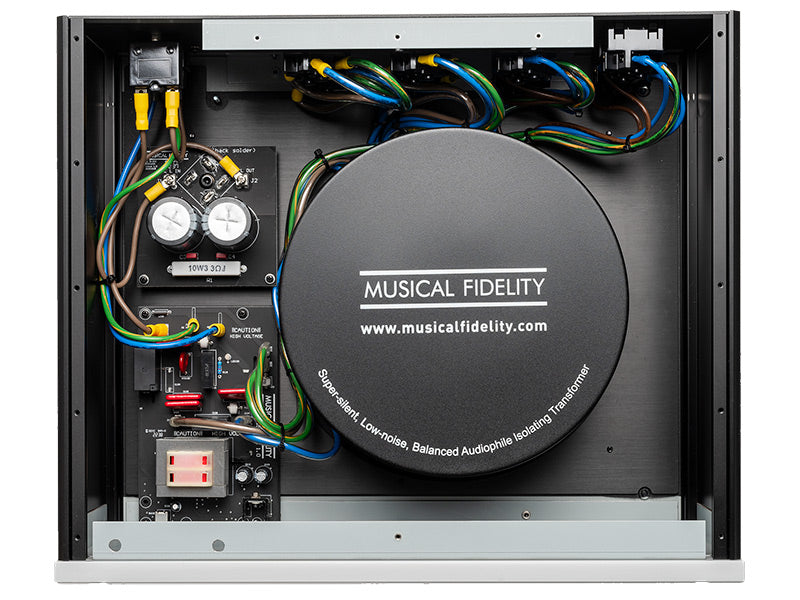

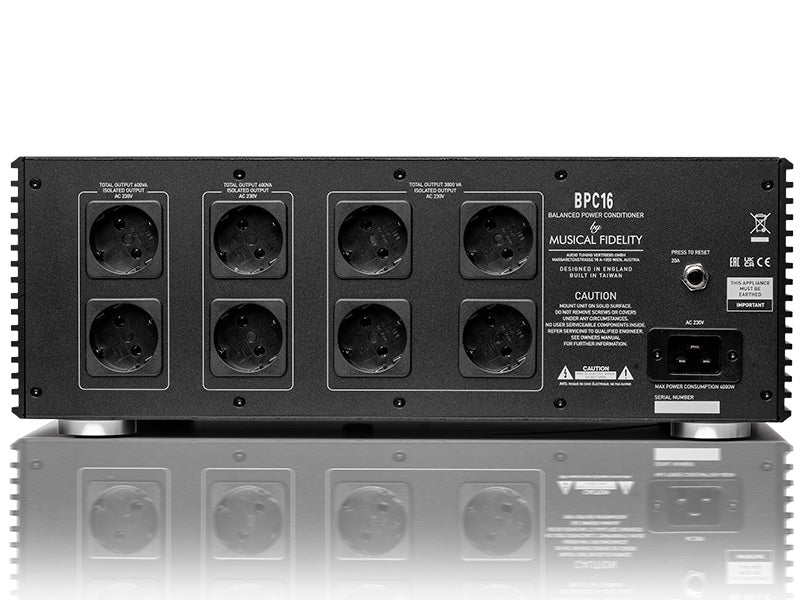

BPC16 is sized for large power amplifiers, extensive installations and several high-current components. It provides 8 outlets across 3 isolated zones and a maximum total current of 16 A, allocated as one 2.000 VA and two 600 VA . Its 5.000 VA balanced toroidal transformer reduces common-mode noise and separates outlet groups; overload and surge protection operate without fuses in the ground path. Selection starts with actual consumption rather than socket count.
Key features
- Eight outlets for a complete room
- 2,000 VA primary bank
- Two 600 VA auxiliary banks
- 16 A total availability
- Oversized 5,000 VA transformer
The infrastructure model
BPC16 is intended for rooms with a substantial power amplifier, video electronics, processor and many sources. Eight outlets avoid a constellation of adapters and allow three functional branches to be documented. A small system gains nothing merely from buying the highest number.
Assign peaks to the largest bank
The 2,000 VA section belongs to the component with dominant dynamic demand. Two 600 VA groups can separate front end and video, or divide control from sources. Draw the load map before inserting plugs.
Sixteen amps begins at the wall
Outlet, circuit, breaker and building wiring must supply what the conditioner can handle. An installation at this scale deserves professional inspection; BPC16 cannot increase upstream capacity or replace protective earth and residual-current protection.
Almost forty kilograms in the rack
Weight is 38.9 kg despite moderate height. Shelf capacity, handling and rear access require planning; phono cartridges and low-level cables should remain away from the large toroid.
Reserve for real expansion
Margin is useful when new amplifiers or video products are planned, but does not justify random connections. Every addition must respect its bank and the 16 A total. A consumption record makes maintenance and diagnosis much easier. Sizing for 16 A also means considering wall outlet, dedicated circuit and local regulations. Conditioner capacity cannot create current the installation cannot supply; an electrician should verify the upstream infrastructure. For BPC16, dimensions, weight, ventilation, connections and system capacity should be checked as one project, leaving operating margin instead of using every specification at its limit. A room with large monoblocks, processor, projector and sources has different priorities from simple stereo. The 2,000 VA bank belongs to the load with the largest peaks; two 600 VA groups can divide video and control or separate source clusters. Eight outlets reduce extensions, but such an installation needs a dedicated circuit, thermal checks and documented wiring.
