Nordost Heimdall 2 USB: a double-helix USB 2.0 lead
The Heimdall 2 USB is a USB 2.0 lead that develops the design of the Blue Heaven USB. It uses four stranded 20 AWG conductors in silver-plated OFC copper, arranged as a precisely twisted double helix to guarantee characteristic impedance, lower noise and limit cross-talk.
The FEP Dual Mono-Filament from Nordost holds the conductors in suspension and is optimised for greater flexibility and mechanical damping. Shielding combines a double layer of silver foil with a silver braid. Lengths are mechanically tuned, a technique that lowers internal microphonics and impedance resonances at high frequencies.
Technical features
- Conductors: four, 20 AWG each
- Material: stranded OFC copper, 99.99999% pure, plated in silver
- FEP (fluorinated ethylene propylene) insulation
- Dual Mono-Filament construction in shielded twisted pairs, with mechanically tuned lay and length
- Shielding with 100% total coverage: double layer of silver foil plus braid
- Propagation velocity of 90%
- USB 2.0 connectors of Type A or B
Available versions

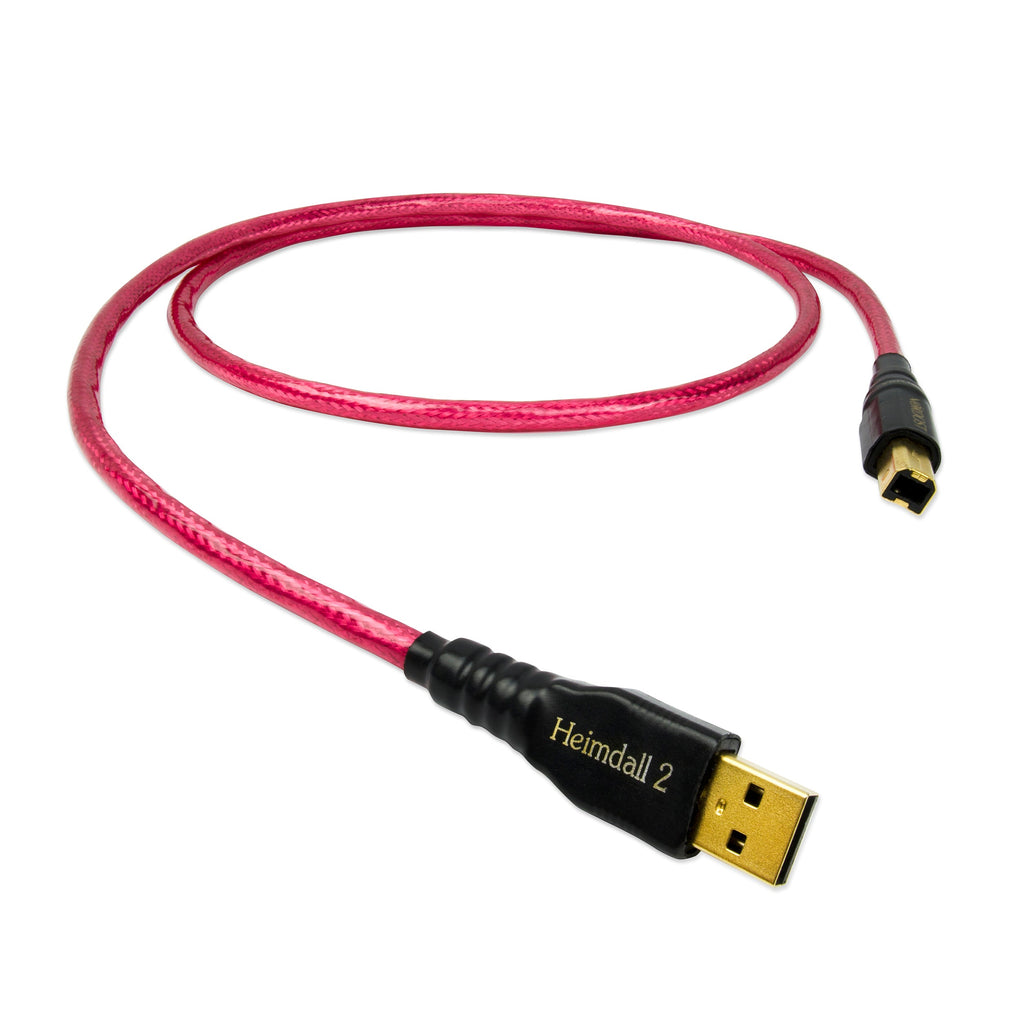

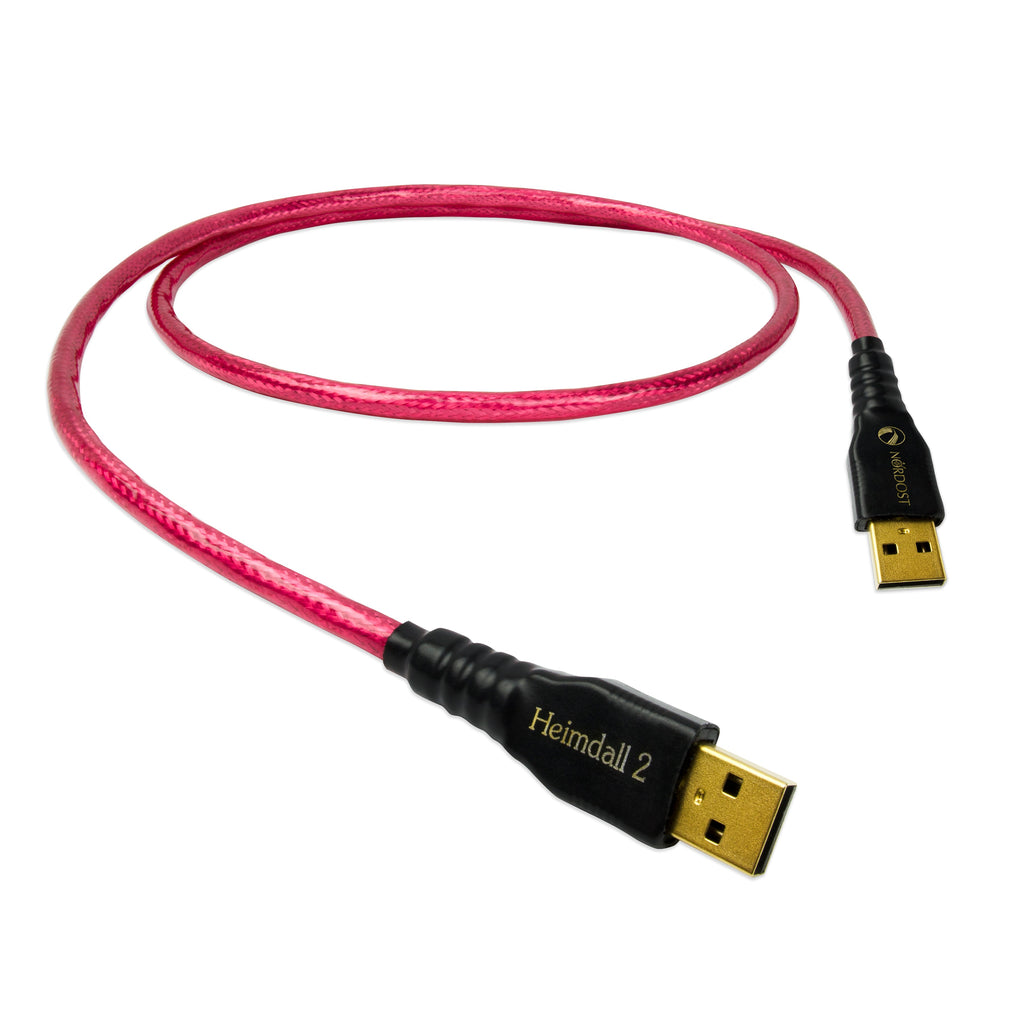

The cable is available with A-B or A-A termination, in lengths of 1 m, 2 m, 3 m and 5 m.
