Nordost Odin 2: 75 Ohm and 110 Ohm AES/EBU digital cable
Odin 2 Digital is the digital cable of the Supreme Reference line, designed to provide the impedance matching that S/PDIF and AES/EBU links require. The 75 Ohm version has one coaxial solid-core conductor, plated in silver; the balanced 110 Ohm version has two, also plated in silver, in a twinaxial layout.
Both rely on patented Dual Mono-Filament technology, which improves dielectric behaviour and mechanical damping. TSC technology protects the signal like a practically continuous screen against EMI and RFI interference. All cables are terminated with HOLO:PLUG connectors, made specifically by Nordost.
Technical features
- Conductors: 1 of 14 AWG (75 Ohm) or 2 of 18 AWG (110 Ohm)
- Material: 99.999999% pure OFC copper, plated in silver, solid core
- Insulation: high-purity extruded FEP, class 1.003
- Construction: Dual Mono-Filament and TSC, coaxial (75 Ohm) or twinaxial (110 Ohm)
- Capacitance: 15.3 pF/ft (75 Ohm), 10.5 pF/ft (110 Ohm)
- Propagation velocity: 90%
- Shielding: 100% coverage

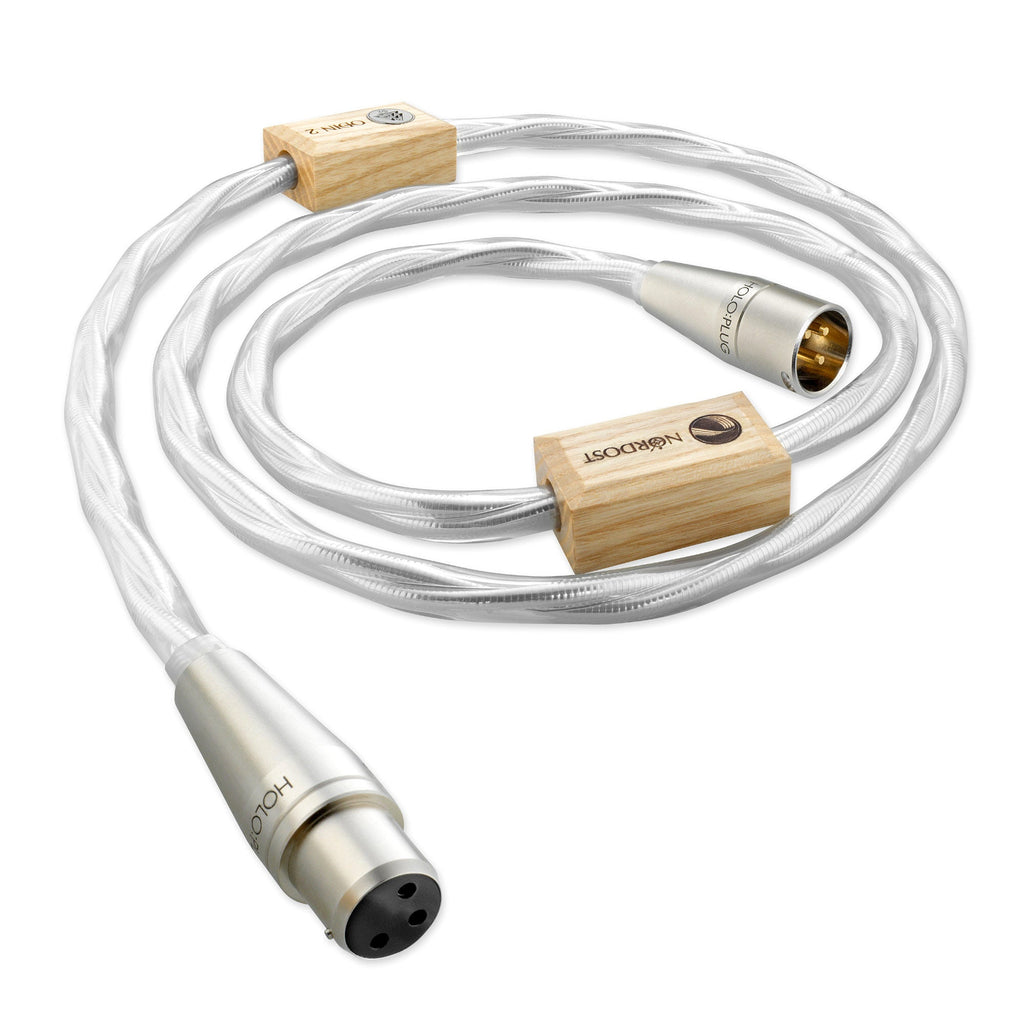

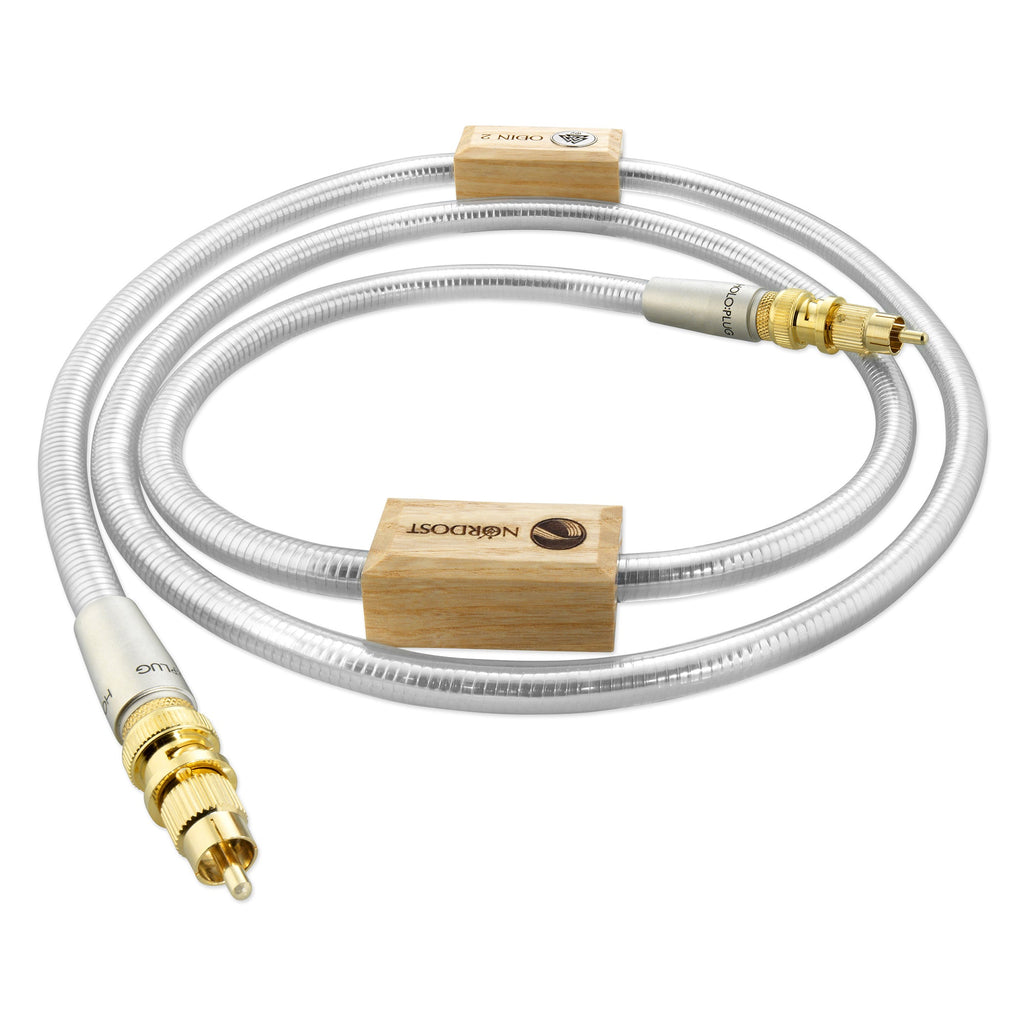

- Termination: gold-plated HOLO:PLUG BNC with RCA adapter, or gold-plated HOLO:PLUG XLR
Available versions
The cable is available with 75 Ohm BNC/RCA termination or 110 Ohm XLR termination, in lengths of 1.25 m, 2.5 m and 5 m.
