Moving coil cartridge with a spherical stylus.

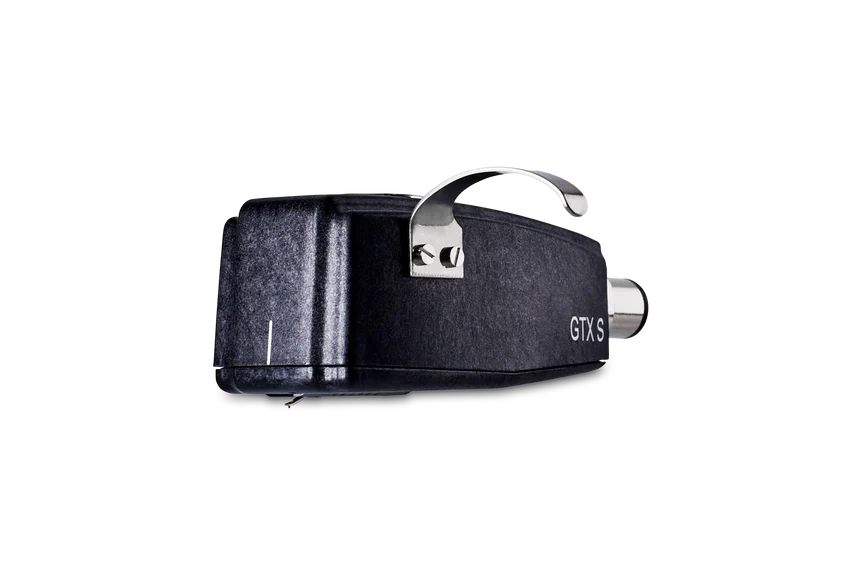

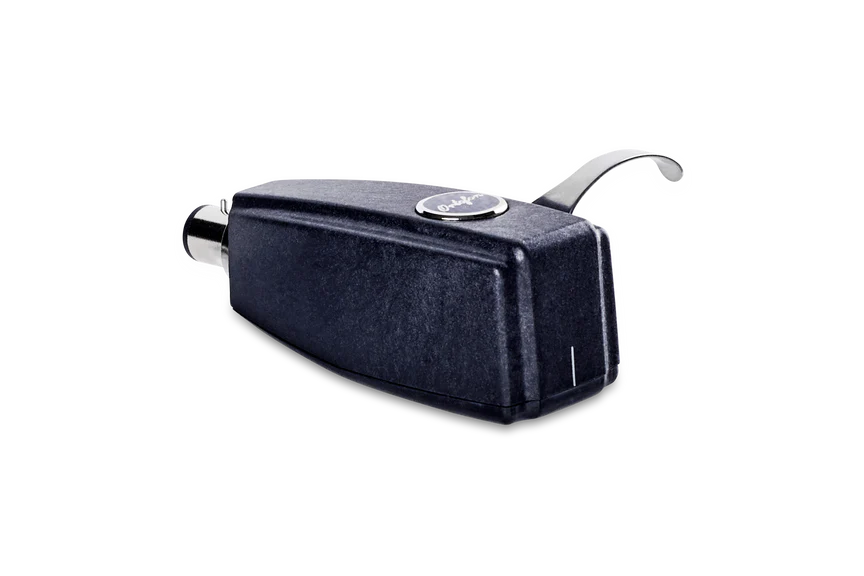

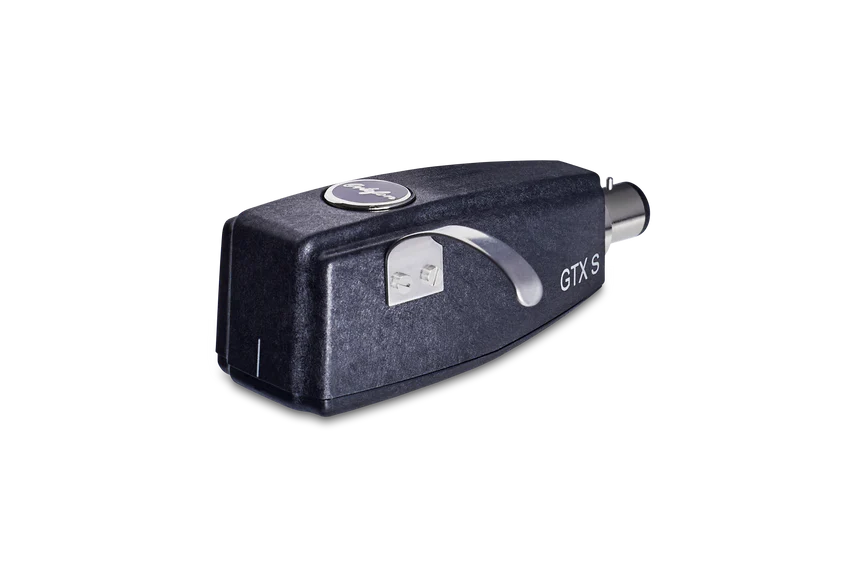

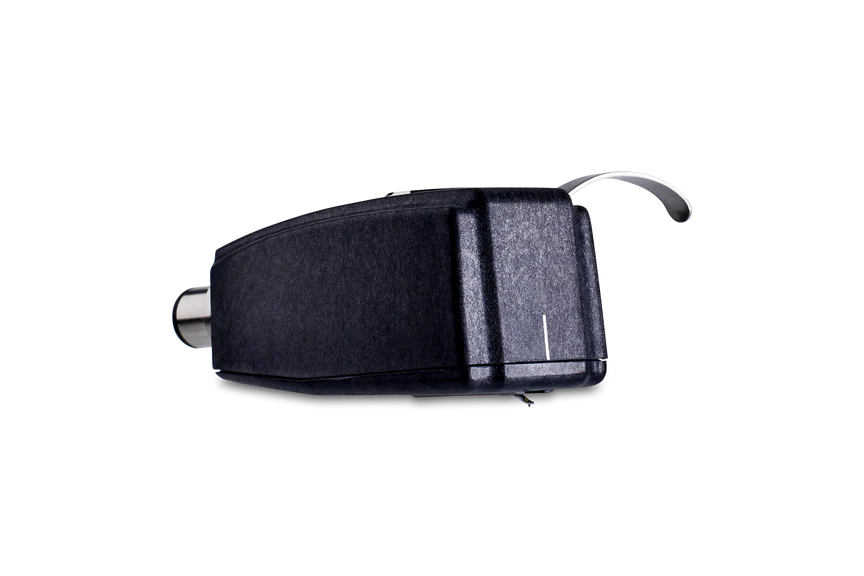

SPU GTX S: the design
The SPU is Ortofon's historic moving coil, built into its own headshell: it weighs about 30 grams and tracks at high forces, so it needs a tonearm of suitable mass with a standard mount.
It carries a spherical stylus. Output is 4 mV, it tracks at 4 g and wants a load of 47 kohms.
The step-up transformer sits inside the body: it connects straight to an MM phono input.
Specifications
- Type: moving coil (MC)
- Stylus: spherical
- Output voltage: 4 mV
- Recommended tracking force: 4 g
- Recommended load: 47 kohms
- Body: glass-fibre and polymer composite
- Weight: 38 g
