The largest round ceiling speaker in the CI Home series: a two-way design with a 203 mm woofer and a 19 mm PPA-lens tweeter. Offered as a pair for larger rooms that call for more bass and more level.
CI Home H80-R v2: what is inside
Compared with the 165 mm models, the CI Home H80-R v2 gains bass and efficiency from its larger cone: on-axis response starts at 60 Hz, extension reaches 45 Hz and room sensitivity rises to 90 dB. The crossover point is 2.5 kHz, and 30° off axis the response remains within ±2 dB up to 18 kHz. It accepts amplifiers of 15 to 90 W, which suits living rooms, open-plan kitchens and day areas of a decent volume. The opening it needs measures 238 mm.

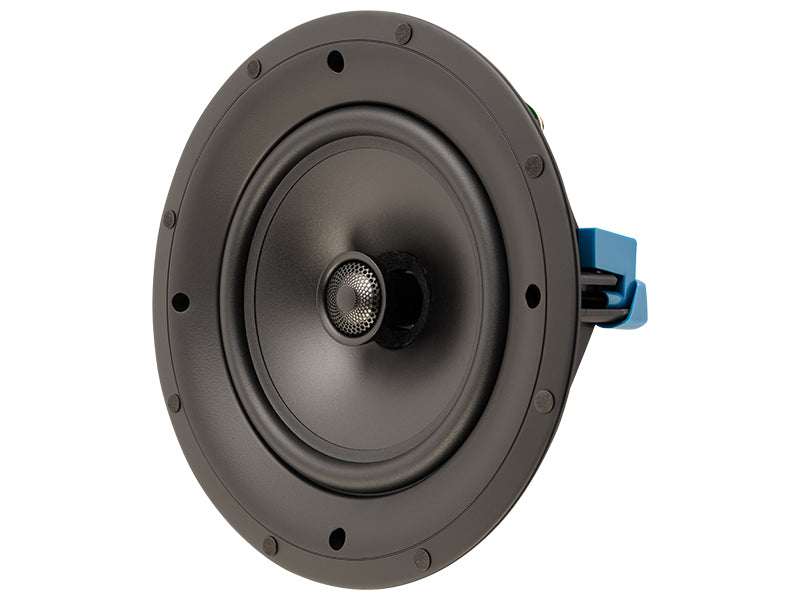

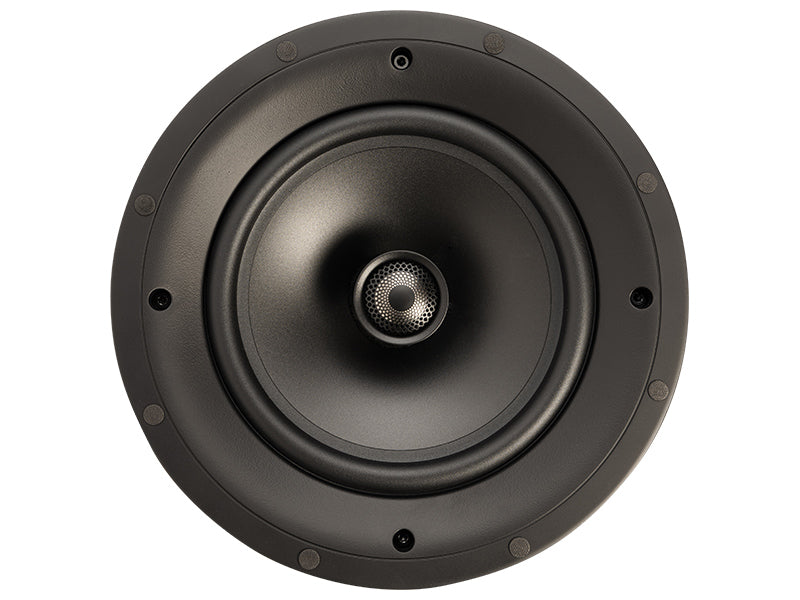

The woofer has a polypropylene cone with mineral filler and a larger-than-usual ferrite magnet assembly, modelled by computer, to combine a detailed midrange with bass that goes deep without overhang. Above it, the dome tweeter is covered by the PPA lens: a perforated plate that protects it and, working like a phase plug, removes phase cancellations at high frequencies. Ferrofluid controls its damping and temperature, which helps clarity over a broad listening area.

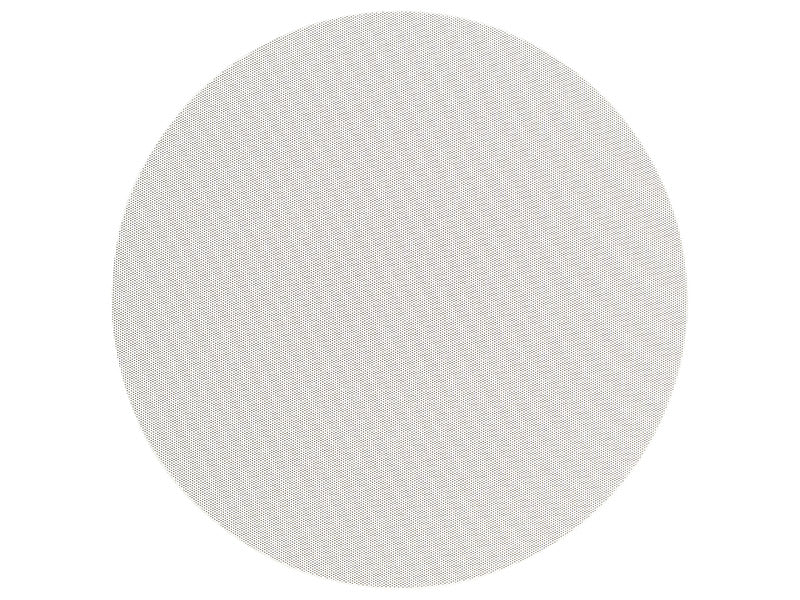

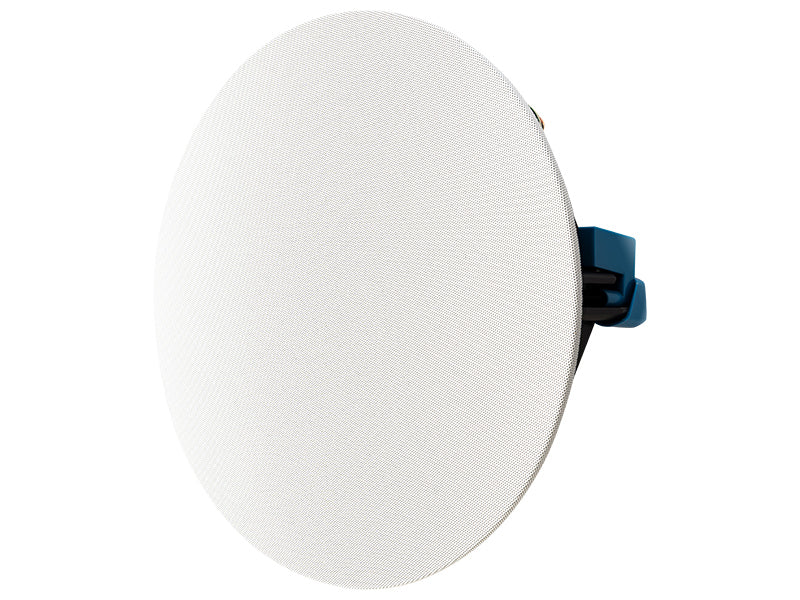

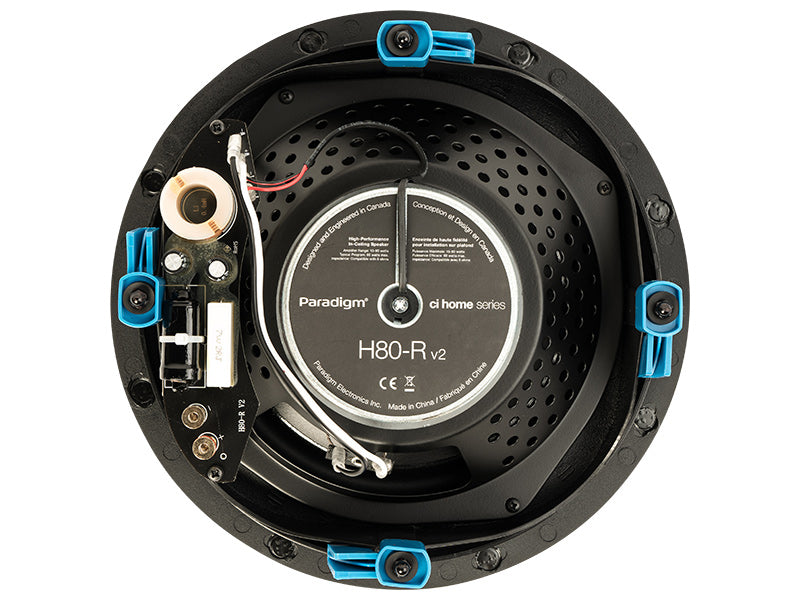

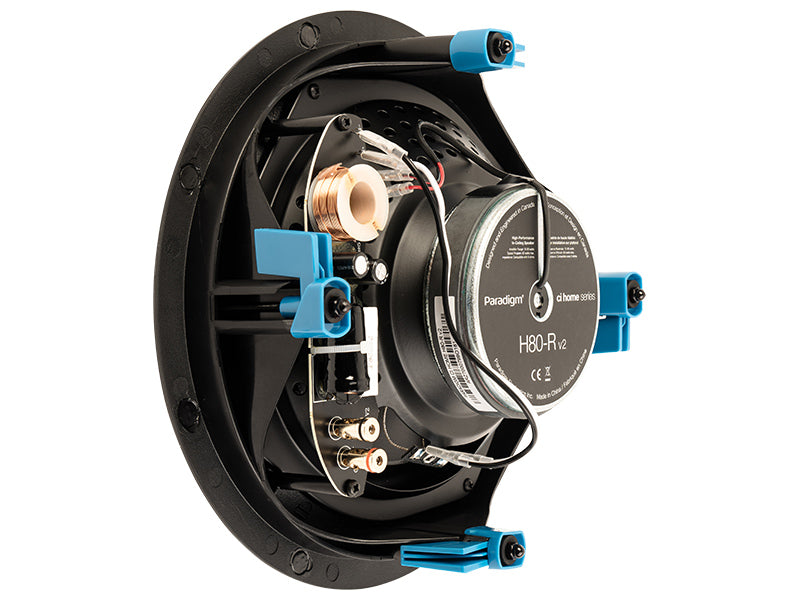

Frame and tightening clamps are rigid ABS: as they close they sandwich the rim of the opening and reinforce it, so the ceiling vibrates less. The screws sit in recessed seats with a Torx guide that keeps the bit engaged. For the cable there are terminals with an enlarged hole, good for banana plugs, pins and bare wire. The grille is micro-perforated, has no frame and is retained by magnets; it looks the same as those of the CI Elite and CI Pro ranges, handy when different models share a house.
Specifications
- Type: two-way, two-driver in-ceiling speaker, ABS frame and fixing clamps
- Crossover: second-order electro-acoustic, 2.5 kHz
- On-axis response: ±2 dB, 60 Hz to 20 kHz
- Off-axis response at 30°: ±2 dB, 60 Hz to 18 kHz
- Tweeter: 19 mm dome behind a perforated PPA lens, ferrofluid cooled
- Bass/midrange: 203 mm mineral-loaded polypropylene cone
- Sensitivity: 90 dB in room, 86 dB anechoic
- Bass extension: down to 45 Hz
- Recommended amplifier: 15 to 90 W
- Maximum power input: 60 W
- Impedance: suits 8-ohm amplifiers
- Cut-out: 238 mm diameter
- Mounting depth needed: 86 mm minimum
- Size with grille: 265 mm diameter, 101 mm deep
- Weight: 2 kg
- Optional accessory (not supplied): PB-9RN
- Supplied: sold as a pair
