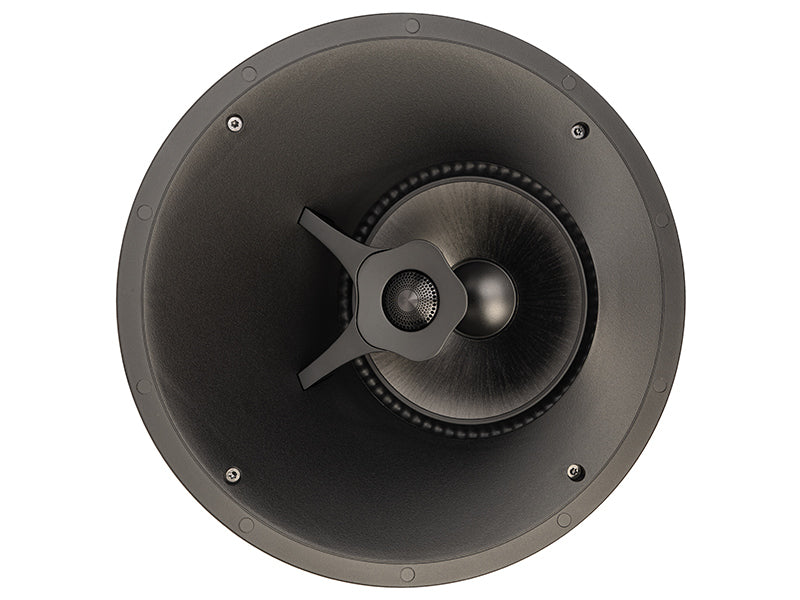

The CI Pro P80-A v2 is a two-way coaxial ceiling speaker whose output is tilted by 30°: a 203 mm woofer and a 25 mm tweeter for anyone who needs to steer the sound while keeping the installation out of sight.
CI Pro P80-A v2: angled output

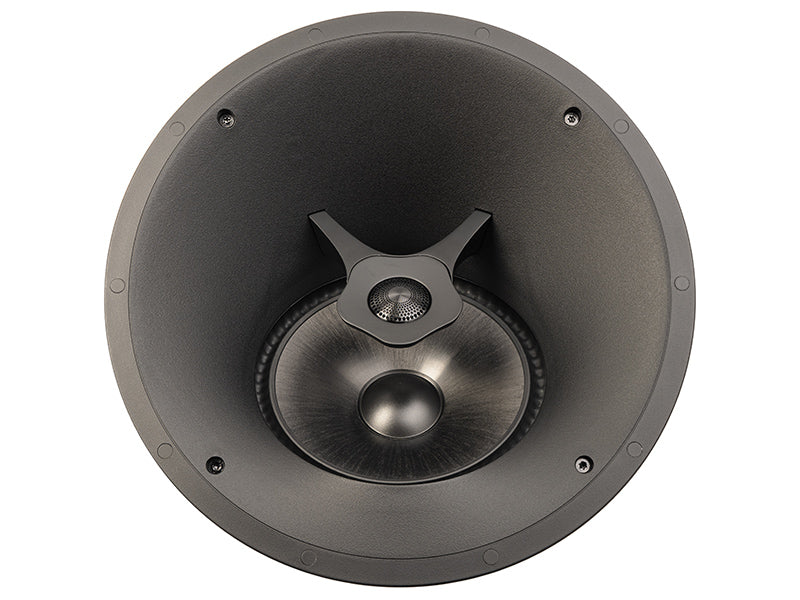

What sets the P80-A apart from the other round models in the CI Pro range is the Guided Soundfield system, which tilts the output by 30° relative to the ceiling plane. The tilt needs more room: the cut-out is 291 mm and the minimum mounting depth 143 mm. The crossover is set at 2.0 kHz, the on-axis response starts at 58 Hz and in-room sensitivity is 93 dB, with amplifiers of 15 to 110 W recommended.
The drive units are those of the range, which is built in Canada. The AL-MAC tweeter joins aluminium, magnesium and ceramic into a material that is tough, light and by nature unwilling to resonate; the perforated PPA lens corrects its phase and RED technology lessens the effects of diffraction. The woofer has the CARBON-X cone and a long-throw motor that takes more power and compresses dynamics less; the ART surround, patented and moulded onto the cone, increases usable travel.

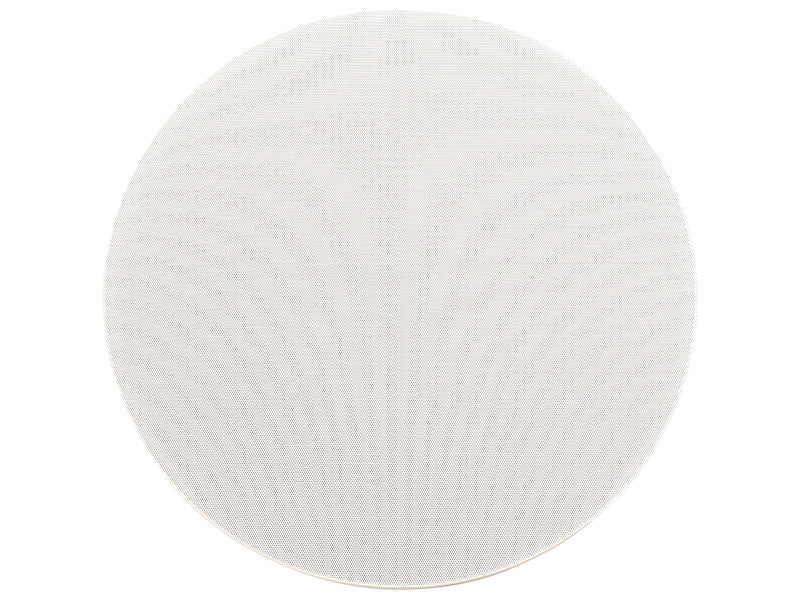

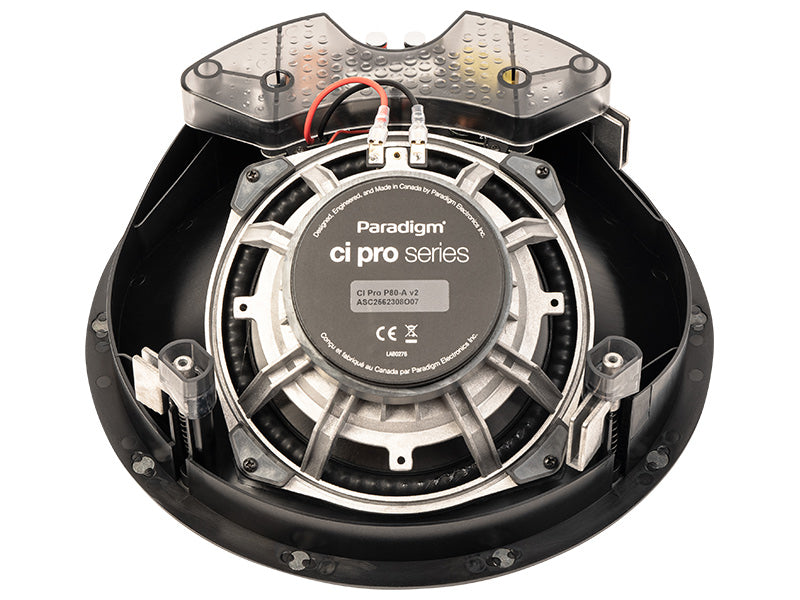

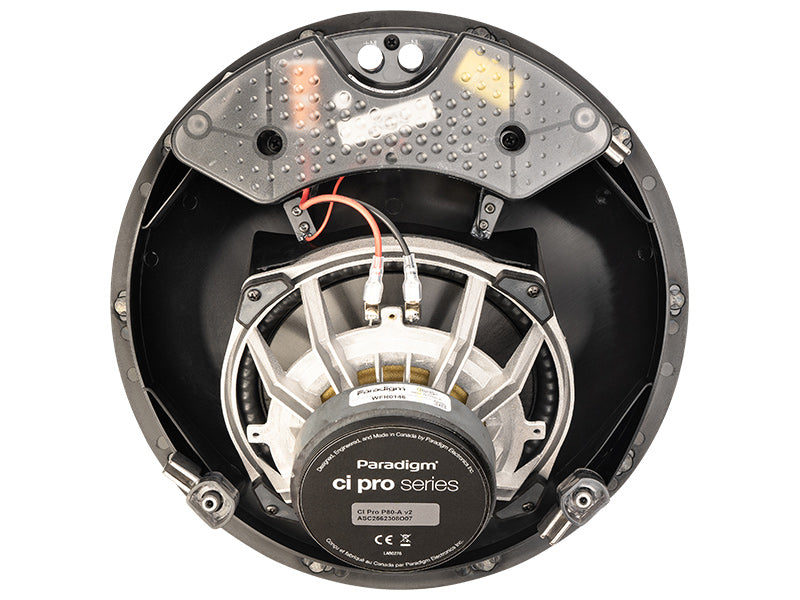

Between the basket and the reinforced nylon baffle sits the Shock-Mount decoupling, which removes resonances between frame and acoustic section. The die-cast aluminium basket, designed with finite element analysis, incorporates cooling fins. The speaker is completed by the polycarbonate rear cover, nickel-plated spring terminals with a wide opening for thick cable or banana plugs, and the micro-perforated grille, held by magnets and paintable.
Specifications
- Design: two-way coaxial ceiling speaker, two drive units, Guided Soundfield system tilted by 30°
- Baffle: reinforced nylon with Shock-Mount system
- Crossover: second-order electro-acoustic, 2.0 kHz
- On-axis response: 58 Hz to 22 kHz (±3 dB)
- Response 30° off axis: 58 Hz to 18 kHz (±3 dB)
- Tweeter: 25 mm AL-MAC with PPA lens and RED profile
- Woofer: 203 mm CARBON-X cone, ART surround, die-cast aluminium basket
- Sensitivity: 93 dB in room, 89 dB anechoic
- Bass extension: 39 Hz
- Recommended amplifier: 15 to 110 W
- Power handling: 80 W maximum
- Impedance: 8 ohm compatible
- Cut-out: 291 mm diameter
- Mounting depth: 143 mm minimum
- Size with grille: 320 mm diameter, 155 mm deep
- Weight: 3 kg
