An ultra-slim 122 cm passive soundbar that gathers the left, centre and right channels into one two-way sealed cabinet, for the wall or for standing below the TV.
Millenia LP Trio: three channels in one cabinet

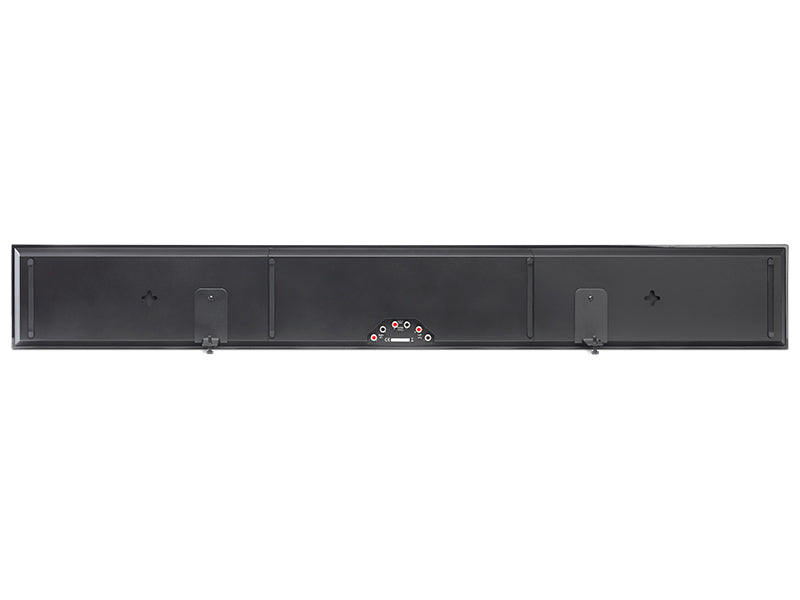

The Millenia LP Trio covers the three front channels of a home cinema system with one object. It is intended for cases where space is short, or where the decor calls for one speaker rather than three: at 122 cm wide it matches most 55 inch televisions. The profile is 5.1 cm, and the cabinet can hang on the wall or sit on a shelf on its own supports, in which case depth rises to 9.7 cm.

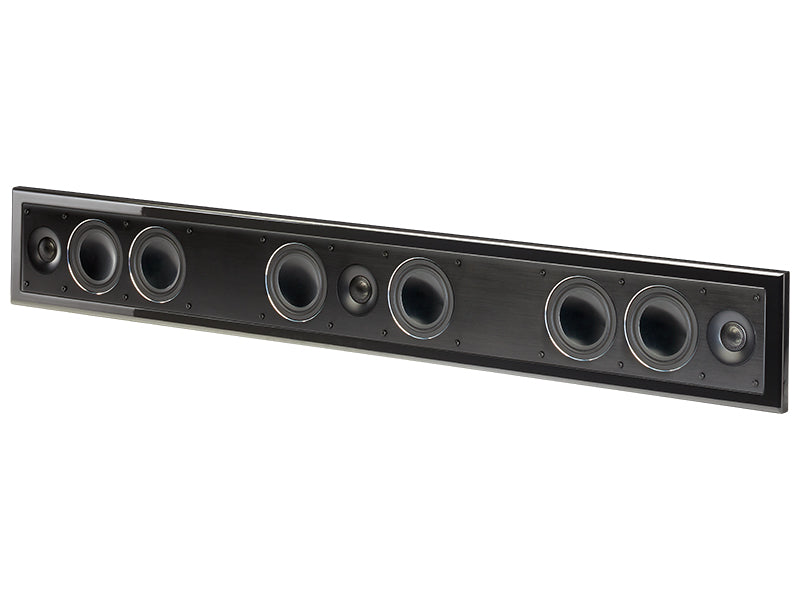

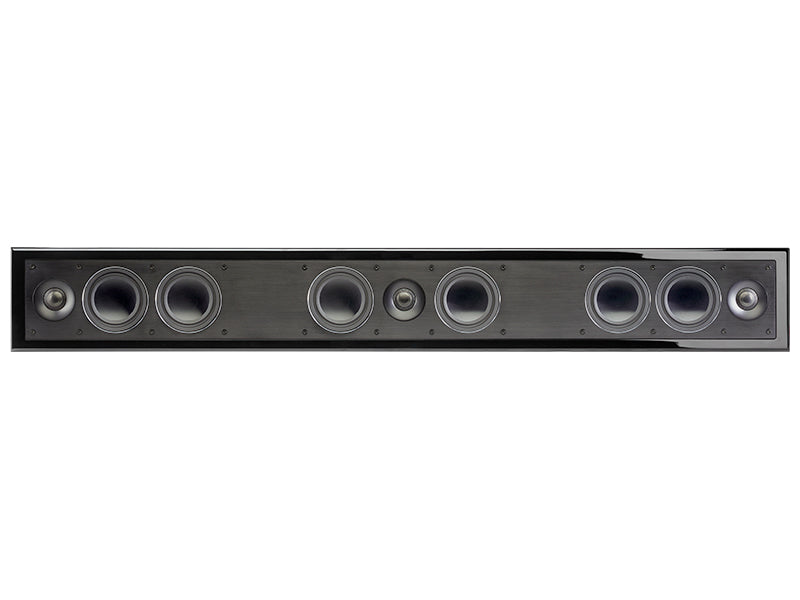

Inside are nine drive units split across three independent channels, each of them two-way and sealed: three 25 mm S-PAL dome tweeters, damped and cooled with ferrofluid, and 114 mm midrange/bass units with a one-piece anodised cone, a 37 mm aluminium voice coil for high temperatures, a Nomex spider, a nitrile rubber surround, a neodymium magnet and a finned steel basket that sheds heat from the motor. The crossover operates at 2.8 kHz on the centre channel and at 2.7 kHz on the two outer ones.
Being a passive speaker, each channel is wired to its own low-profile push terminal and driven by an AV receiver or power amplifier: recommended power is 15 to 130 W and maximum input is 65 W, into an 8 ohm compatible load. Sensitivity is 92 dB in room. On-axis response runs from 150 Hz to 20 kHz within ±3 dB and bass extension stops at 125 Hz (DIN), so a subwoofer is the necessary complement.
Specifications
- Type: passive three-channel LCR soundbar, two-way sealed, nine drivers
- Supplied: sold singly
- Installation: on the wall, or on a shelf using the stands
- Tweeters: three 25 mm S-PAL domes, ferrofluid cooling and damping
- Midrange/bass: 114 mm anodised cones, 37 mm aluminium voice coil, Nomex spider
- Crossover: second order, 2.8 kHz for centre and 2.7 kHz for left and right
- On-axis response: 150 Hz - 20 kHz (±3 dB)
- Response at 30° off axis: 150 Hz - 17 kHz (±3 dB)
- Bass extension: 125 Hz (DIN)
- Sensitivity: 92 dB in room, 89 dB anechoic
- Recommended amplifier: 15 to 130 W
- Maximum input: 65 W
- Load: 8 ohm compatible
- Connections: push-type terminals, low profile
- Size (W × H × D): 122 × 16.2 × 5.1 cm; on its stands 122 × 16.2 × 9.7 cm
- Weight: 5.9 kg
