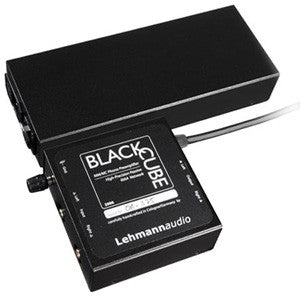

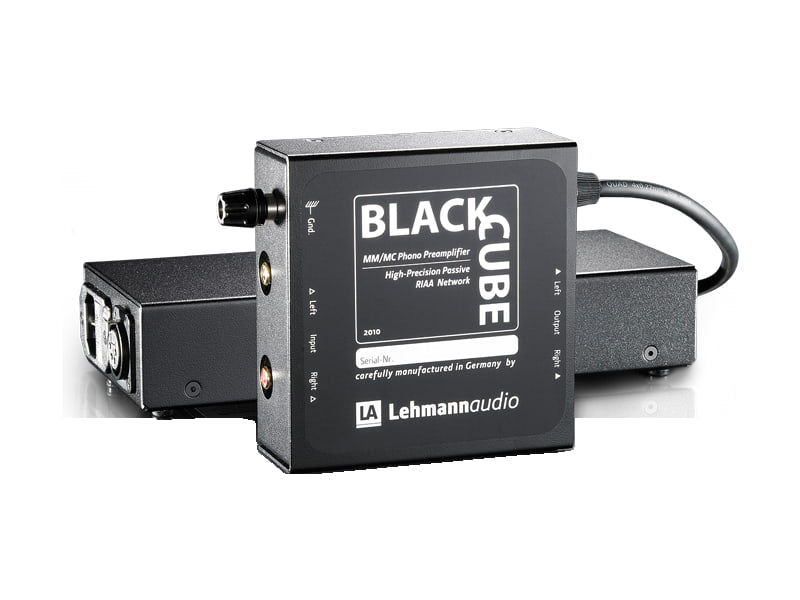

MM/MC phono stage + PWX power supply
--
MM/MC phono stage consisting of Black Cube and PWX power supply;"
S/N ration (eff.unw.): 71dB/63dB MM/MC
Input capacitance: 100pF
Input impedances: 47 kOhm, 1k Ohm, 100 Ohm switchable
underneath the unit, 1 slot for a custom load 1 hardwire slot
Output impedance: <100 ohms
RIAA filter: passive equalization between to linear gain
internships
Interchannel mismatch: typ. 0.5dB
Power consumption: <3W; external PWX
power supply (2x15V DC)
Dimensions: audio section
(wxdxh) 113 x 108 x 45mm³

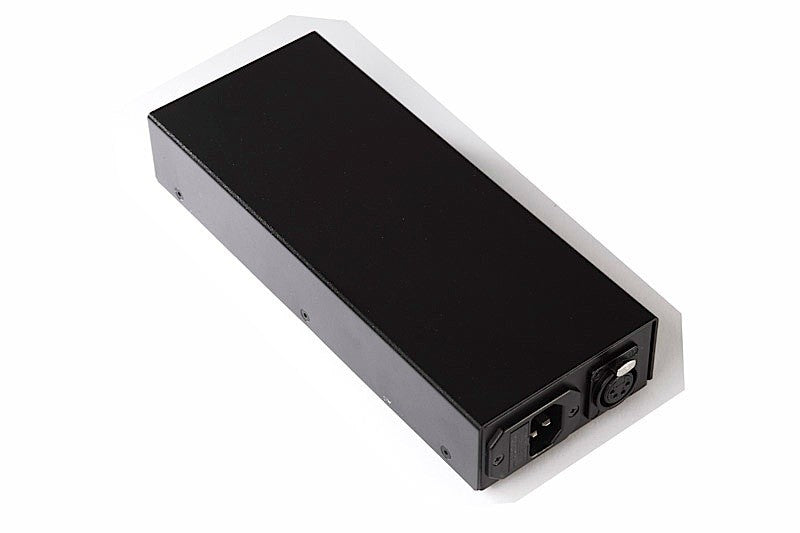

PWX power supply
(wxdxh) 233 x 93 x 45mm³
Weight: audio section app. 0.4kg
power supply app. 1.0kg"
