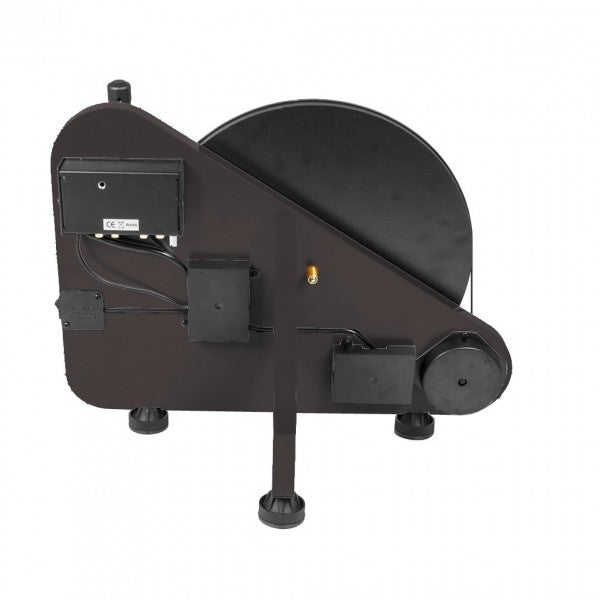

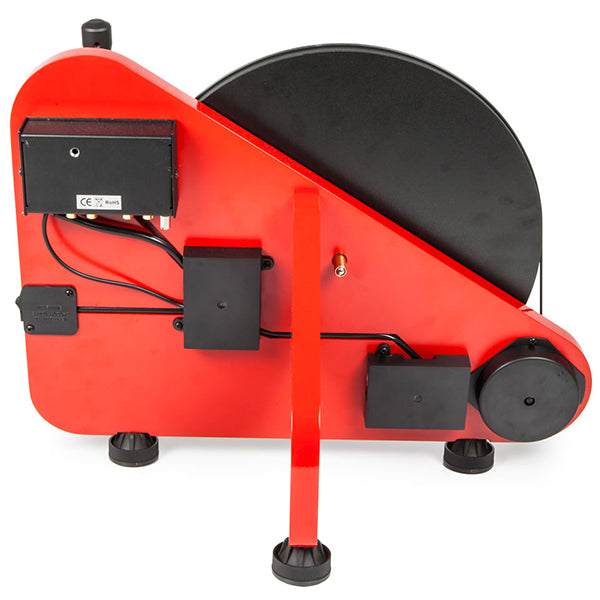

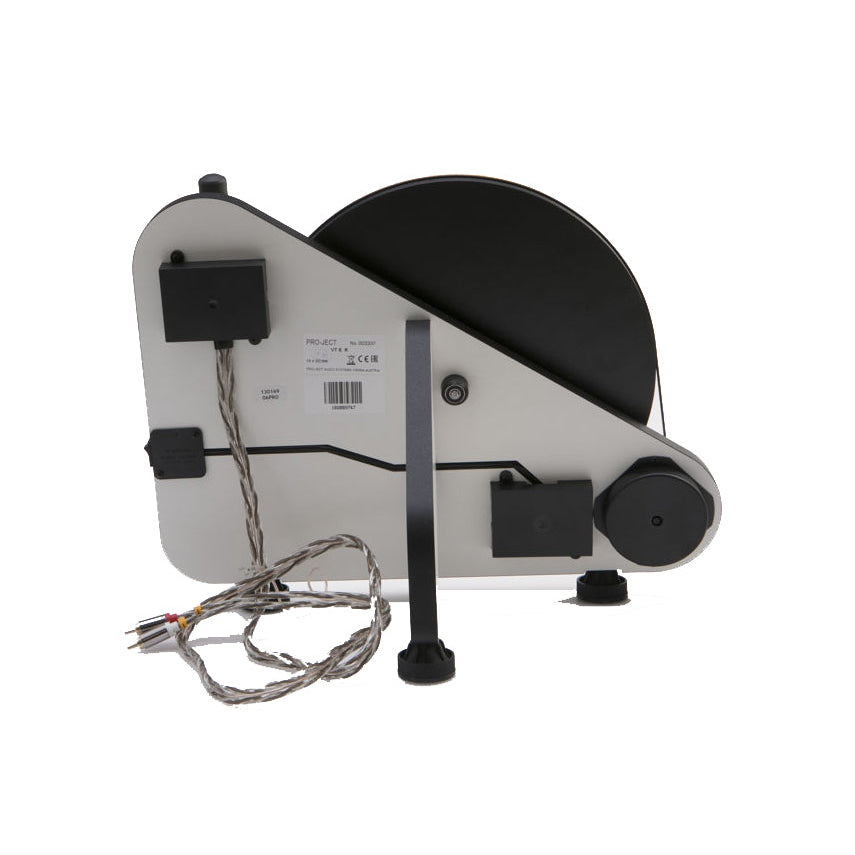

A belt-drive turntable that plays upright, standing on furniture or hung on the wall, in the right-handed version. It comes out of the box already set up, with an 8.6-inch aluminium arm and an Ortofon OM 5E cartridge fitted.
VTE-R: how it works upright
The VTE-R is for anyone who wants a proper turntable without giving it a deep shelf. The vinyl plays standing up: a clamp presses it to the platter and the arm uses a mechanism designed to keep the stylus in the groove with the record vertical. Two mirror-image builds exist, and this one, marked R, is for people who use their right hand. The fittings for wall mounting come in the box.
Drive is by a silicone belt turned by a low-vibration synchronous motor, which takes DC from a separate power supply. The platter is MDF, measures 300 mm across and weighs 0.8 kg; the felt mat provided goes on top. The bearing is stainless steel and the arm is a straight, low-mass aluminium tube 8.6 inches long.
Setting up takes only a few moments, because tracking weight and anti-skating are adjusted at the factory for the Ortofon OM 5E. The RCA lead with gold-plated plugs is soldered straight to the deck and needs a phono input, as this model has no preamplifier inside. An adapter for 7-inch singles and an Allen key complete the kit.
Specifications
- Speeds: 33 and 45 rpm, changed by hand
- Drive: silicone belt, synchronous motor
- Speed deviation: 0.8 % at 33 rpm, 0.7 % at 45 rpm
- Wow and flutter: 0.29 % at 33 rpm, 0.27 % at 45 rpm
- Signal-to-noise ratio: 65 dB
- Platter: MDF, 300 mm, 0.8 kg, felt mat supplied
- Main bearing: made of stainless steel
- Tonearm: 8.6-inch, aluminium
- Effective length of the arm: 218.5 mm
- Overhang: 22 mm
- Effective mass of the arm: 8 g
- Counterweight: supplied, suits cartridges of 3 to 5.5 g
- Cartridge: Ortofon OM 5E fitted, tracking weight set to 18 mN (range 0-25 mN)
- Output: captive RCA lead, gold-plated plugs
- Supplied with: power supply, record clamp, mat, singles adapter, wall kit, Allen key
- Power draw: 4.5 W
- Dimensions: 430 x 345 x 245 mm free-standing, 430 x 310 x 130 mm wall-hung (width, height, depth)
- Weight: 2.8 kg
- Finishes: black, white, red
