REL No.36

Reference powered sealed subwoofer with a 38 cm 12K carbon fibre front driver and a 1,000 W RMS class AB/D amplifier.

No.36: the design

The No.36 is the largest model in the Serie Reference, for top-level stereo and home cinema systems. It has a 38 cm front driver with a 12K-weave Pure Carbon Fibre cone, a die-cast alloy chassis and revised suspension for wider, controlled excursion. It is driven by a 1,000 W RMS class AB/D amplifier, with a high-current power supply and a toroidal transformer of about 8.8 kg. In room it reaches down to 15 Hz (−6 dB).

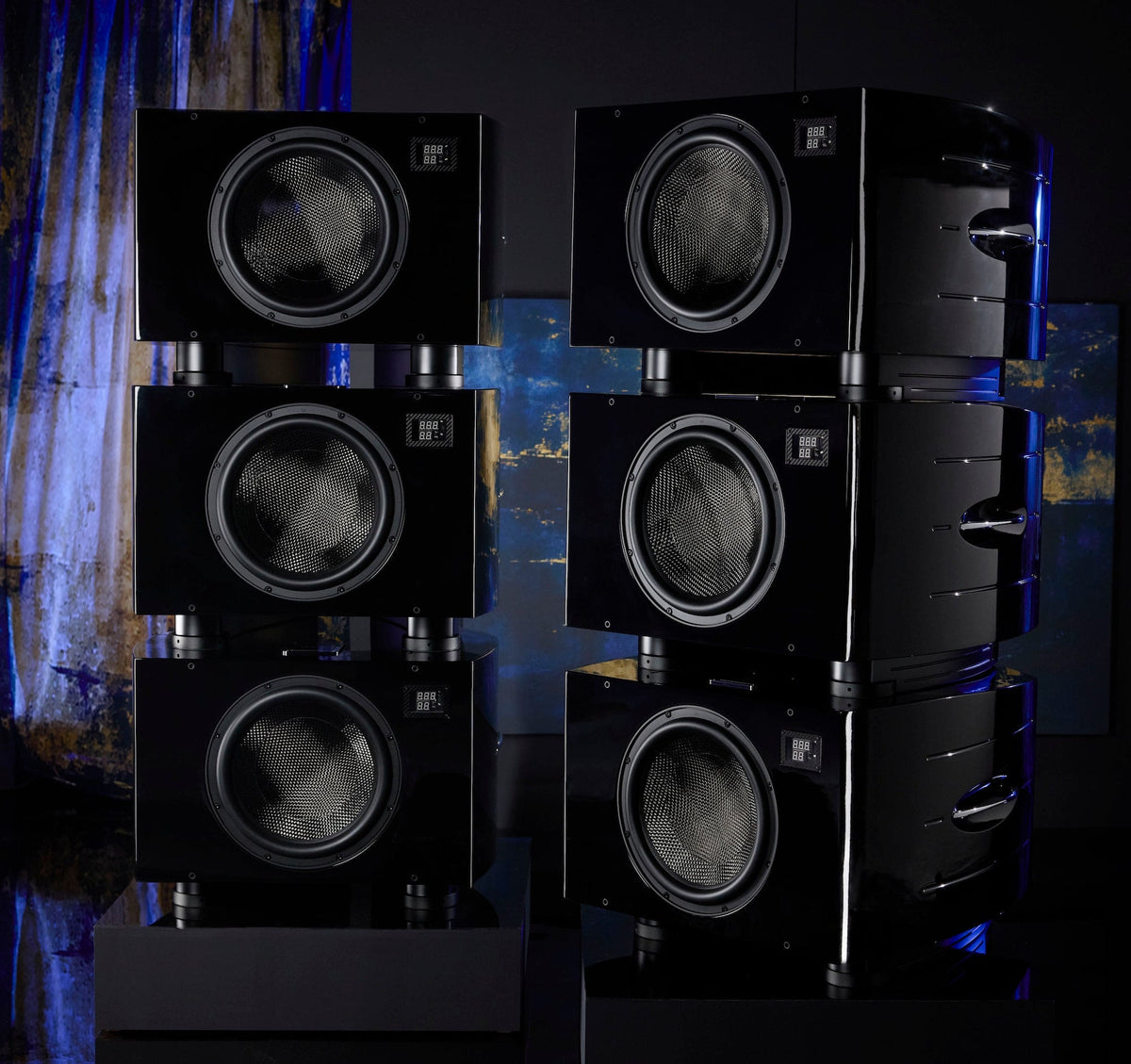

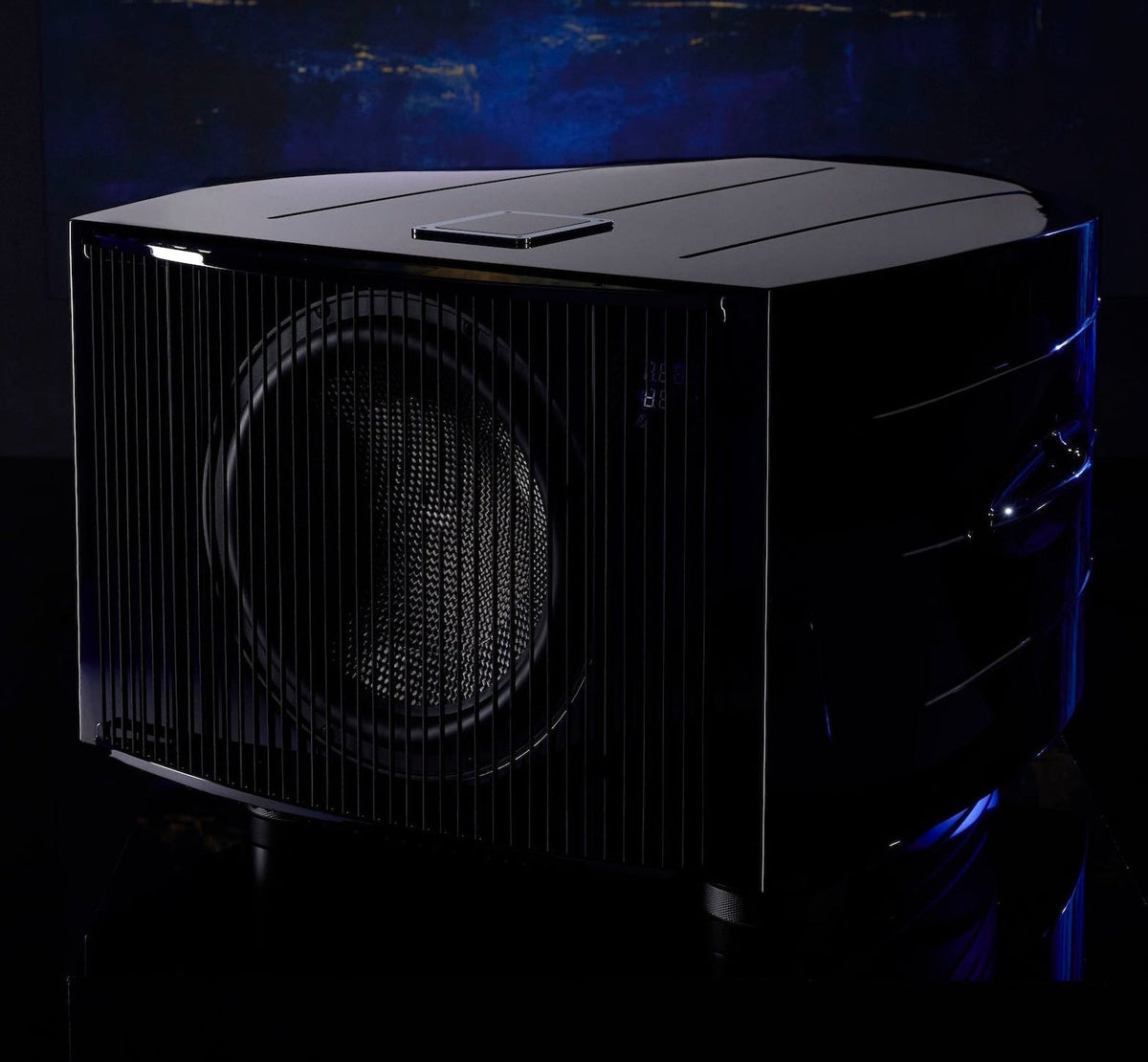

The curved cabinet has internal bracing, adjustable feet and a twelve-coat gloss black lacquer applied by hand; the grille is included. From the listening position, the Reference remote adjusts level, crossover, phase, LFE gain and the dual parametric equaliser. It can be used alone, as a stereo pair or in a Line Array stack.

Specifications

• Driver: 38 cm front-firing, 12K carbon fibre
• Amplifier: 1,000 W RMS class AB/D
• In-room response: down to 15 Hz (−6 dB)

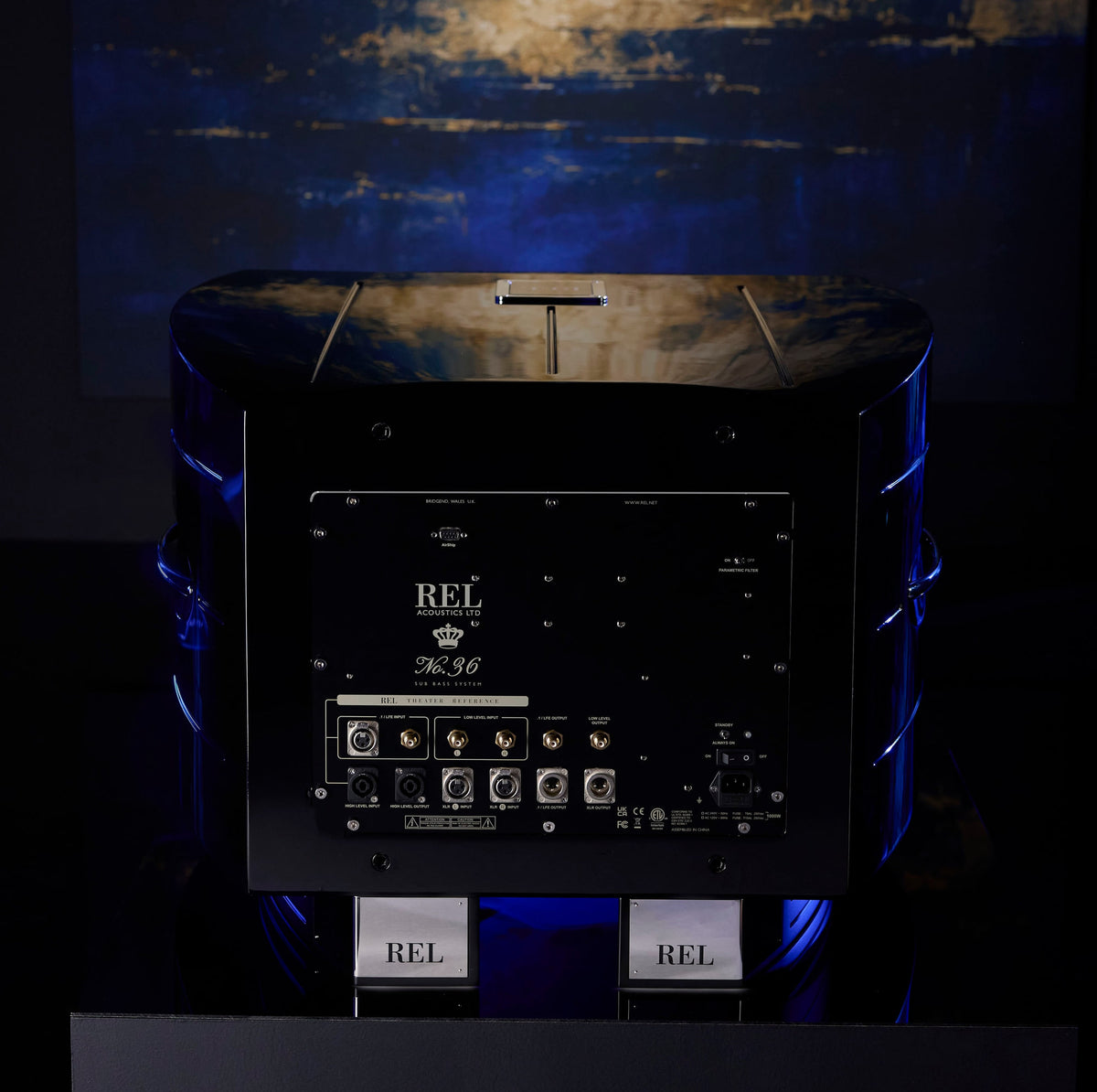

• Inputs: Neutrik Speakon high level, stereo RCA, XLR, RCA and XLR LFE · RCA and XLR outputs for other subwoofers
• Equalisation: dual parametric
• Wireless: with the optional AirShip Direct
• Supplied with: Reference remote control, grille
• Dimensions (W × H × D): 74.3 × 54.1 × 81.6 cm
• Weight: 91.8 kg
• Finish: gloss black lacquer
