Screenline Wave Multiformat: up to nine formats with two fabrics

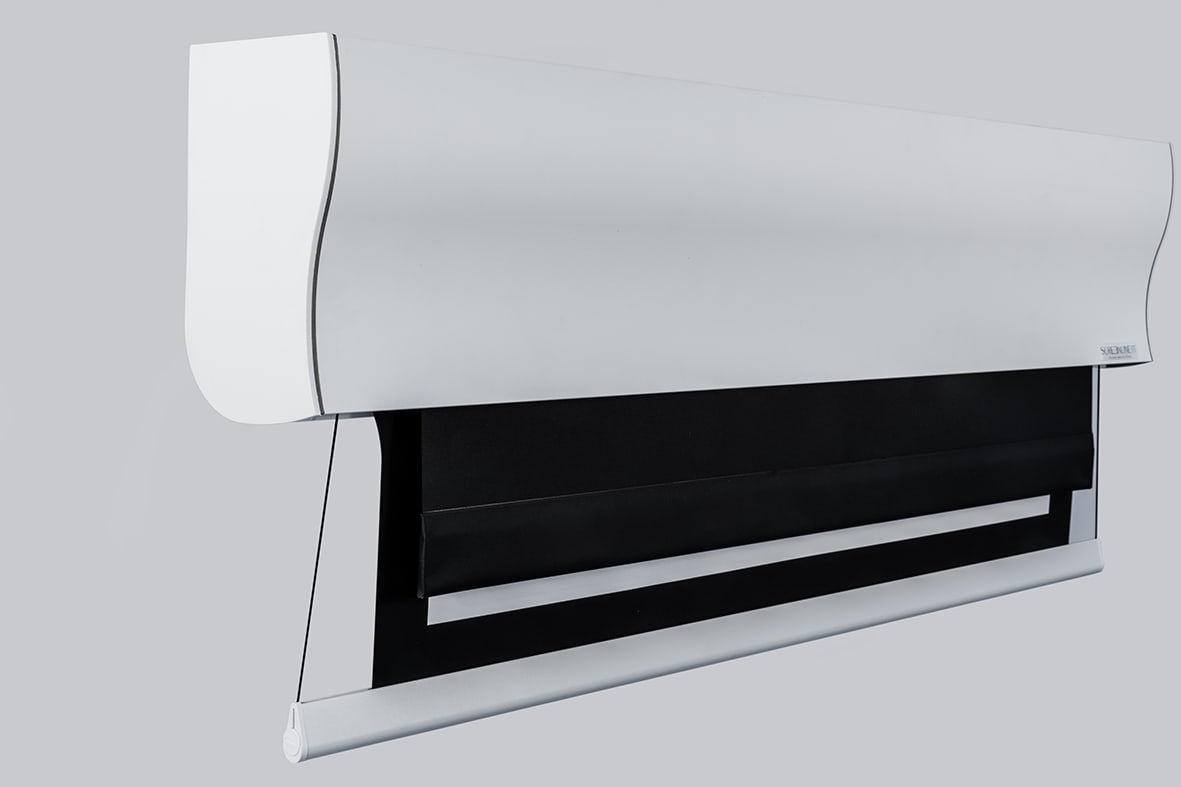

In the Wave range, Multiformat is the top model: inside the case two motors, one above the other, drive a black fabric and a projection fabric that work together.
Combining the two fabrics gives up to 9 different formats; each motor has its own encoder and there is a dedicated control unit, to move each fabric precisely. The short gap between the two fabrics keeps the change from one format to another clean.
Key features
- Two motors with encoder, one black fabric and one projection fabric
- Up to 9 formats; standard sizes in 4:3, 16:10, 16:9, 1.85:1 and 21:9
- Six bases, from 203 to 305 cm
- Aluminium case and tensioning as standard
- Five projection surfaces: four for front projection and one for rear projection
Standard formats for each base
- Base 203 cm: 4:3 203 x 152 cm (100") · 16:10 203 x 127 cm (94") · 16:9 203 x 114 cm (92") · 1.85:1 203 x 110 cm (91") · 21:9 203 x 86 cm (87")
- Base 224 cm: 4:3 224 x 168 cm (110") · 16:10 224 x 140 cm (104") · 16:9 224 x 126 cm (101") · 1.85:1 224 x 121 cm (100") · 21:9 224 x 95 cm (96")
- Base 244 cm: 4:3 244 x 183 cm (120") · 16:10 244 x 153 cm (113") · 16:9 244 x 137 cm (111") · 1.85:1 244 x 132 cm (109") · 21:9 244 x 104 cm (104")
- Base 264 cm: 4:3 264 x 198 cm (130") · 16:10 264 x 165 cm (123") · 16:9 264 x 149 cm (119") · 1.85:1 264 x 143 cm (118") · 21:9 264 x 112 cm (113")
- Base 284 cm: 4:3 284 x 213 cm (140") · 16:10 284 x 178 cm (132") · 16:9 284 x 160 cm (128") · 1.85:1 284 x 154 cm · 21:9 284 x 121 cm (122")
- Base 305 cm: 4:3 305 x 229 cm (150") · 16:10 305 x 191 cm (141") · 16:9 305 x 172 cm (138") · 1.85:1 305 x 165 cm · 21:9 305 x 130 cm (131")
The surfaces
- Home Vision (front projection, gain 1.2): white composite PVC with a black back, not transparent. The black back makes the picture sharper and higher in contrast and stops light coming from behind. It must not be used as a blackout blind: sun and heat damage it.
- Microperforated (front projection, sound-transparent, gain 1.05): lets through the sound of speakers placed behind the screen, with 0.4 mm holes you cannot see while projecting.
- Grey High Contrast (front projection, gain 0.8): soft grey PVC that makes dark colours deeper; Screenline indicates it for projectors above 1,500 ANSI lumens.
- Radiance 0.8 (front projection in ambient light): highly reflective PVC with mineral microparticles, for bright, well-contrasted pictures in normally lit rooms.
- Coral (rear projection, gain 1.8): PVC for projecting from behind the screen, very bright and even, with a viewing angle above 90°. It suits fairly bright rooms with powerful projectors; direct light on the fabric cuts contrast sharply.
Special requests
On request Screenline also makes non-standard sizes: contact us for these.
