Nine-channel AVENTAGE with 11.2 processing and Surround:AI™

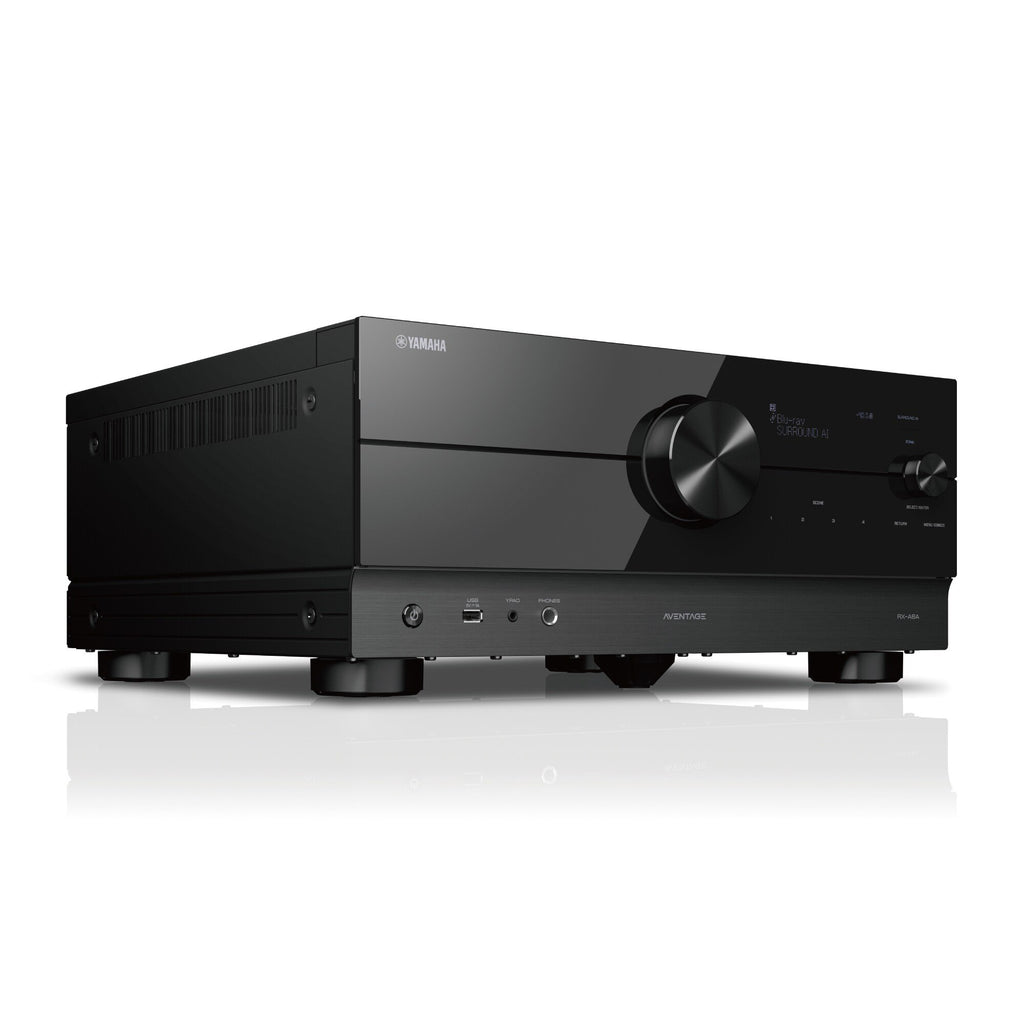

RX-A6A is a Yamaha AV receiver that combines multichannel amplification, surround processing, HDMI management, room calibration and network functions in a single platform.
The design brings video and audio source management together with a power section intended to drive a complete home cinema system. RX-A6A integrates immersive formats, acoustic correction and streaming while retaining physical connections and multi-zone functions useful in more elaborate installations.
Key features
- 9.2 channels with processing up to 11.2 channels and 150 W per channel into 8 ohms, measured with two channels driven.
- Seven HDMI inputs and three outputs, with 8K/60 Hz, 4K/120 Hz, VRR and ALLM.
- Dolby Atmos®, DTS:X®, AURO-3D®, CINEMA DSP HD3 and Surround:AI™.
- YPAO™ R.S.C. with multipoint measurement, 3D measurement and Precision EQ.
- MusicCast, Wi-Fi, Bluetooth, AirPlay 2 and compatible streaming services.
- ESS SABRE ES9026PRO and ES9007S DACs, XLR inputs and AVENTAGE construction.
- Zone 2, Zone 3 and Zone 4 for distributing sources to multiple rooms.
- MusicCast Surround for compatible wireless rear speakers.
Cinema and immersive formats
The processing section supports Dolby Atmos®, DTS:X®, AURO-3D®, CINEMA DSP HD3 and Surround:AI™. Yamaha adds its own sound-field processing to format decoding, designed to keep dialogue, music and effects accurately placed in space. The result is coherent management of the front stage, surround channels and height information when the configuration provides it.
YPAO™ calibration
YPAO™ R.S.C. with multipoint measurement, 3D measurement and Precision EQ. The system measures the installation in the actual room and adjusts the parameters needed to make speaker behaviour more uniform. Calibration reduces the impact of different distances and positions and gives the receiver a more coherent basis before surround processing.
HDMI and video sources

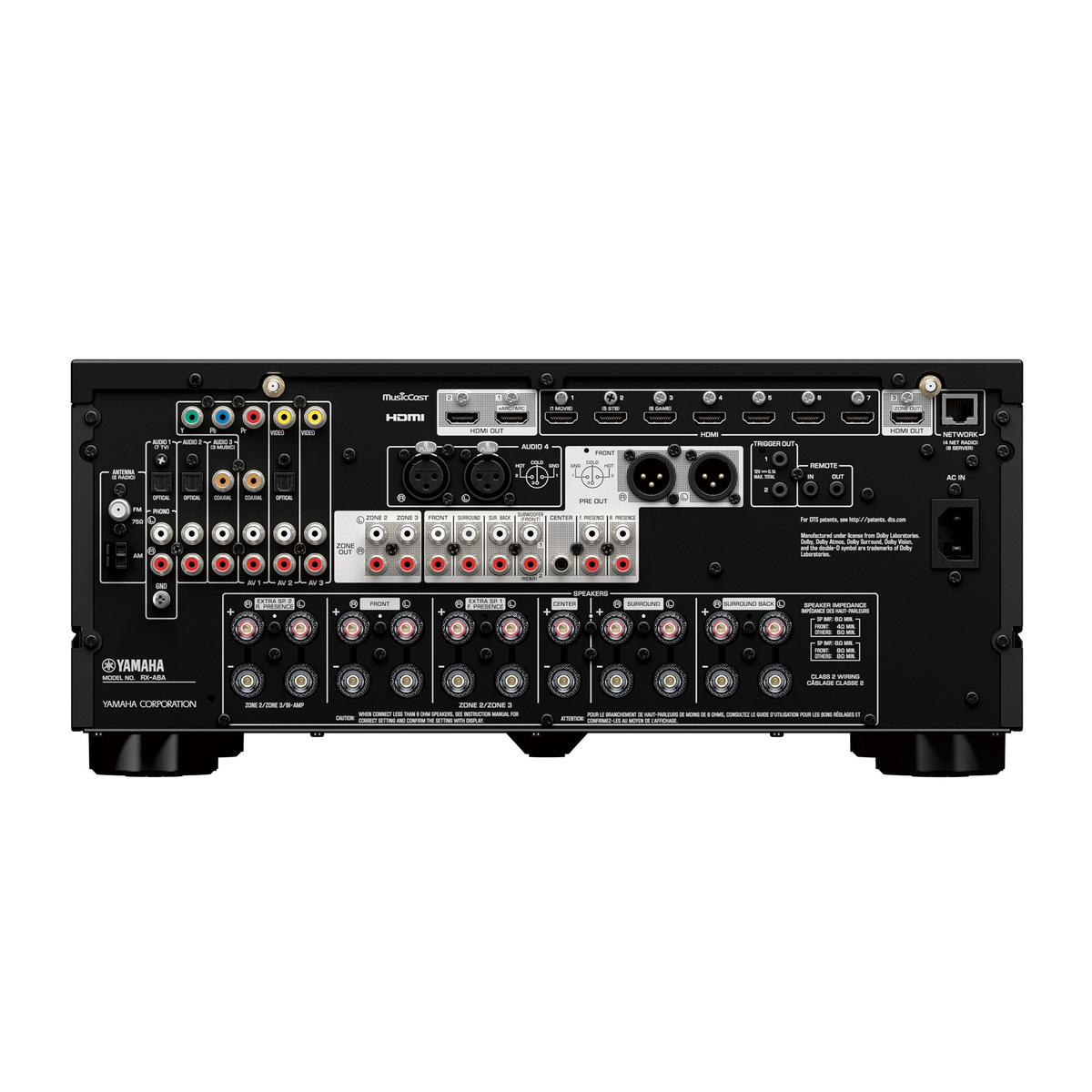

Seven HDMI inputs and three outputs, with 8K/60 Hz, 4K/120 Hz, VRR and ALLM. The HDMI section centralises consoles, players and the television, avoiding separate video and audio management. Supported functions depend on the connected source and display, but the receiver is equipped for high-resolution, high-frame-rate signals from the latest HDMI generation.
Streaming and MusicCast
MusicCast, Wi-Fi, Bluetooth, AirPlay 2 and compatible streaming services. MusicCast allows the receiver to be integrated with other compatible Yamaha devices and sources to be distributed over the network. Wireless connections therefore complement traditional inputs, allowing the component to serve both cinema and music throughout the home.
Audio design and amplification
ESS SABRE ES9026PRO and ES9007S DACs, XLR inputs and AVENTAGE construction. The amplification section is developed together with the power supply and internal layout to preserve dynamics and control through demanding passages. Yamaha pays particular attention to chassis rigidity and to reducing interference between digital, analogue and power circuits.
