Multi-zone digital amplifier in a 1U rack format, INT version
The INT (international) version of the SONAMP 8-50 is a Sonance digital amplifier that puts out 50 W per channel into 8 ohms and 100 W per channel into 4 ohms, from a compact chassis just one rack unit high.

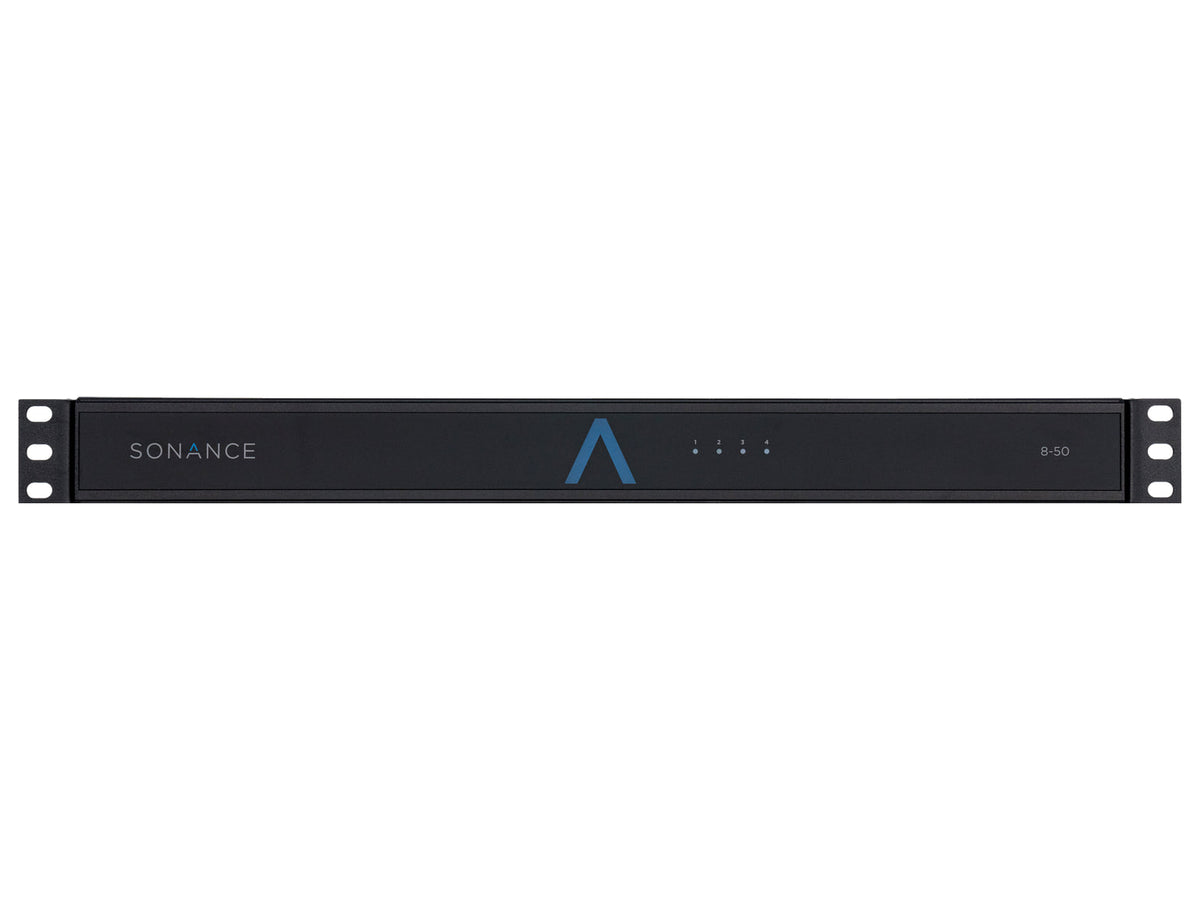

The amplifier can sit on a shelf, go into a rack or be fixed to the underside of a surface. Each zone is configured with DIP switches and a level control.
Key features
- 50 W per channel into 8 ohms and 100 W per channel into 4 ohms
- Bridged mode giving 200 W per channel
- Output rated into 8 and 4 ohm loads, with stable operation down to 2 ohms
- BUS input, selectable, with a crossover filter
- Subwoofer output with an LPF filter, for handling the low frequencies
- 12 V trigger plus an audio sense function
- Local inputs can be mixed in for doorbell and paging signals
Installation
The 1U format leaves freedom in where the unit goes: on a shelf, in a rack or under a surface. DIP switches and the level control make it simple to set the system up zone by zone.
Technical data
Without feet the amplifier measures 437 x 44 x 312 mm (width, height, depth); with the feet the height becomes 56 mm. This model has no built-in DSP.
