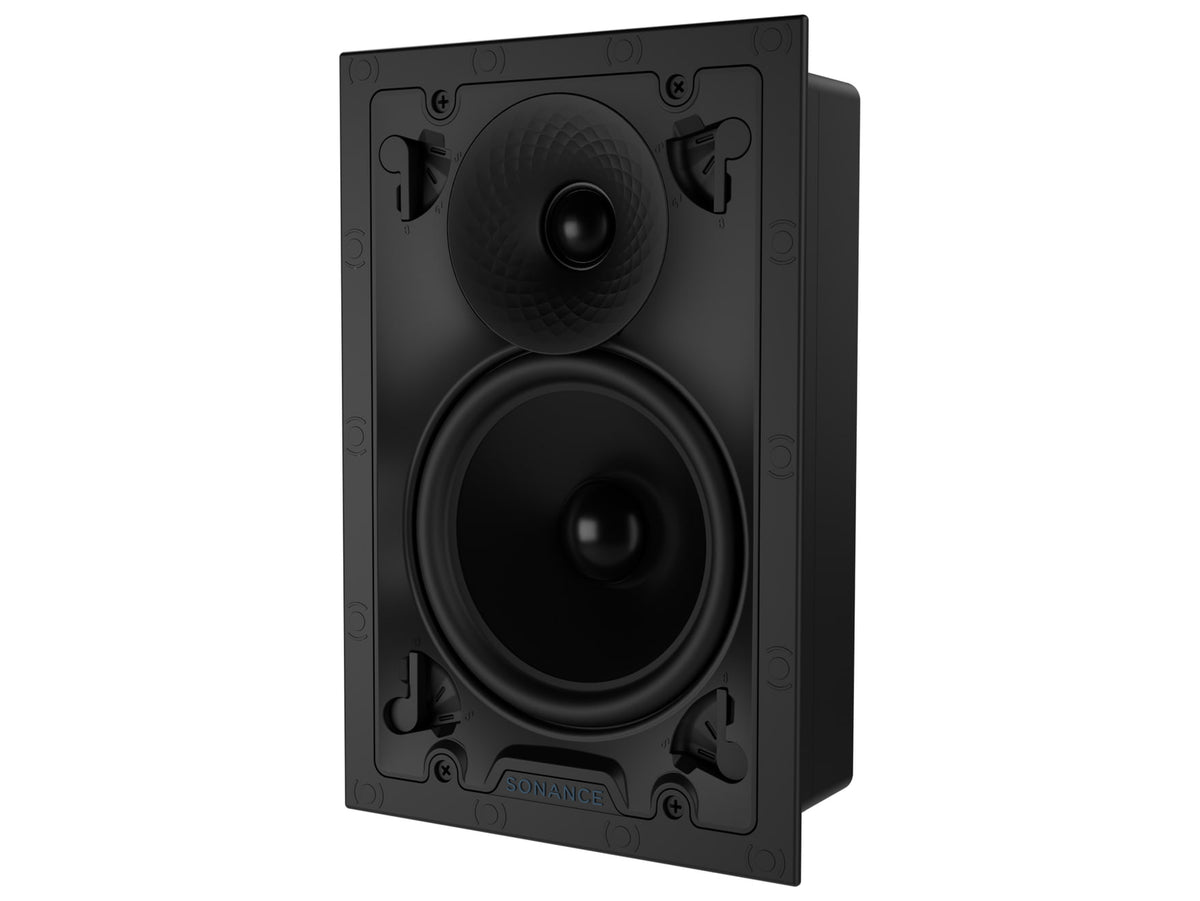

Rectangular in-wall speaker with a 6.5" woofer
The Sonance VX62 is a rectangular speaker from the Visual Experience series, built for wall installation and meant to bring sound to a room while fitting into the design of the building. Sold as a pair.
It mounts in a rectangular wall opening and ships with a white Micro Trim grille. Sonance names even coverage, limited distortion and a natural-sounding result as the goals of the design.
Key features
- 1" tweeter (25 mm) using a cloth dome, cooled by Ferrofluid, with a rear acoustic chamber
- 6.5" woofer (165 mm): cone in textured polypropylene, surround in rubber
- Frequency response from 45 Hz to 20 kHz (+/- 3 dB)
- Power handling between 5 and 125 watts RMS
- Sensitivity of 89 dB (2.83 V at 1 m)
- Dispersion handled by the Sinusoidal Textured Waveguide
- Sonance CDX crossover
Installation
The cut-out measures 176 x 273 mm and the mounting depth is 88 mm. The Visual Experience series allows either the standard single-stage installation or an optional two-stage one: with the latter, cabling and space reservation are done ahead of construction, and the job ends by snapping the speaker module into place.
Finishes and grilles
The supplied grille is a Micro Trim in satin Brilliant White. The grille styles of the Visual Experience series include Micro Trim and Trimless.
