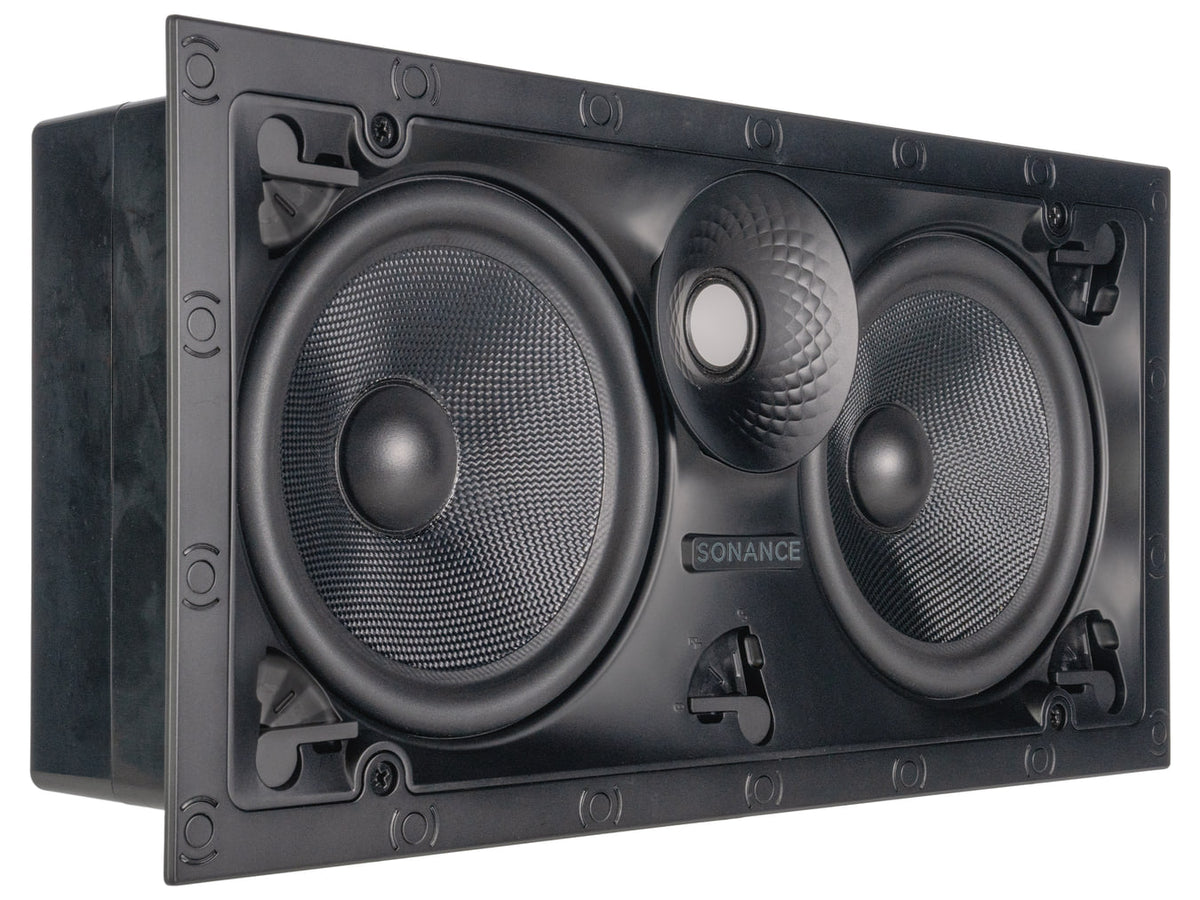

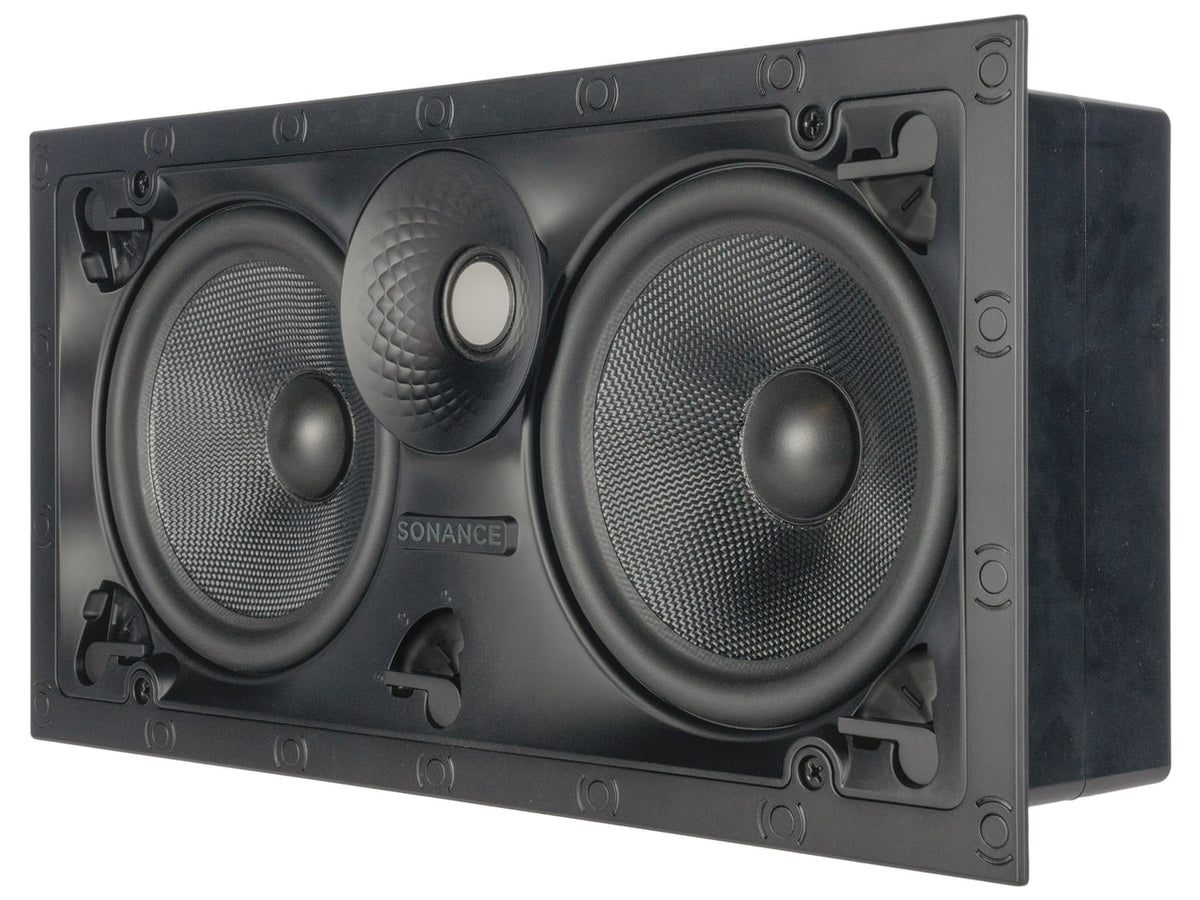

Built-in LCR speaker with two 6.5" woofers
The Sonance VX66 LCR is a built-in speaker from the Visual Experience series, intended for the front and centre channels of a system, where detail and clear vocals matter.

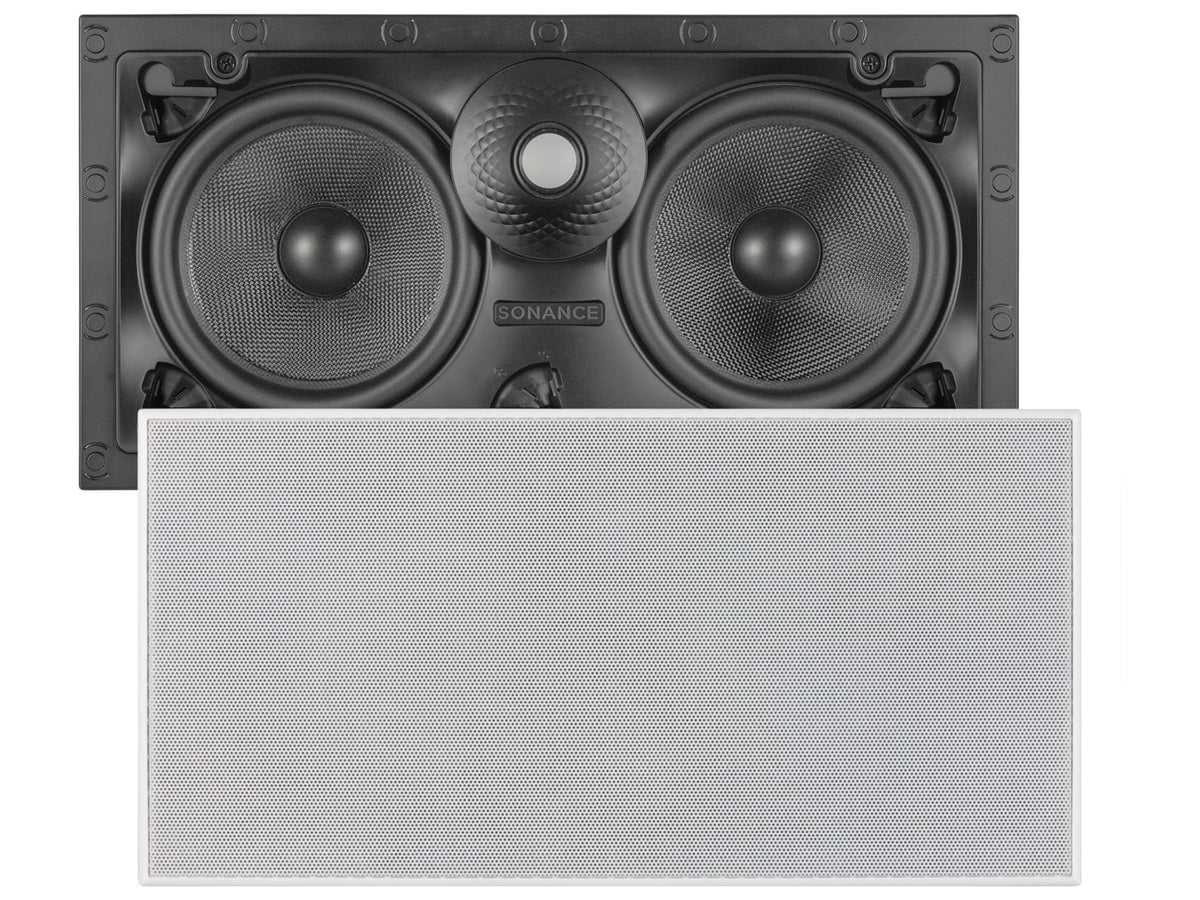

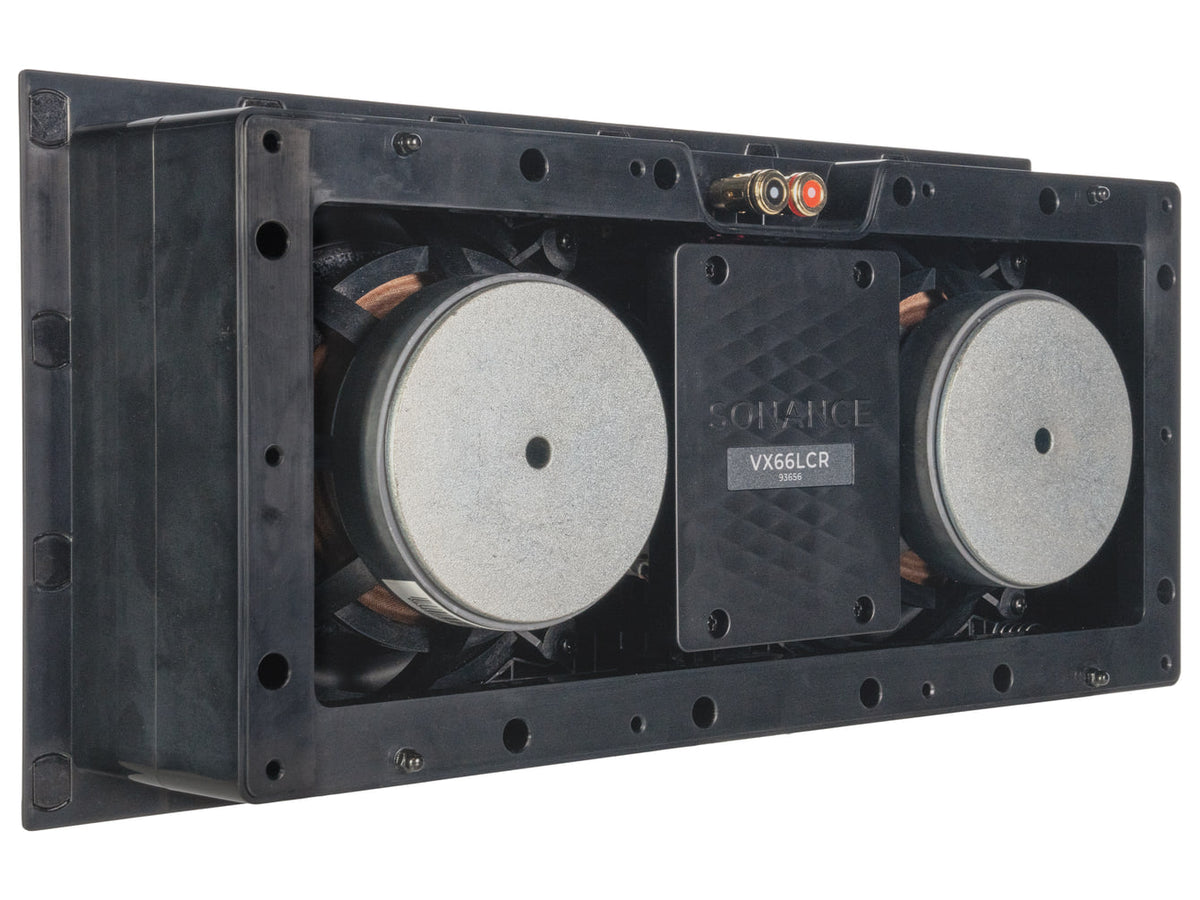

Its frame is a flex frame made of two pieces, which speeds up installation, and the Micro Trim grille in brilliant white blends with the colour of walls and ceilings. A waveguide with a sinusoidal texture keeps the tonal balance even, and the CDX crossovers deliver uniform dispersion.
Key features
- 1" tweeter (25 mm) with a ceramic dome, Ferrofluid cooling and a rear acoustic chamber
- Two 6.5" woofers (165 mm) with Kevlar / Nomex cones on rubber surrounds
- Frequency response from 43 Hz to 20 kHz (+/- 3 dB)
- Power handling from 5 to 140 W RMS
- Sensitivity of 90 dB (2.83 V/1 m)
- Satin Brilliant White finish
Installation

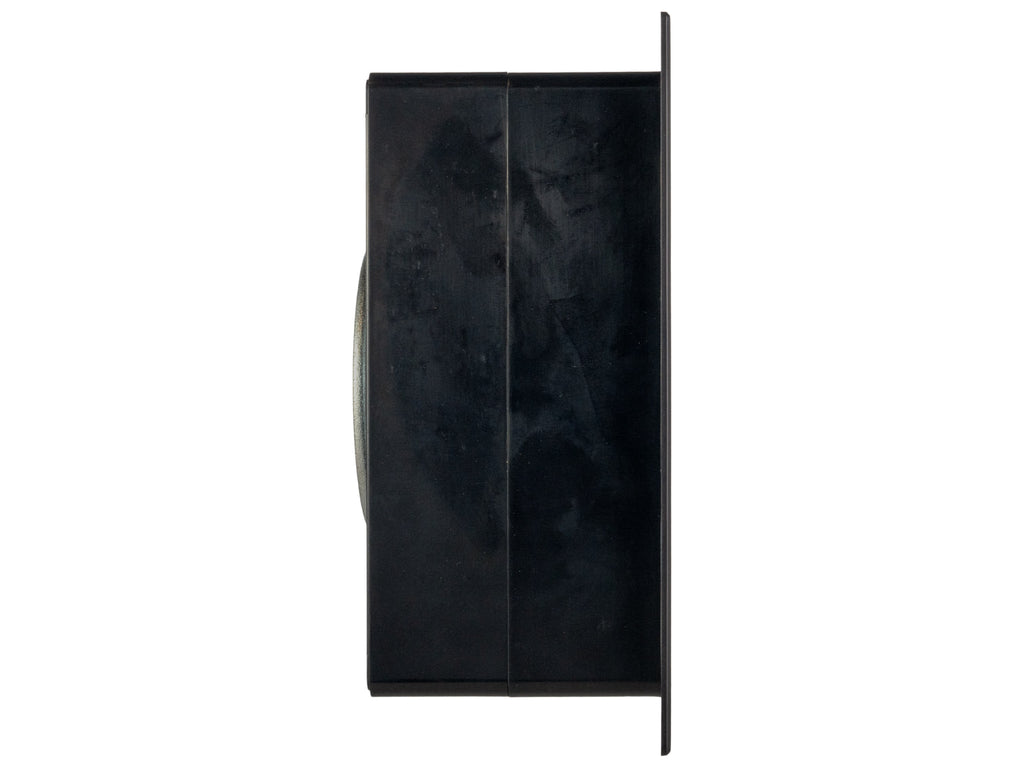

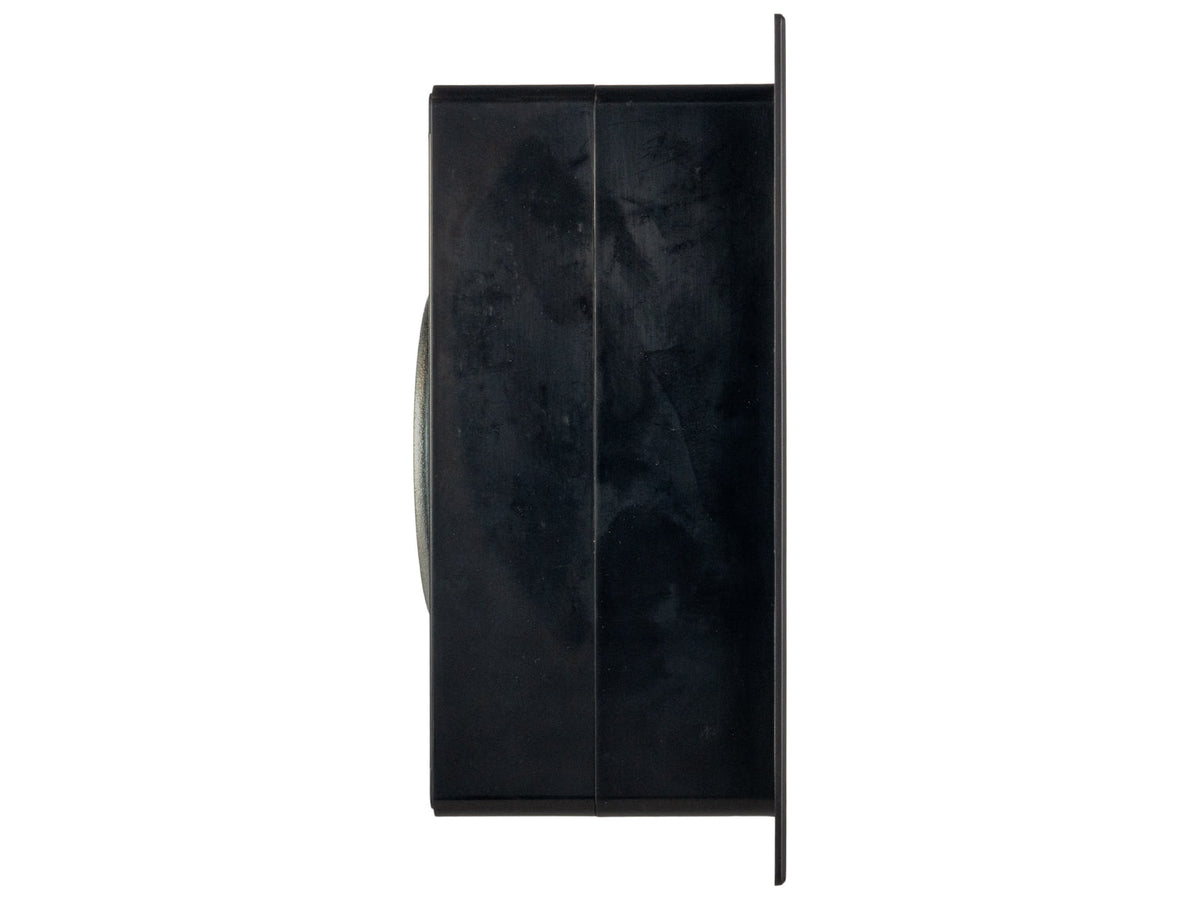

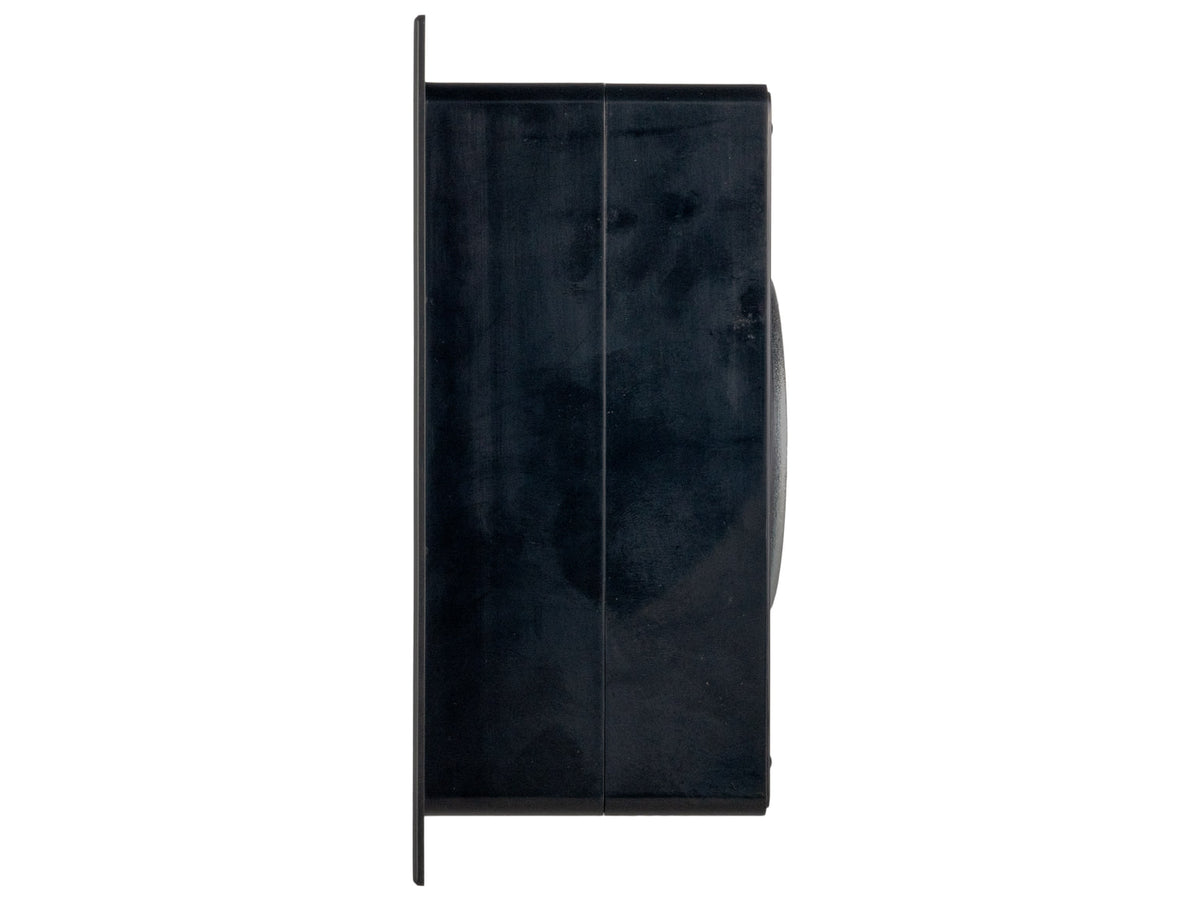

The cut-out measures 176 x 370 mm and the mounting depth is 89 mm. The series offers a standard single-stage installation or, as an option, a two-stage one: cabling and space reservation are done before construction, and the job ends when the speaker module is snapped into place.
Finishes and grilles
Grilles for the Visual Experience series come in Micro Trim, Trimless and TRUFIG-mounted Trimless styles; the optional TRUFIG finish aligns the speaker with the surface for a smooth, flush result. The VX66 LCR is sold individually.
