Round 8" Single Stereo speaker for in-ceiling mounting
Sonance VX86R SST is a round 8" Single Stereo speaker from the Visual Experience series, with a dual voice coil on both tweeter and woofer and a white Micro Trim grille.

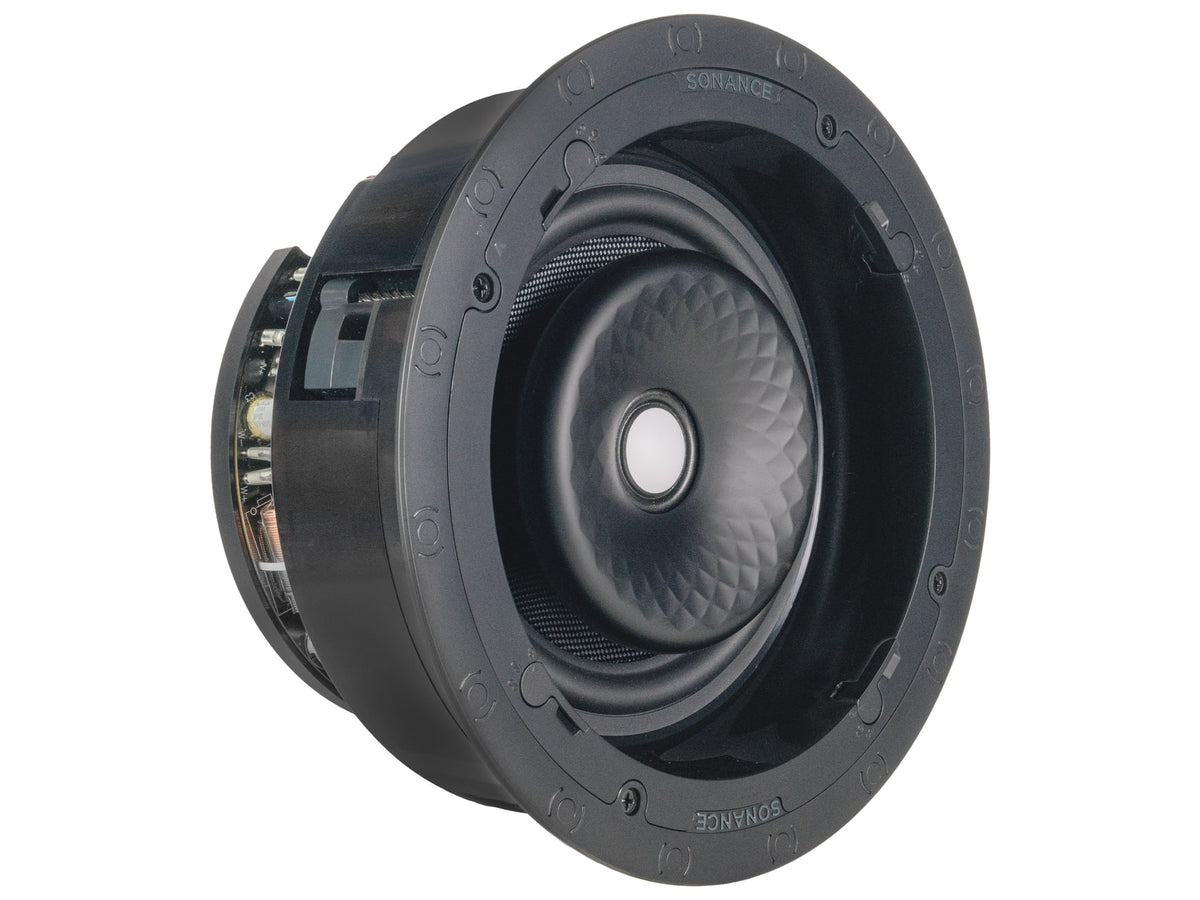

It fits a circular ceiling opening 257 mm across and needs 140 mm of mounting depth. The woofer pivots and has a cone in Kevlar / Nomex; the tweeter uses a ceramic dome.
Key features
- Tweeter: 30 mm (1.2") dome in ceramic with dual voice coil, cooled with Ferrofluid and backed by an acoustic chamber
- Woofer: pivoting 8" (203 mm) unit, with a cone in Kevlar / Nomex, a surround in rubber and dual voice coil
- Frequency range from 34 Hz to 20 kHz (+/- 3 dB)
- Handles from 5 to 150 watts RMS
- Sensitivity of 91 dB (2.83 V at 1 m)
- Waveguide engineered for the widest coverage and for listening that stays detailed, comfortable and even
- Sonance CDX crossover, designed to keep warmth and detail at every volume level
Installation
The cut-out is 257 mm in diameter and the mounting depth is 140 mm. Fitting in a single stage is the standard method; a two-stage method is optional, in which the wiring and the space for the speaker are prepared before construction and the job ends when the speaker module snaps into place. TRUFIG finishing and installation is a further option: a repeatable procedure that gives precise alignment and a smooth result, flush with the surrounding surface.
Finishes and grilles
The VX86R SST has a Micro Trim grille in satin Brilliant White. Within the Visual Experience series the grille styles are Trimless, Micro Trim and a Trimless version mounted with TRUFIG.
